Backup Lamp Switch: Testing and Inspection

INSPECTION

BACKUP LIGHT SWITCH

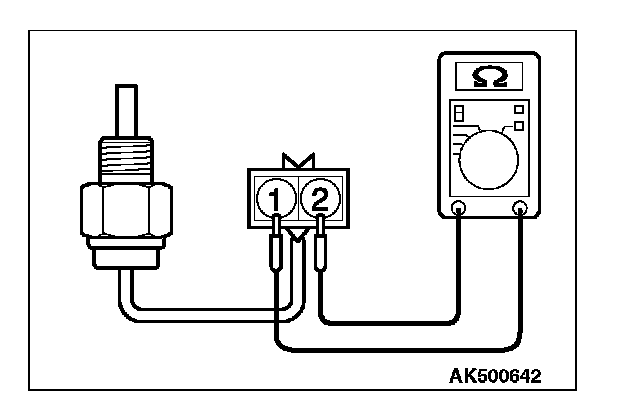

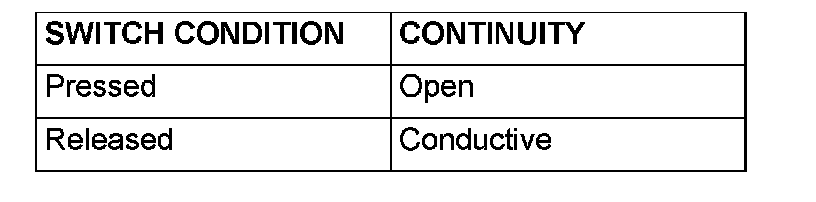

Check for continuity between terminals.
