Home >> Mitsubishi >> 2007 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Blower Motor Switch >> Testing and Inspection

Blower Motor Switch: Testing and Inspection

INSPECTION

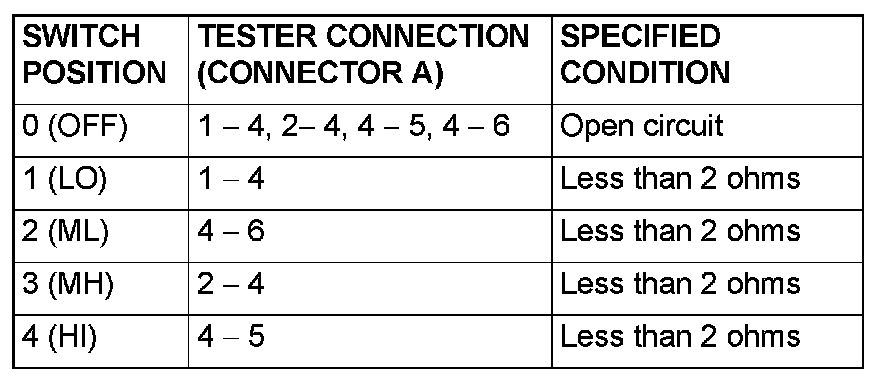

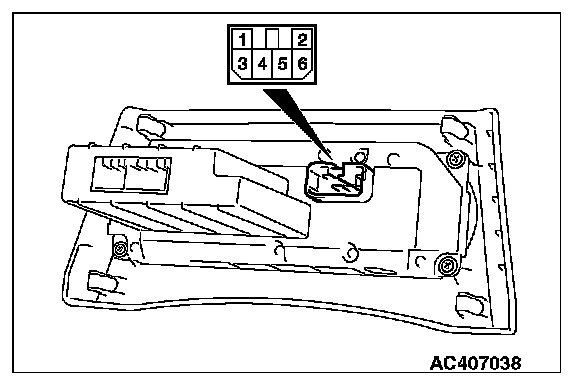

BLOWER SWITCH CONTINUITY CHECK
Check and replace the heater control if they are defective.
