Restraints - Revised SRS Data Reference Table
No: TSB-09-52B-001DATE: January, 2009
MODEL:
See Below
SUBJECT:
SRS DATA LIST REFERENCE TABLE NOTE CHANGED - SERVICE MANUAL REVISION
PURPOSE
In several "Notes" that refer to the Data Reference Table, the wording "or non-ignition judgement" has been deleted. This Technical Service Bulletin supplies replacement pages for the applicable service manuals.
AFFECTED VEHICLE(S)
2006 Lancer
2005-06 Outlander
2005-09 Galant
2006-09 Eclipse
2007-09 Eclipse Spyder
2007-08 Endeavor

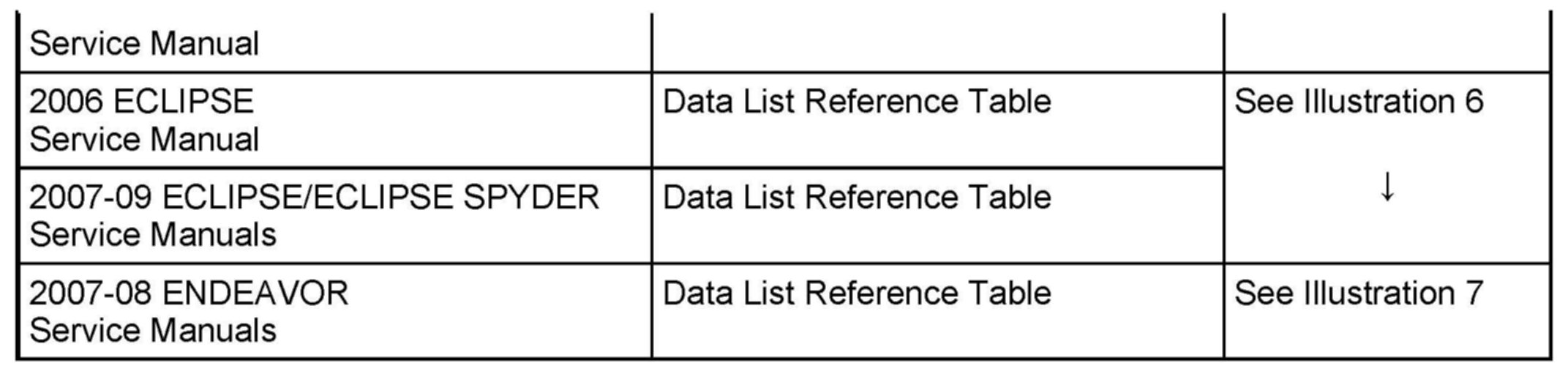

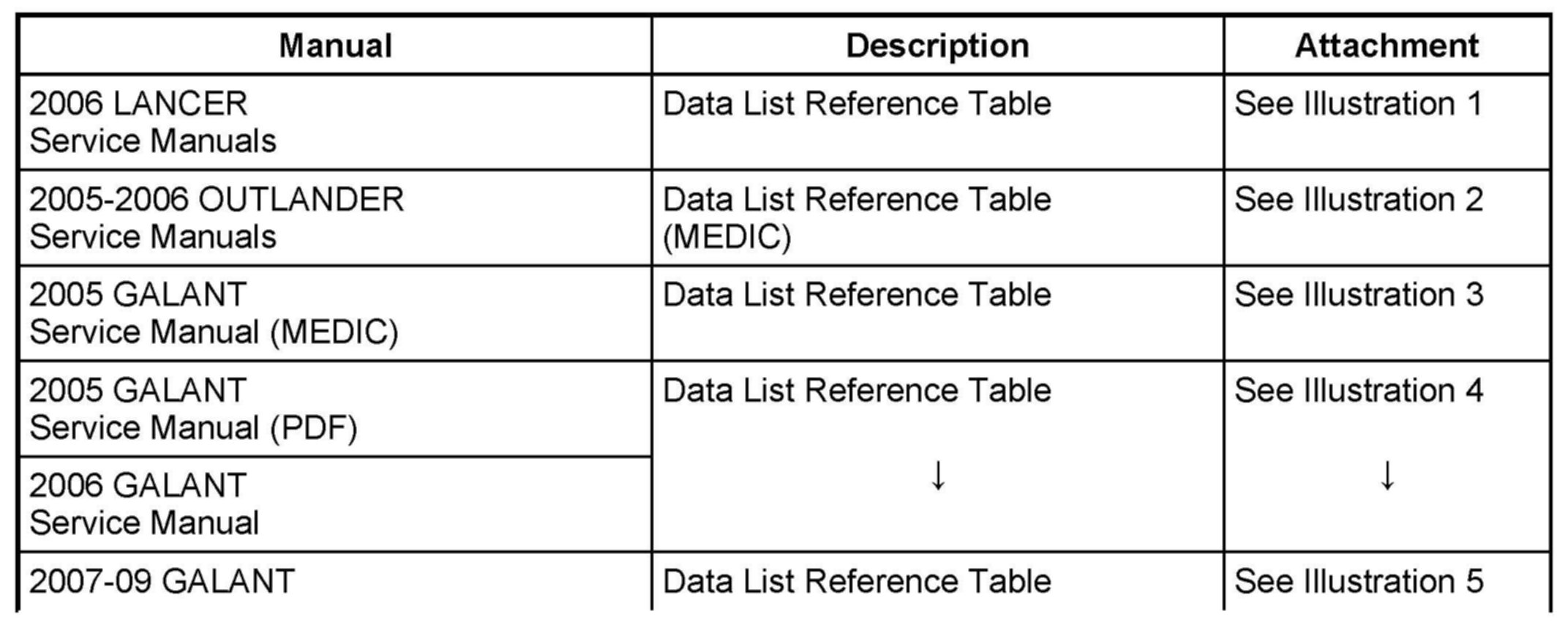

APPLICABLE MANUAL(S)

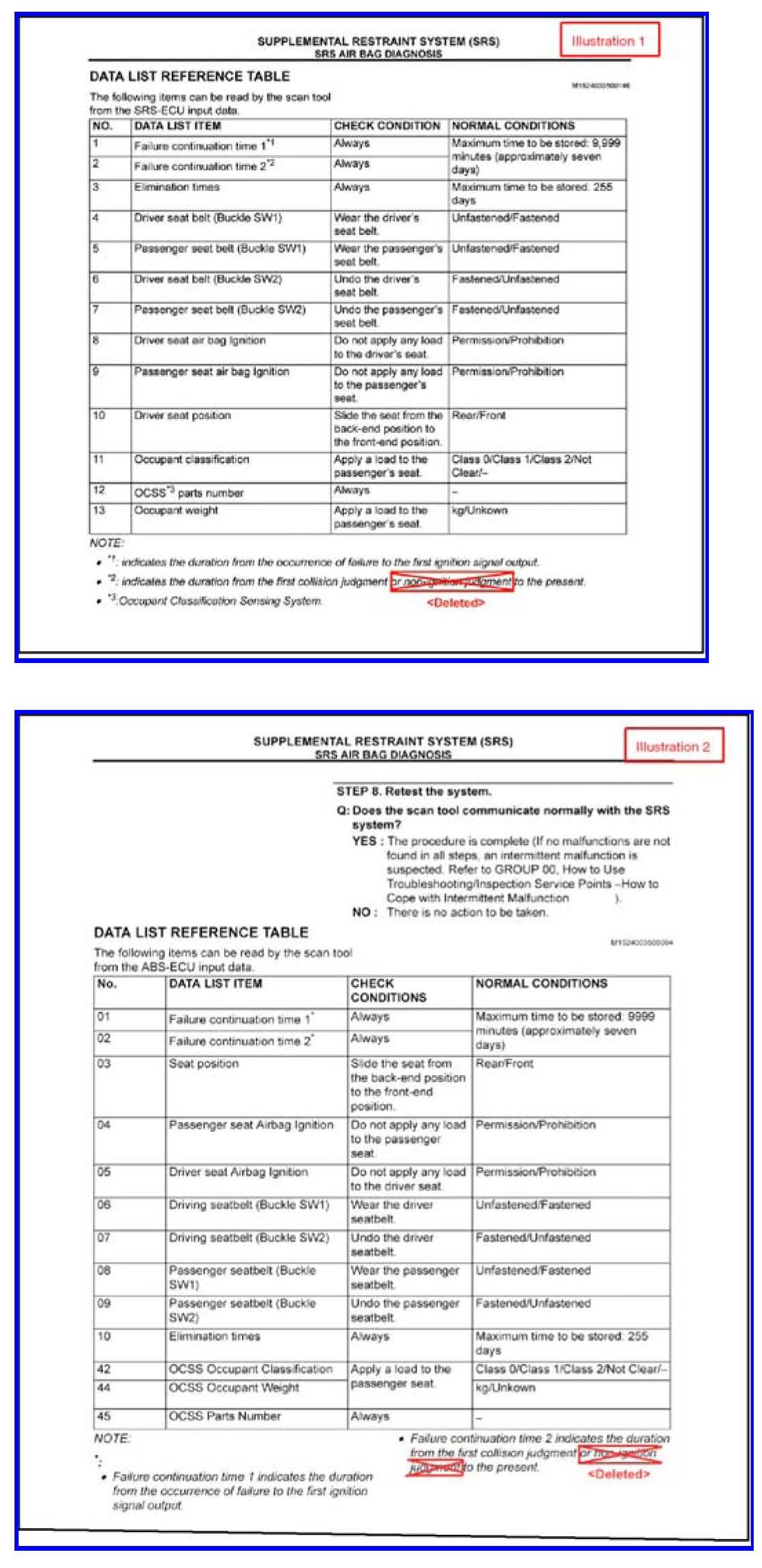

Illustrations 1 and 2

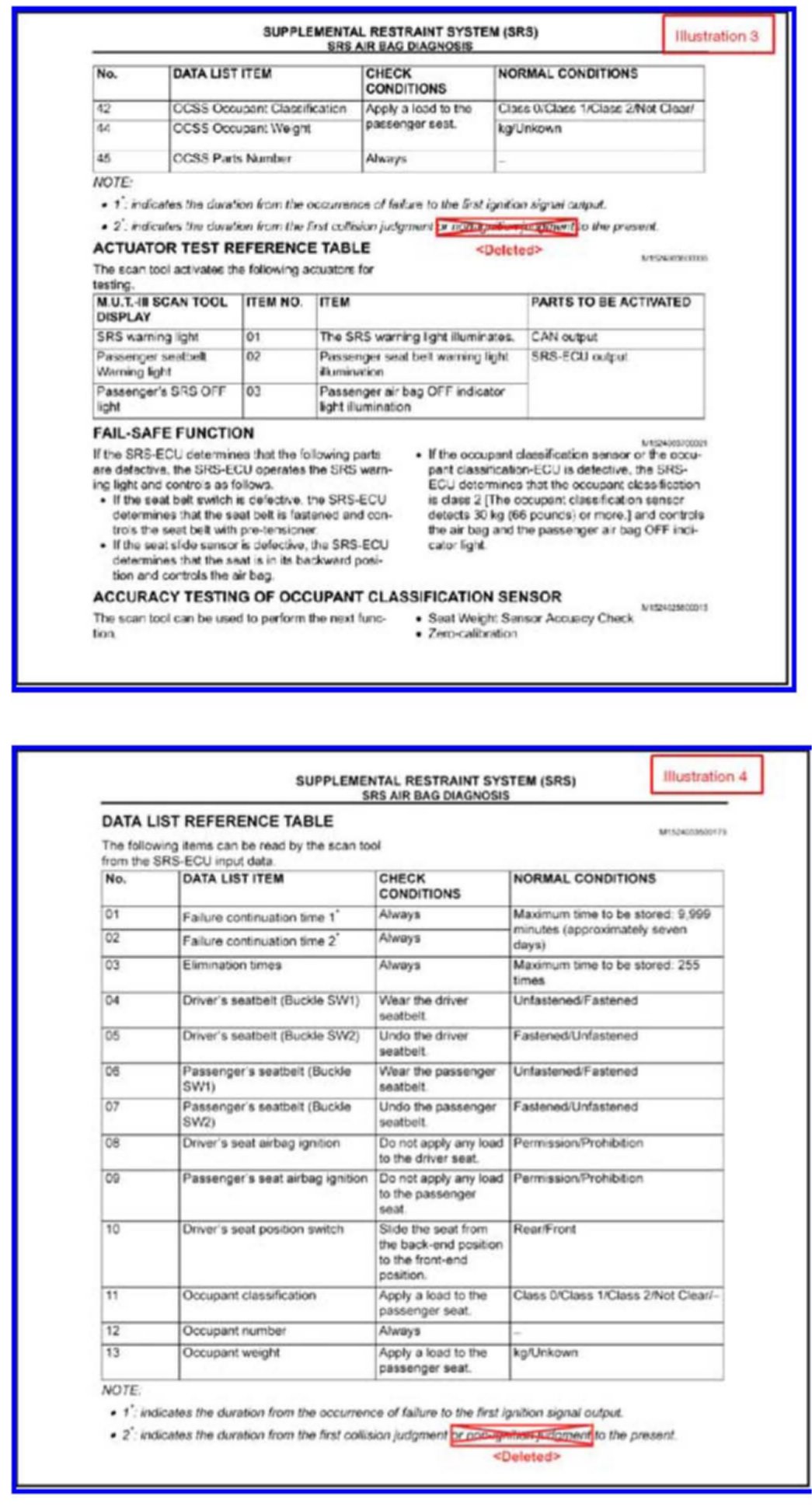

Illustrations 3 and 4

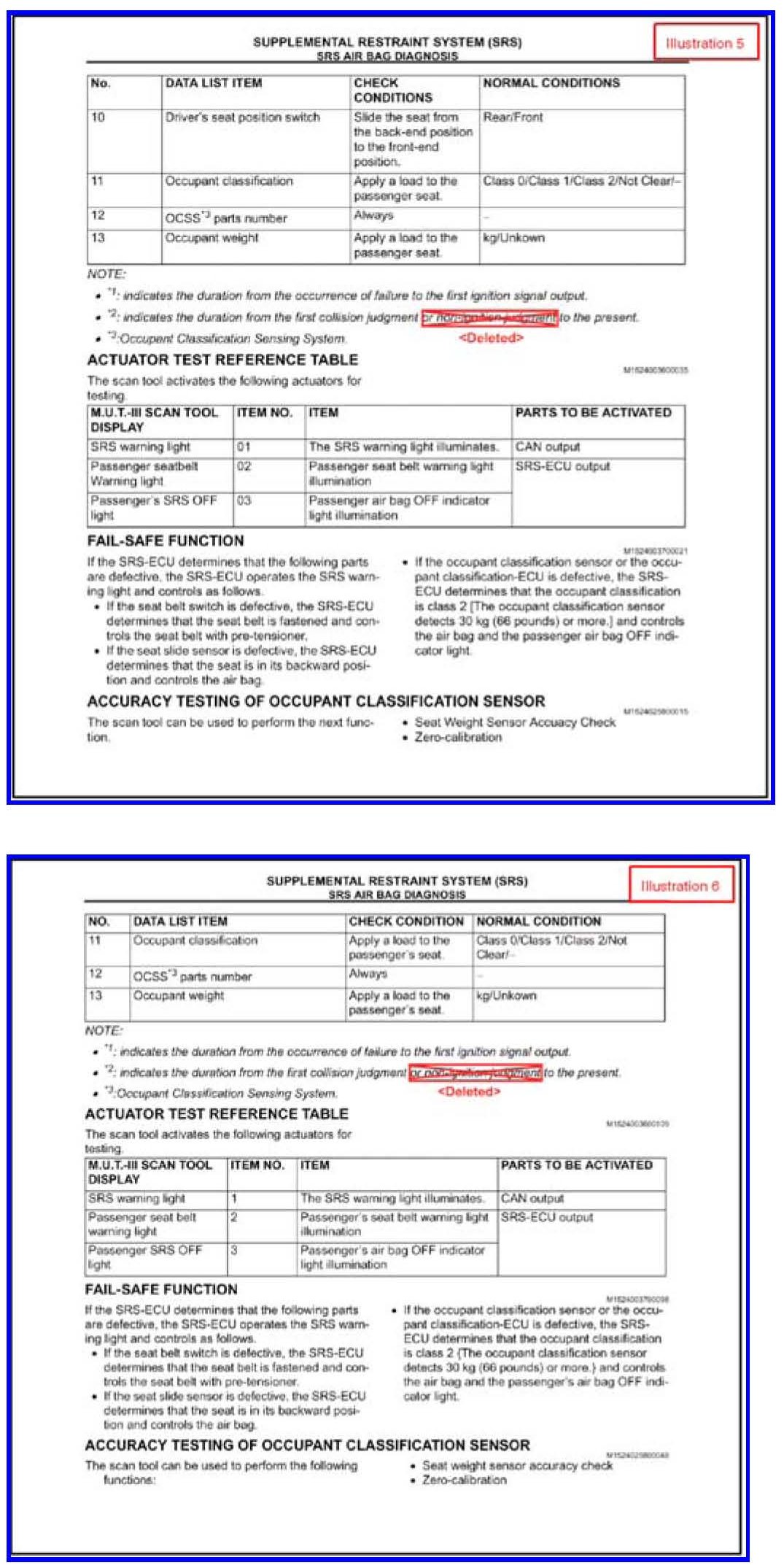

Illustrations 5 and 6

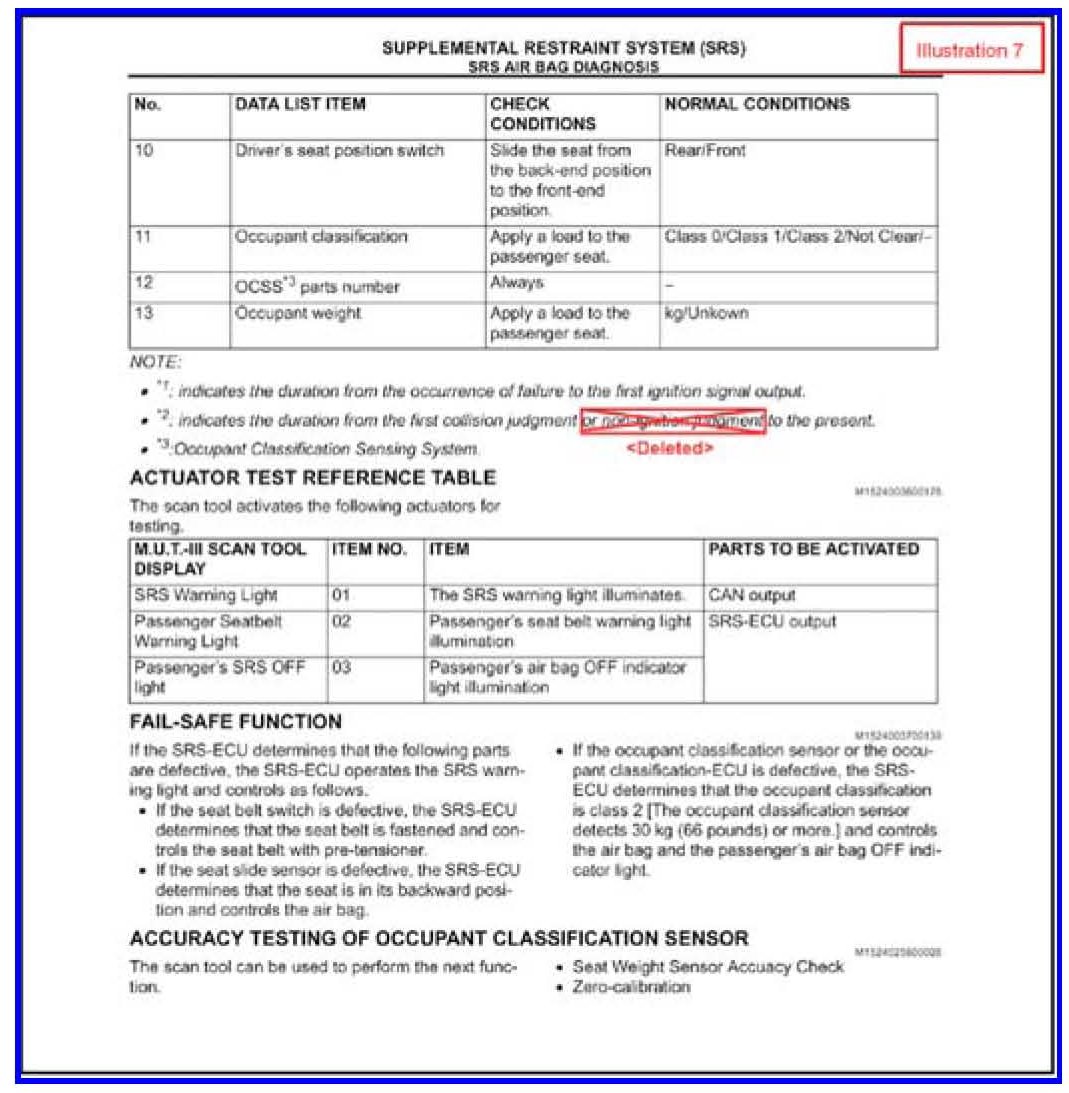

Illustration 7
