Circuit Diagram

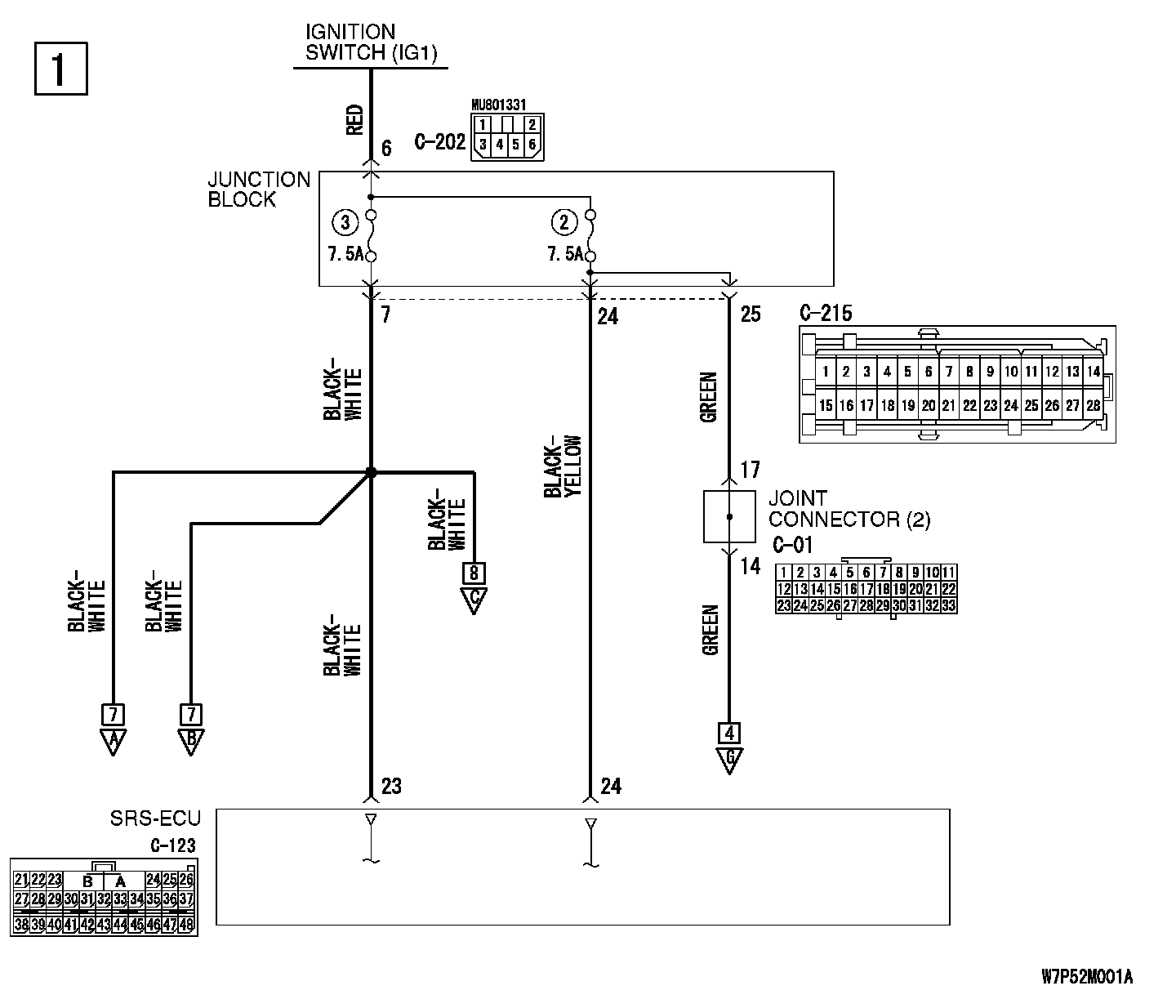

Circuit Diagram Part 1:

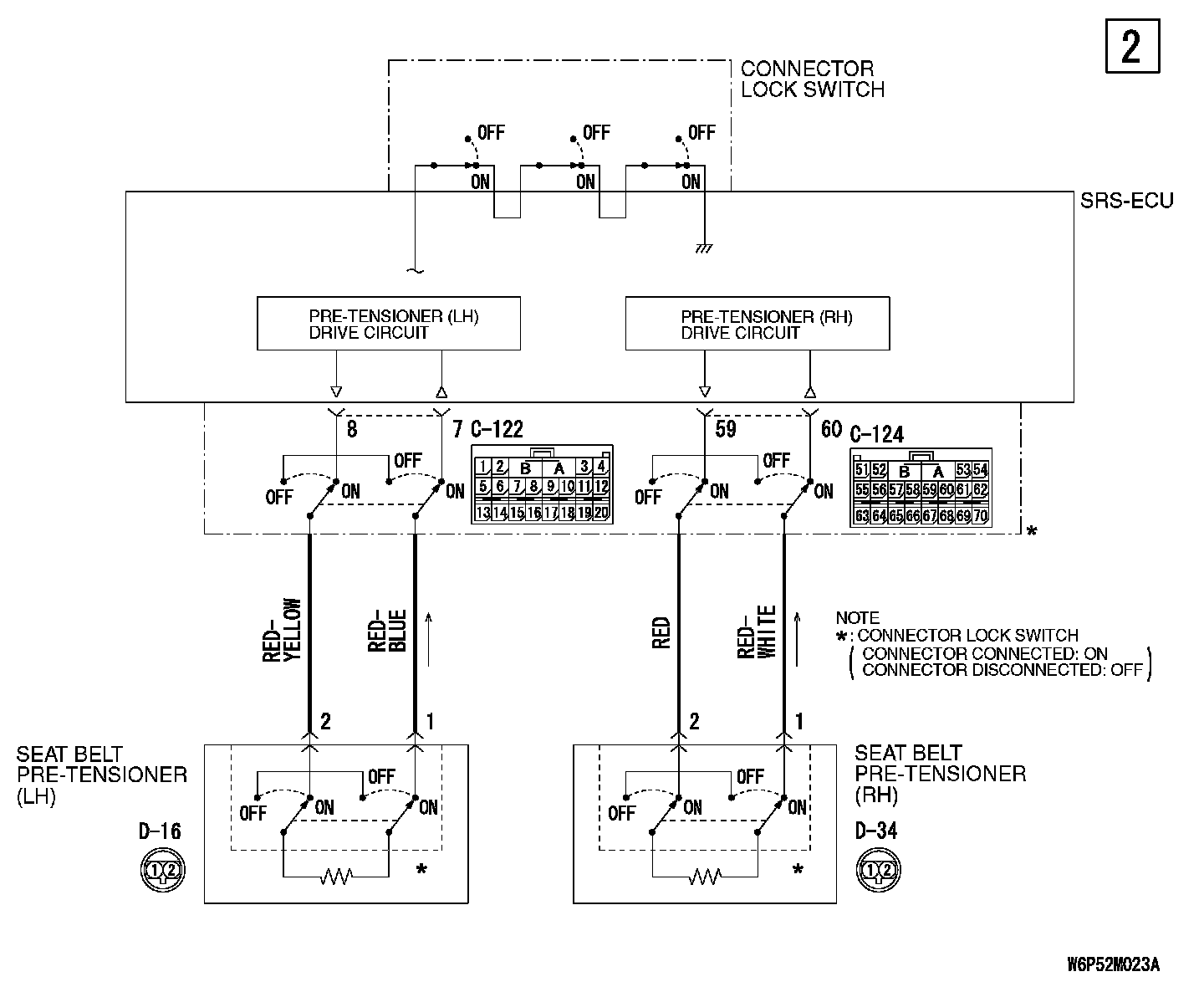

Circuit Diagram Part 2:

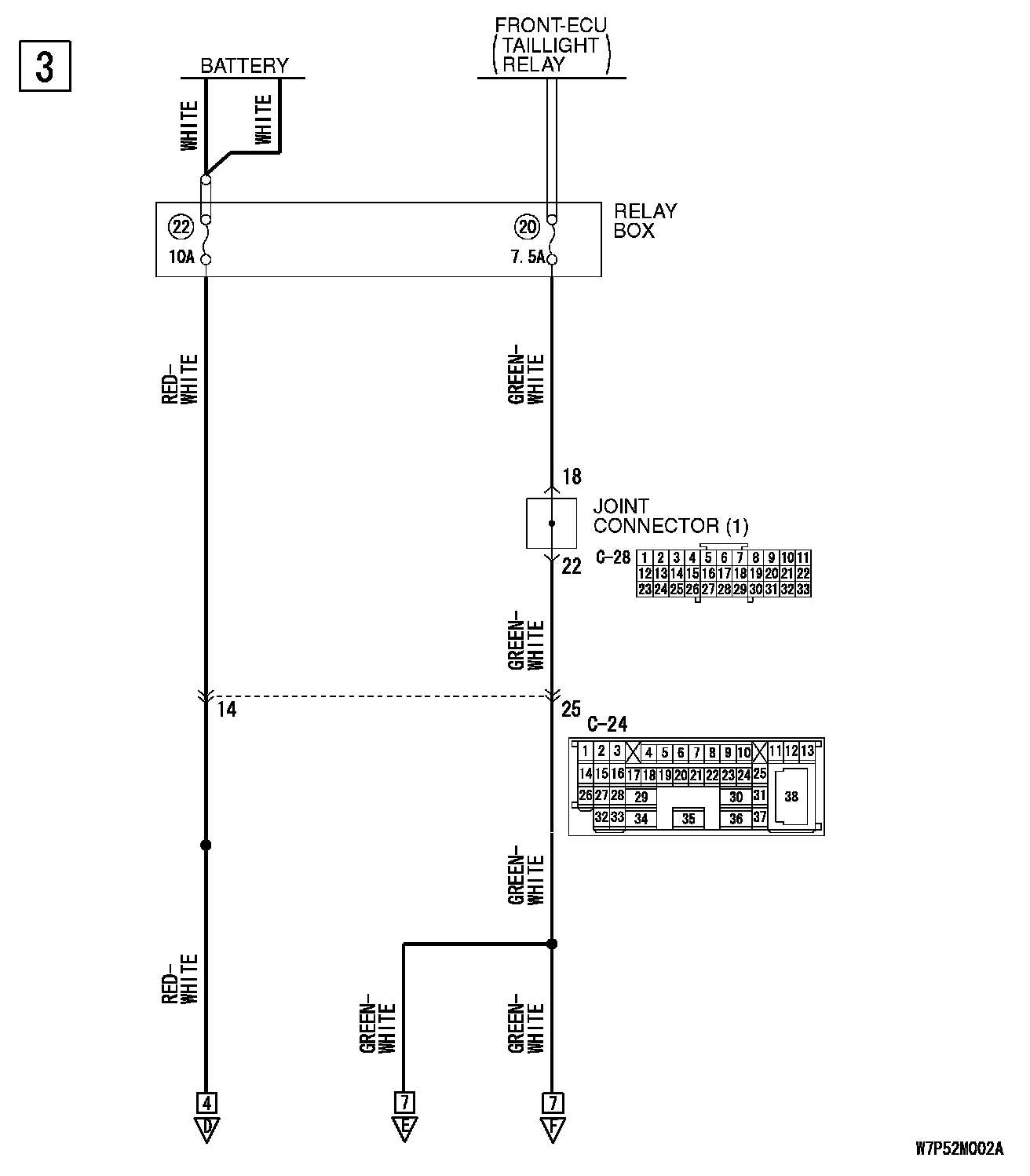

Circuit Diagram Part 3:

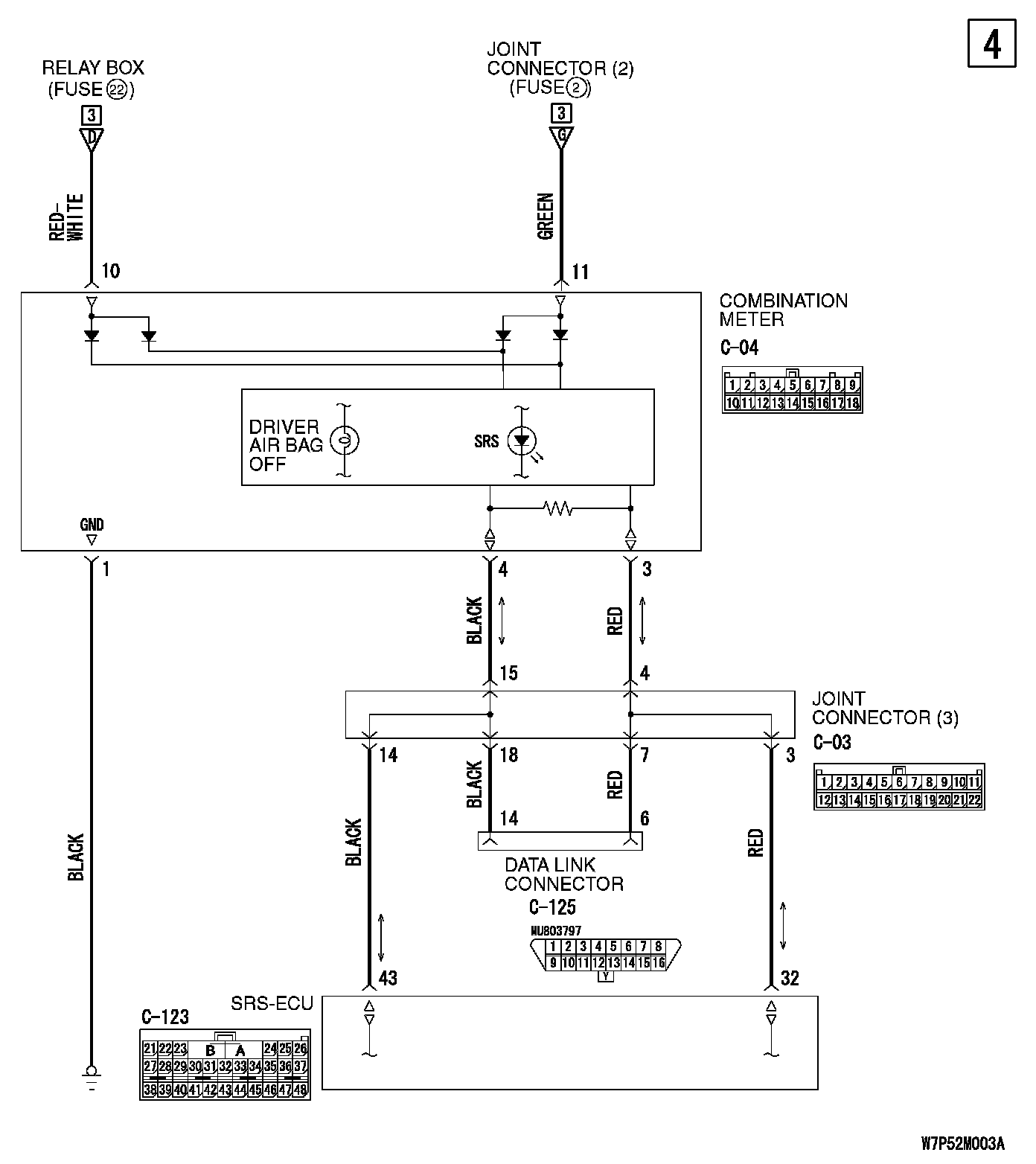

Circuit Diagram Part 4:

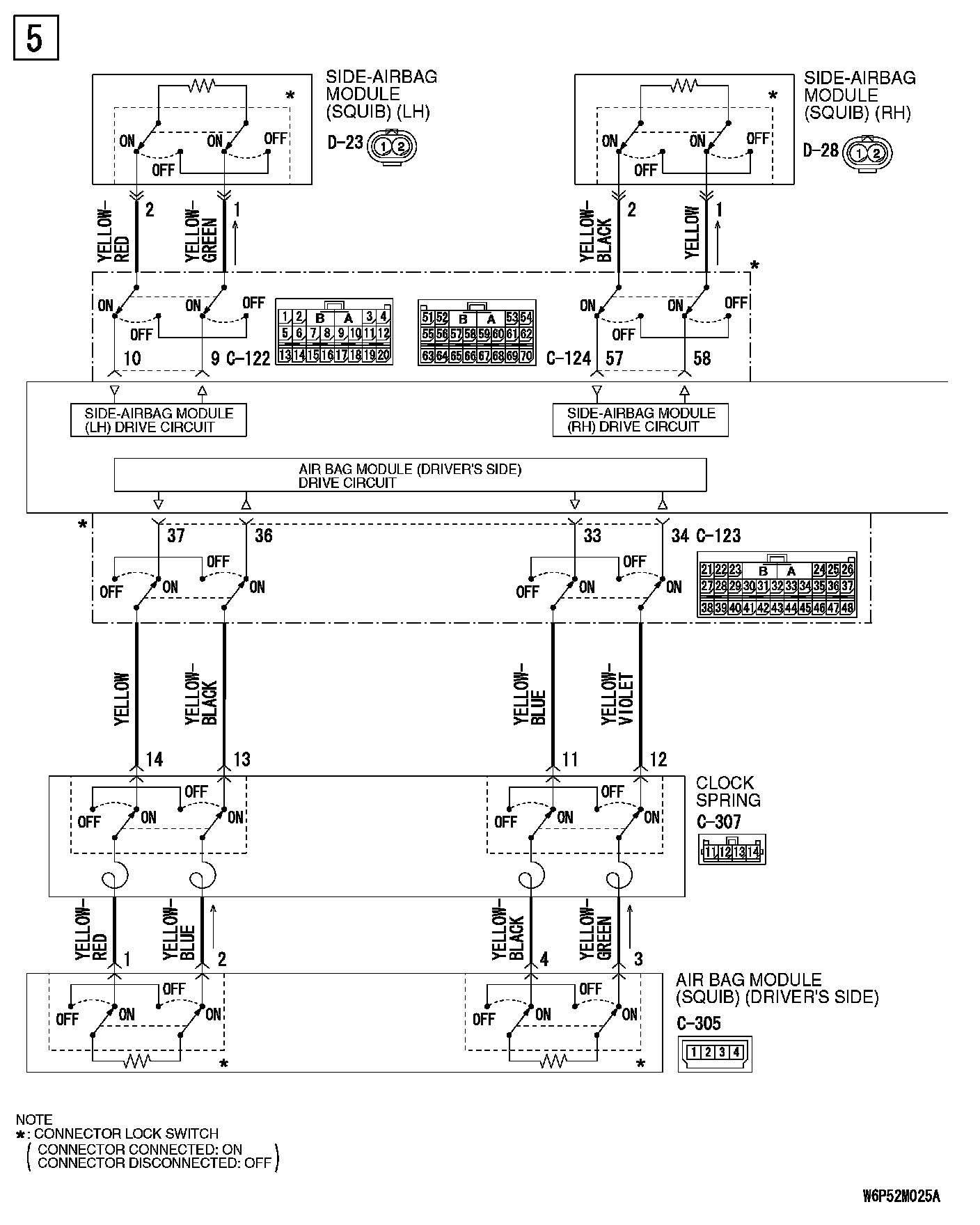

Circuit Diagram Part 5:

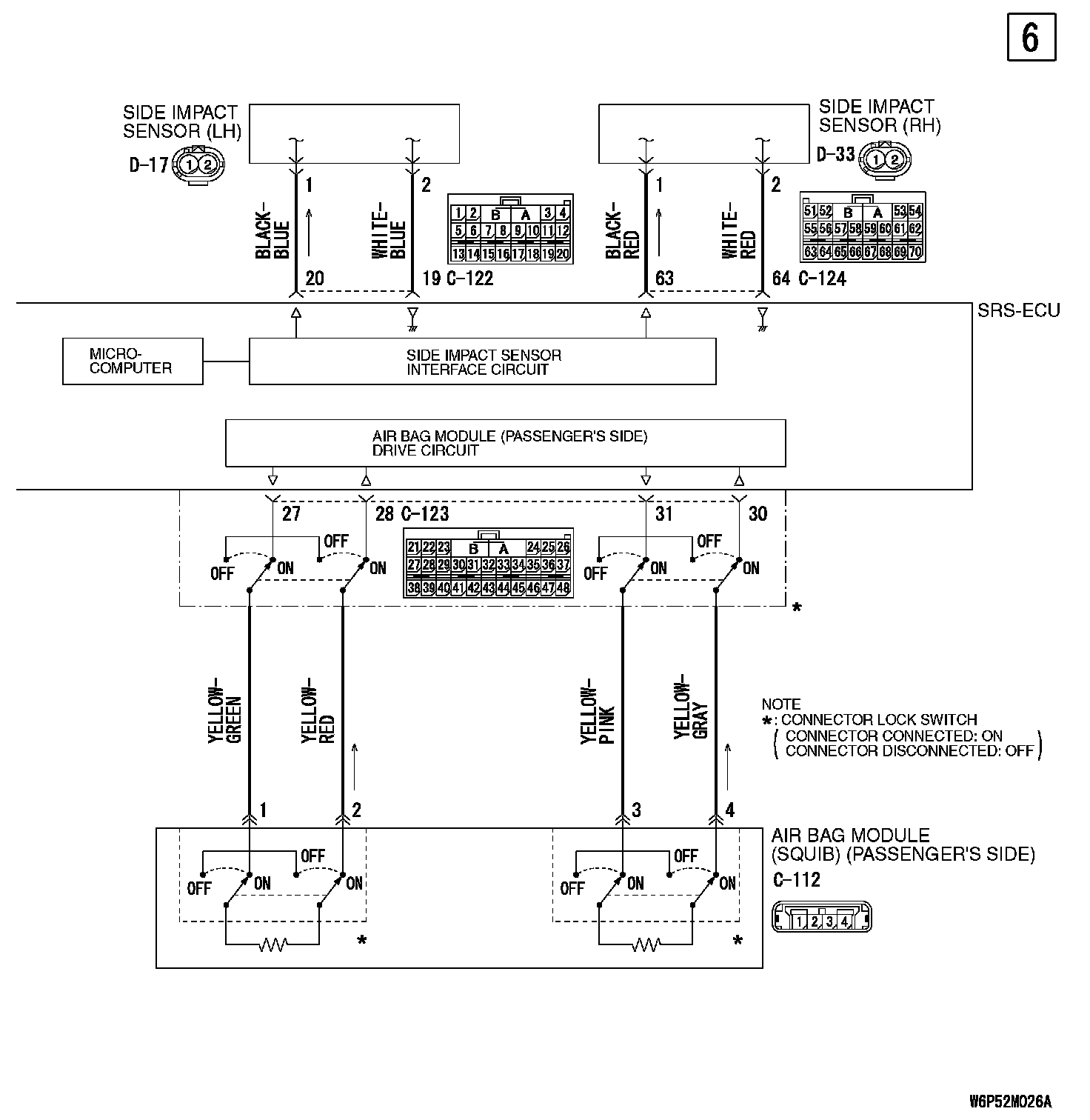

Circuit Diagram Part 6:

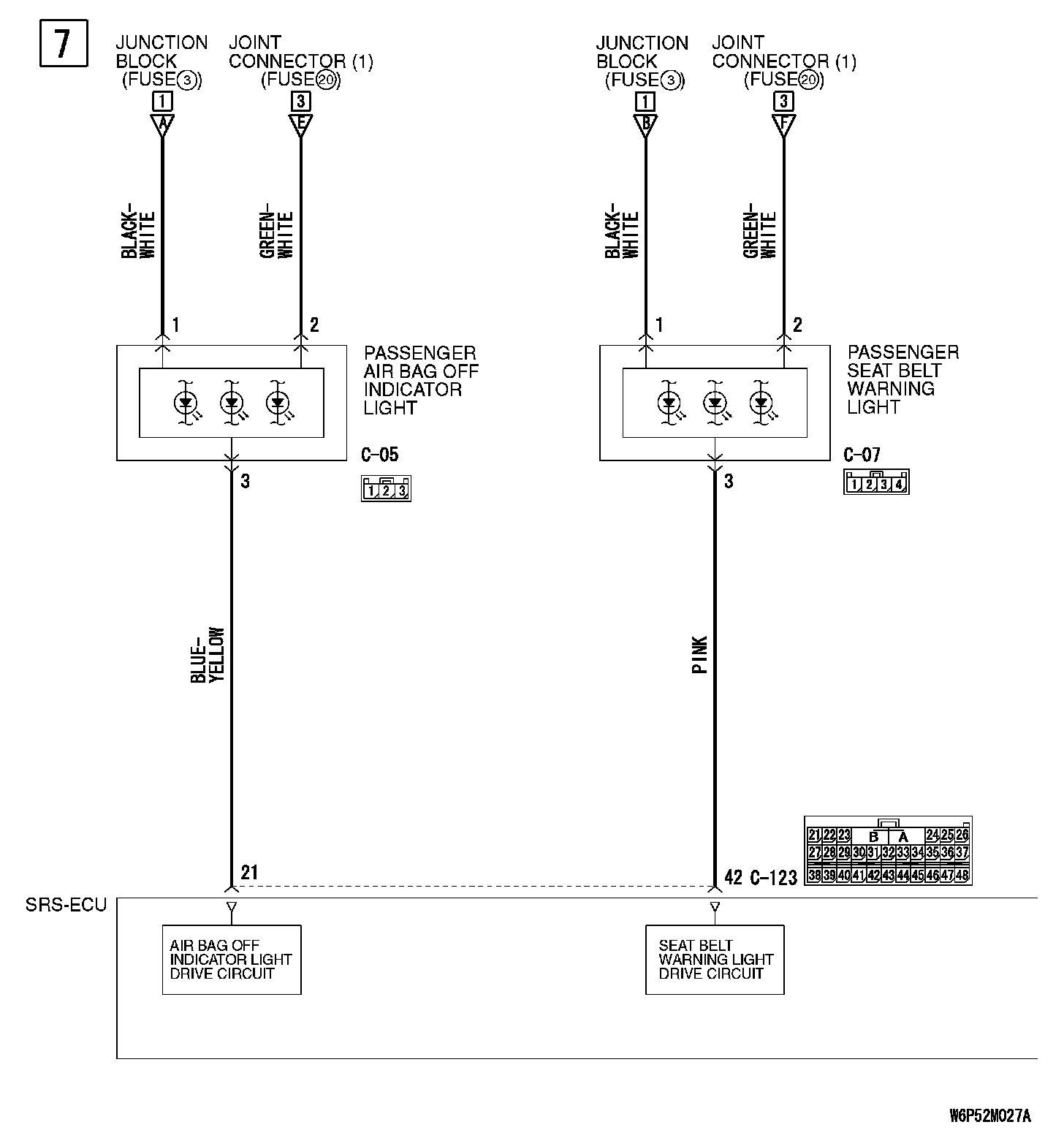

Circuit Diagram Part 7:

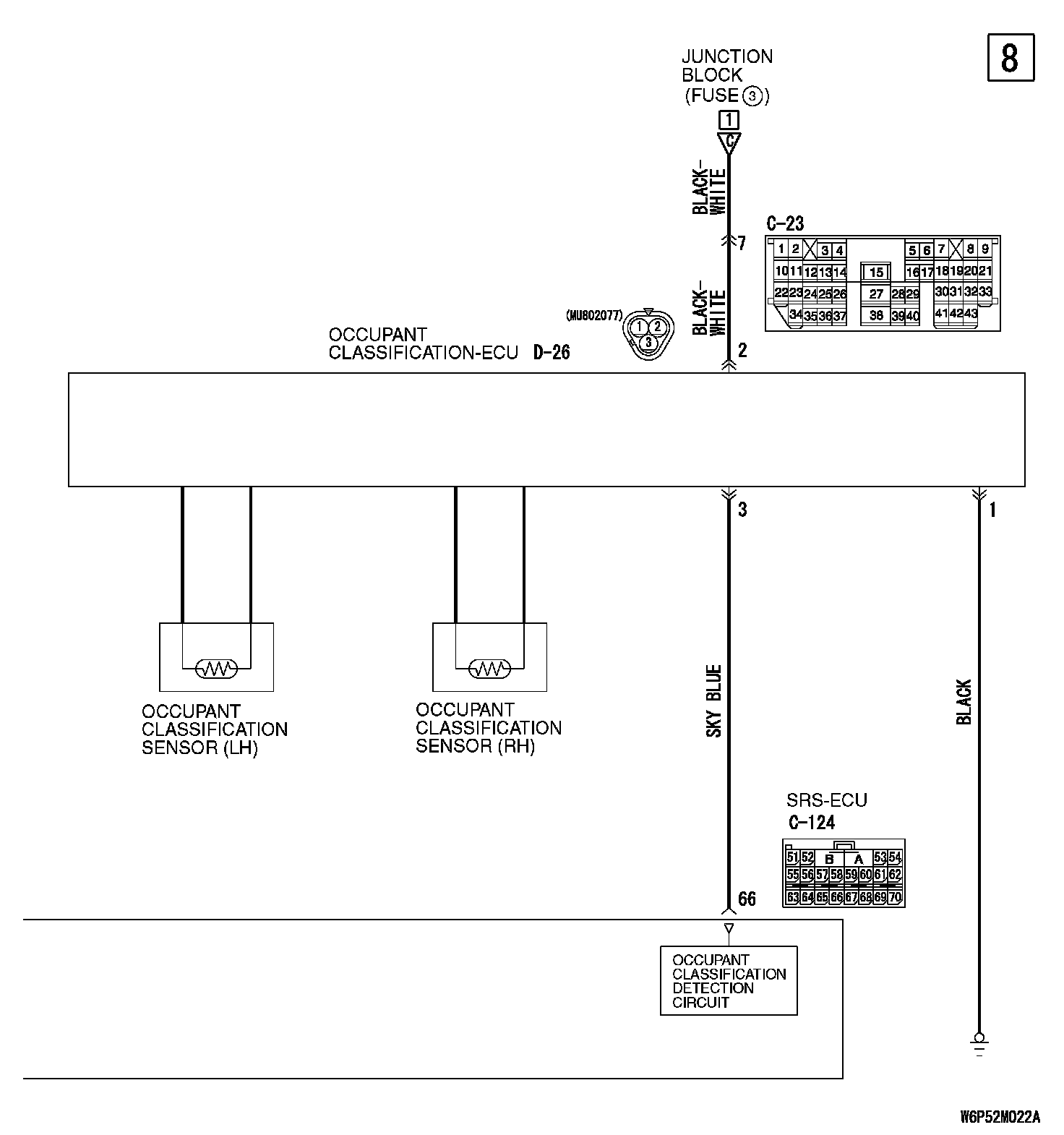

Circuit Diagram Part 8:

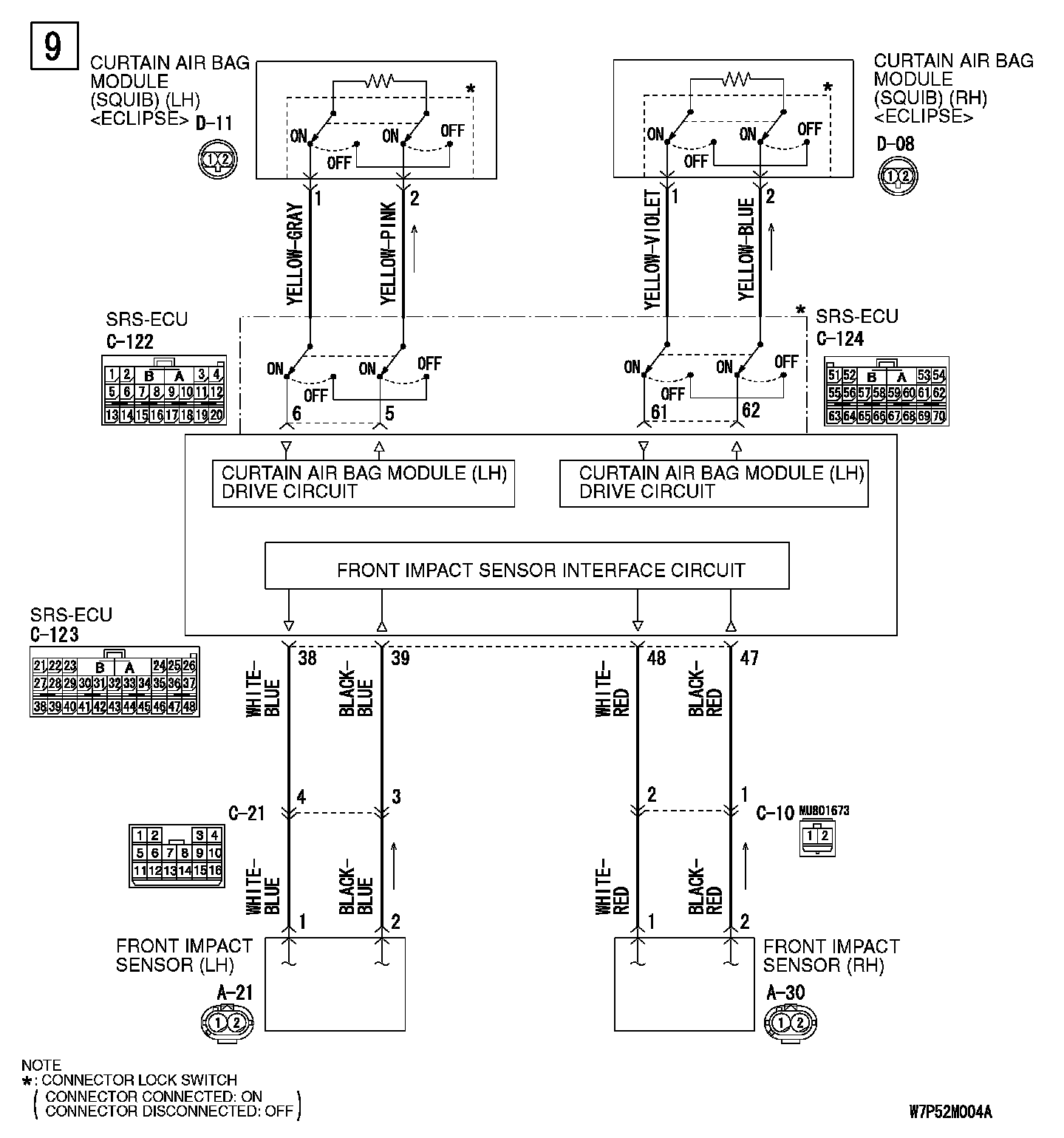

Circuit Diagram Part 9:

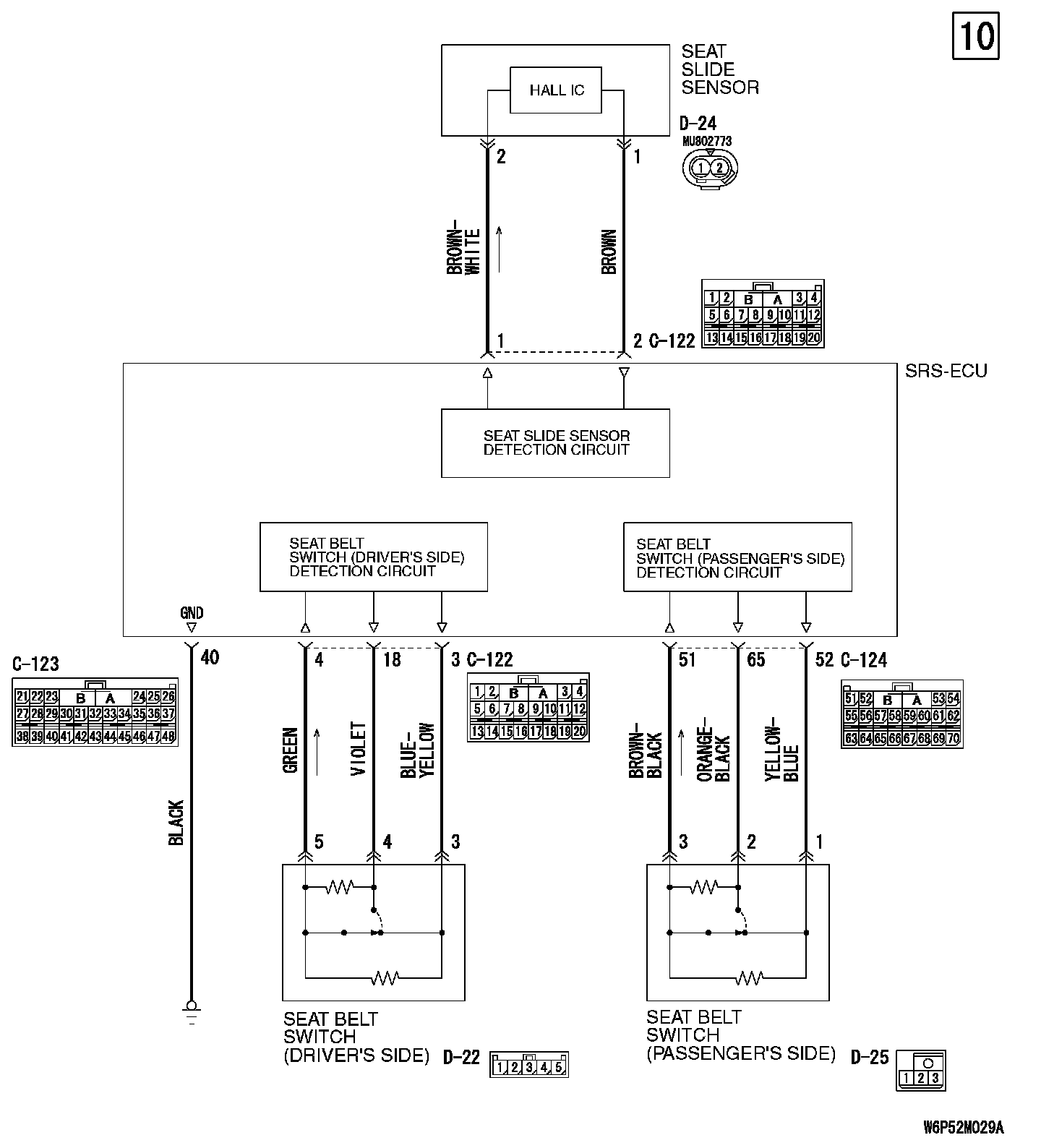

Circuit Diagram Part 10:

CIRCUIT DIAGRAM

WARNING:
- Do not repair, splice, or modify the SRS wiring (except for specific repairs to the instrument panel wiring harness and the floor wiring harness): replace wiring if necessary, after reading and following all precautions and procedures.
- Do not use an analog ohmmeter to check the SRS wiring or components; use only the special tools and a digital multi-meter.

CAUTION: Improper services cause the system to be inoperative. Do not disassemble or tamper with the SRS components to prevent serious injury.
