SRS Air Bag Special Connector

SRS Air Bag Special Connector:

SRS AIR BAG SPECIAL CONNECTOR

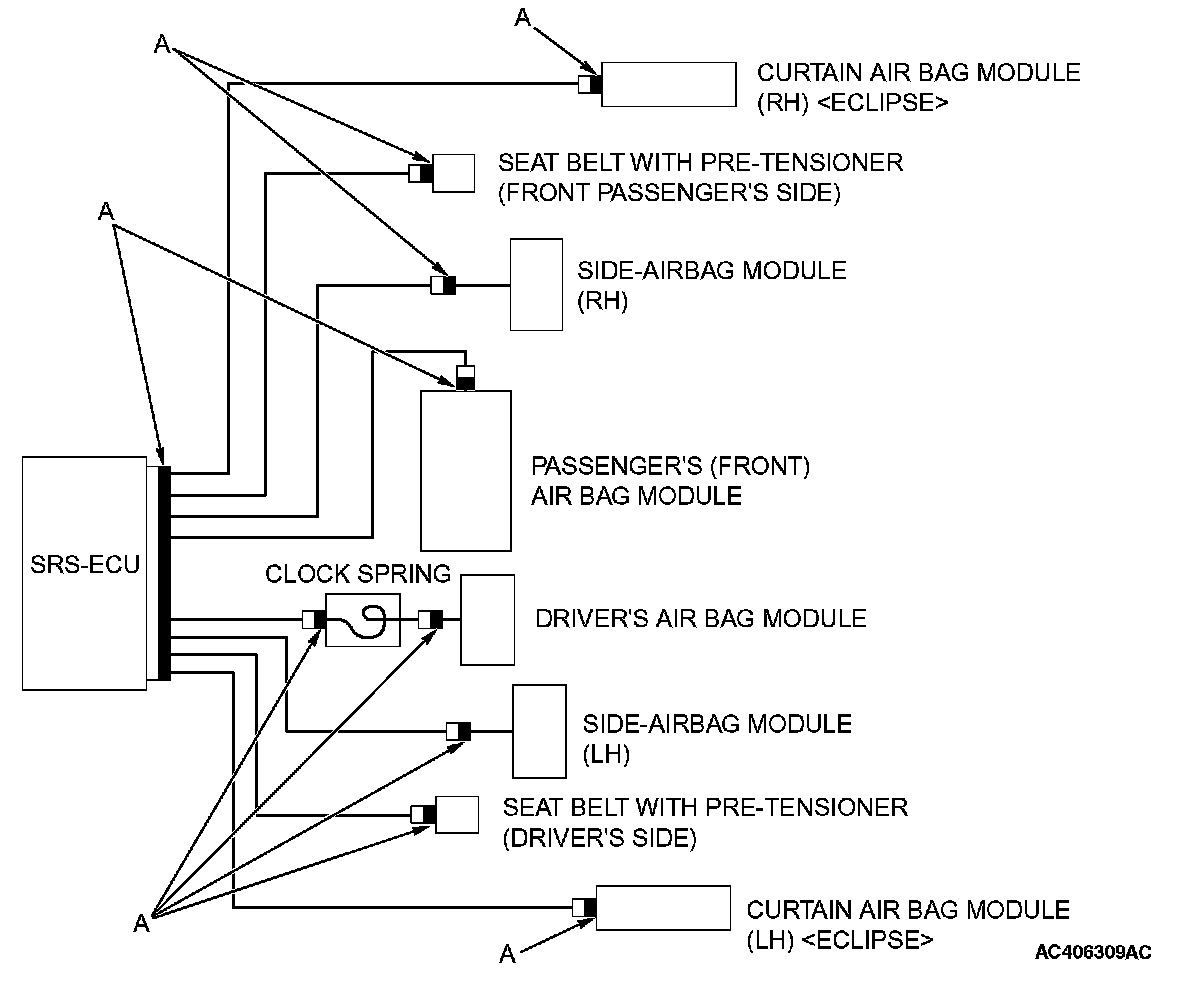

To enhance the system reliability, a connector lock switch is integrated in the SRS-ECU connector, the air bag module connectors, the clock spring connector, the seat belt pretensioner connectors (black connector "A" shown in the illustration).
