Fail-Safe/Backup Function

FAIL-SAFE/BACKUP FUNCTION
When a malfunction of a main sensor or actuator is detected by the PCM, the transaxle is controlled by pre-set control logic to maintain safe conditions for driving.

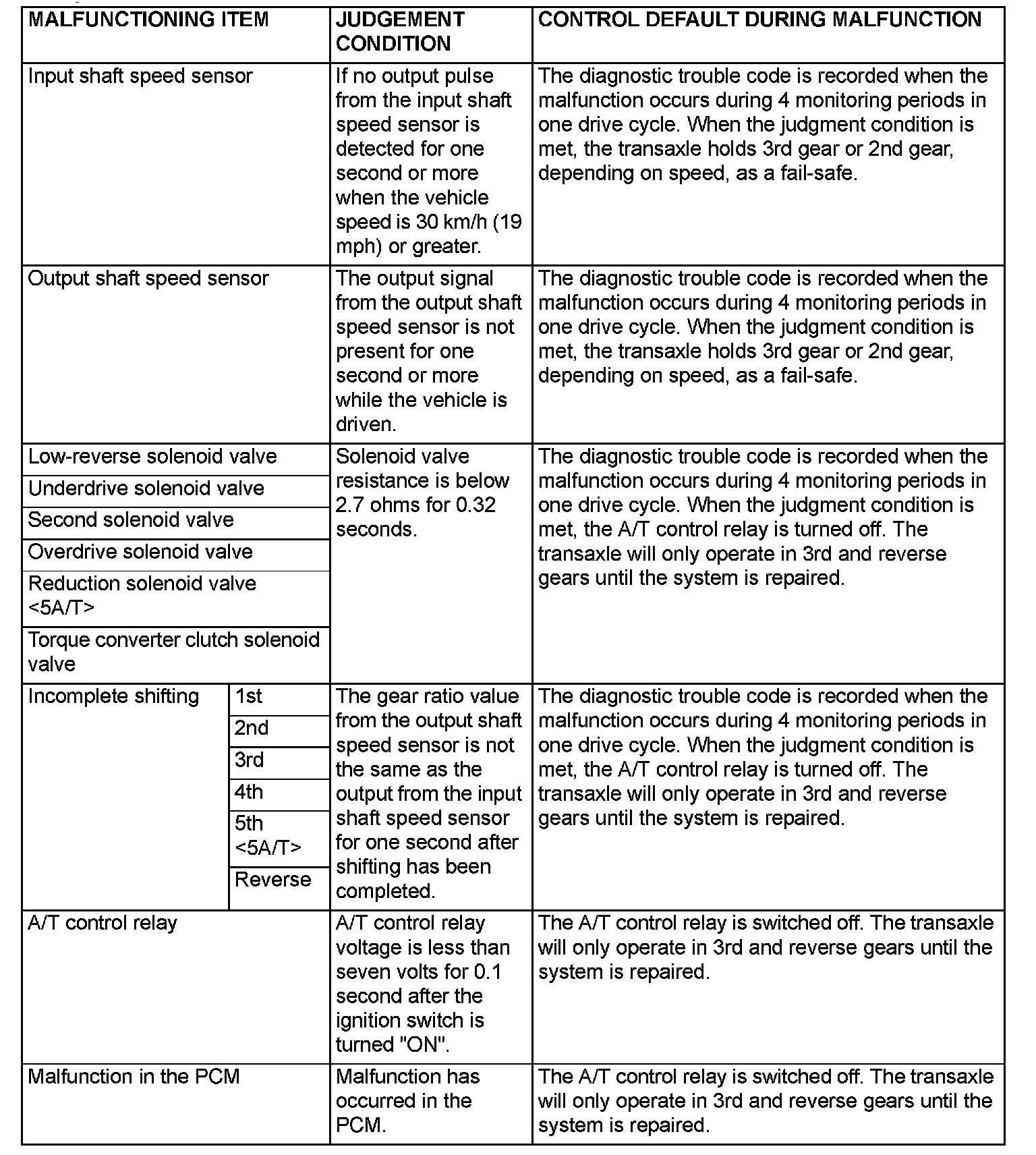

The following table shows how the fail-safe/backup function affects vehicle driveability and operation.
