Fuel System - Fuel Assembly/Disassembly Revision

No: TSB-09-13-005

DATE: April, 2009

MODEL: See Below

SUBJECT:
FUEL PUMP MODULE DISASSEMBLY AND ASSEMBLY PROCEDURES ADDED - SMR

PURPOSE

To add disassembly and assembly procedures for the fuel pump module due to the fuel level sensor being established as a separate part.

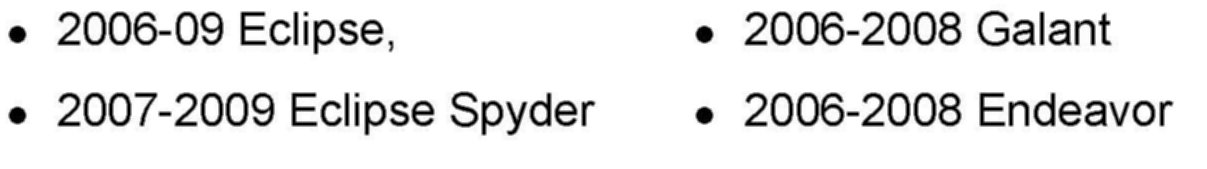

AFFECTED VEHICLE(S)

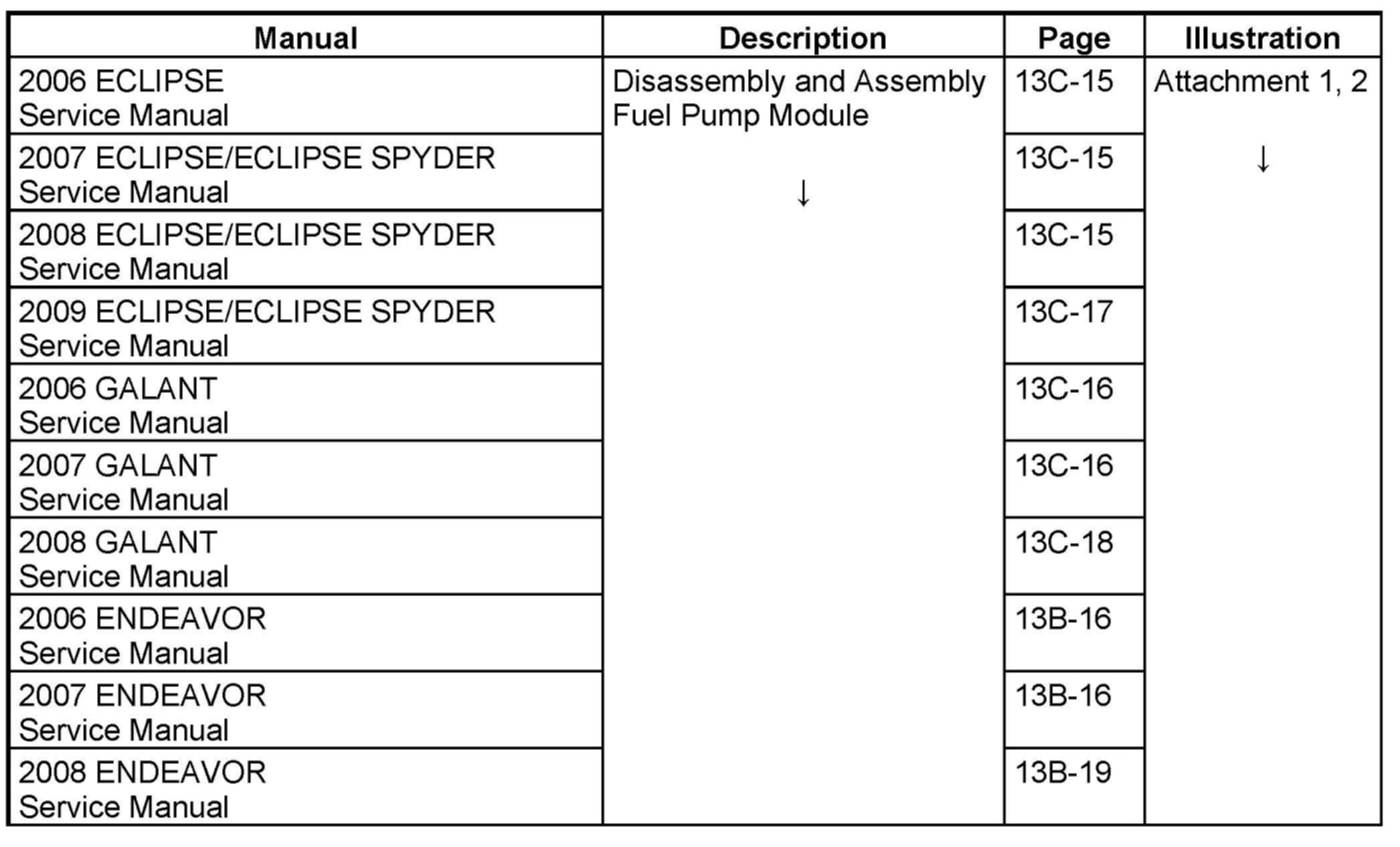

APPLICABLE MANUAL(S)

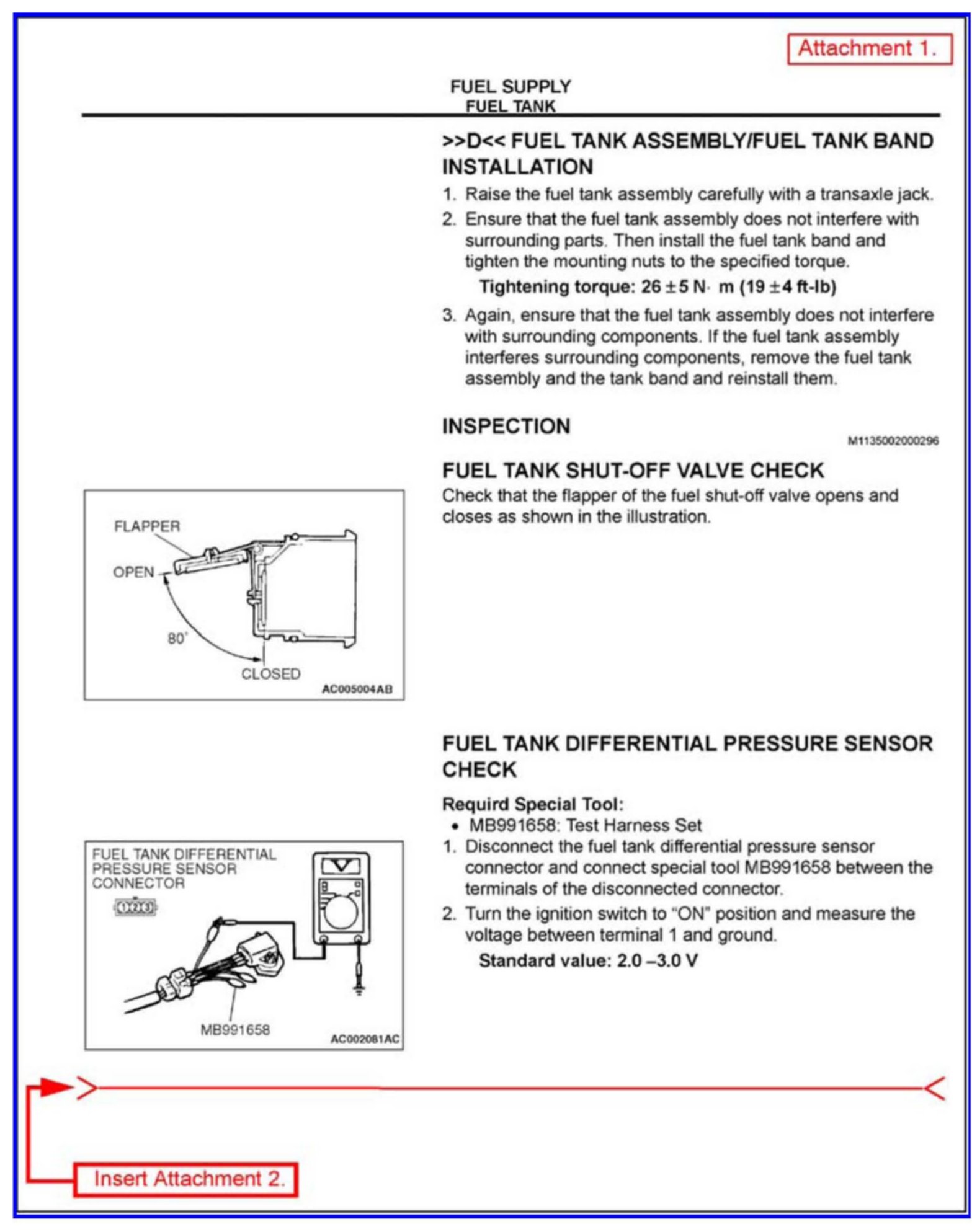

Attachment 1





Attachment 2
