Home >> Mitsubishi >> 2007 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Accelerator Pedal >> Service and Repair

Accelerator Pedal: Service and Repair

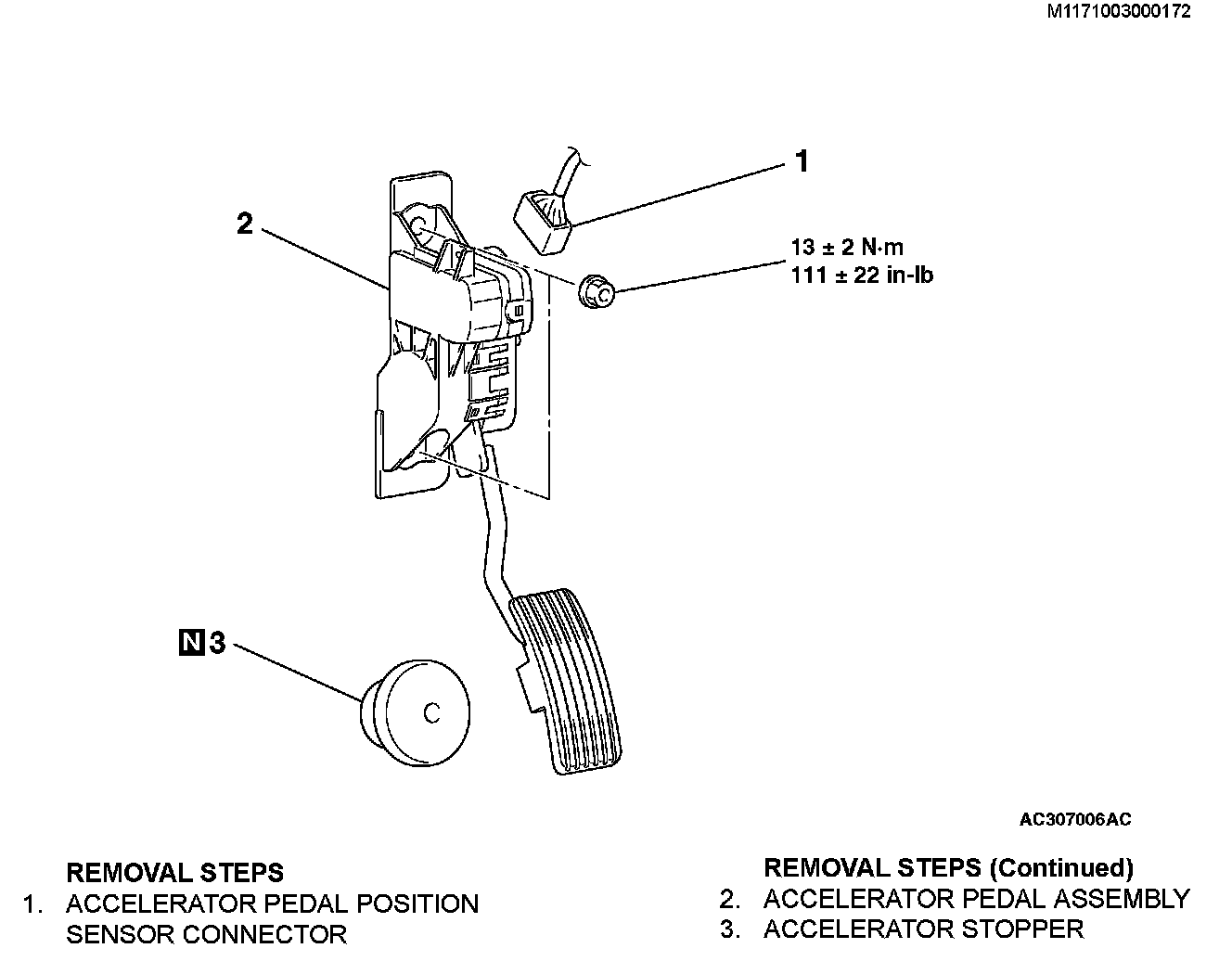

Removal Steps 1 - 3:
