Removal and Replacement

REMOVAL AND INSTALLATION <2.4L ENGINE>

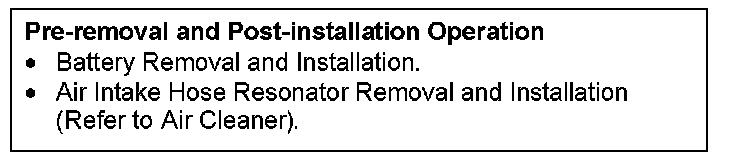

Pre-removal And Post-installation Operation:

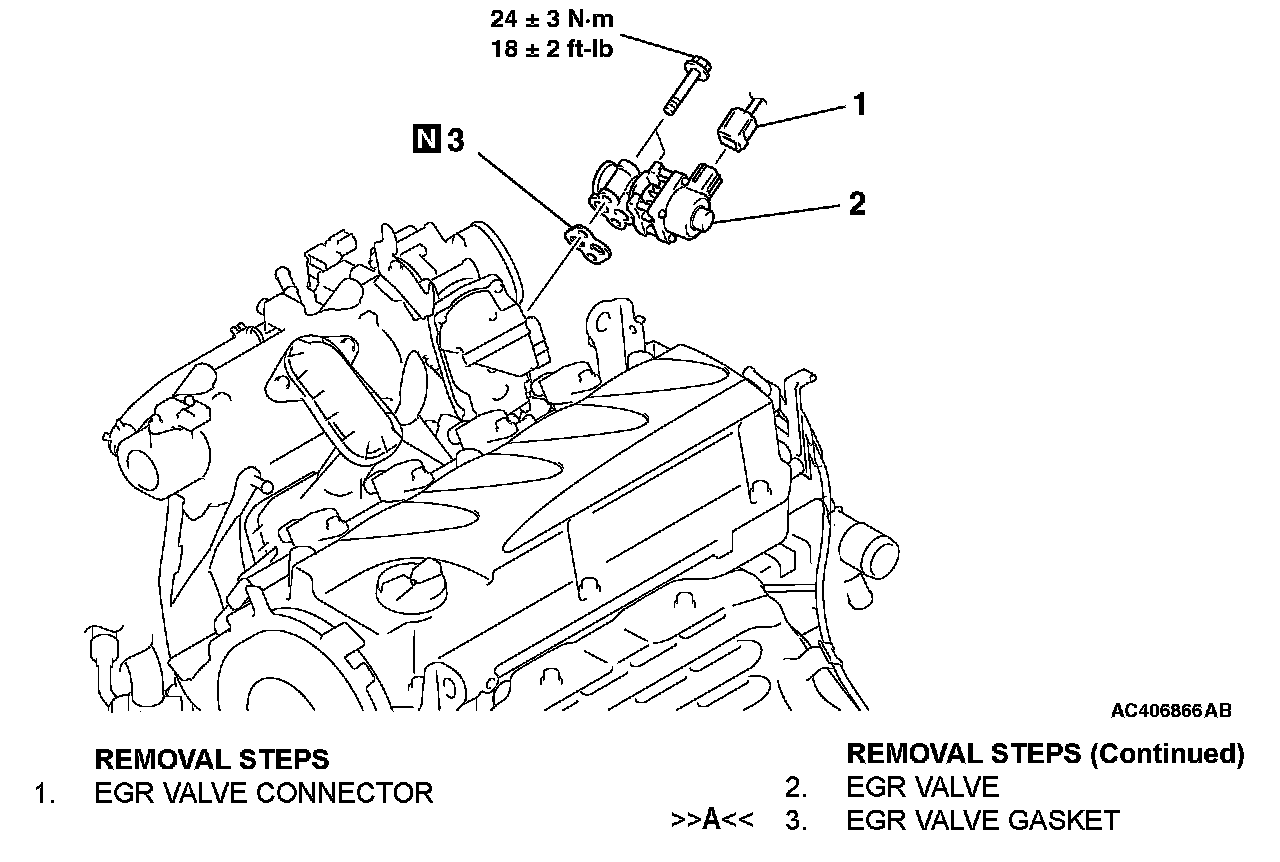

Removal Steps 1 - 3:






INSTALLATION SERVICE POINT

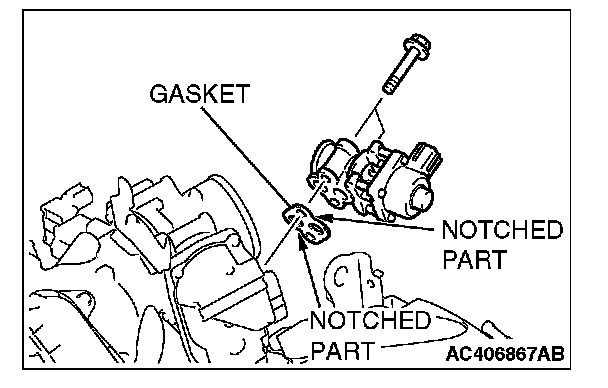

>>A<< EGR VALVE GASKET INSTALLATION
Install the EGR valve gasket as shown in the illustration.
