Home >> Mitsubishi >> 2007 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Evaporative Emission Control Canister >> Service and Repair

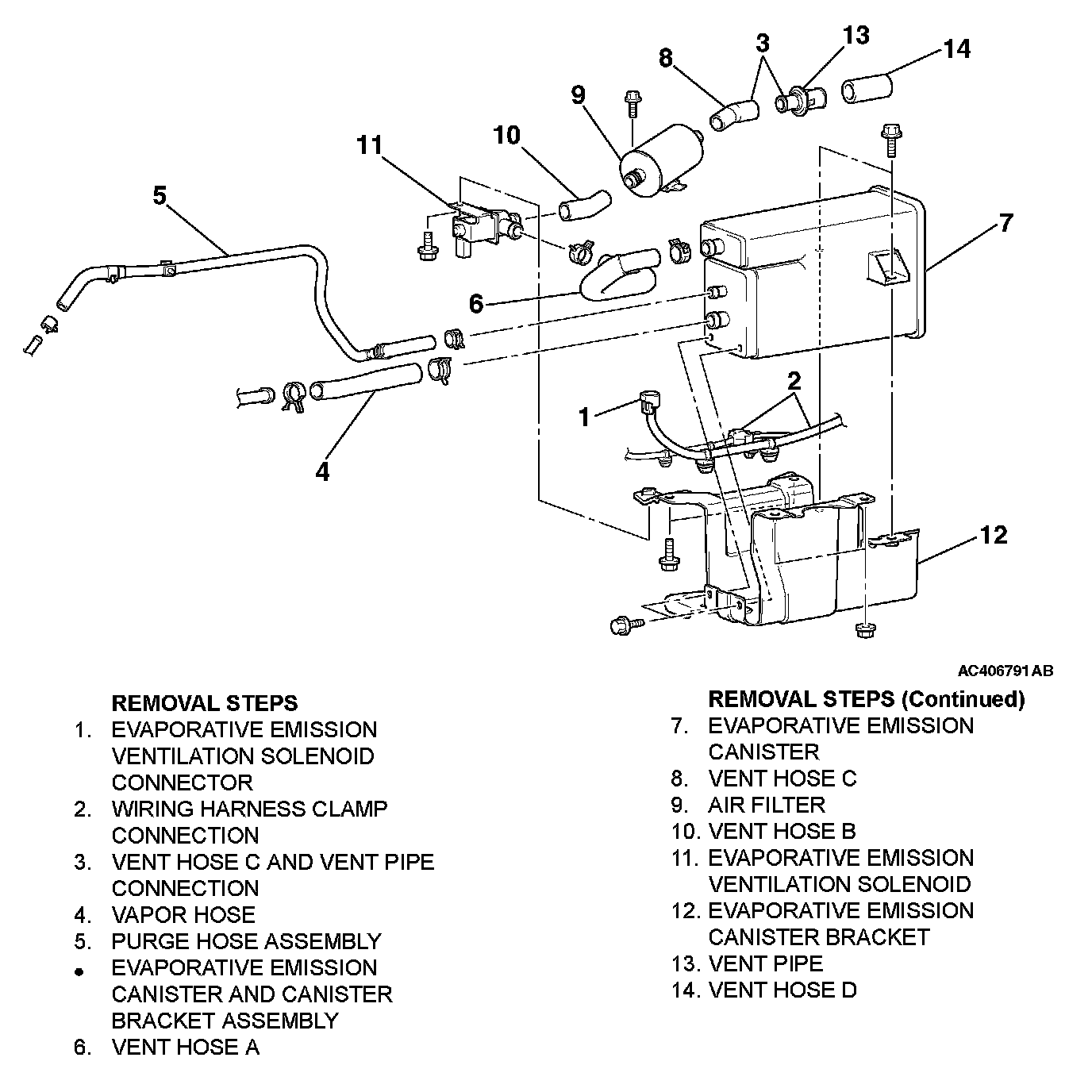

Evaporative Emission Control Canister: Service and Repair

Removal Steps 1 - 14:
