Symptom Chart

SYMPTOM CHART

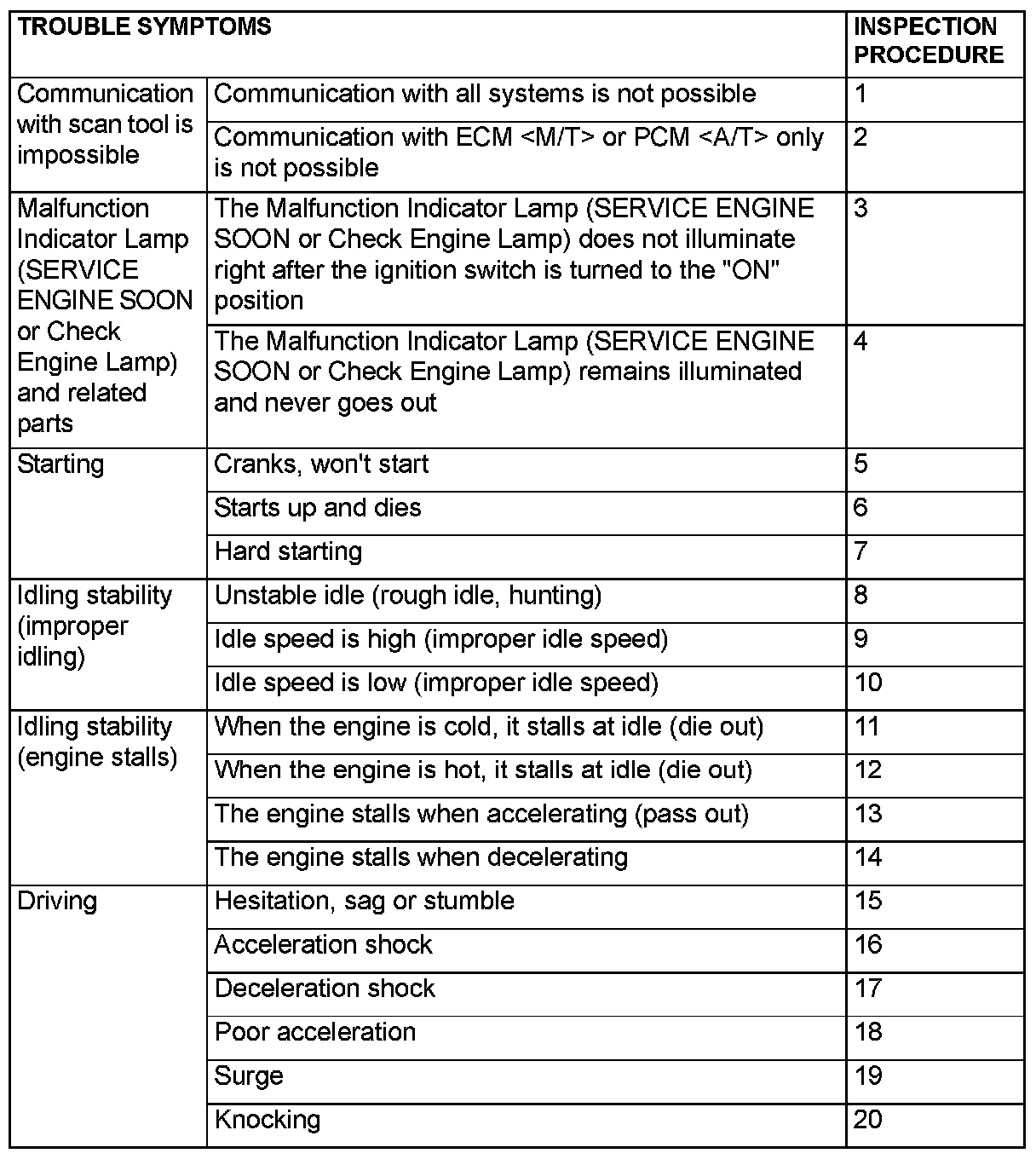

Inspection Chart For Trouble Symptoms Part 1:

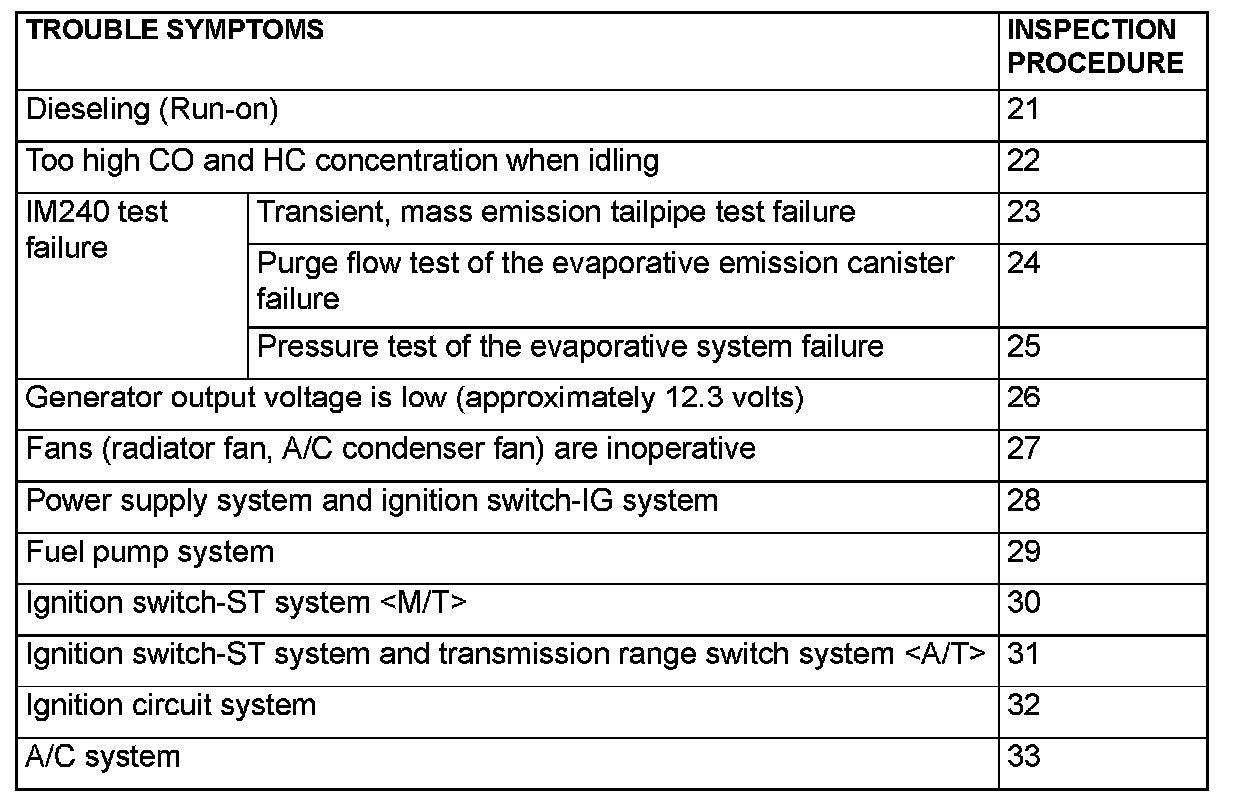

Inspection Chart For Trouble Symptoms Part 2:

CAUTION:
- During diagnosis, a DTC associated with other systems may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTCs. If DTCs are set, erase them all.
- Disconnecting the battery cables or removing the combination meter will erase the learned value of the fuel gauge. To recover the learned value, input a vehicle speed (by actually driving the vehicle or inputting a simulated vehicle speed), and stop the vehicle. This will complete the learning process.

NOTE: Check that the ECM or the PCM ground circuit is normal before checking for the cause of the problem.

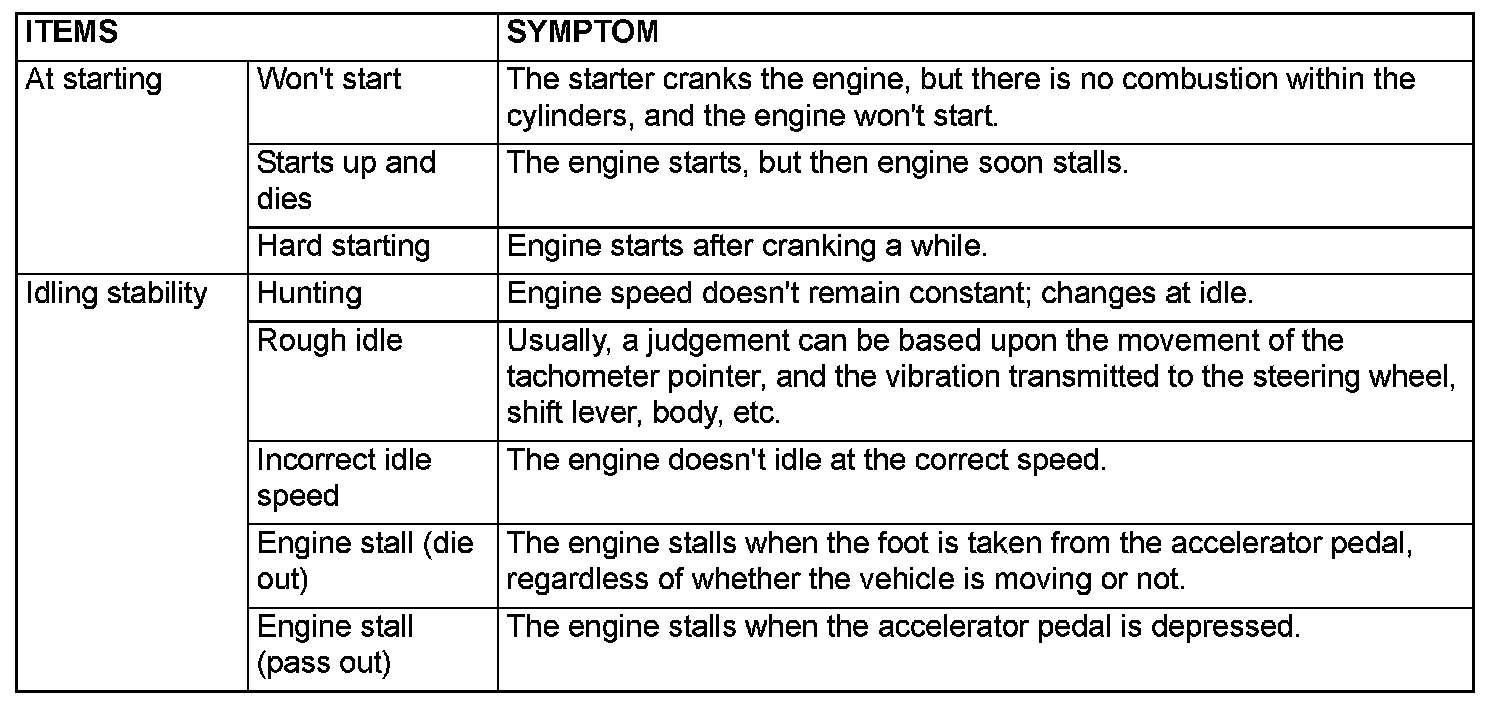

Problem Symptoms Table Part 1:

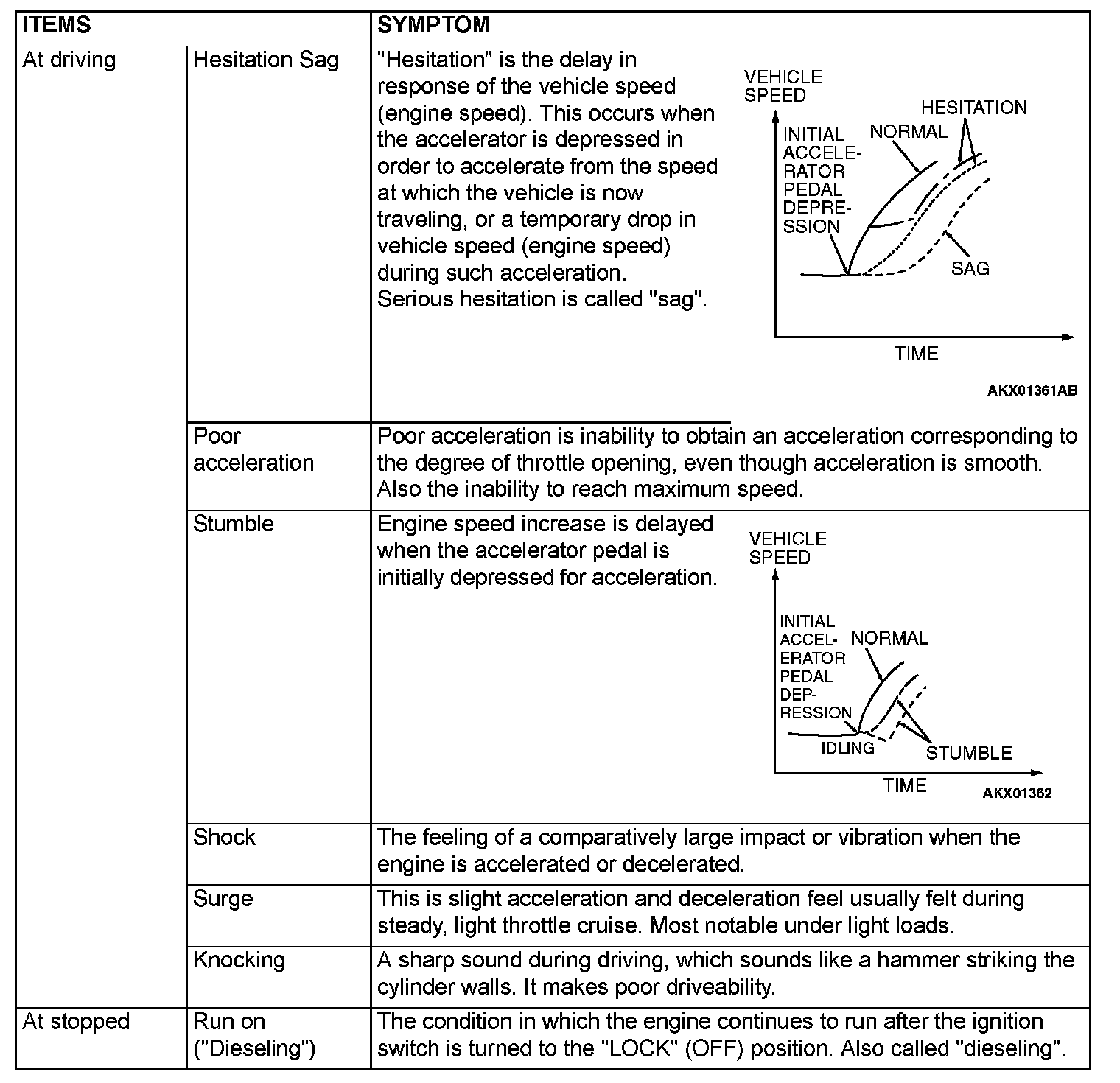

Problem Symptoms Table Part 2:

PROBLEM SYMPTOMS TABLE (FOR YOUR INFORMATION)
