Inspection Procedure 28

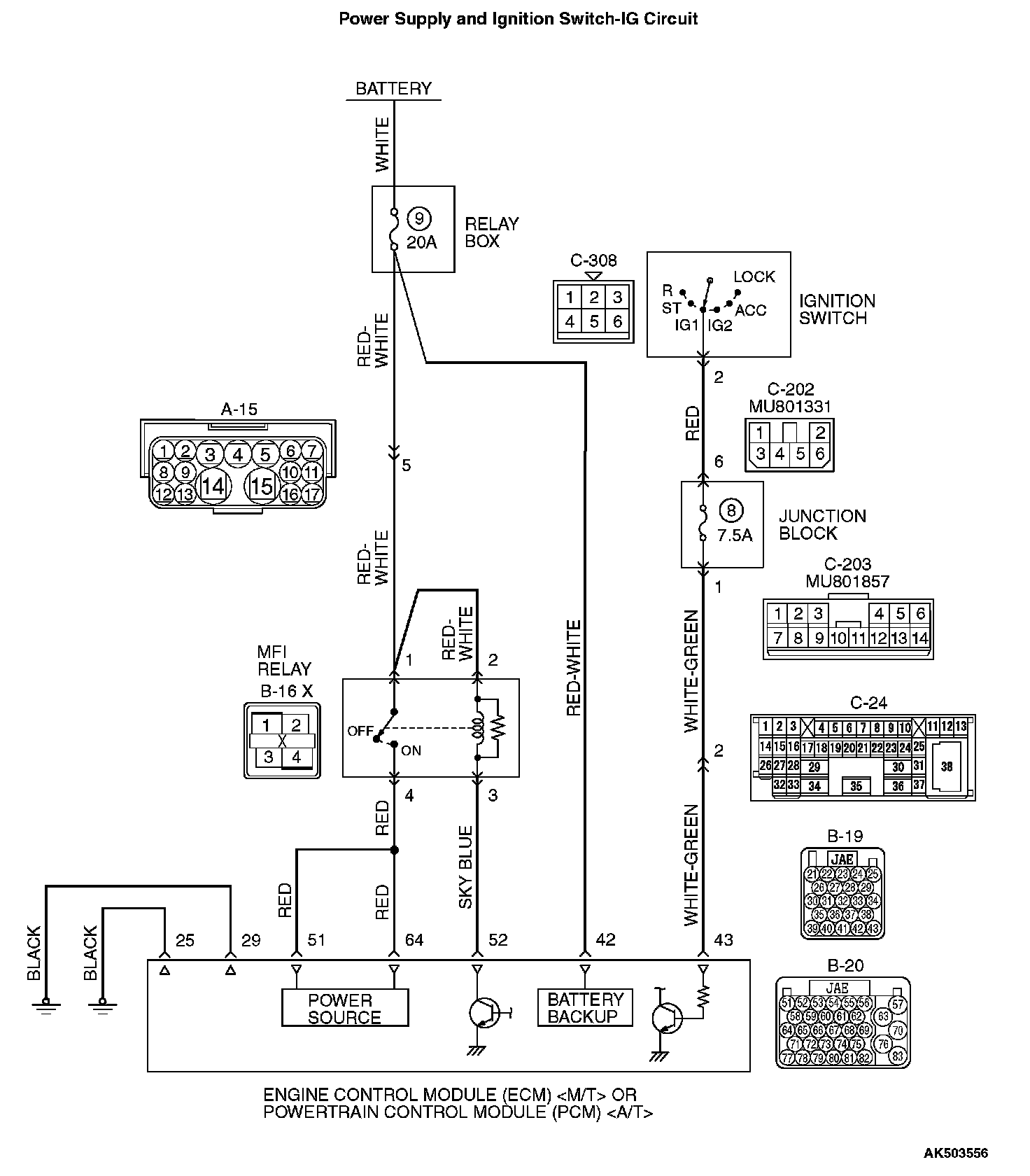

INSPECTION PROCEDURE 28: Power supply system and ignition switch-IG system.Power Supply And Ignition Switch-IG Circuit Part 1:
Power Supply And Ignition Switch-IG Circuit Part 2:
CIRCUIT OPERATION
- Battery positive voltage is applied to the MFI relay (terminals No. 1, No. 2).
- When the ignition switch is turned to the "ON" position, the battery positive voltage is applied to the ECM
- A battery positive voltage is constantly supplied to the ECM
- The ECM
TROUBLESHOOTING HINTS (The most likely causes for this code to be set are)
- Malfunction of the ignition switch.
- Malfunction of the MFI relay.
- Improper connector contact, open or shorted harness wire.
- Disconnected ECM
- Malfunction of the ECM
DIAGNOSIS

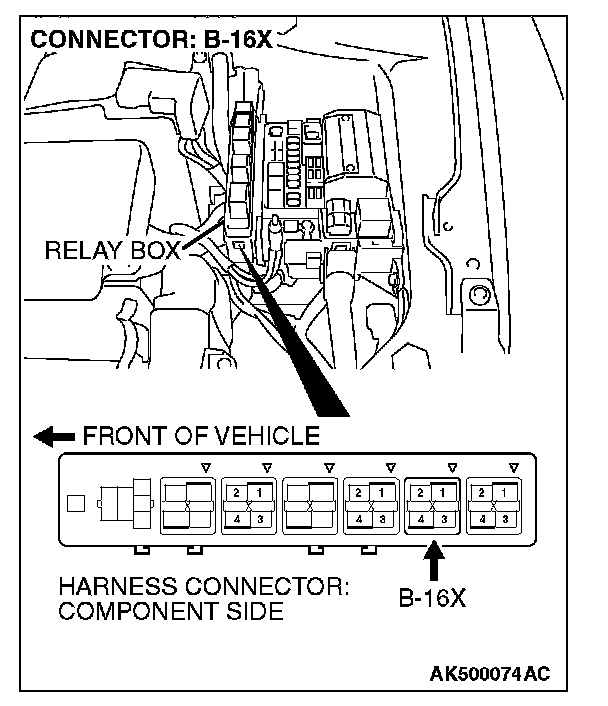

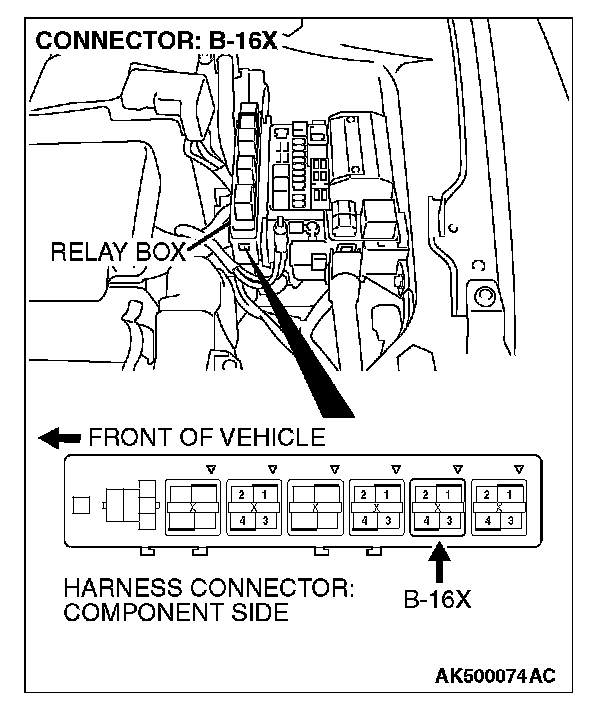

STEP 1. Check harness connector B-16X at MFI relay for damage.
Q: Is the connector in good condition?
YES: Go to Step 2.
NO: Repair or replace it. Then confirm that the malfunction symptom is eliminated.
STEP 2. Check the MFI relay.
CAUTION: Because it is not possible to distinguish the top and the bottom of the MFI relay, inspect it with the triangle mark printed on the relay facing upward.
1. Remove the MFI relay.

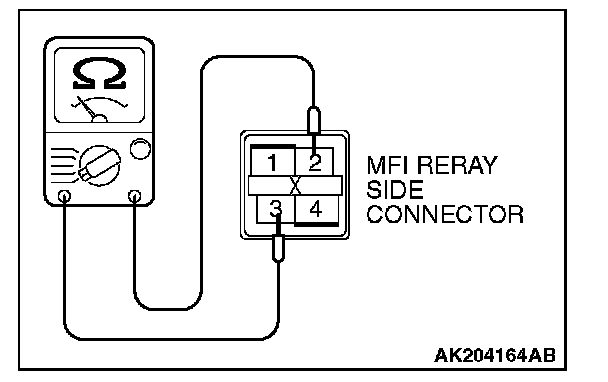

2. Check for continuity between the MFI relay terminals No. 2 and No. 3.
- There should be continuity. (approximately 70 Ohms)

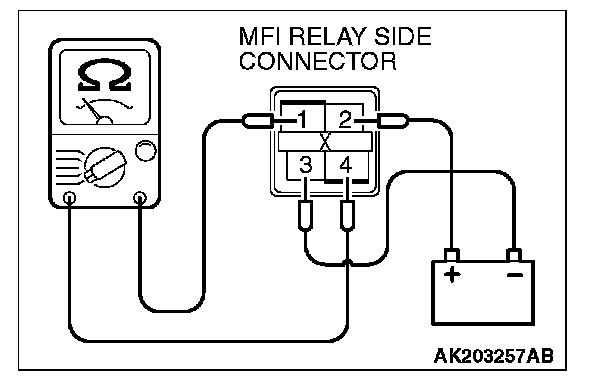

3. Use jumper wires to connect MFI relay terminal No. 2 to the positive battery terminal and terminal No. 3 to the negative battery terminal.
4. Check for continuity between the MFI relay terminals No. 1 and No. 4 while connecting and disconnecting the jumper wire at the negative battery terminal.
- Should be less than 2 Ohms. (Negative battery terminal connected)
- Should be open loop. (Negative battery terminal disconnected)
5. Install the MFI relay.
Q: Is the measured resistance within the specified range?
YES: Go to Step 3.
NO: Replace the MFI relay. Then confirm that the malfunction symptom is eliminated.

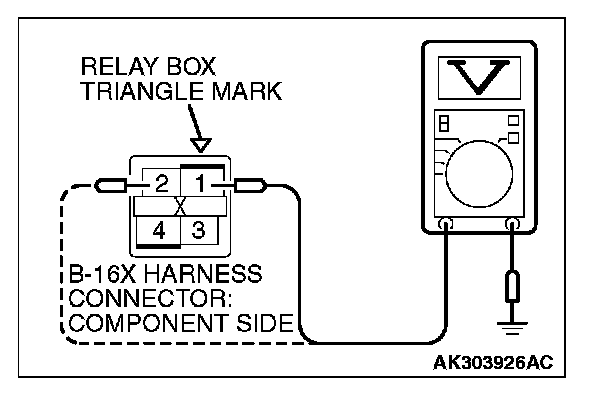

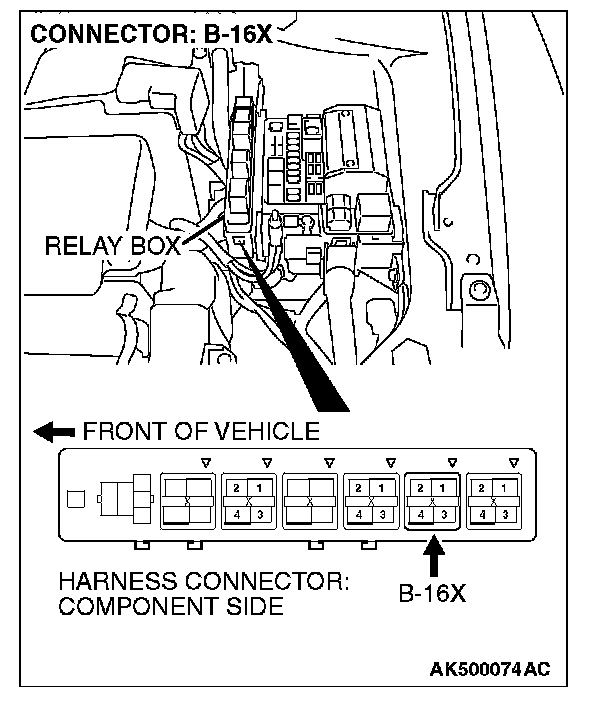

STEP 3. Measure the power supply voltage at MFI relay harness side connector B-16X.
CAUTION: Because it is difficult to distinguish the top and bottom of the MFI relay connector at the wiring harness, inspect it by using triangle mark on the junction block as a reference.
1. Disconnect the connector B-16X and measure at the harness side.
2. Measure the voltage between terminals No. 1, No. 2 and ground.
- Voltage should be battery positive voltage.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 4.
NO: Check harness connector A-15 at intermediate connector for damage, and repair or replace as required. If intermediate connector is in good condition, repair harness wire between fusible link (9) and MFI relay connector B-16X (terminals No. 1, No. 2) because of open circuit. Then confirm that the malfunction symptom is eliminated.

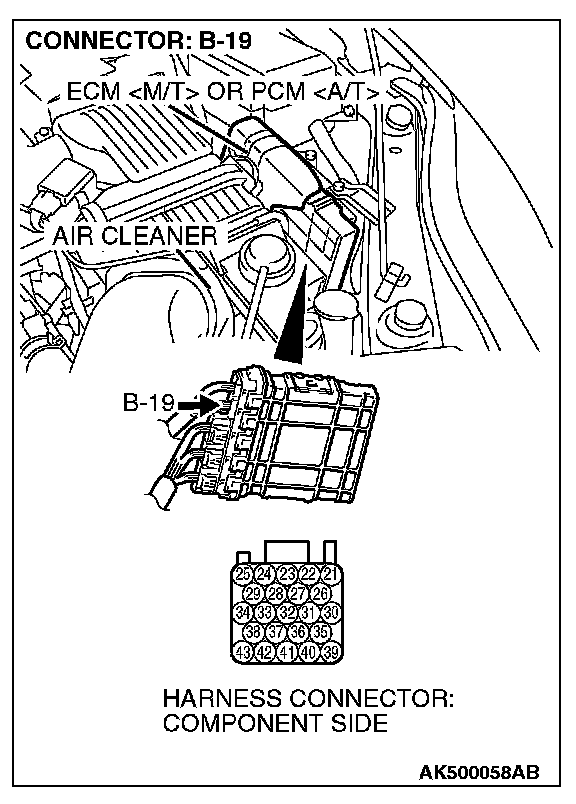

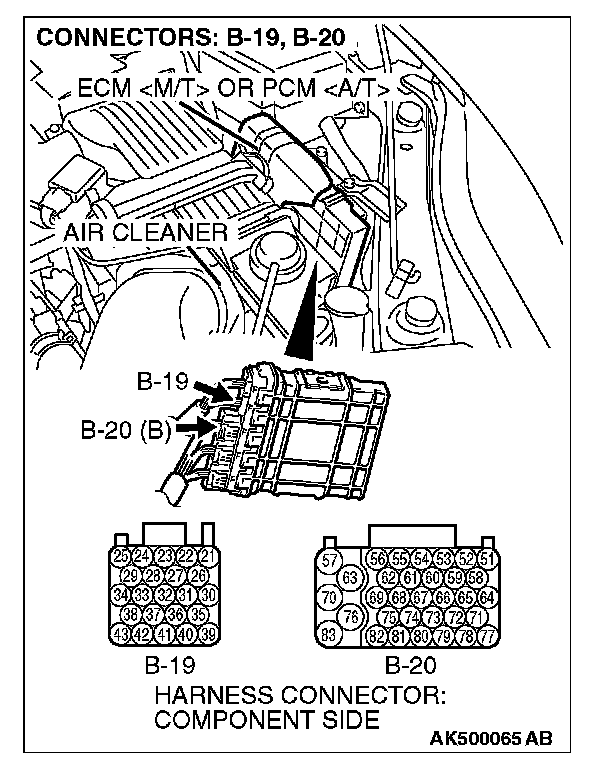

STEP 4. Check harness connector B-19 and B-20 at ECM
Q: Is the harness connector in good condition?
YES: Go to Step 5.
NO: Repair or replace it. Then confirm that the malfunction symptom is eliminated.

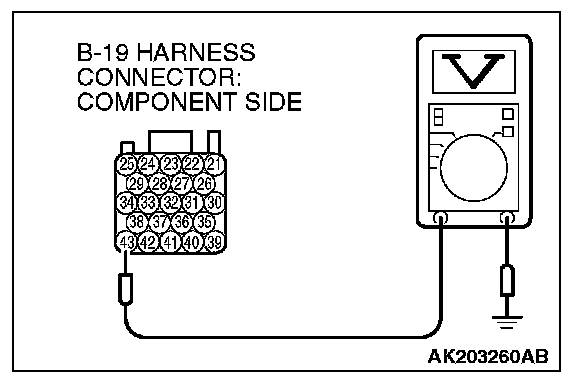

STEP 5. Measure the ignition switch-IG signal voltage at ECM
1. Disconnect the connector B-19 and measure at the harness side.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal No. 43 and ground.
- Voltage should be battery positive voltage.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 6.
NO: Check harness connector C-24, C-203 and C-202 at intermediate connector for damage, and repair or replace as required. If intermediate connectors are in good condition, repair harness wire between ignition switch connector C-308 (terminal No. 2) and ECM

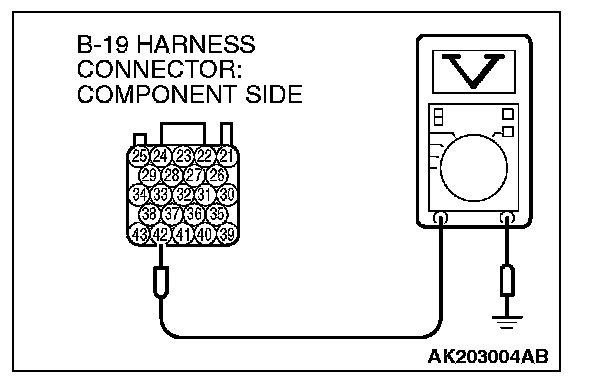

STEP 6. Measure the backup power supply voltage at ECM
1. Disconnect the connector B-19 and measure at the harness side.
2. Measure the voltage between terminal No. 42 and ground.
- Voltage should be battery positive voltage.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 7.
NO: Repair harness wire between fusible link (9) and ECM
STEP 7. Check for continuity at ECM
1. Disconnect the connector B-19 and measure at the harness side.
2. Check for the continuity between terminals (No. 25, No. 29) and ground.
- Should be less than 2 Ohms.
Q: Does continuity exist?
YES: Go to Step 8.
NO: Repair harness wire between ECM

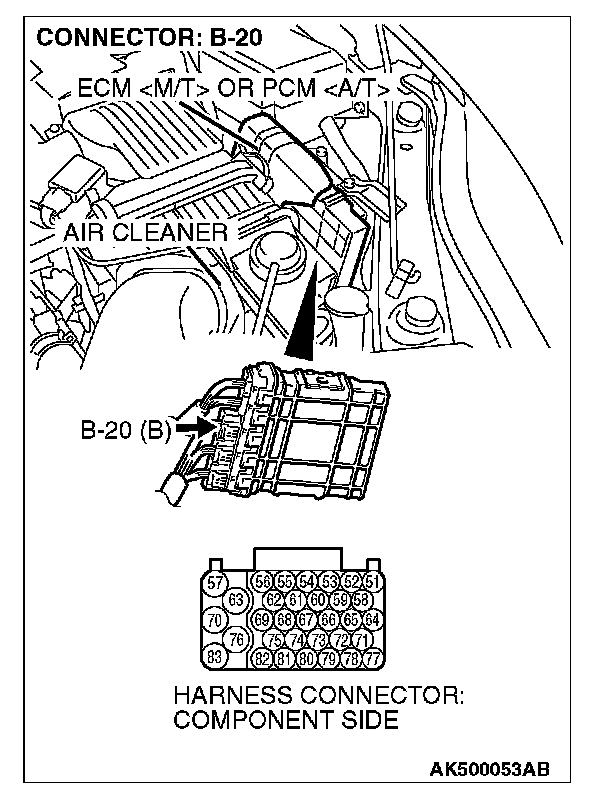

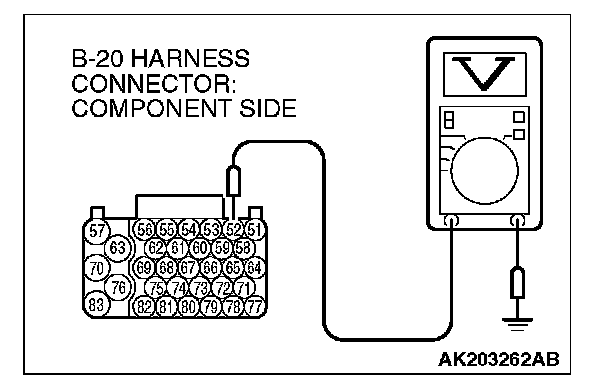

STEP 8. Measure the power supply voltage at ECM
1. Disconnect the connector B-20 and measure at the harness side.
2. Measure the voltage between terminal No. 52 and ground.
- Voltage should be battery positive voltage.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 9.
NO: Repair harness wire between MFI relay connector B-16X (terminal No. 3) and ECM

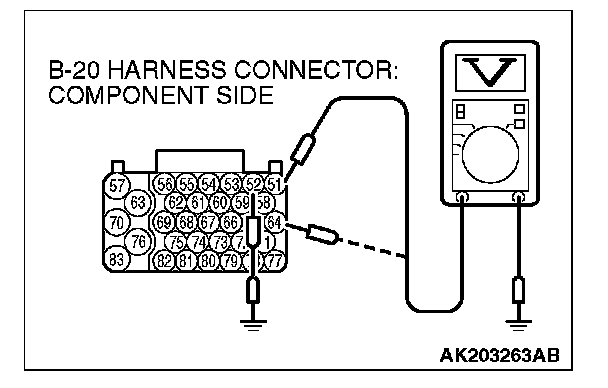

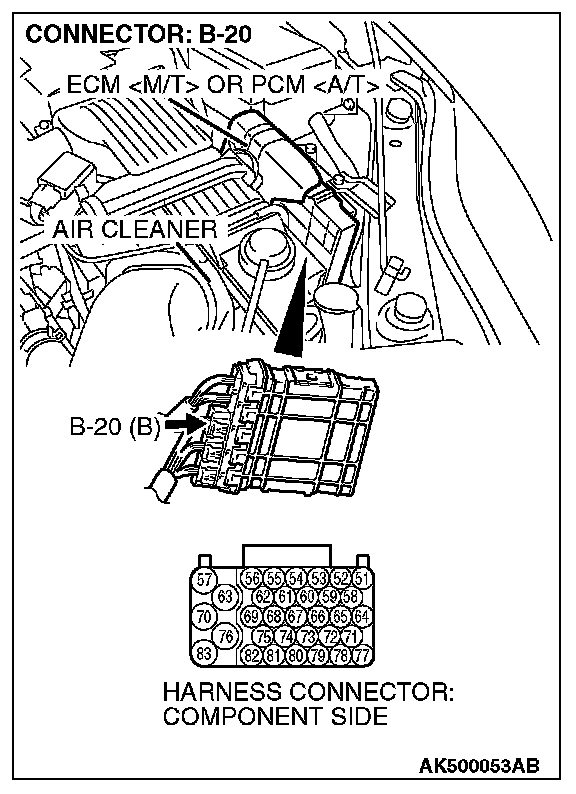

STEP 9. Measure the power supply voltage at ECM
1. Disconnect the connector B-20 and measure at the harness side.
2. Using a jumper wire, connect terminal No. 52 to ground.
3. Measure the voltage between terminals (No. 51, No. 64) and ground.
- Voltage should be battery positive voltage.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Replace the ECM or the PCM. Then confirm that the malfunction symptom is eliminated.
NO: Repair harness wire between MFI relay connector B-16X (terminal No. 4) and ECM
