Inspection Procedure 10

INSPECTION PROCEDURE 10: Idle Speed Is Low (Improper Idle Speed).

COMMENT
- In cases such as the above, the cause is probably that the intake air volume during idle is too small.

TROUBLESHOOTING HINTS (The most likely causes for this case)
- Malfunction of the electronic control throttle valve system.
- Malfunction of the throttle body.

DIAGNOSIS

Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A




STEP 1. Using scan tool MB991958, read the diagnostic trouble code (DTC).

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

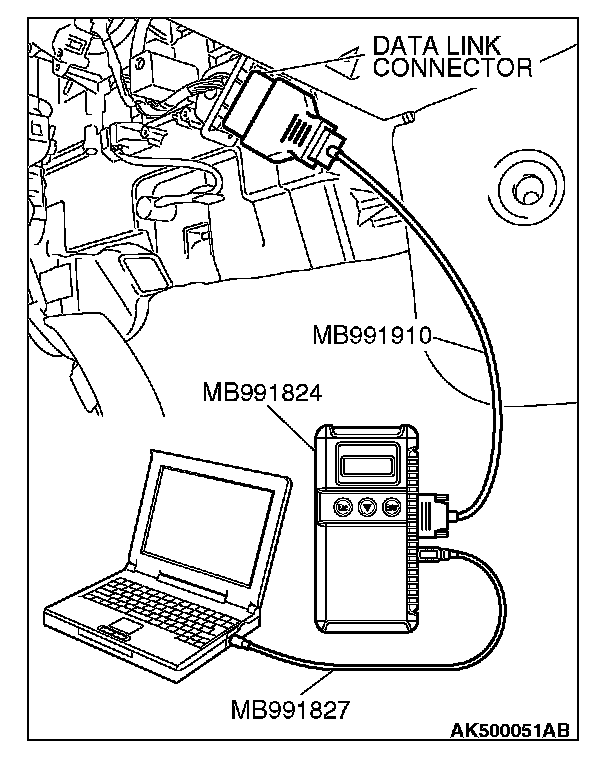

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Read the DTC.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES: Refer to Diagnostic Trouble Code Chart. Diagnostic Trouble Code Descriptions

NO: Go to Step 2.




STEP 2. Using scan tool MB991958, check data list.

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

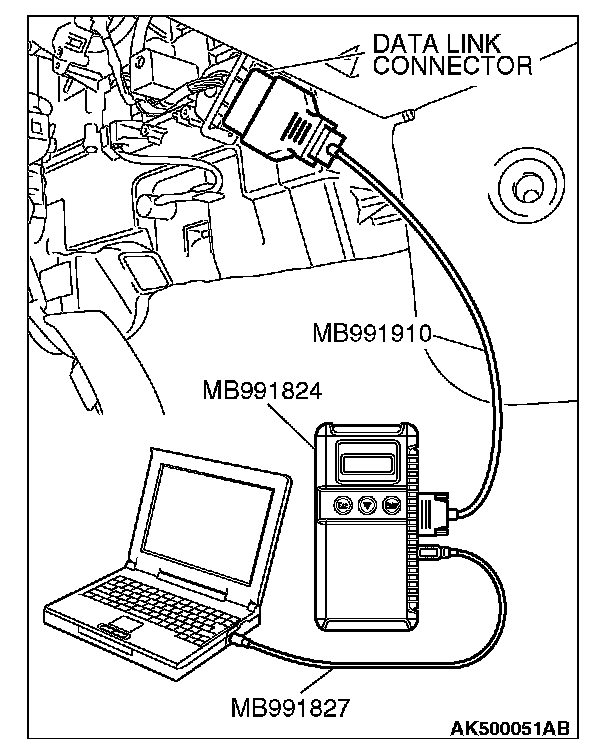

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Check the following item in the data list. Refer to Data List Reference Table. Datal List Reference Table
a. Item 6: Engine Coolant Temperature Sensor.

4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the sensor operating properly?

YES: Refer to On-vehicle Service - Throttle Body (Throttle Valve Area) Cleaning.

NO: Repair or replace it. Then confirm that the malfunction symptom is eliminated.
