Terminal Resistance and Continuity Check

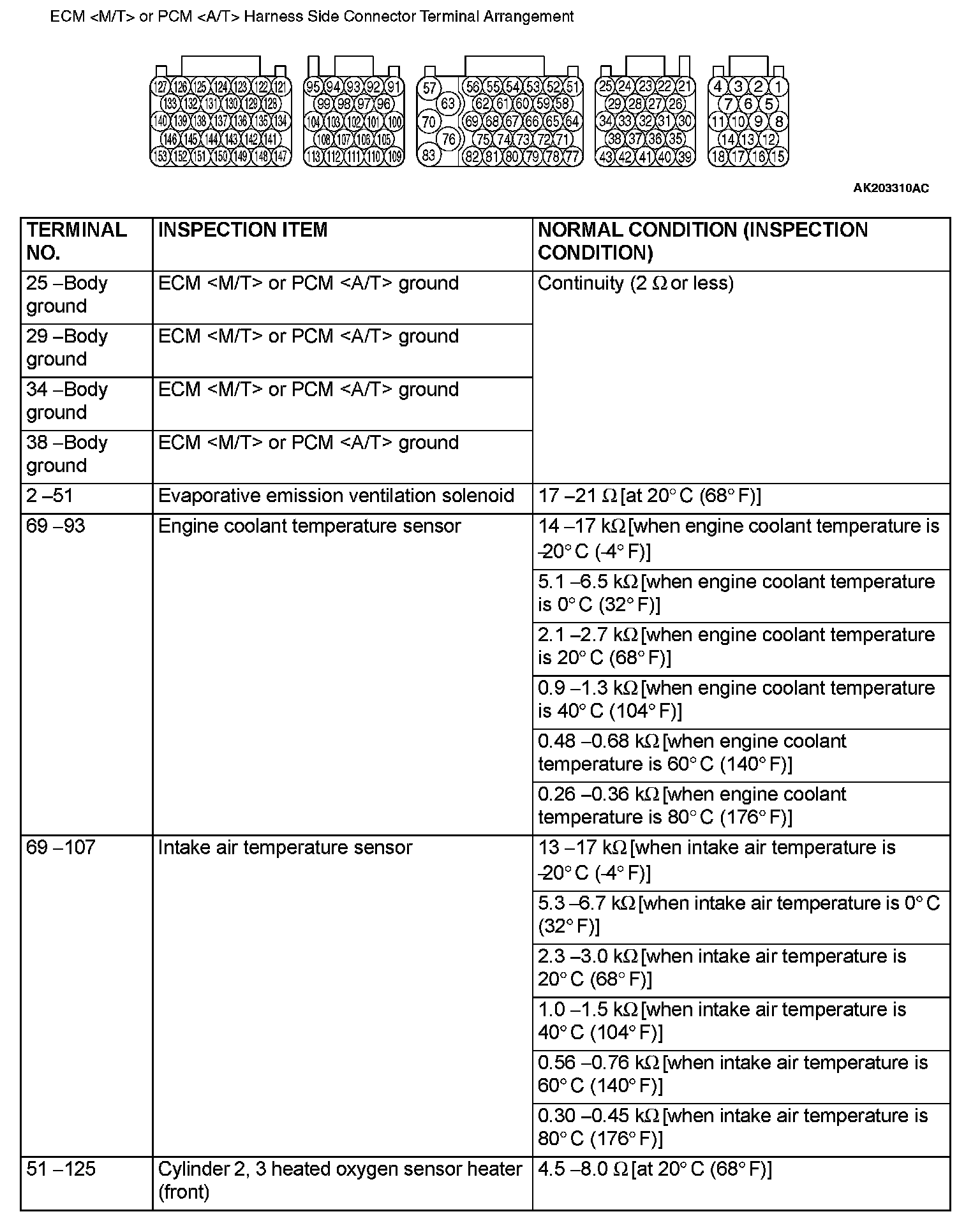

ECM <M/T> Or PCM <A/T> Harness Side Connector Terminal Arrangement Part 1:

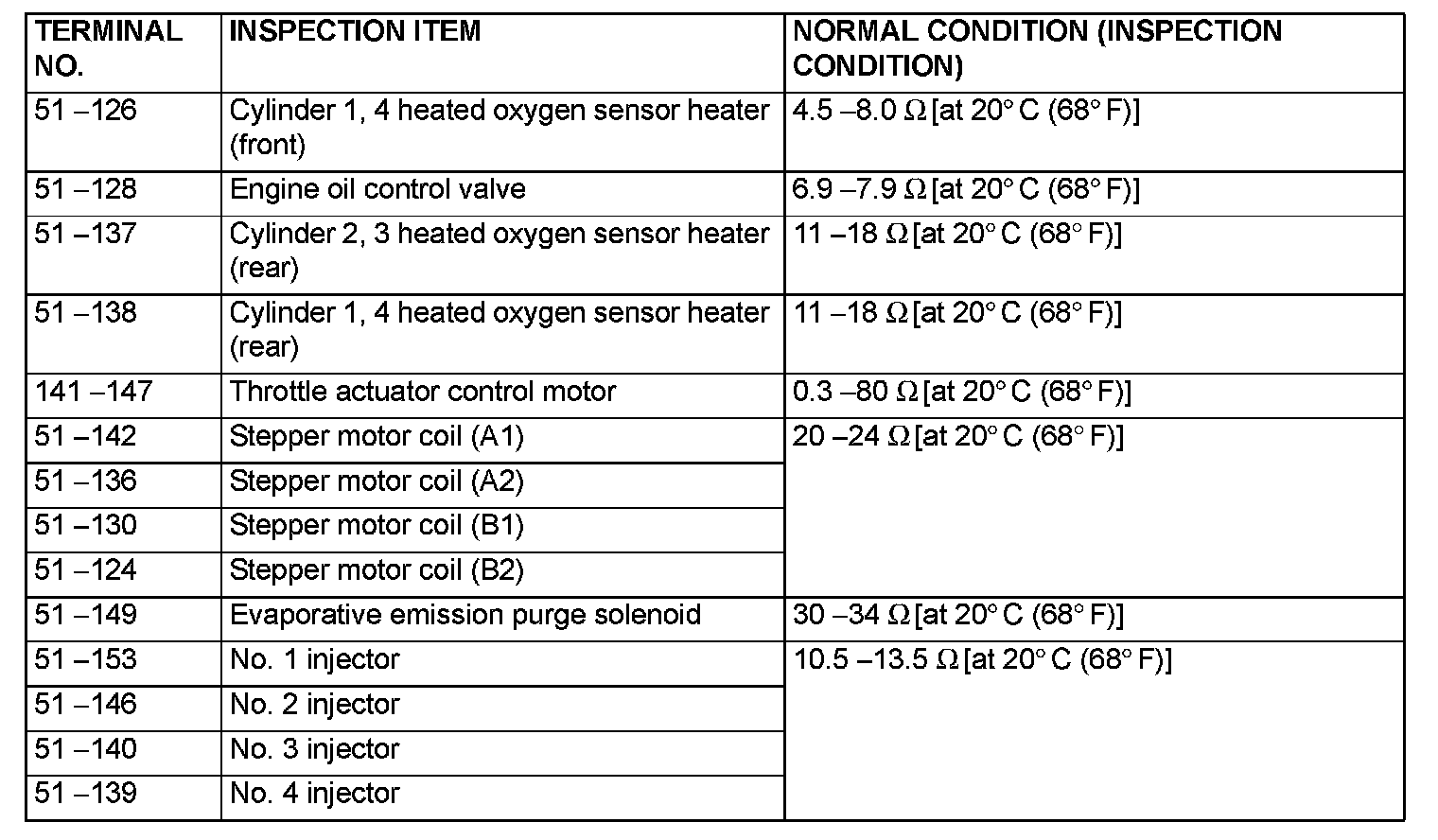

ECM <M/T> Or PCM <A/T> Harness Side Connector Terminal Arrangement Part 2:
