Heated Oxygen Sensor Check
HEATED OXYGEN SENSOR CHECKRequired Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A
- MD998464: Test Harness
- MB991316: Test Harness

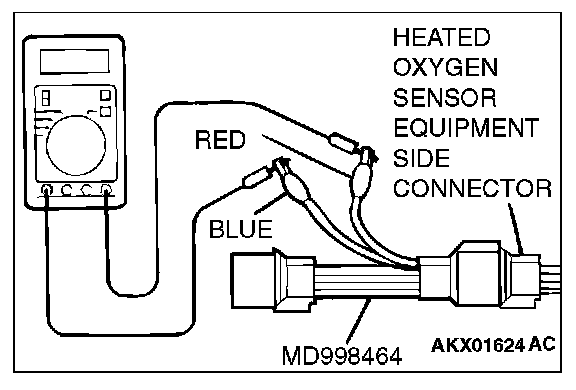

1. Disconnect the heated oxygen sensor connector and connect special tool MD998464 to the connector on the heated oxygen sensor side.
2. Make sure that there is continuity [11 - 18 Ohms at 20 °C (68 °F)] between terminal No. 1 (red clip) and terminal No. 3 (blue clip) on the heated oxygen sensor connector.
3. If there is no continuity, replace the heated oxygen sensor.
4. Warm up the engine until engine coolant is 80 °C (176 °F) or higher.
5. Drive at 50 km/h (31mph) or more for 10 minutes.

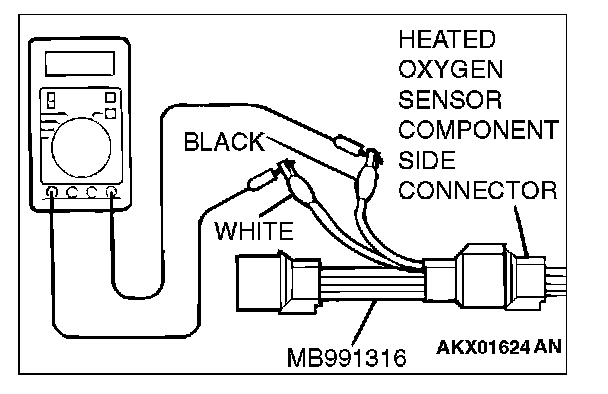

6. Connect a digital voltage meter between terminal No. 2 (black clip) and terminal No. 4 (white clip).
7. Measure the output voltage of the heated oxygen sensor under the following driving.
- Transaxle: 2nd speed (A/T: "L" range)
- Drive with wide open throttle
- Engine: 3,500 r/min or more
NOTE: If the sufficiently high temperature [of approximate 400 °C (752 °F) or more] is not reached although the heated oxygen sensor is normal, the output voltage would be possibly low although the rich air/fuel ratio.

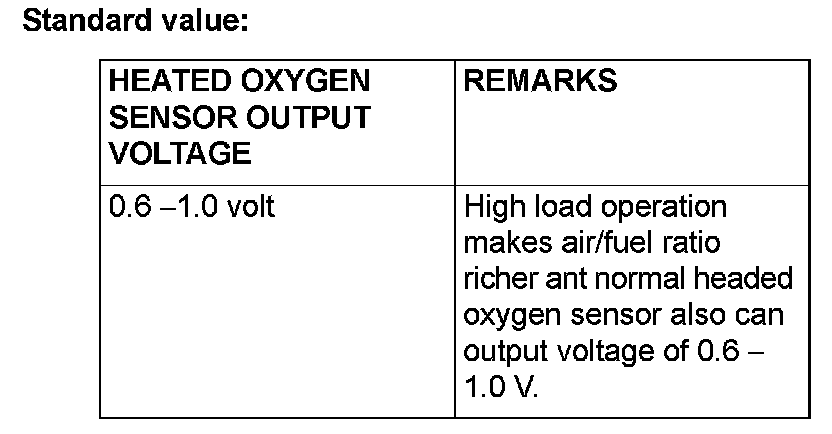

8. If the output voltage is not within the standard value, replace the heated oxygen sensor.
NOTE: For removal and installation of the heated oxygen sensor, refer to Exhaust Pipe and Main Muffler.

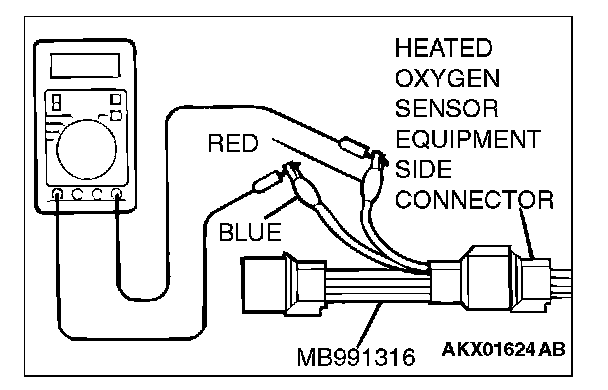

1. Disconnect the heated oxygen sensor connector and connect special tool MB991316 to the connector on the heated oxygen sensor side.
2. Make sure that there is continuity [4.5 - 8.0 Ohms at 20 °C (68 °F)] between terminal No. 1 (red clip) and terminal No. 3 (blue clip) on the heated oxygen sensor connector.
3. If there is no continuity, replace the heated oxygen sensor.
4. Warm up the engine until engine coolant is 80 °C (176 °F) or higher.
5. Rev the engine for 5 minutes or more with the engine speed of 4,500 r/min.

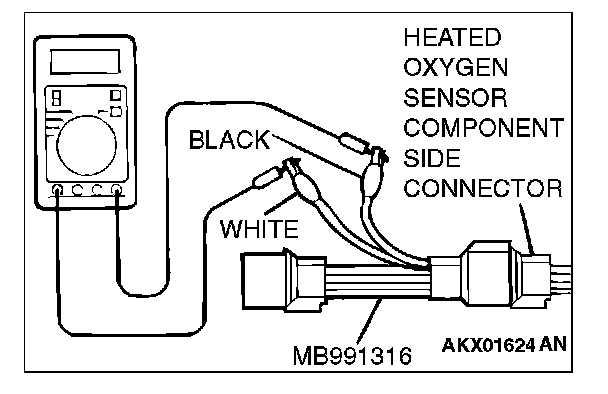

6. Connect a digital voltage meter between terminal No. 2 (black clip) and terminal No. 4 (white clip).
7. While repeatedly revving the engine, measure the heated oxygen sensor output voltage.
CAUTION:
- Be very careful when connecting the jumper wire; incorrect connection can damage the heated oxygen sensor.
- Be careful the heater is broken when voltage of beyond 8 volts is applied to the heated oxygen sensor heater.
NOTE: If the sufficiently high temperature [of approximate 400 °C (752 °F) or more] is not reached although the heated oxygen sensor is normal, the output voltage would be possibly low although the rich air/fuel ratio. Therefore, if the output voltage is low, use jumper wires to connect the terminal No. 1 (red clip) and the terminal No. 3 (blue clip) of the heated oxygen sensor with a (+) terminal and (-) terminal of 8 volts power supply respectively, then check again.

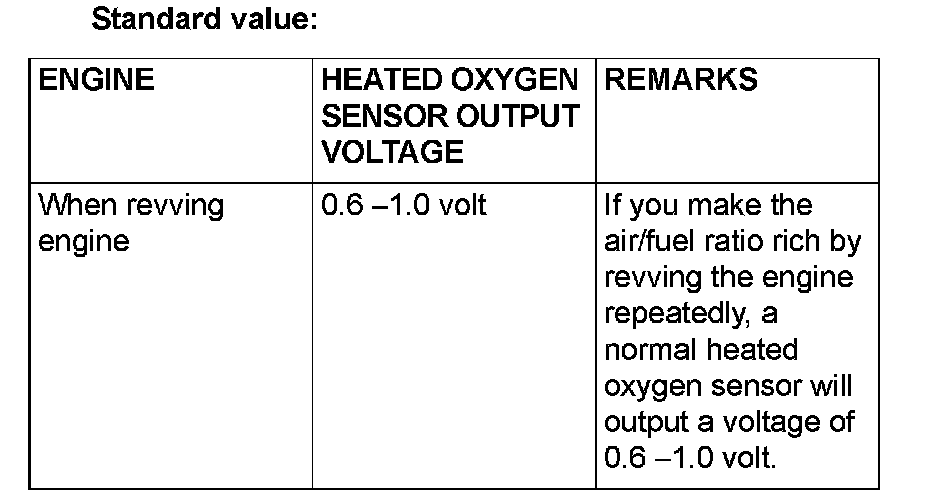

8. If the output voltage is not within the standard value, replace the heated oxygen sensor.
NOTE: For removal and installation of the heated oxygen sensor, refer to Exhaust Pipe and Main Muffler.
