Engine Controls - MIL ON/DTC P2100/P2138/P0736/P1784
No: TSB-06-13-011REVDATE: August, 2006
MODEL: See below
SUBJECT:
PCM REPROGRAMMING FOR DTC
P2100 / P2138 / P0736 (46 / P1784)
SUBJECT:
PCM REPROGRAMMING FOR DTC
P2100 / P2138 / P0736 (46 / P1784)
This bulletin superseded TSB-06-13-011, to add Eclipse, Endeavor, Galant and Outlander models and to add automatic transmission codes 46 and P1784. Revisions are indicated by -->.
PURPOSE
On some affected vehicles, incorrect software parameters in the PCM may cause the MIL to illuminate and Diagnostic Trouble Code P2100 (Throttle Actuator Control Motor Circuit), P2138 (Accelerator Pedal Position Sensor (main and sub) Range/Performance Problem) or P0736 Reverse Gear
--> Incorrect Ratio) to set in the PCM. Automatic transmission Diagnostic Trouble Codes 46 (Reverse Gear Incorrect Ratio) or P1784 (Reverse Gear Incorrect Ratio) may also be stored in the PCM. To eliminate this condition, reprogram the PCM as described in this bulletin.
--> AFFECTED VEHICLES
2006 Eclipse 2.4L MIVEC M/T for DTC P2100 and P2138
2006 Eclipse 2.4L MIVEC A/T for DTC P2100, P2138 and P0736 (A/T code P1784)
2006 Eclipse 3.8L M/T for DTC P2100 and P2138
2006 Eclipse 3.8L A/T for DTC P2100, P2138 and P0736 (A/T code P1784)
2007 Eclipse/Eclipse Spyder 2.4L MIVEC M/T for DTC P2100 and P2138
2007 Eclipse Spyder 2.4L MIVEC A/T for DTC P2100, P2138 and P0736 (A/T code P1784)
2007 Eclipse 2.4L MIVEC A/T for DTC P2100, P2138 and P0736 (A/T code P1784)
2007 Eclipse/Eclipse Spyder 3.8L M/T for DTC P2100 and P2138
2007 Eclipse/Eclipse Spyder 3.8L A/T for DTC P2100, P2138 and P0736 (A/T code P1784)
2005-2006 Endeavor 2WD and AWD for DTC P2100, P2138 and P0736 (A/T code 46)
2005 Galant 2.4L MIVEC, California for DTC P2100, P2138 and P0736 (A/T code 46)
2005 Galant 3.8L for DTC P2100, P2138 and P0736 (A/T code 46)
2006 Galant 2.4L MIVEC, Federal for DTC P2100, P2138 and P0736 (A/T code P1784)
2006 Galant 2.4L MIVEC and 3.8L for DTC P2100, P2138 and P0736 (A/T code P1784)
2004-2006 Lancer and Lancer Sportback 2.4L MIVEC, A/T and M/T for DTC P2138
2005-2006 Lancer and Lancer Sportback 2.4L MIVEC, A/T for DTC P0736 (A/T code 46)
2006 Lancer and Lancer Sportback 2.4L MIVEC, A/T and M/T for DTC P2100
2004-2006 Outlander 2.4L MIVEC 2WD and AWD for DTC P2138
2005-2006 Outlander 2.4L MIVEC 2WD and AWD A/T for DTC P0736 (A/T code 46)
2006 Outlander 2.4L MIVEC 2WD and AWD for DTC P2100
PROCEDURE
CAUTION
BATTERY VOLTAGE (AS MEASURED AT THE BATTERY POSTS WITHOUT ELECTRICAL LOAD) MUST BE 12.4V OR HIGHER IN ORDER TO REPROGRAM THE PCM.
IMPORTANT
Verify whether the vehicle is K-Line Flash or CAN-Flash. Refer to the "Reprogramming System Identification" chart on the Service Tech Resources page on the Mitsubishi Dealer Link. The procedure for PCM reprogramming on CAN-Flash vehicles is different than K-Line Flash vehicles. Be sure 10 follow the correct reprogramming instructions far the vehicle being repaired.
1. Check the underside of the hood to verify that there is no label previously installed to indicate that this TSB reprogramming has already been done.
2. Using the MUT-III, verify that the vehicle's ECU part number is listed in the table in Step 9. If the Software P/N is the same as or higher than the Software PIN in the table, the PCM has already been reprogrammed for this concern. Do not continue with this bulletin procedure. Refer to Group 13 in the appropriate service manual to diagnose the DTC.
3. Use the MUT-III to erase all DTCs set in the PCM.

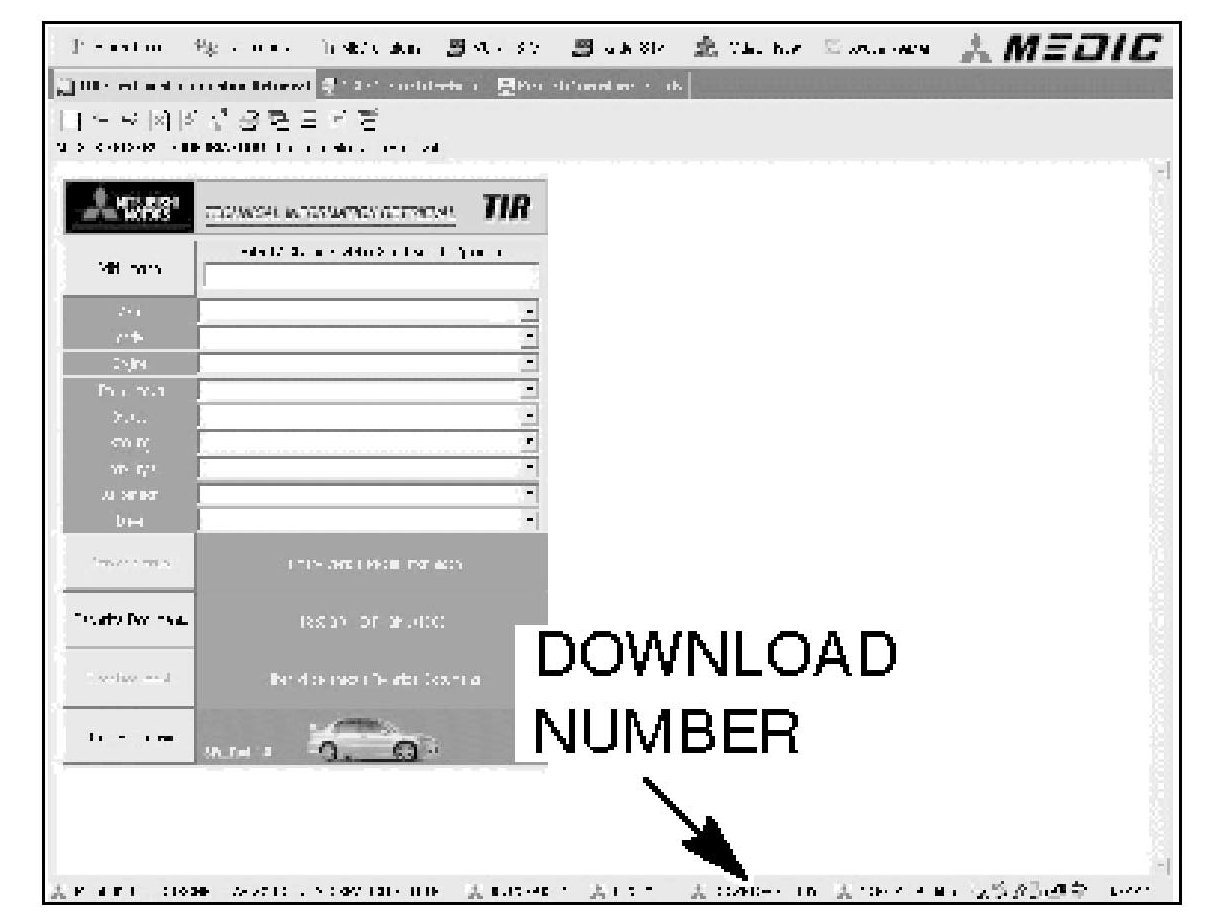

4. MEDIC-II ONLY. Verify that your MEDIC-II is at download M121 or higher.
NOTE:
Dealers using MEDIC-II will not receive a reflash CD. The reflash data will be sent electronically.
a. If the download is M121 or higher, go to step 6.
b. If the download version is less than M121, force a download to the MEDIC-II as follows:

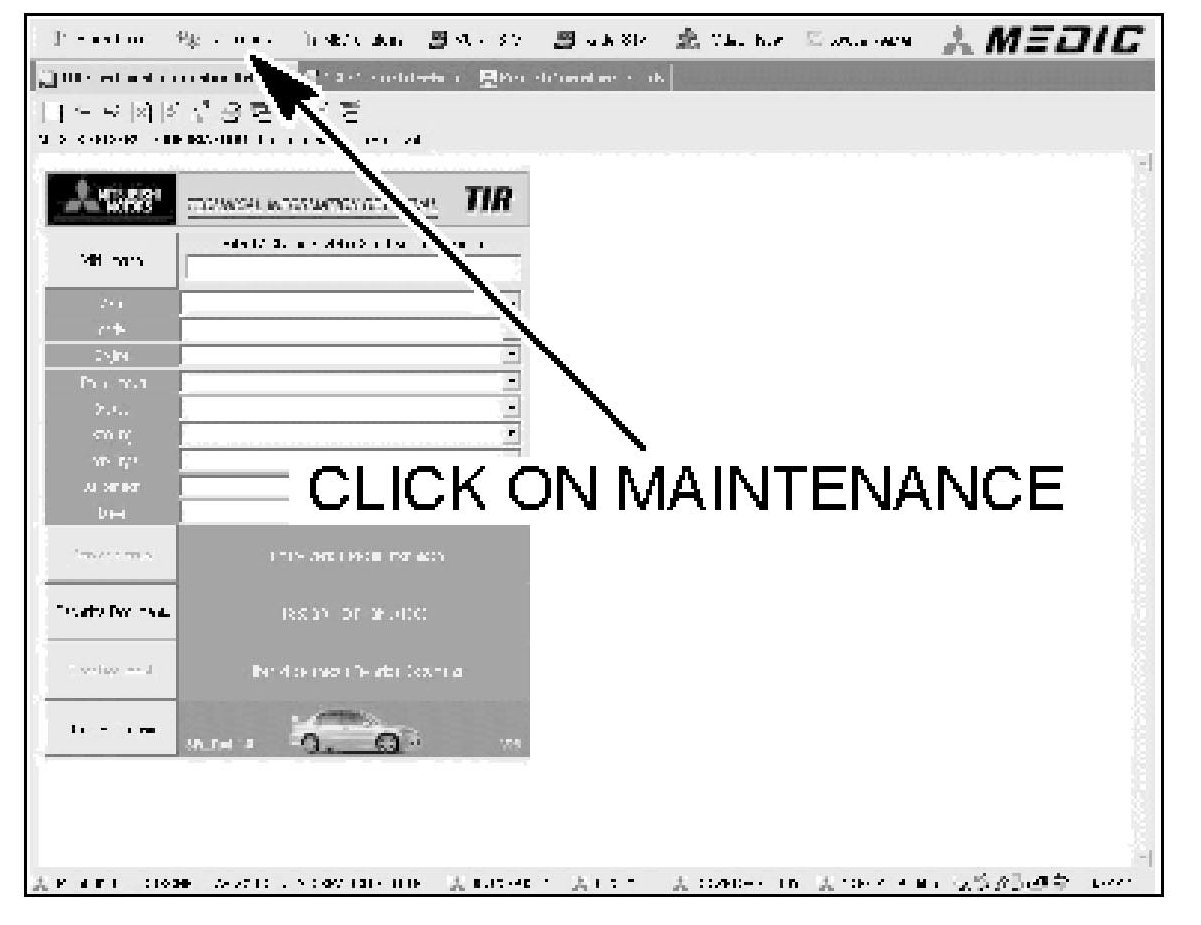

a. On the MEDIC-II main screen, click on "Maintenance".

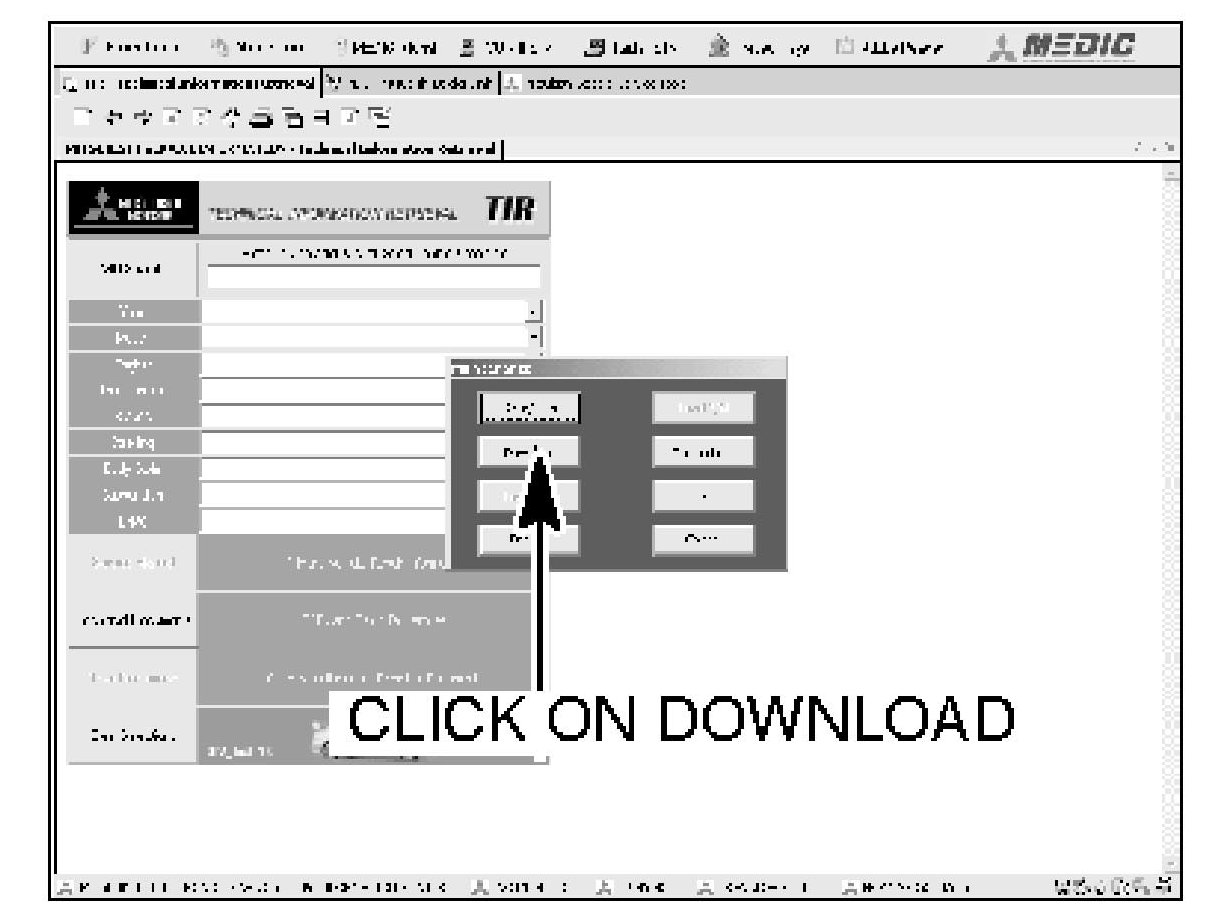

b. Click on "Download".
5. Scan Tool Viewer (STV) ONLY. Verify that your MUT-III is at STV Version 14 or higher, and that it has the most current version of the reprogramming database:
a. Select "Special Function", then select "ECU Reprogramming."
b. Select "Database File Display". The database version is displayed in the top right corner of the screen. Make sure the database version is N06081 or greater.
c. If the database version is N06081 or greater, reprogram the PCM as described in Step 7 for CAN-FLASH VEHICLES ONLY or Step 8 for K-LINE FLASH VEHICLES ONLY.
d. If the database version is less than N06081, you must transfer the new reprogramming data from the Reflash Update CD 8/06 to the MUT-III hard drive as follows:
a. Install Reflash Update CD 8106 into the PC's DVD-ROM drive.

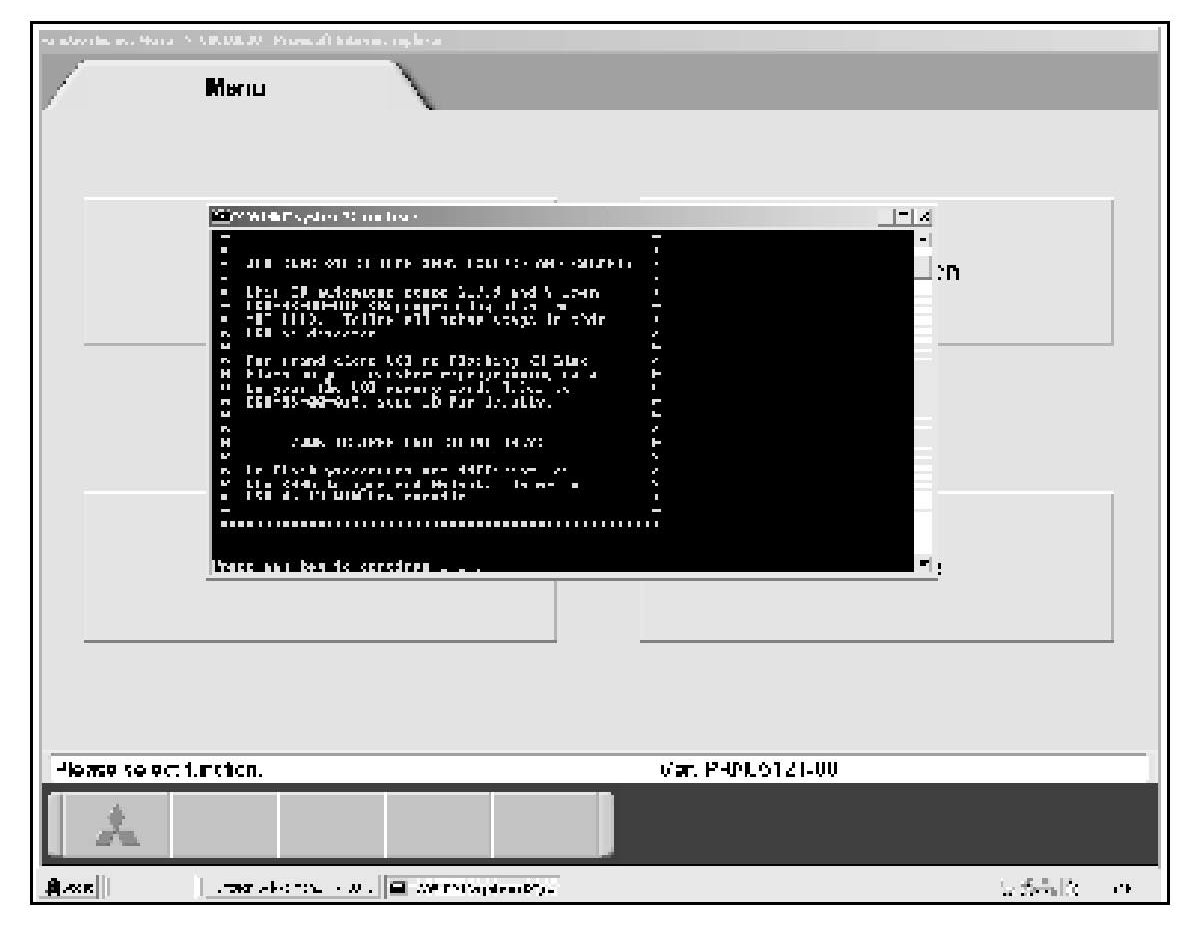

b. Follow the instructions on the screen. The system will automatically transfer the reprogramming data onto the PC's hard drive.
6. MEDIC-II and STV Transfer the reprogramming data from the MEDIC-II laptop to the memory card as follows (Use the port on the left side of the MEDIC-II laptop):
a. Select the "MUT-III STV" button.
b. Select "Special function".
c. Select "ECU Reprogramming".
d. Select "Memory Card Transfer".
When the memory card data transfer is complete, remove the memory card from the laptop and install it in the VCI. Then go to Step 7 for CAN-FLASH VEHICLES ONLY or Step 8 FOR K-LINE FLASH VEHICLES.
7. CAN-FLASH VEHICLES ONLY:
IMPORTANT:
DO NOT DISCONNECT THE MEDIC-II LAPTOP. DO NOT USE VCI STANDALONE REPROGRAMMING.
The following equipment is required for PCM reprogramming on CAN-Flash vehicles:
^ MEDIC-II PC
^ Reprogramming Database on DVD-ROM (Reflash Update CD 8106 or later for this concern)
^ VCI (Vehicle Communication Interface) - MB991824
^ MUT-III main harness A (blue) - MB991910
^ USB 2.0 cable - MB991827
^ "Engine Compartment/Control Module" labels - p/n MSSF-024G-00
Connect this equipment in the same manner as for normal vehicle diagnosis. When reprogramming a CAN-Flash vehicle, the VCI and MEDIC-II laptop must be connected. DO NOT use VCI Standalone on CAN-Flash vehicles.

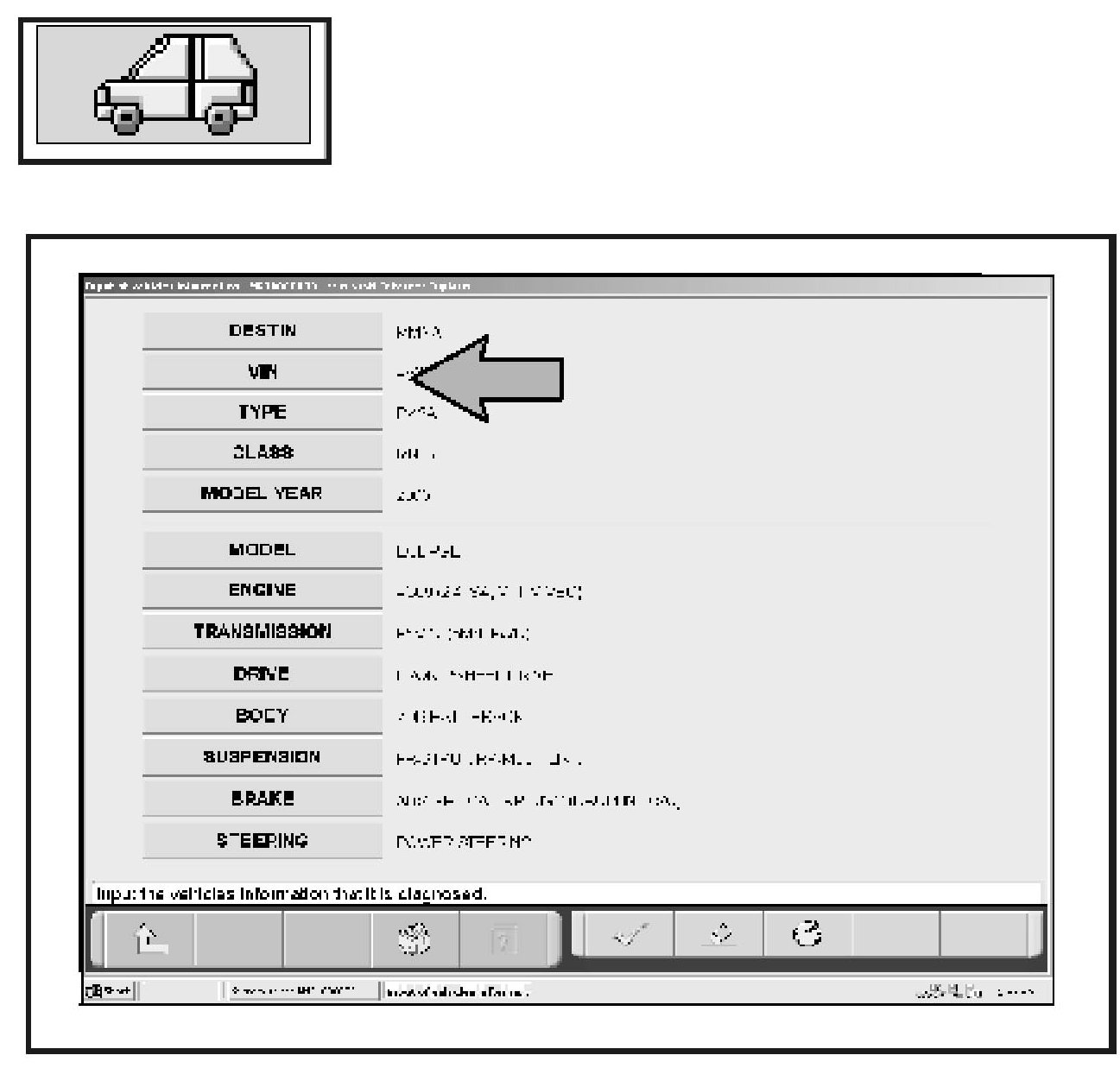

a. In the MUT-III System Select menu, click on the car symbol at the bottom of the screen.
b. Connect the VCI to the vehicle. DO NOT DISCONNECT THE LAPTOP.
c. Select "Special Function."
d. Select "ECU reprogramming."
e. Select "Automatic Reprogramming (CAN)."

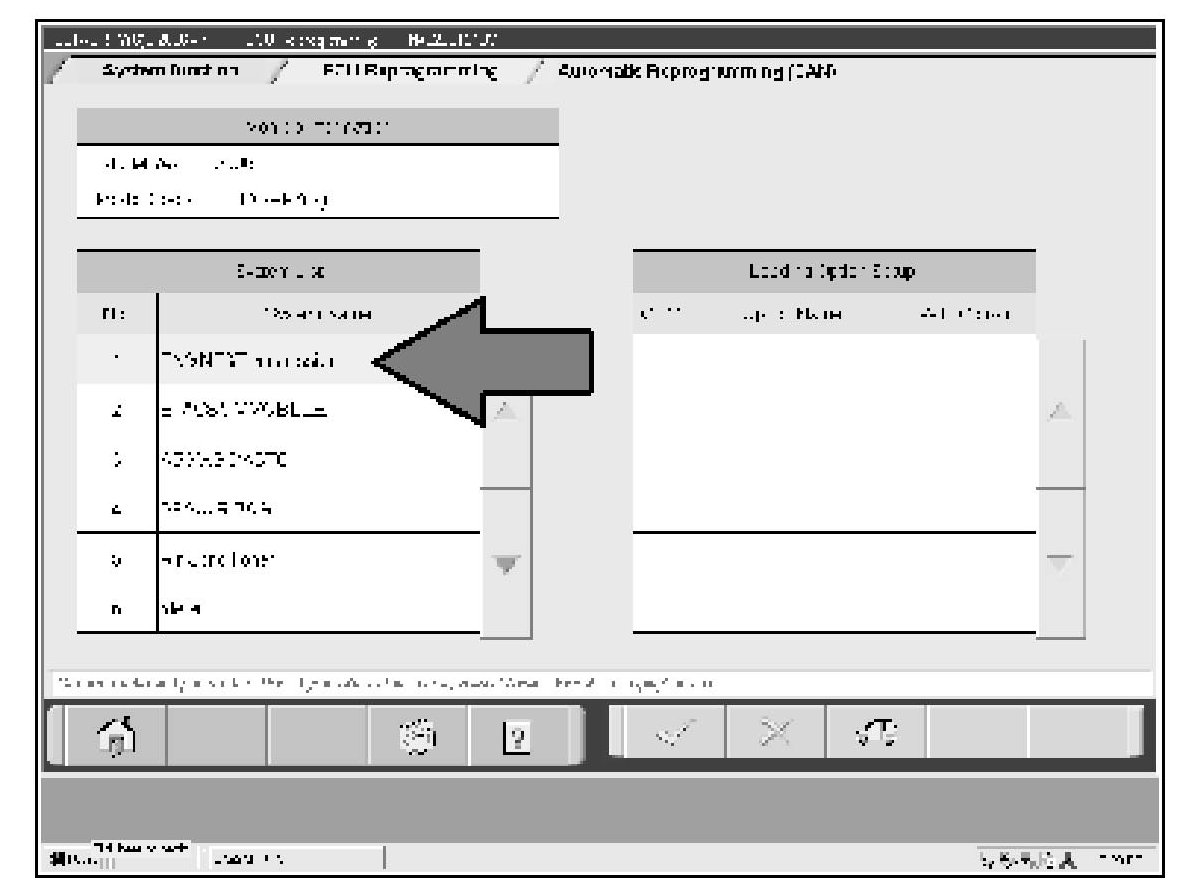

f. Select Engine and Transmission, then click on the check mark.
A message will advise you that the system will "Automatic Search the data."
Click on the check mark to continue.

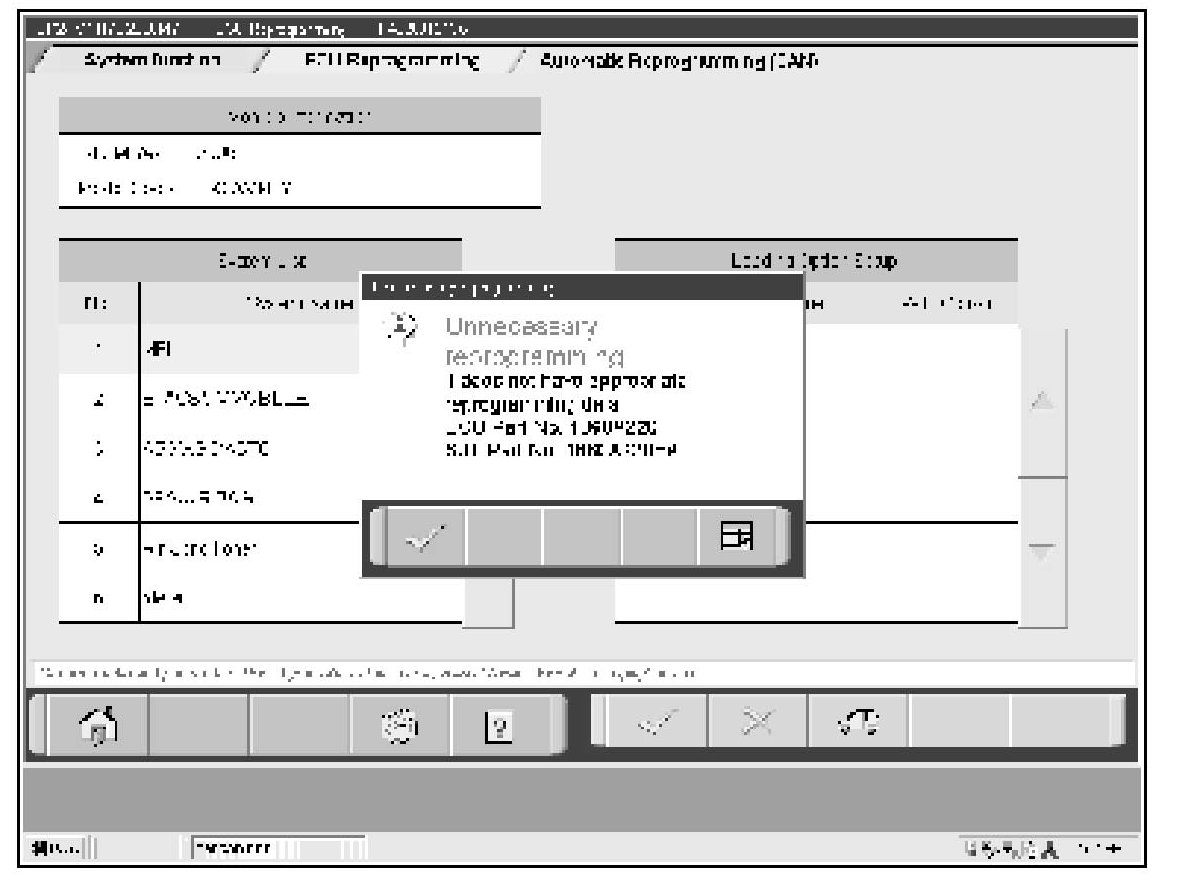

If the PCM is already reprogrammed for this concern, this screen will display. If this message displays, do not continue with this reprogramming procedure.
DO NOT DISTURB THE HARNESS CABLES OR CONNECTIONS. INTERRUPTION DURING THE PROGRAMMING PROCESS COULD CAUSE THE PCM TO LOSE DATA OR PREVENT FUTURE PCM REPROGRAMMING.

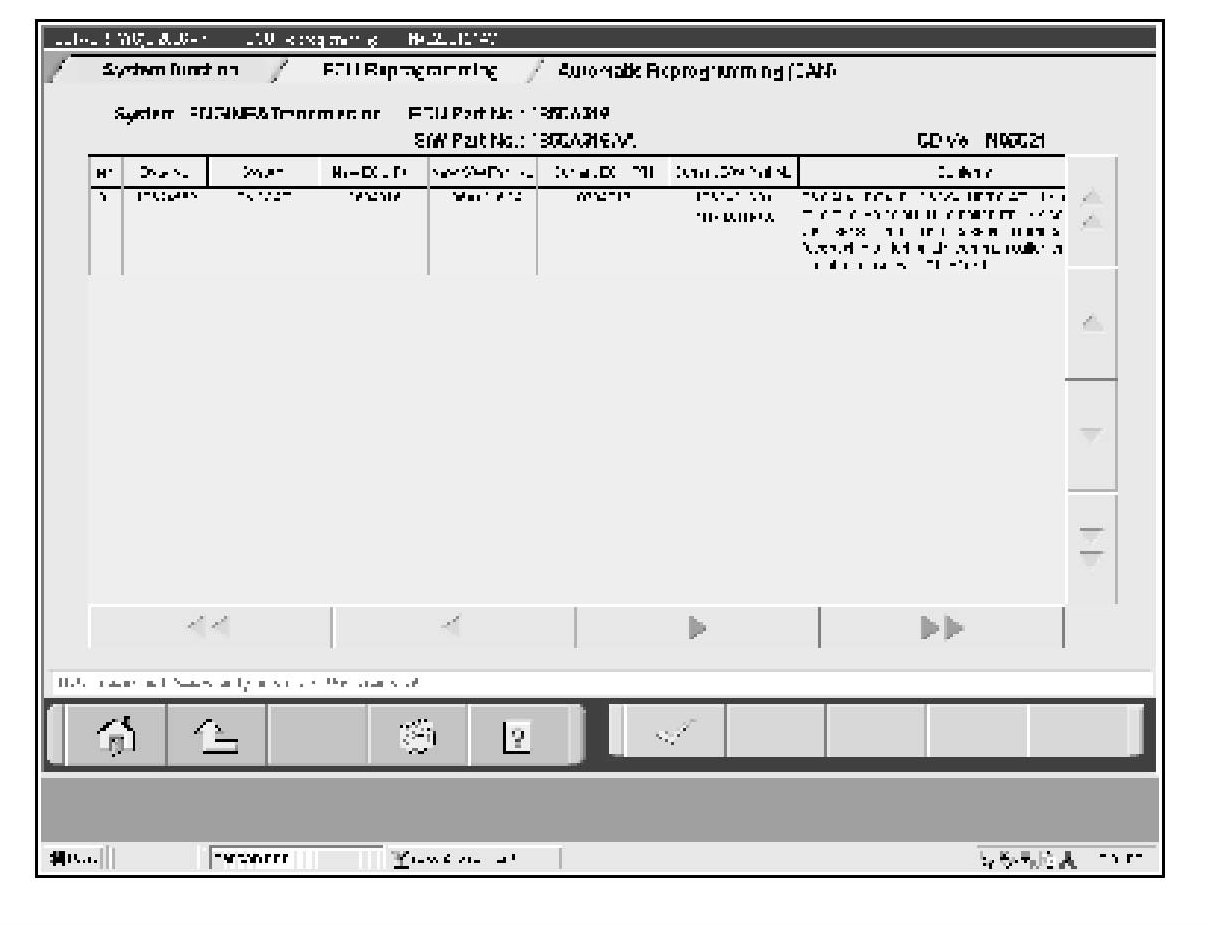

g. The CAN database screen will display.
(If more than one row is displayed in the table, select the appropriate ECU part number.)
Click on the check mark to begin reprogramming.
NOTE:
It will take up to 10 minutes to complete the reprogramming.
h. This message will display when the reprogramming is successfully completed.
Go to Step 9 to complete this bulletin procedure.
8. K-LINE FLASH VEHICLES ONLY Reflash the PCM as follows:
a. STV ONLY. If you just transferred the new reprogramming data from the Reflash Update CD 8/06 to the MUT-III hard drive, now transfer the reprogramming data from the MUT-III laptop to the memory card. (Use the port on the left side of the MUT-III laptop.) Select ECU Reprogramming, then Memory Card Transfer. A status bar will display while the data is loading into the memory card.
When the memory card data transfer is complete, remove the memory card from the laptop and install it in the VCI.

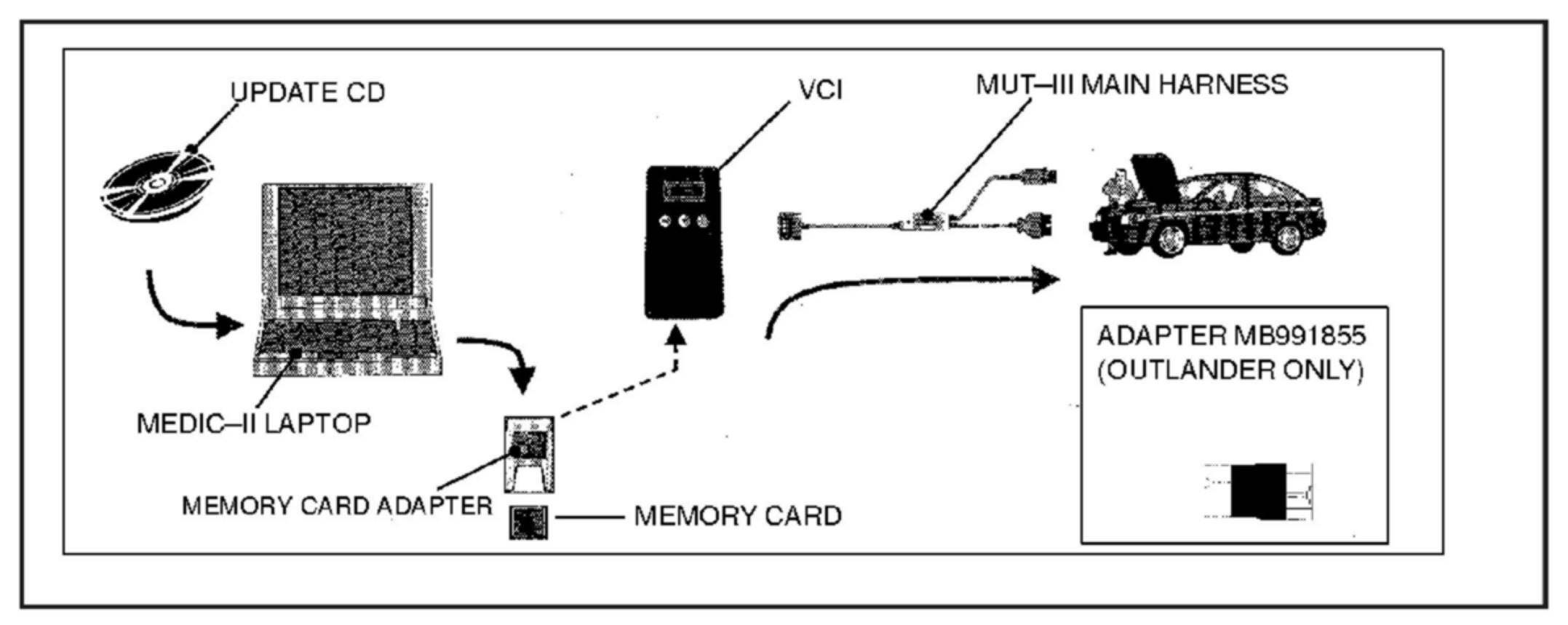

b. MEDIC-II and STV. Connect the following equipment:
^ VCI (Vehicle Communication Interface) - MB991824
^ MUT-III main harness B (red) - MB991911
^ 12-13 pin adapter (Outlander only) - MB991855
c. Connect the VCI to the vehicle.
d. IMPORTANT!
Lancer and Outlander models equipped with ABS: With the ignition key OFF, unplug the ABS fuse (7.5 amp fuse in the junction box in the passenger compartment). Refer to the service manual for exact fuse location in the box.
e. Reprogram the PCM, using "Automatic reprogramming" on the VCI. It will take up to 20 minutes to complete the reprogramming.
CAUTION
DO NOT DISTURB THE HARNESS CABLES OR CONNECTIONS. INTERRUPTION DURING THE PROGRAMMING PROCESS COULD CAUSE THE PCM TO LOSE DATA OR PREVENT FUTURE PCM REPROGRAMMING.
If the message "ECU at Current Level of VCI" appears, the PCM did not reprogram. Verify that the ROM ID is the same as the ROM ID listed in the table in Step 9.
^ If the ROM ID is the same or higher than the ROM ID in the table, the PCM has already been reprogrammed for this concern. Do not continue with this reprogramming procedure.
^ If it is not, verify that the correct database update is in the MUT-Ill. Verify the correct database was transferred to the memory card, and that the memory card is properly installed in the VCI.

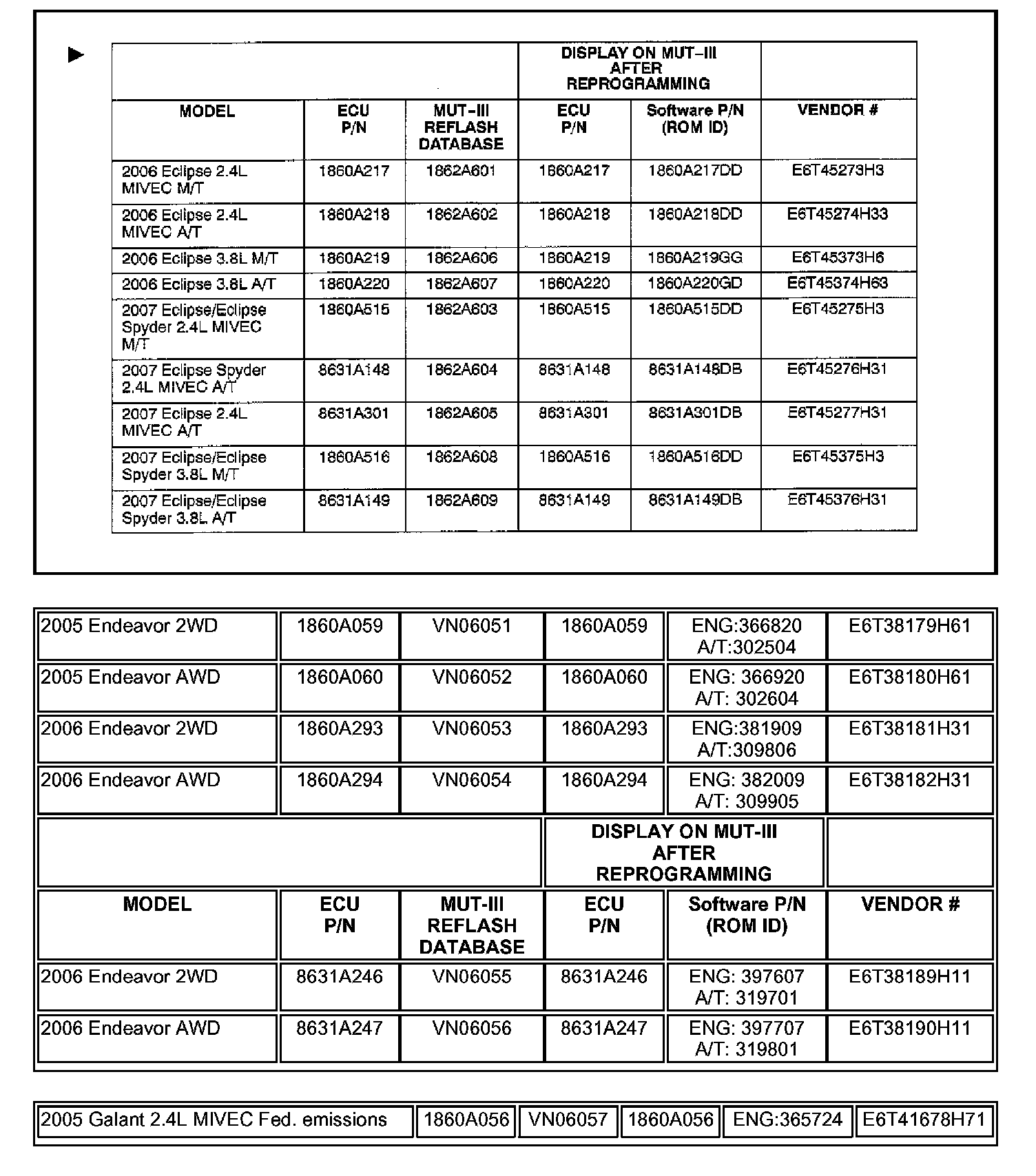

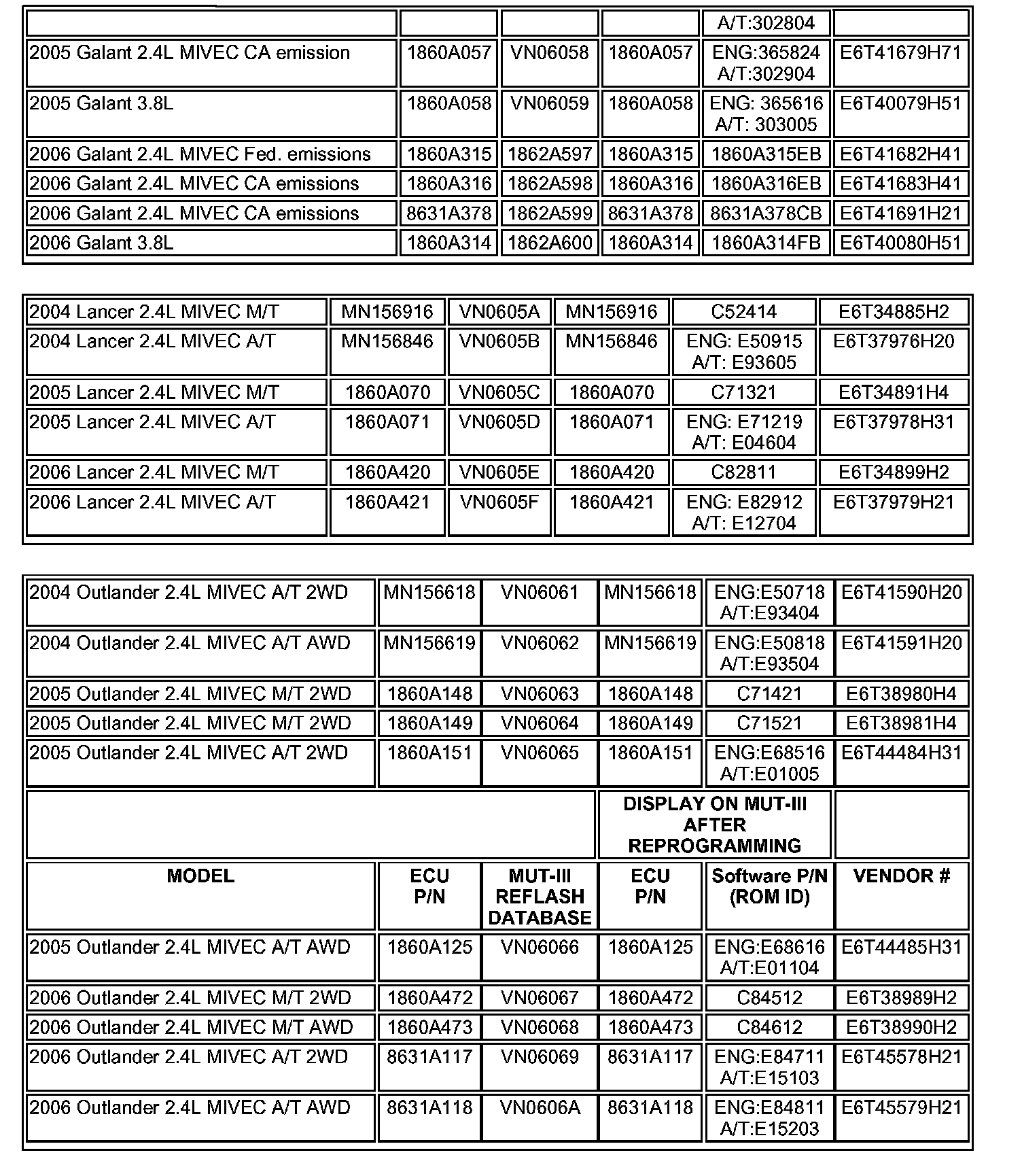

9. After reprogramming, the new ECU part number and software part number will display. Verify that they are the same as those listed below. Note this information.
10. Turn the ignition switch to OFF. Disconnect the MUT-III from the vehicle. Wait at least 10 seconds, then start the engine to verify proper operation.
11. Using a ball-point pen, enter the appropriate PCM part number, vendor number, ROM ID, this TSB number (TSB-06-13-011REV), your dealer code, and the current date on the Engine Compartment and Control Module Label (part no. MSSF-024G-00).
12. Carefully remove all dirt and oil from a vacant area near the VECI label on the underside of the hood, and affix the Engine Compartment label.
13. Affix the Control Module Label to the PCM.
14. Lancer and Outlander models equipped with ABS: Reconnect the ABS fuse. Confirm no DTC is set.
15. Test drive the vehicle to confirm proper operation and no MIL illumination.

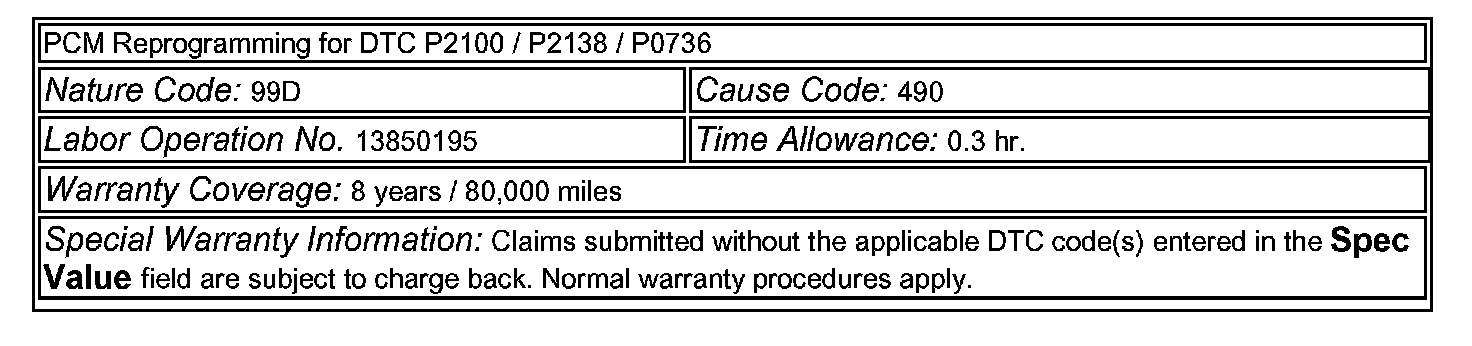

WARRANTY INFORMATION

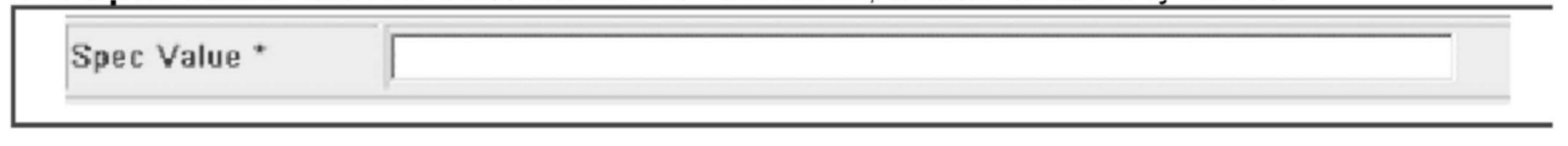

Special Value Field Entry Required: Enter the applicable DTC code(s) found during diagnosis in the Spec Value field.
