Electrical Specifications

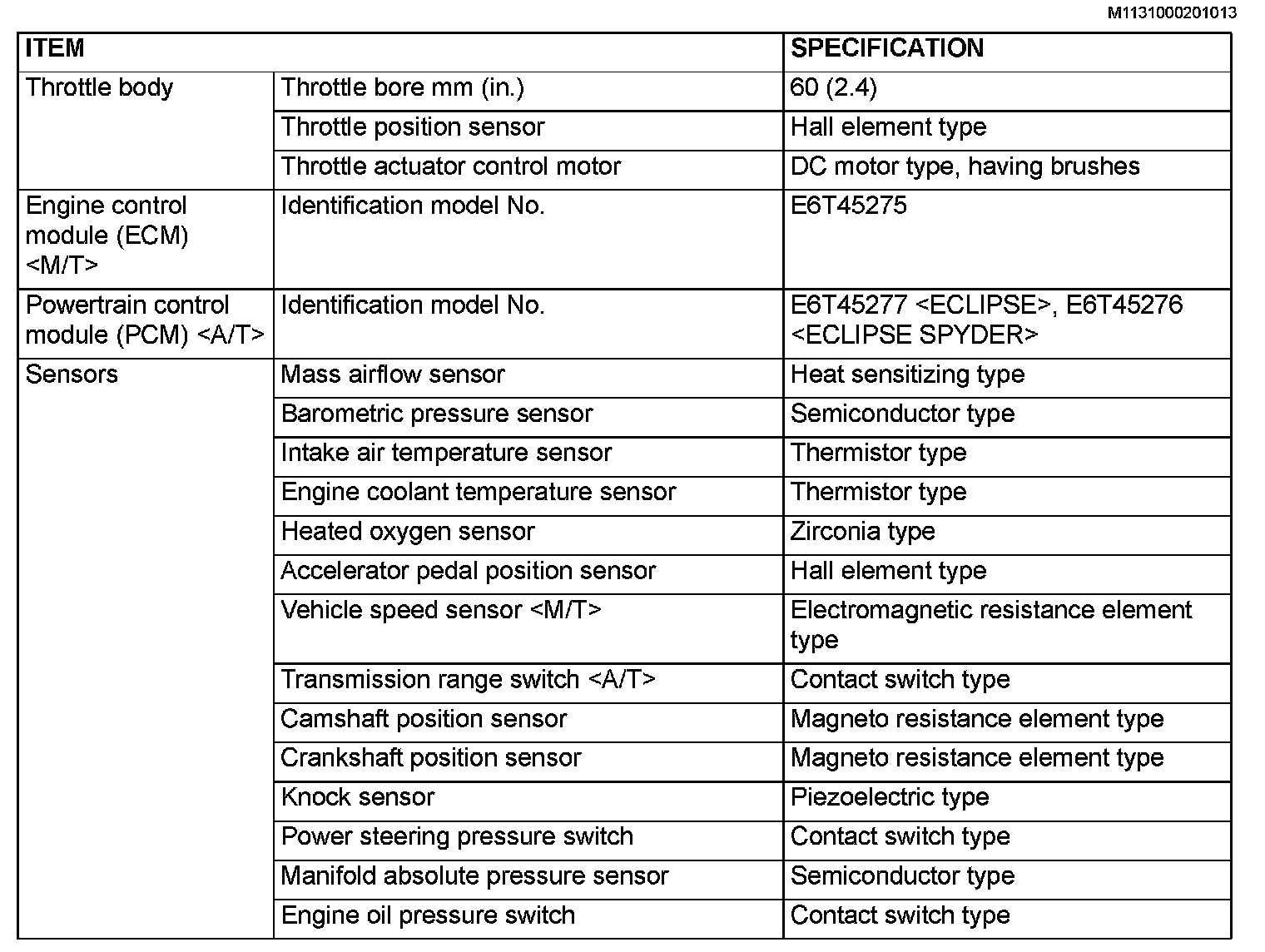

General Specifications Part 1:

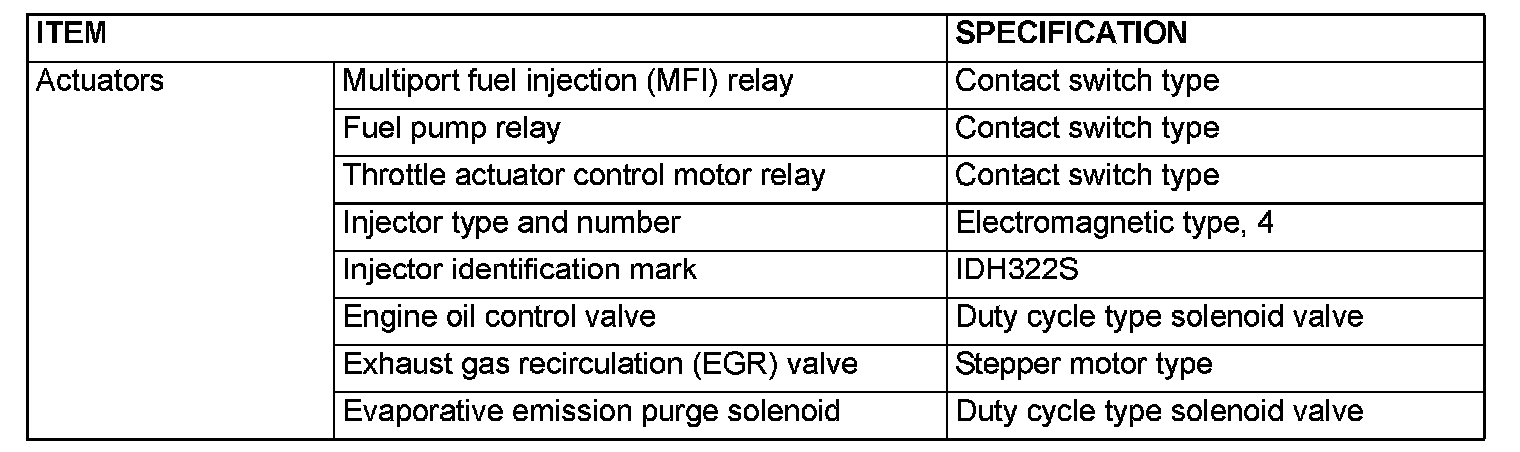

General Specifications Part 2:

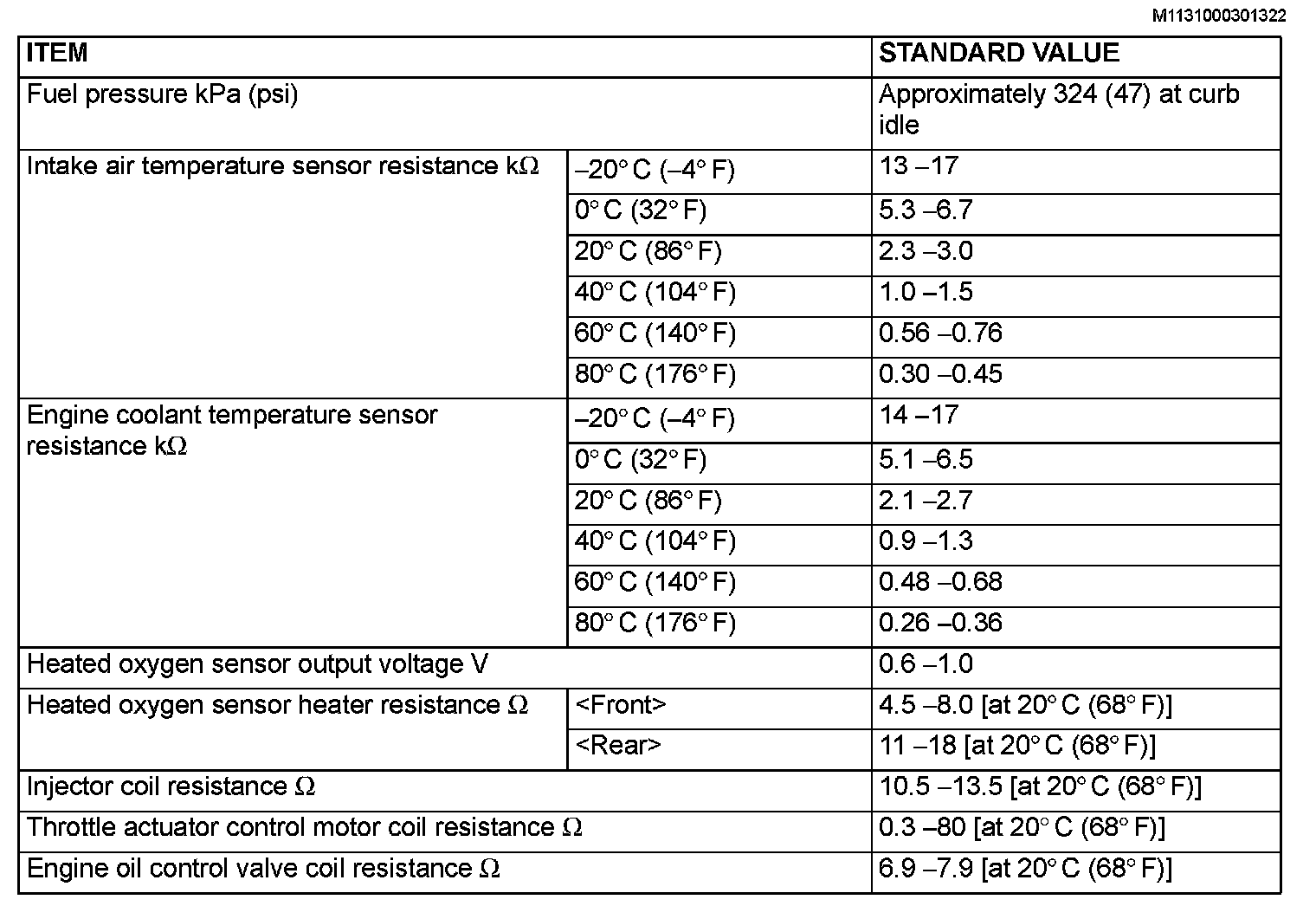

Service Specifications:
