Home >> Mitsubishi >> 2007 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Tools and Equipment

Information Bus: Tools and Equipment

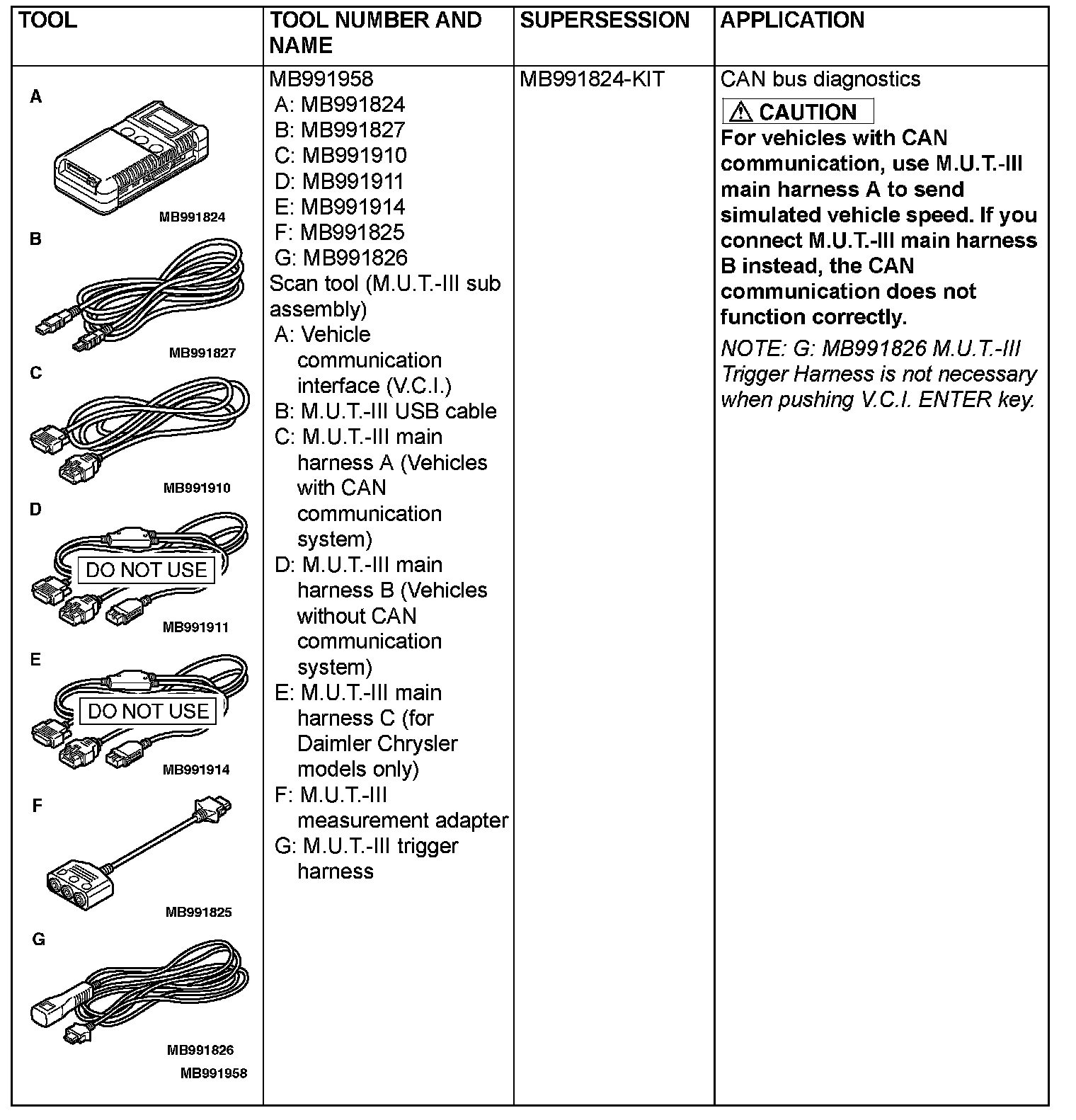

Special Tool Part 1:

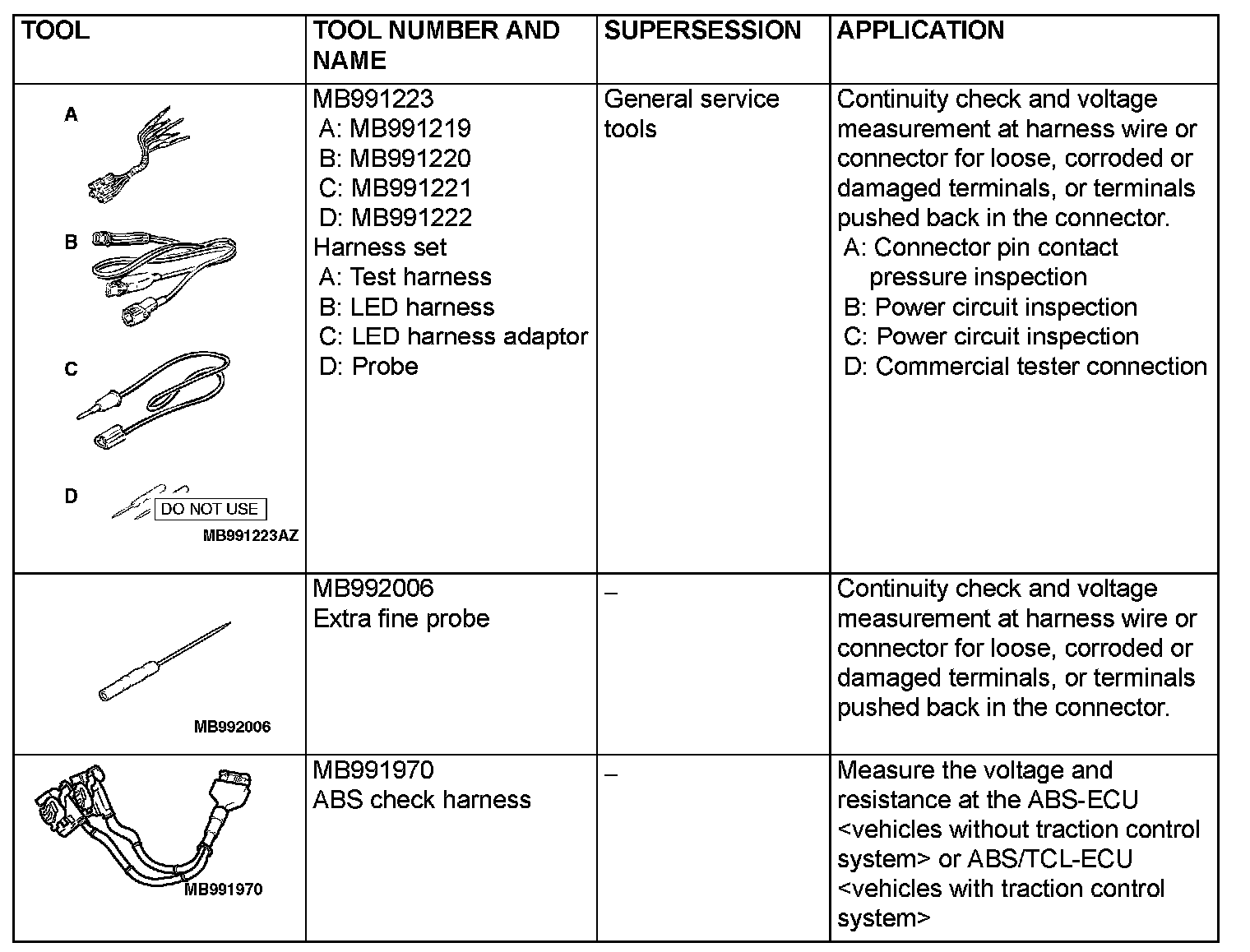

Special Tool Part 2:



Test Equipment:
