Locations
>>
Connector Locations
>>
A Connectors - Engine Compartment
A Connectors - Engine Compartment

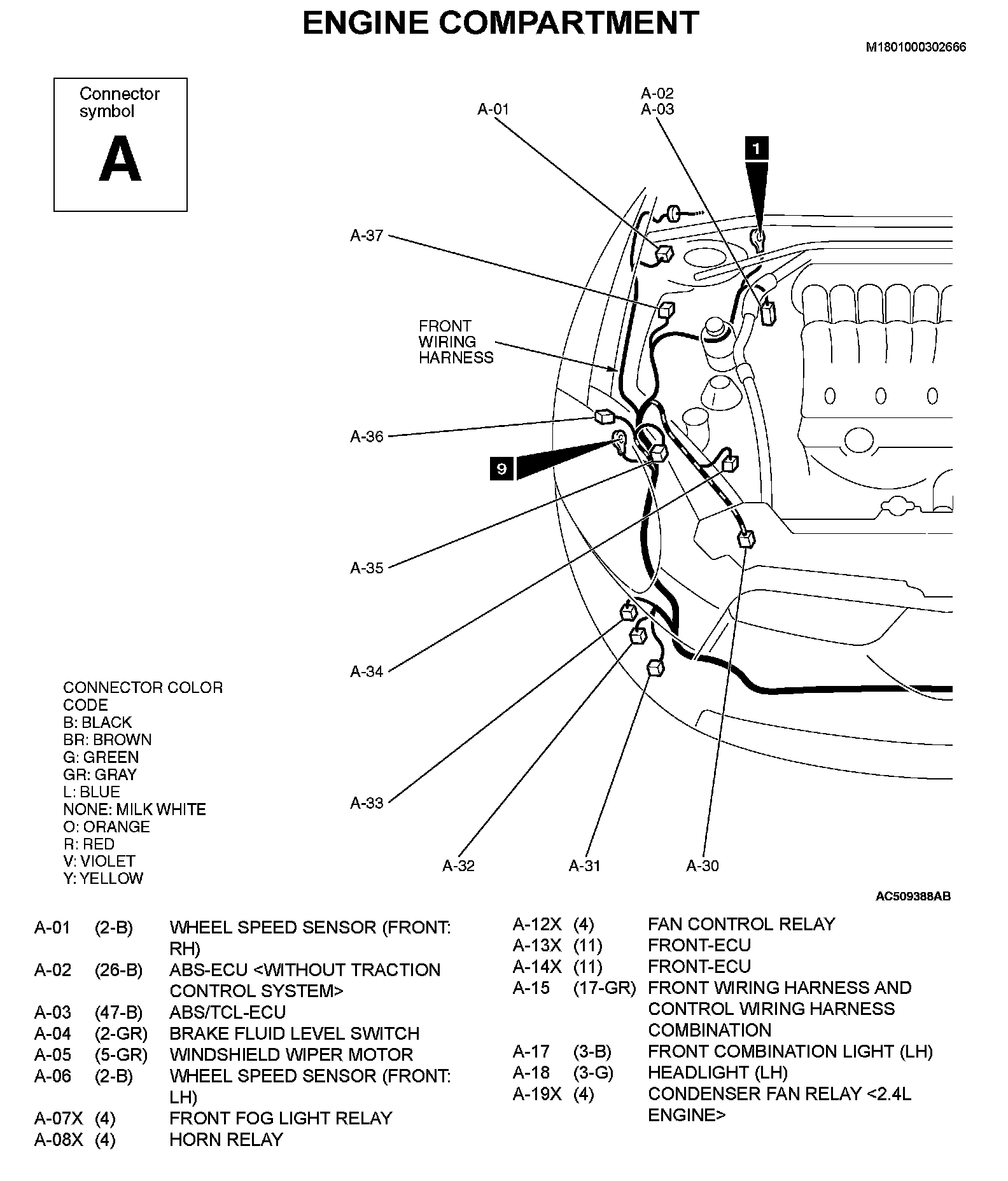

A-01 To A 37 Part 1:

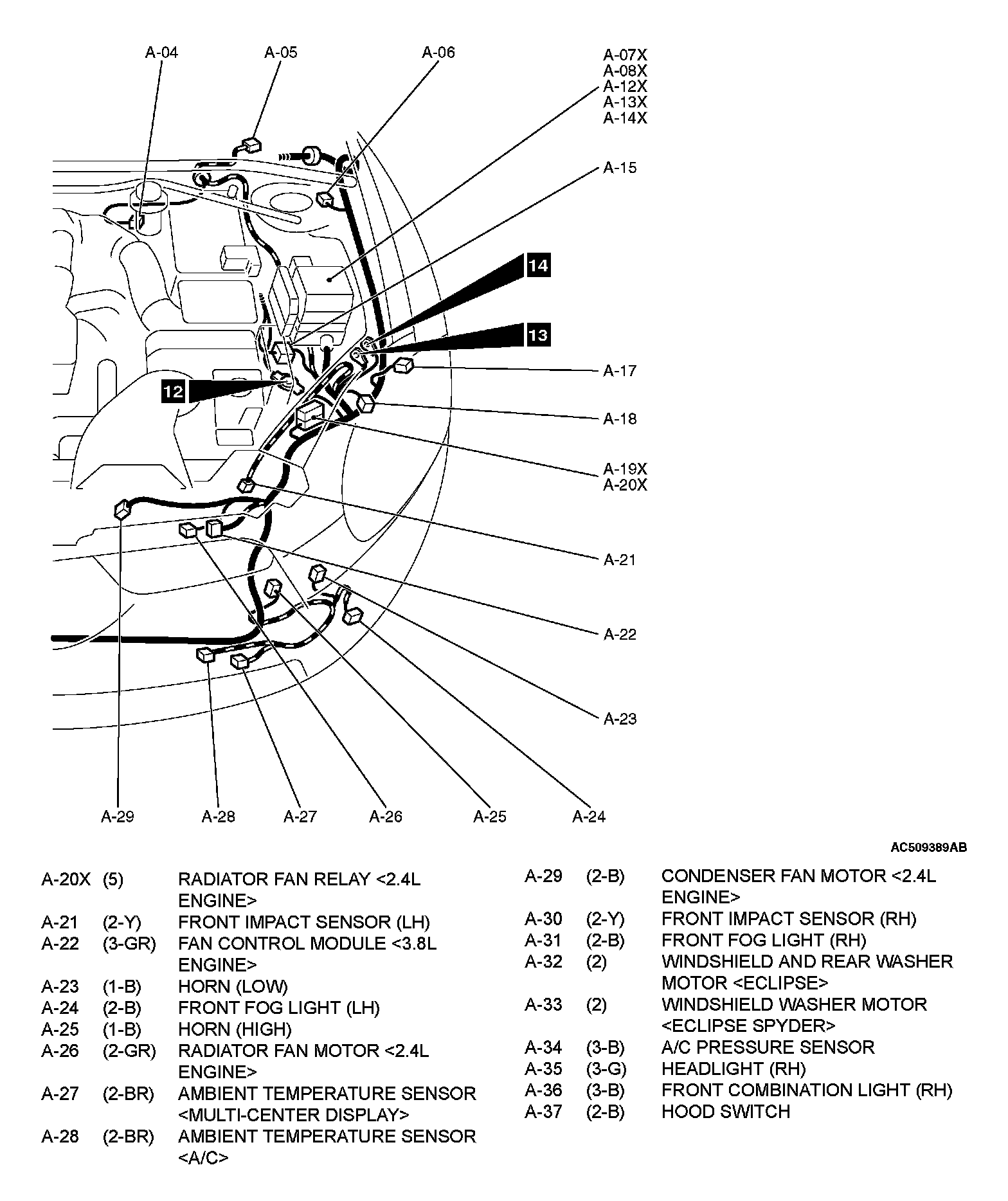

A-01 To A 37 Part 2:
