Marker Lamp: Service and Repair

FRONT SIDE-MARKER, FRONT TURN-SIGNAL LIGHT AND PARKING LIGHT BULB
1. Disconnect the front side-marker, front turn-signal light and parking light connector.

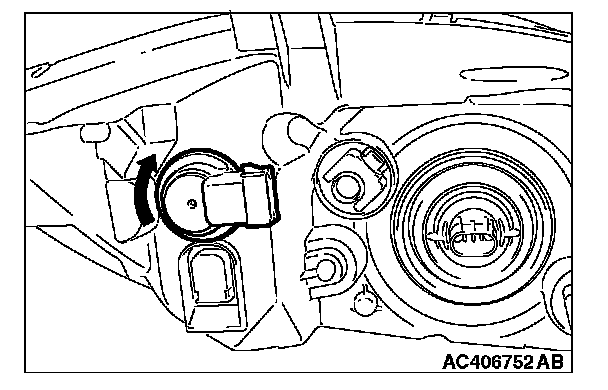

2. Remove the socket with the bulb by turning it counterclockwise as shown.

CAUTION: Do not touch the surface of the bulb with hands or dirty gloves as the bulb may fail after a short time. If the surface does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.

3. Pull out the bulb from the socket, and then replace the bulb.
4. Install the socket to the headlight by pushing it in and twisting it clockwise.
