Combination Meter Terminal Check
Combination Meter Terminal Check
Combination Meter Terminal Check:

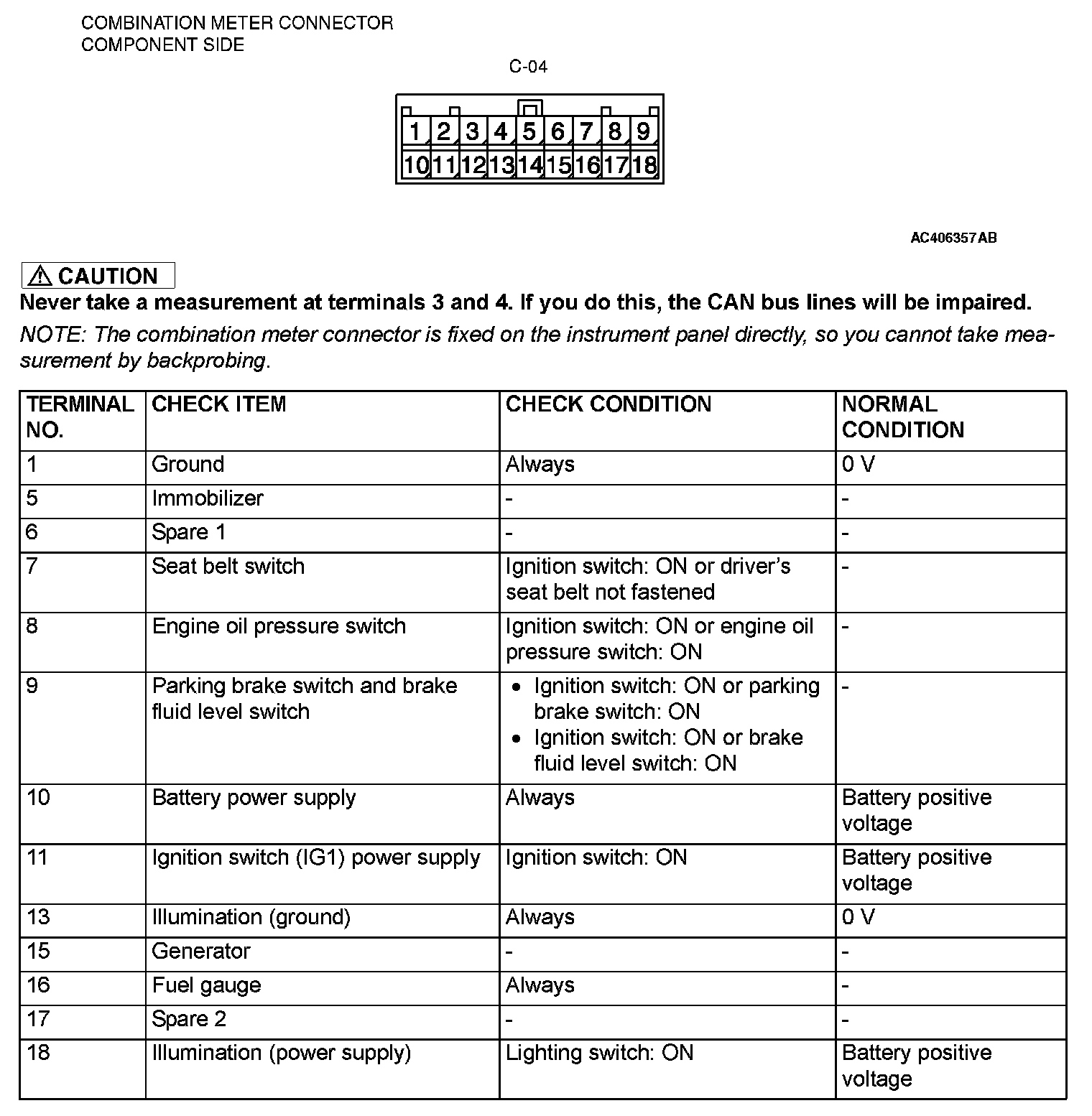

COMBINATION METER TERMINAL CHECK
Measure the voltage between terminals using a voltmeter.
