A/C - Flashing A/C Indicator Diagnostics Addition
No.: TSB-06-55-001DATE: April, 2006
MODEL:
See below
SUBJECT:
FLASHING A/C INDICATOR LIGHT DIAGNOSIS - SERVICE MANUAL REVISION
TSB Revision: TSB-06-55-001
PURPOSE
Diagnosis procedures for a flashing A/C indicator light are missing in the affected service manuals. This bulletin contains these diagnosis procedures (Inspection Procedure 12) for manual and automatic A/C systems.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
2006-2007 Eclipse
2007 Eclipse Spyder
AFFECTED SERVICE MANUALS
2006 Eclipse, pages 55A-98 and 55B-106
2007 Eclipse/Eclipse Spyder, pages 55A-98 and 55B-105

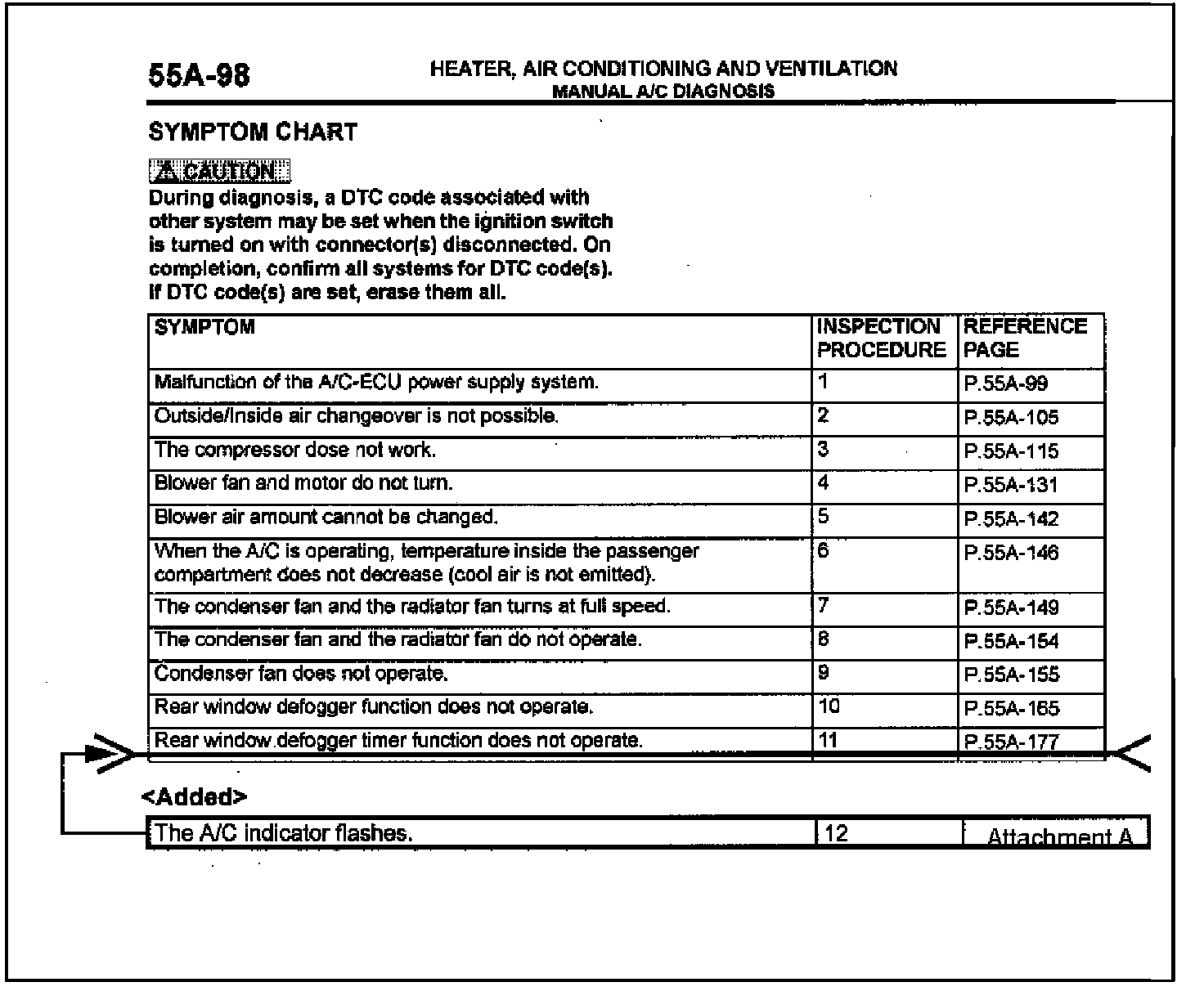

2006 Eclipse and 2007 Eclipse/Eclipse Spyder, page 55A-98
2006 Eclipse, page 55B-106; 2007 Eclipse/Eclipse Spyder, page 55B-105

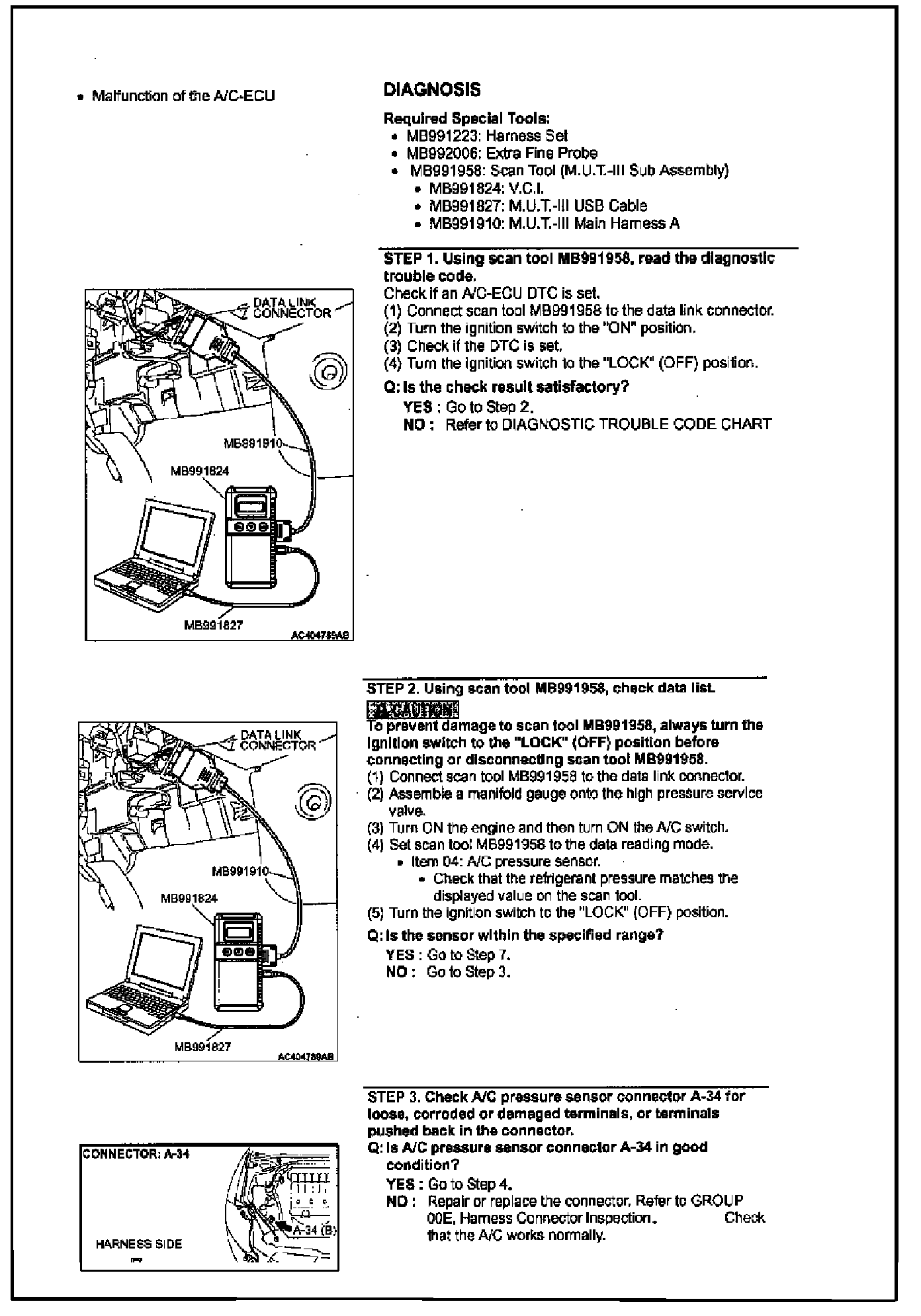

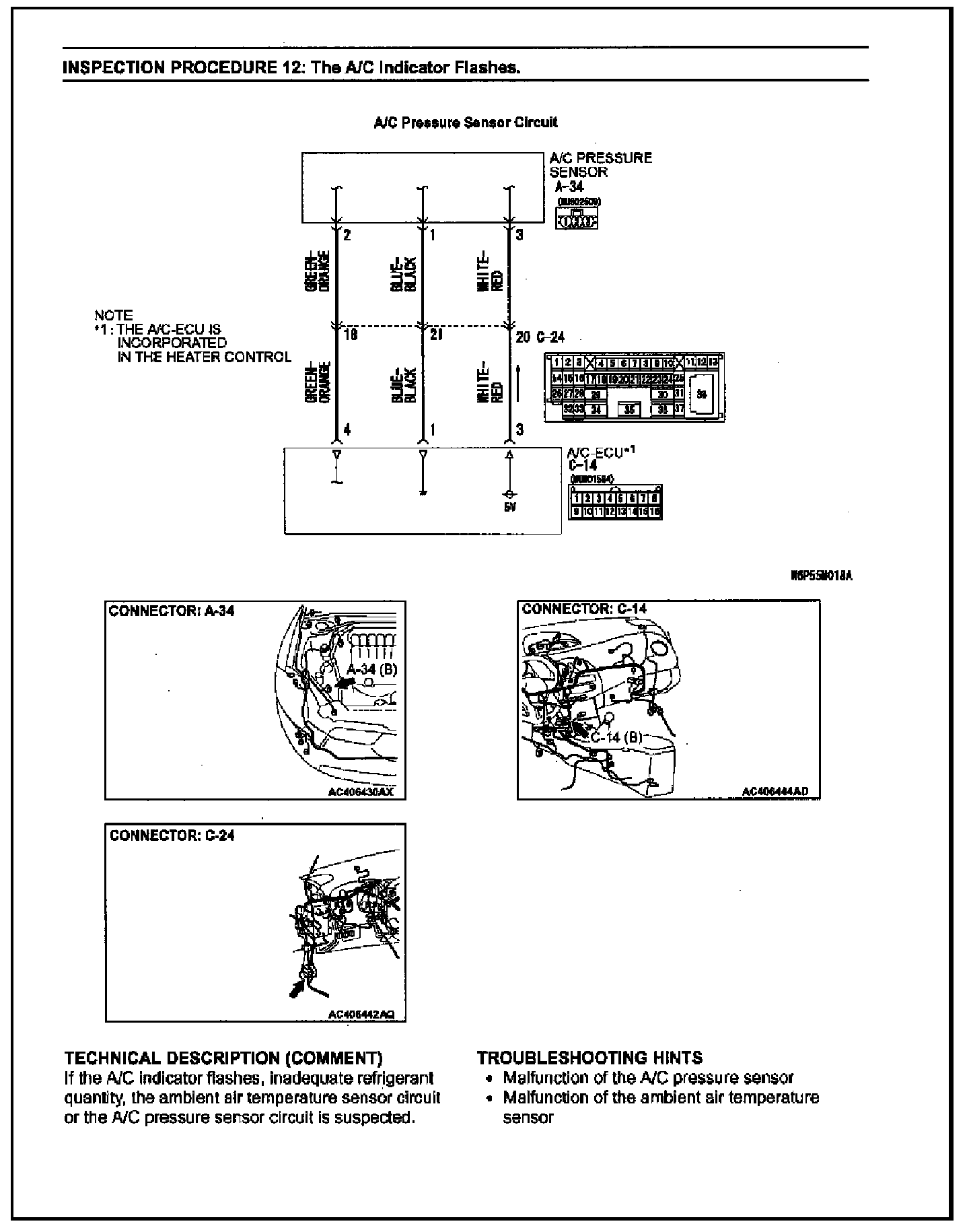

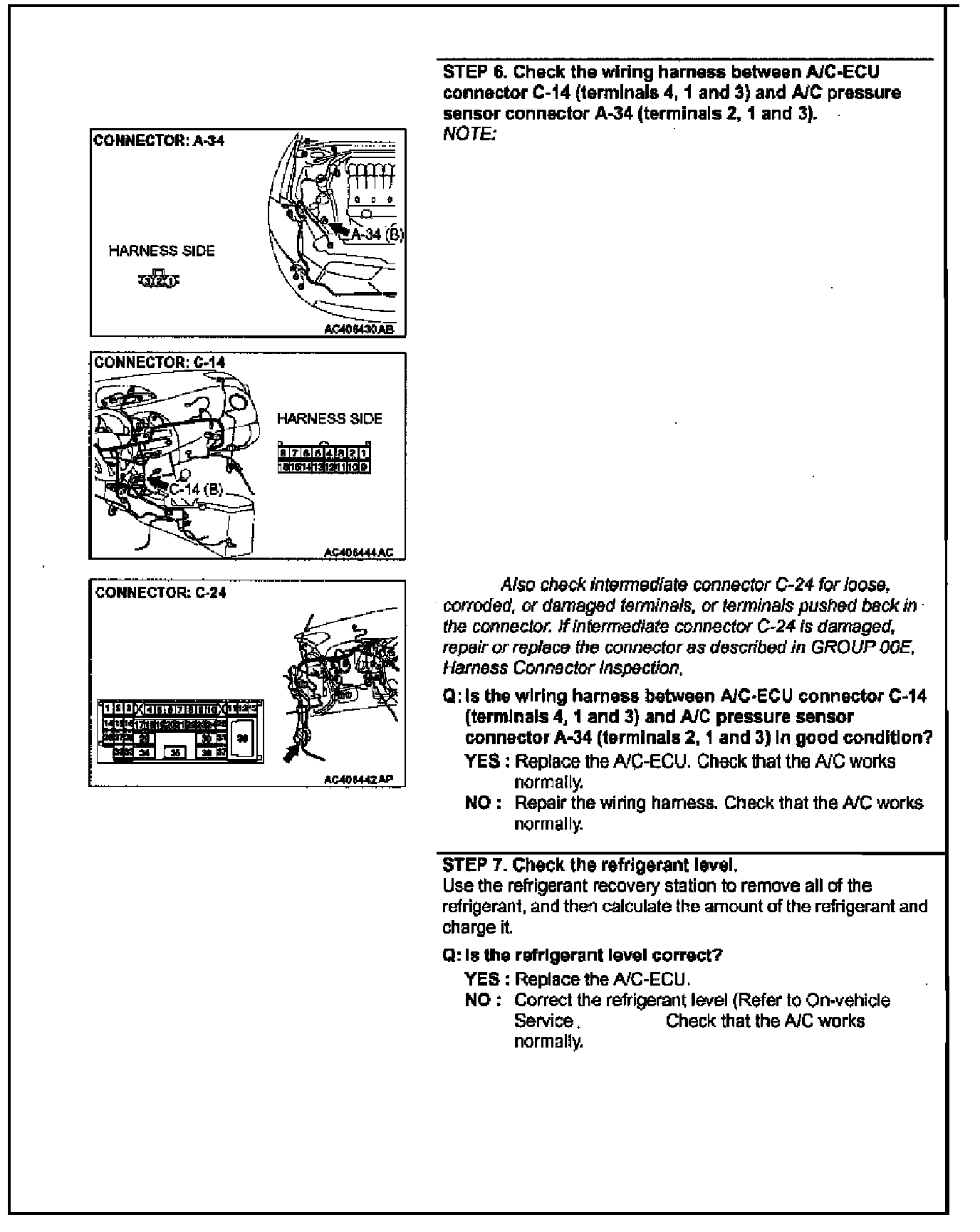

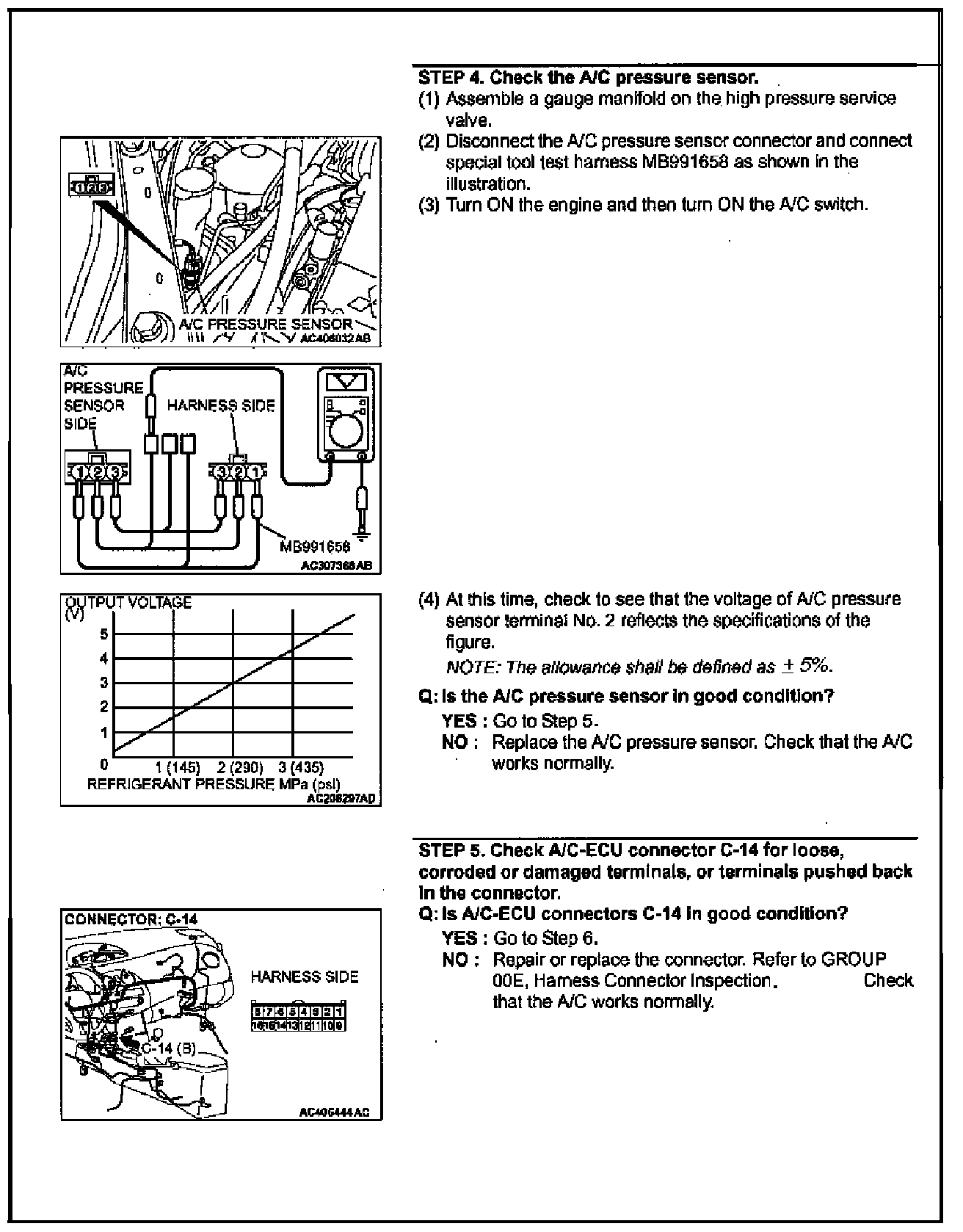

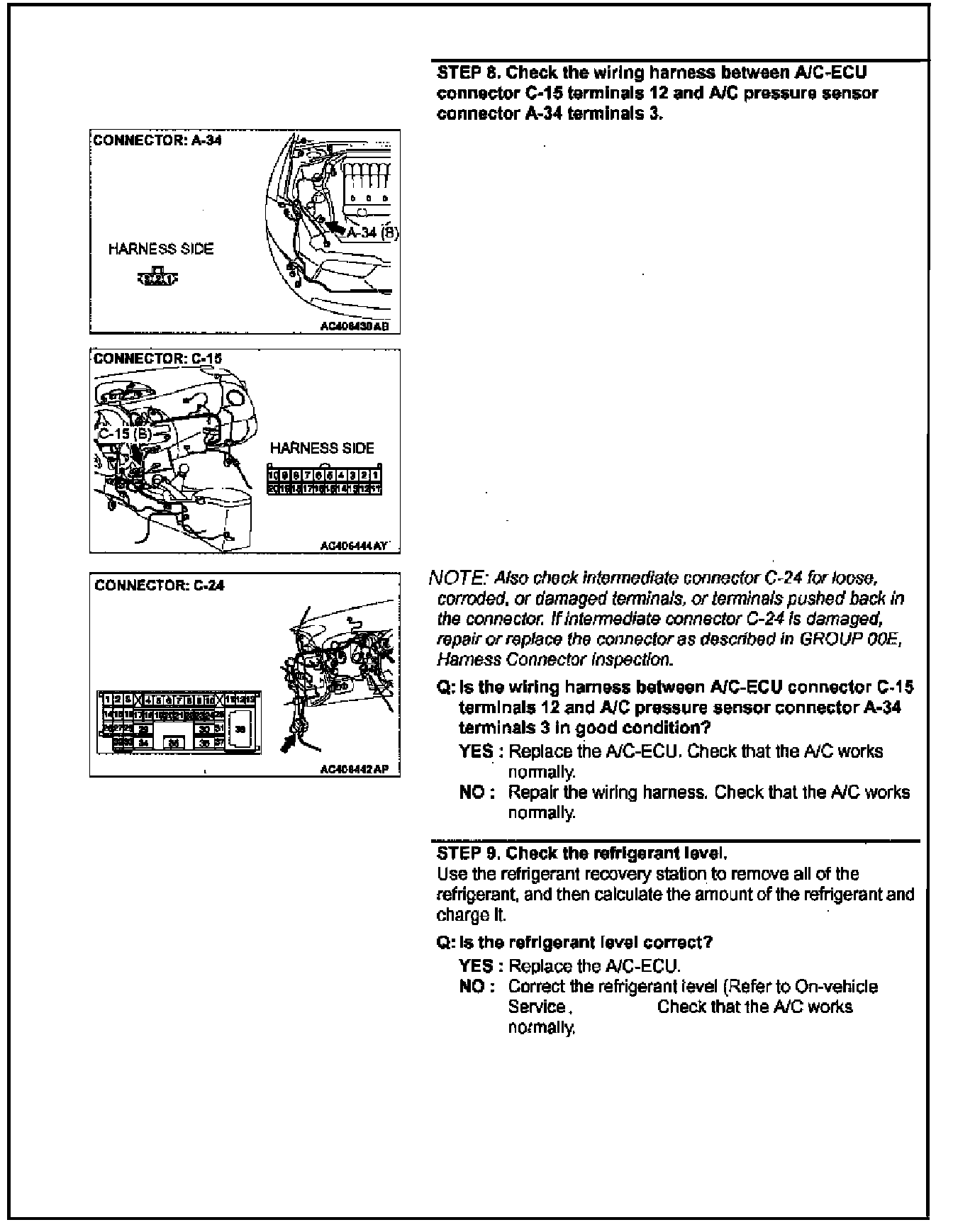

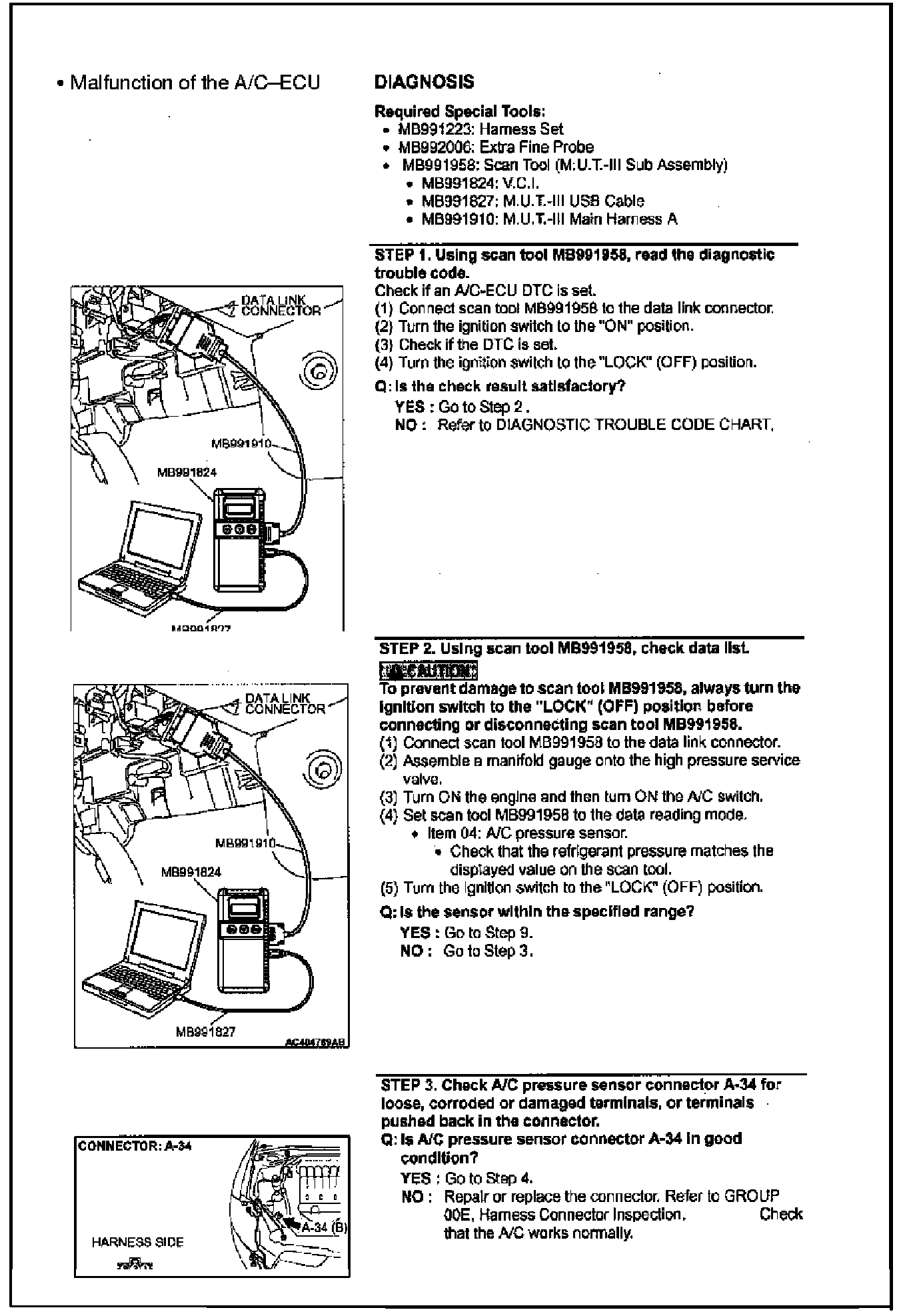

ATTACHMENT A - MANUAL A/C (page 1 through 4)

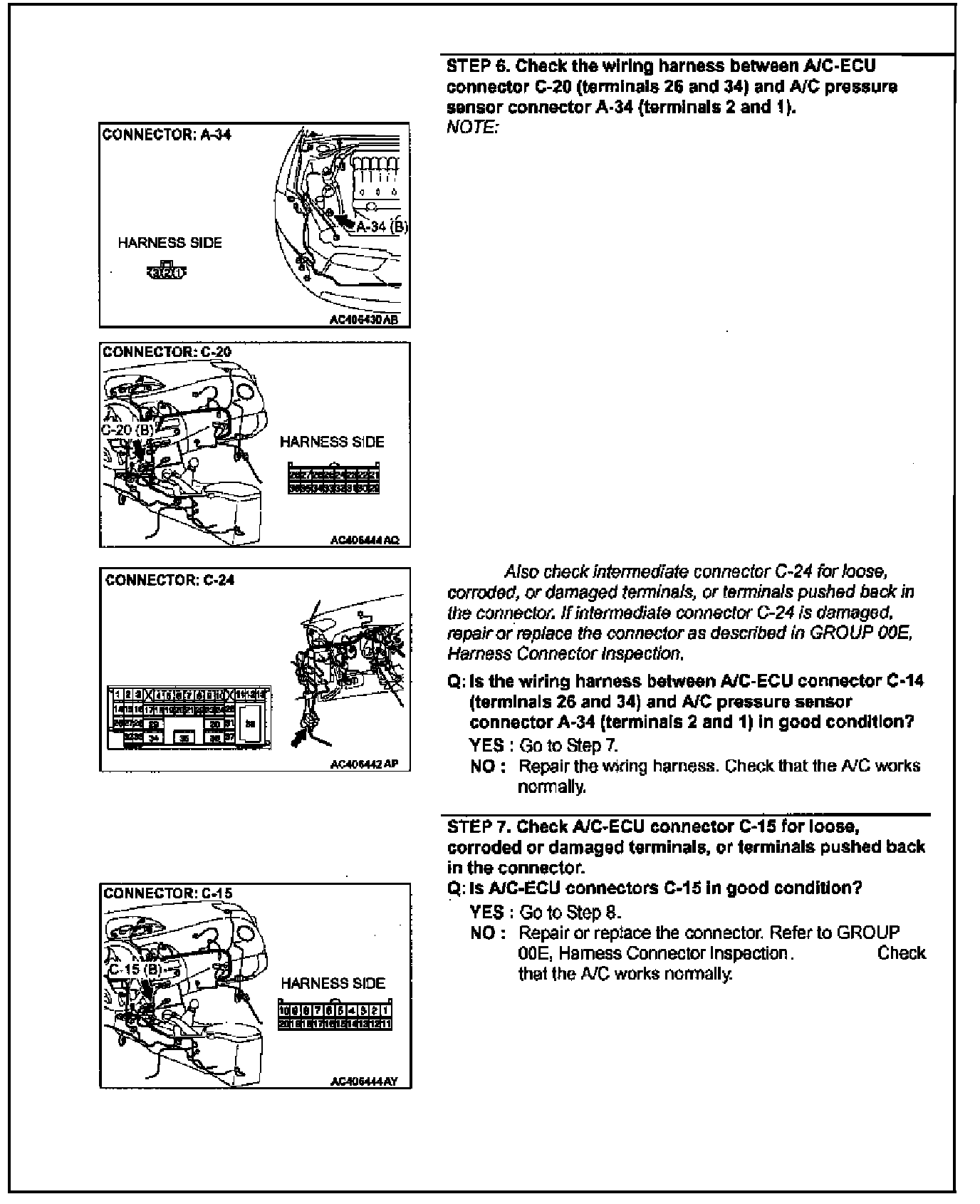

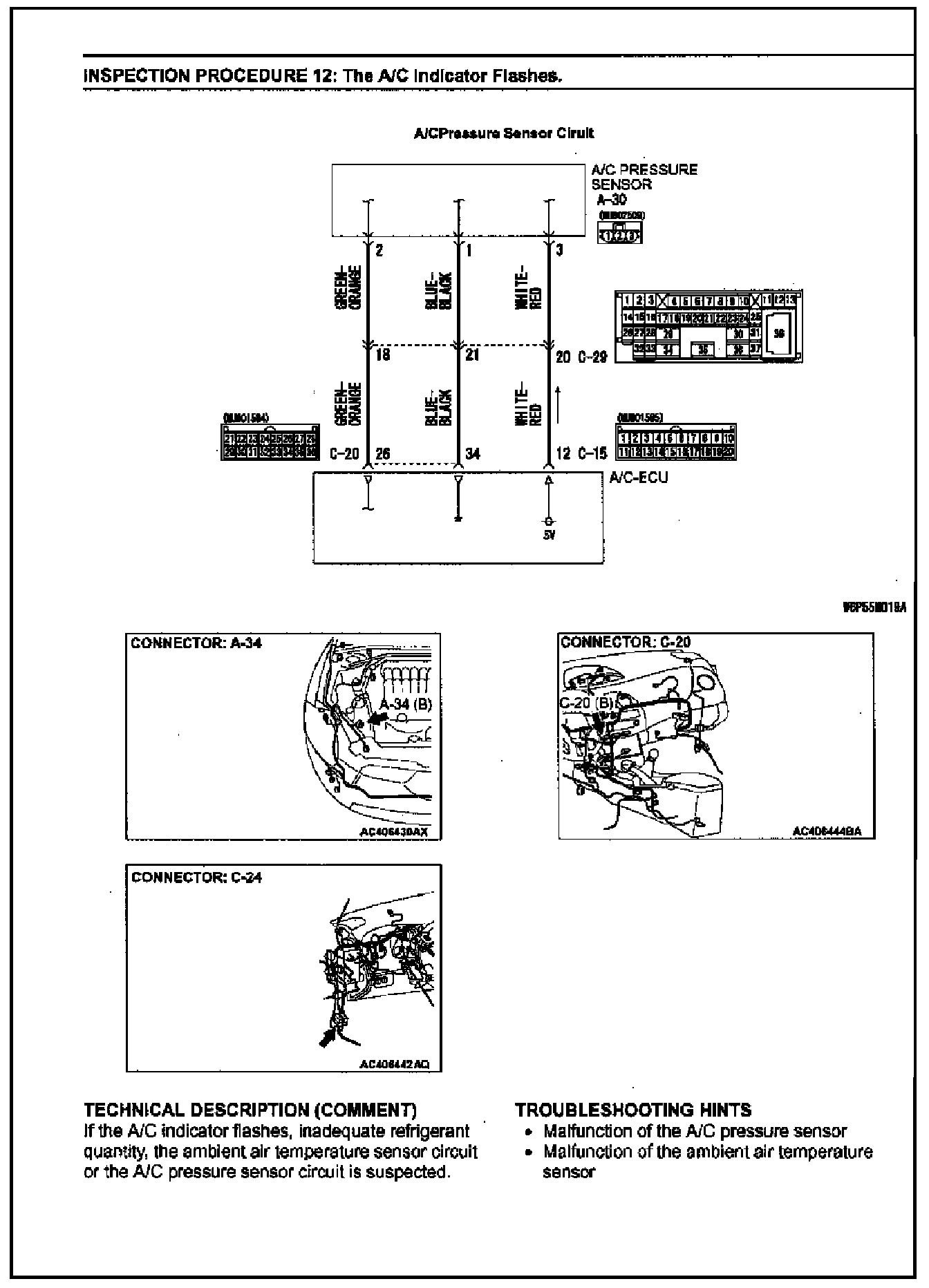

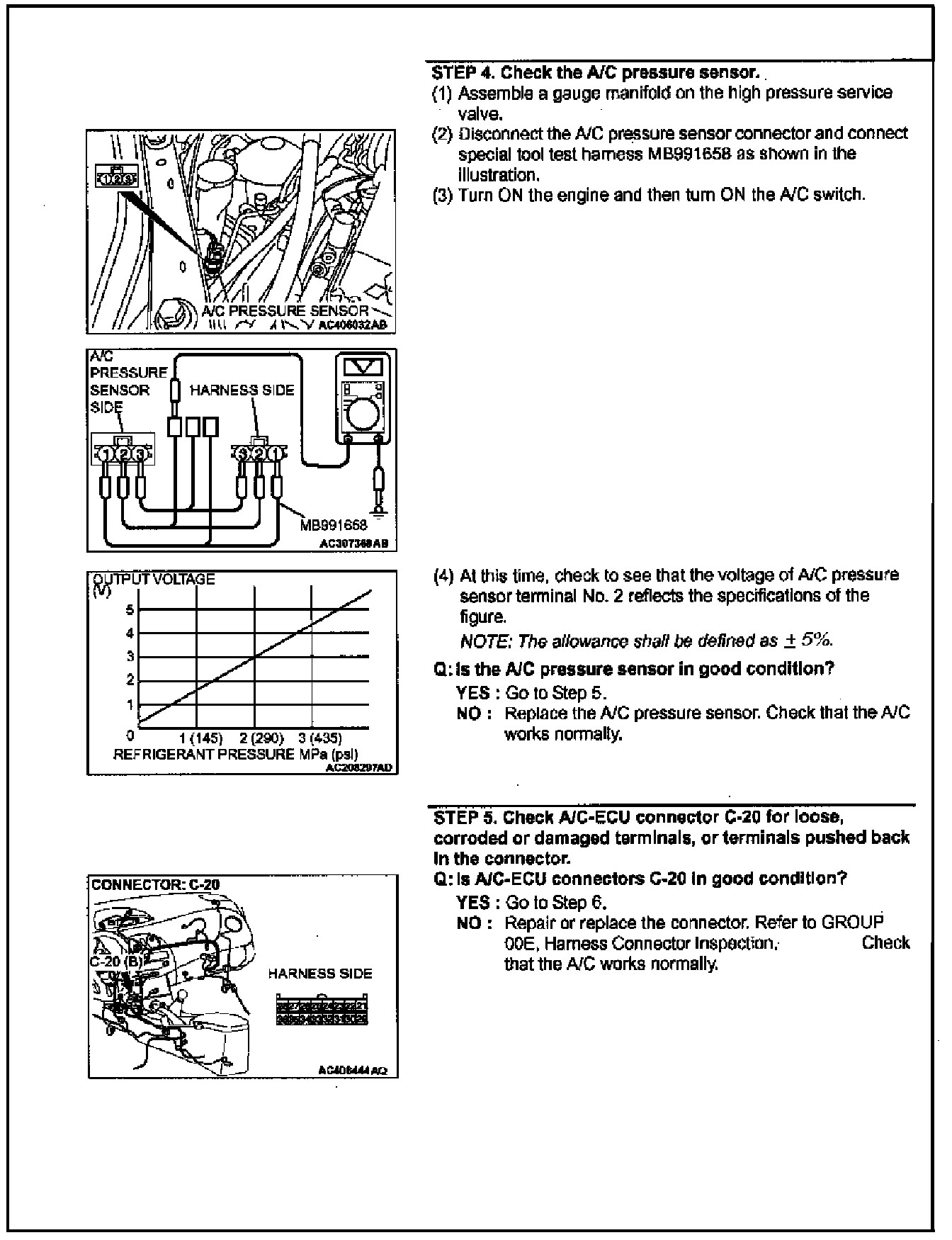

ATTACHMENT B - AUTOMATIC A/C (page 1 through 6)
