Condenser HVAC: Testing and Inspection

INSPECTION




CONDENSER FAN MOTOR CHECK

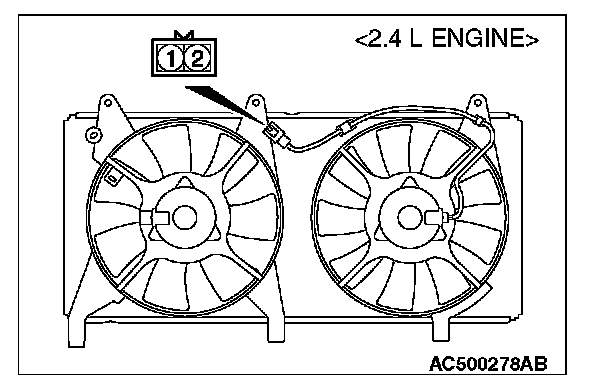

Check to be sure that the condenser fan motor operates when battery voltage is applied to terminal 2 and terminal 1 grounded.
