BLOWER FAN AND MOTOR CHECK

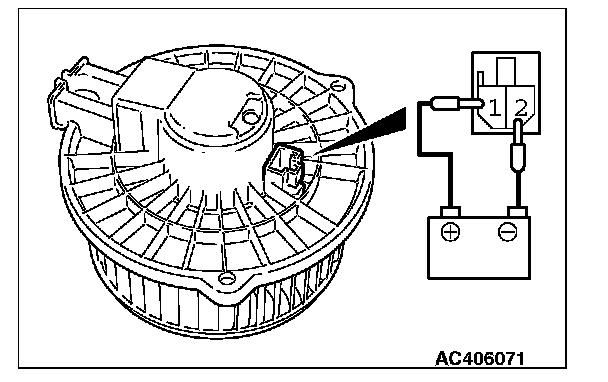

When battery voltage is applied between the terminals, check that the motor operates. Also, check that there is no abnormal noise.
