Outside/Inside Air Selection Damper Control Motor Check

OUTSIDE/INSIDE AIR SELECTION DAMPER CONTROL MOTOR CHECK

CAUTION: Cut off the battery voltage when the damper is in the inside/outside air position.

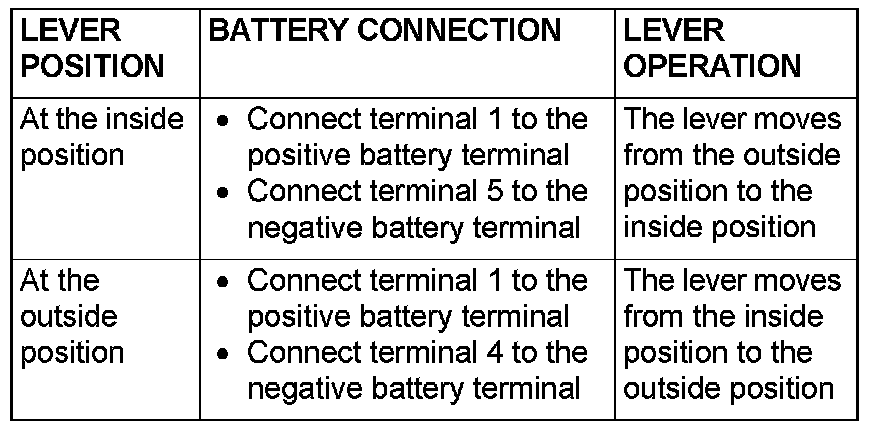

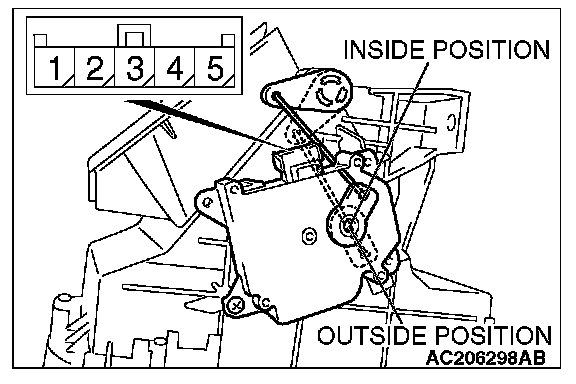

Check the outside/inside air selection damper control motor by the given procedures.
