Home >> Mitsubishi >> 2007 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Tools and Equipment >> Removal and Installation

Removal and Installation

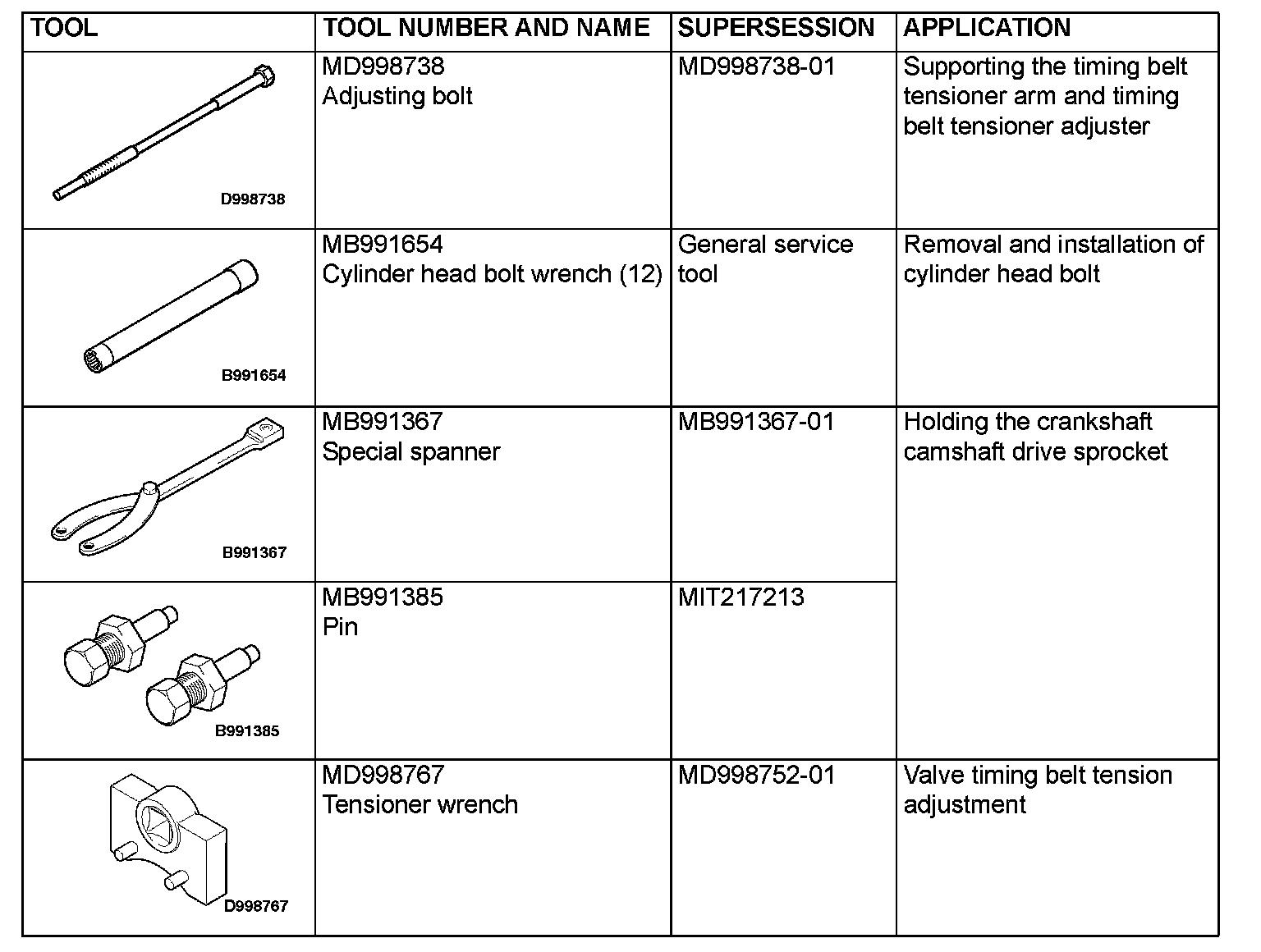

SPECIAL TOOLS (Part 1):

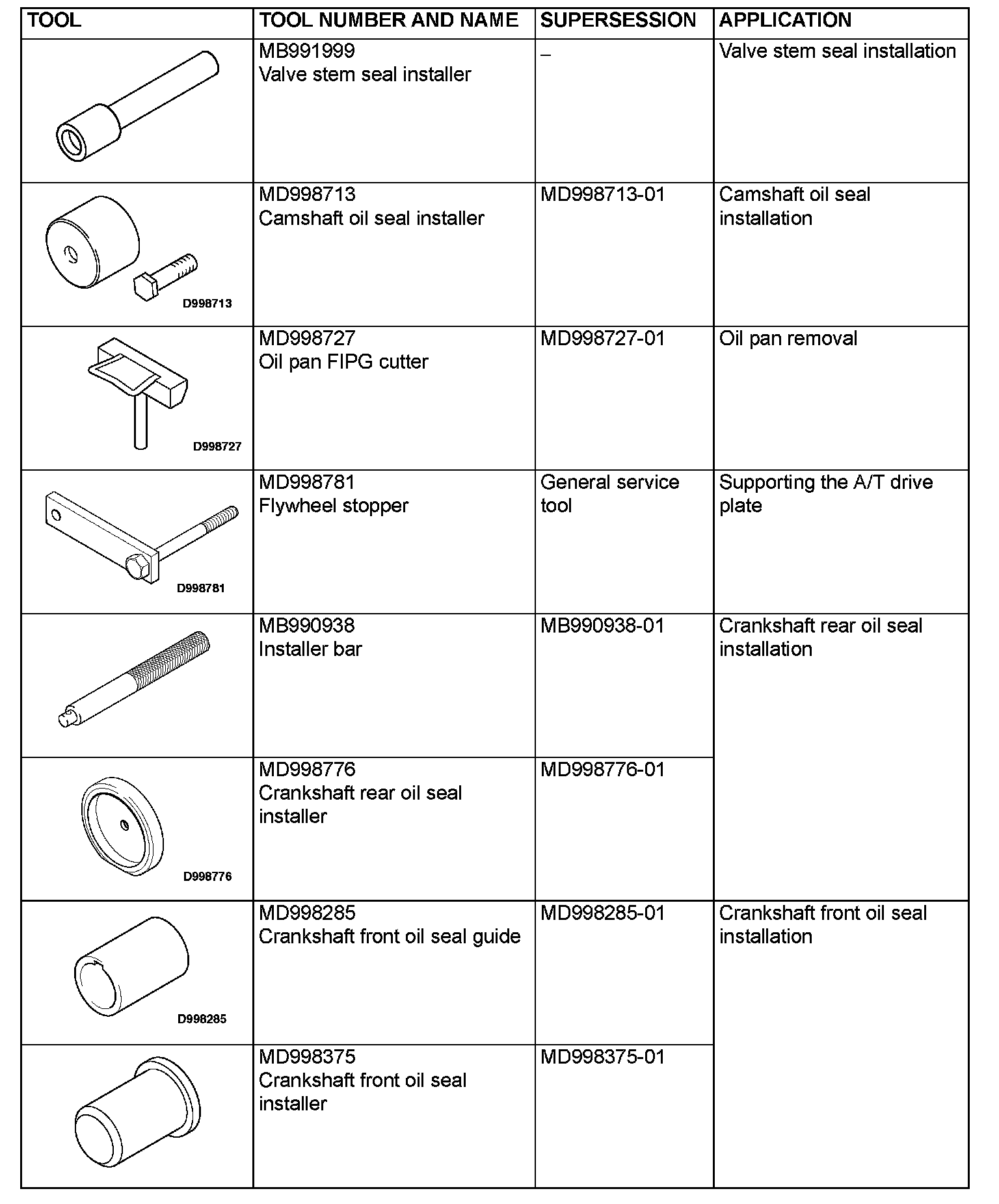

SPECIAL TOOLS (Part 2):

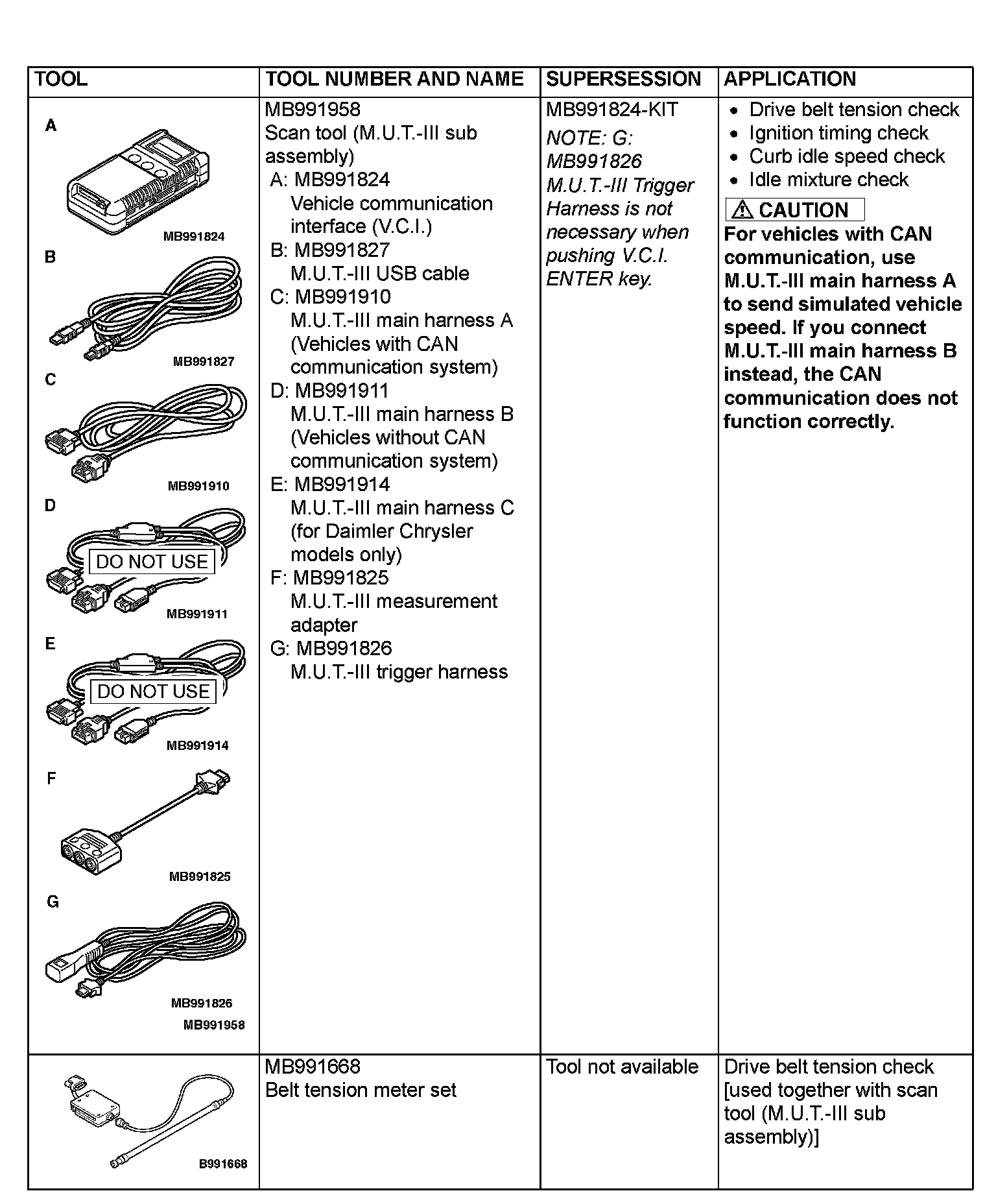

SPECIAL TOOLS (Part 3):

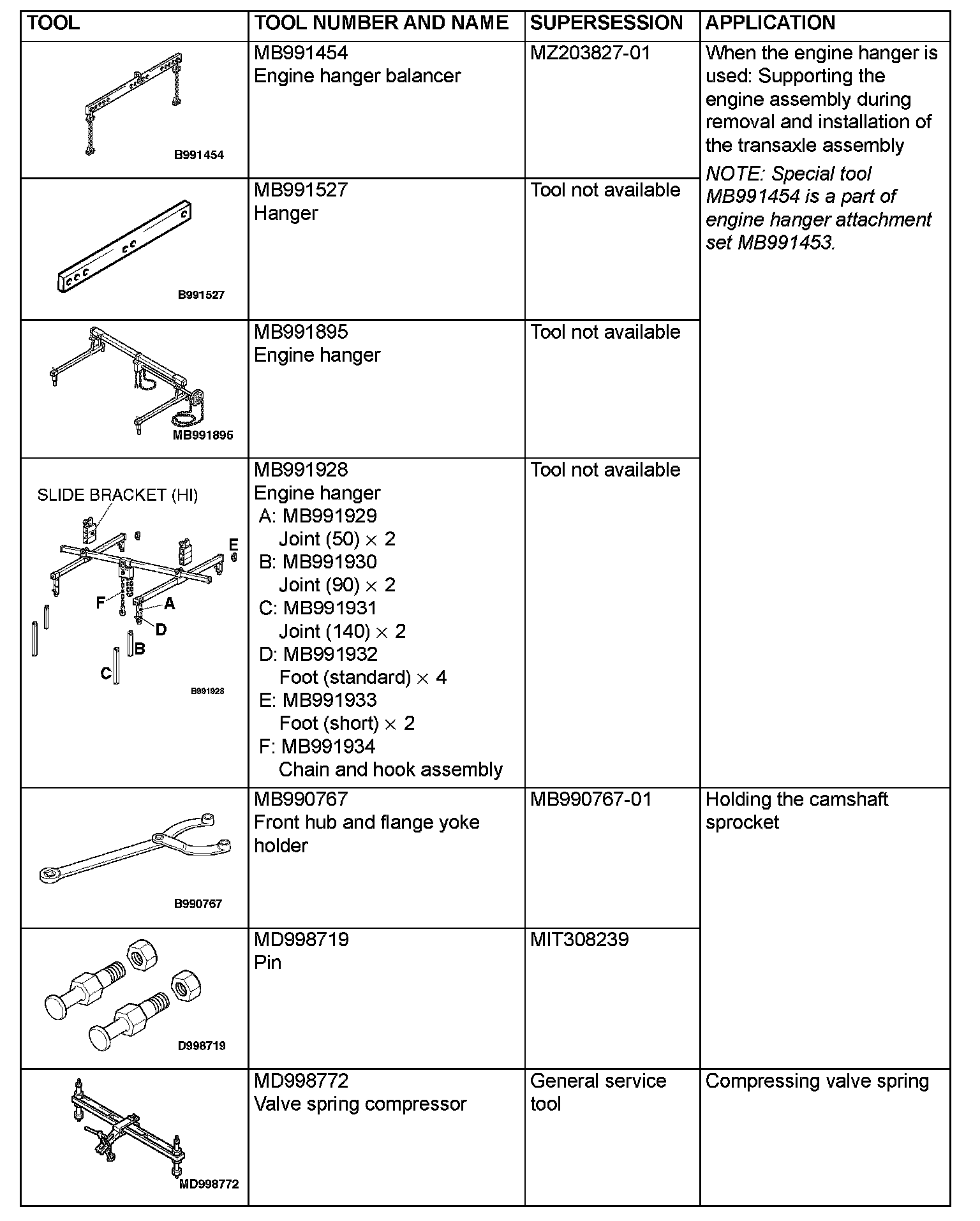

SPECIAL TOOLS (Part 4):
