FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2007
>>
Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>

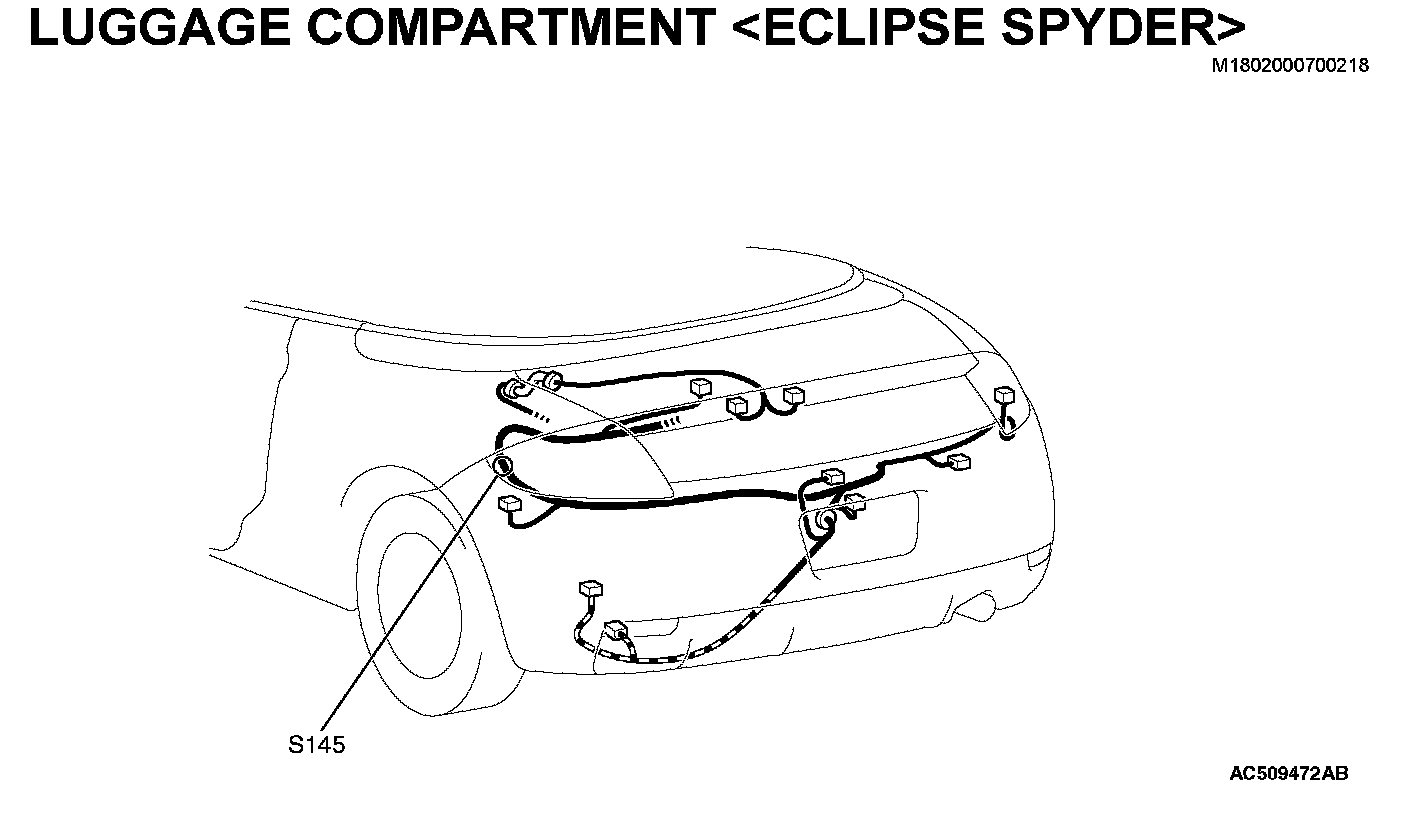

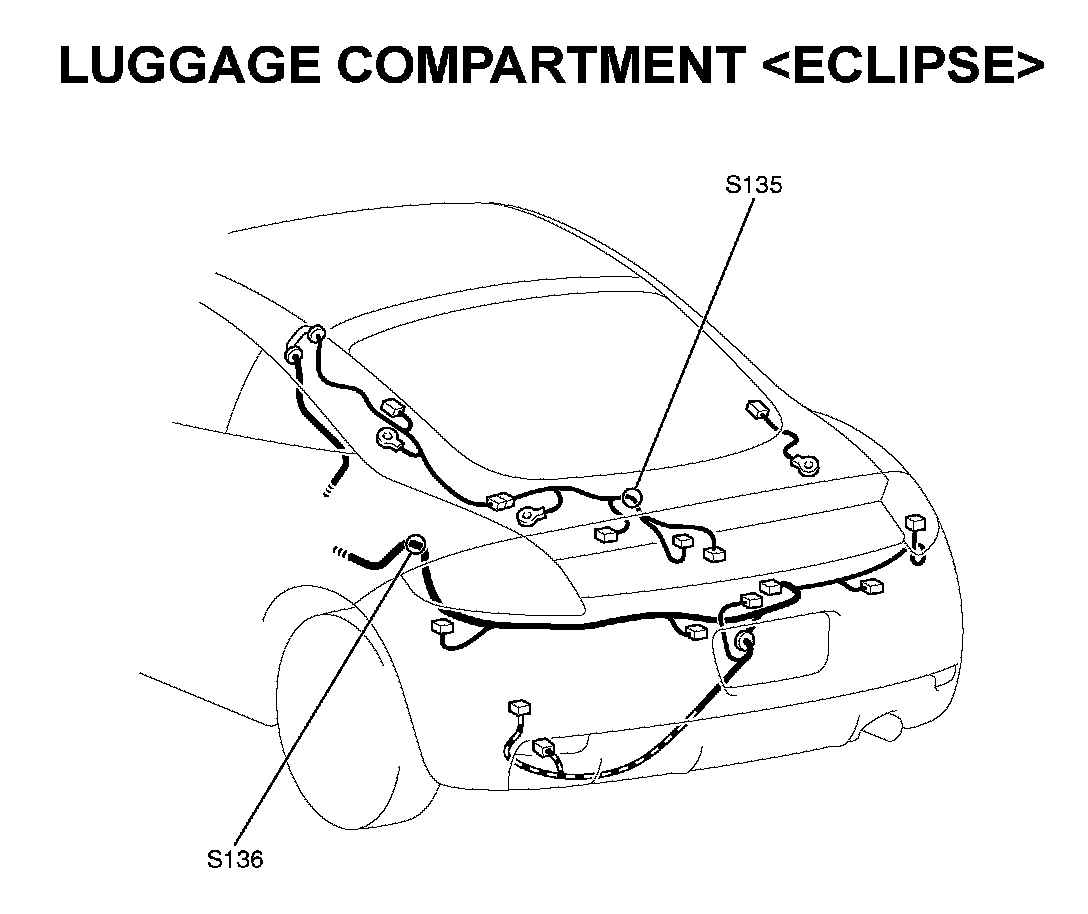

S135-S145 (Luggage Compartment)
S135-S145 (Luggage Compartment)
S135 To S145:
S135 To S145:
