Home >> Mitsubishi >> 2007 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Fuel Delivery and Air Induction

Fuel Delivery and Air Induction

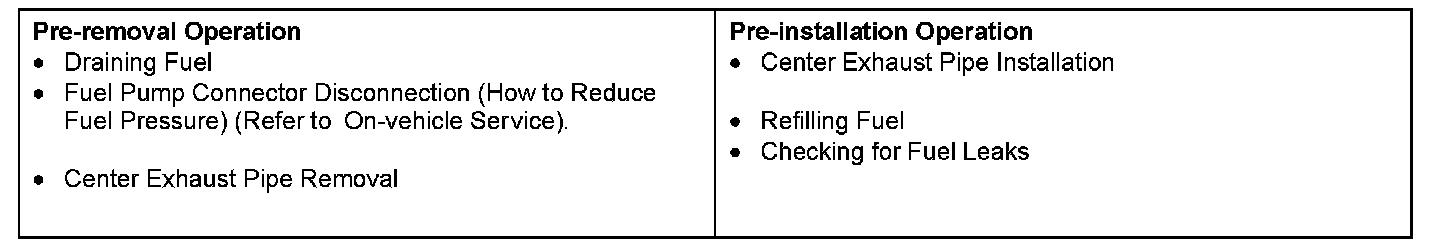

Pre-removal Operation And Pre-installation Operation:

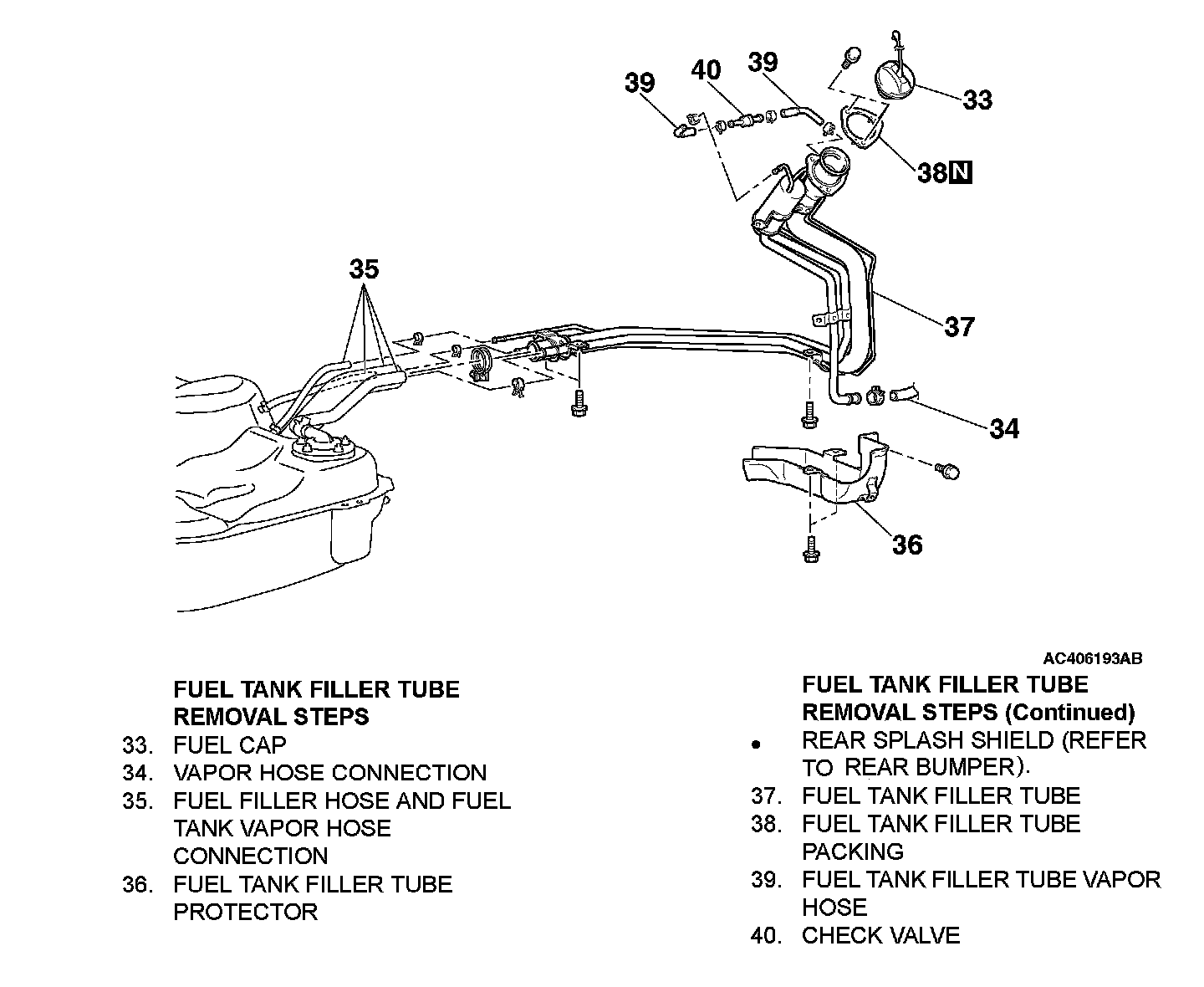

Removal Steps 1 - 12:

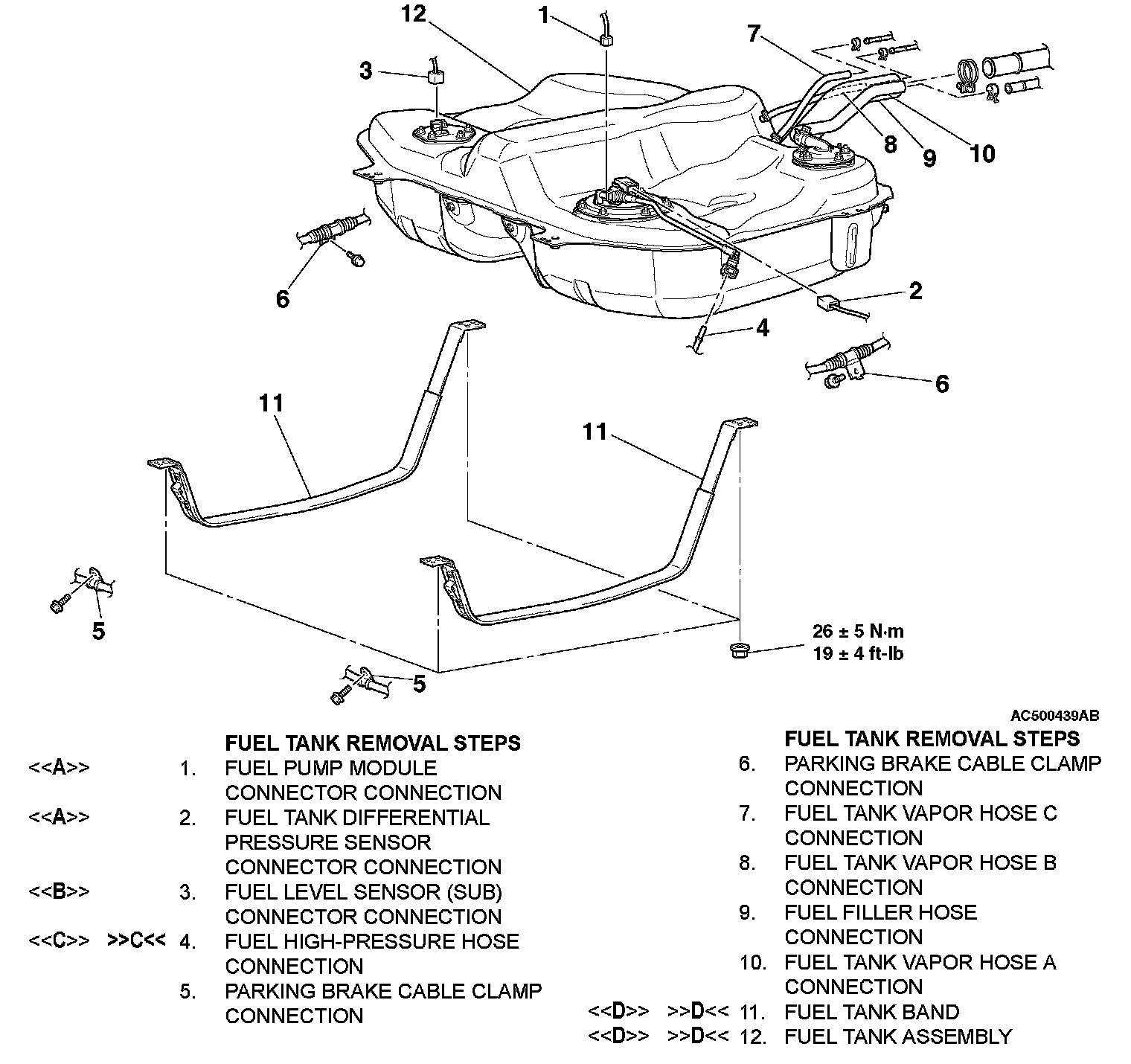

Removal Steps 13 - 32:

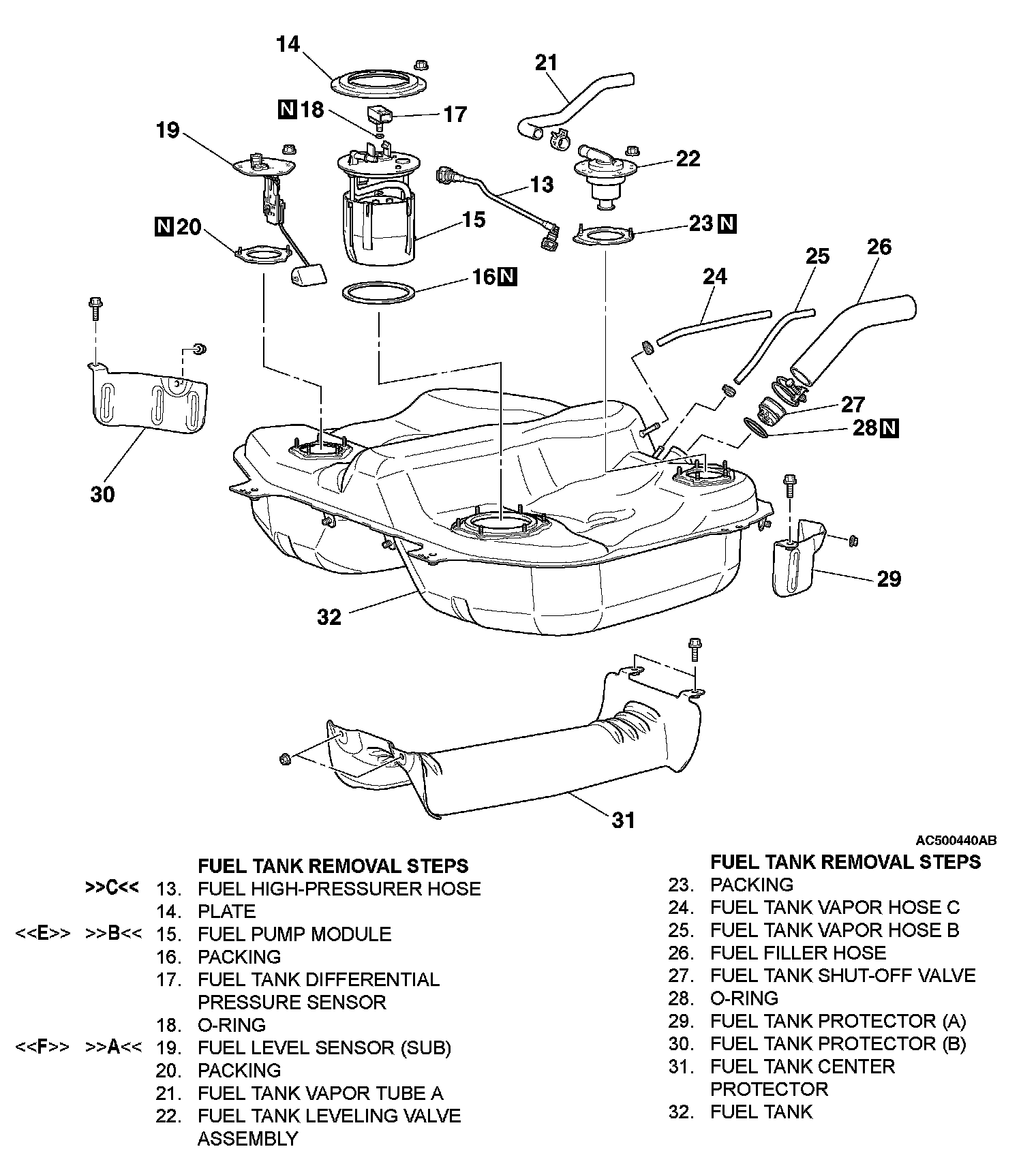

Removal Steps 33 - 40:
