Home >> Mitsubishi >> 2007 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> F4A4B >> Reverse and Overdrive Clutch

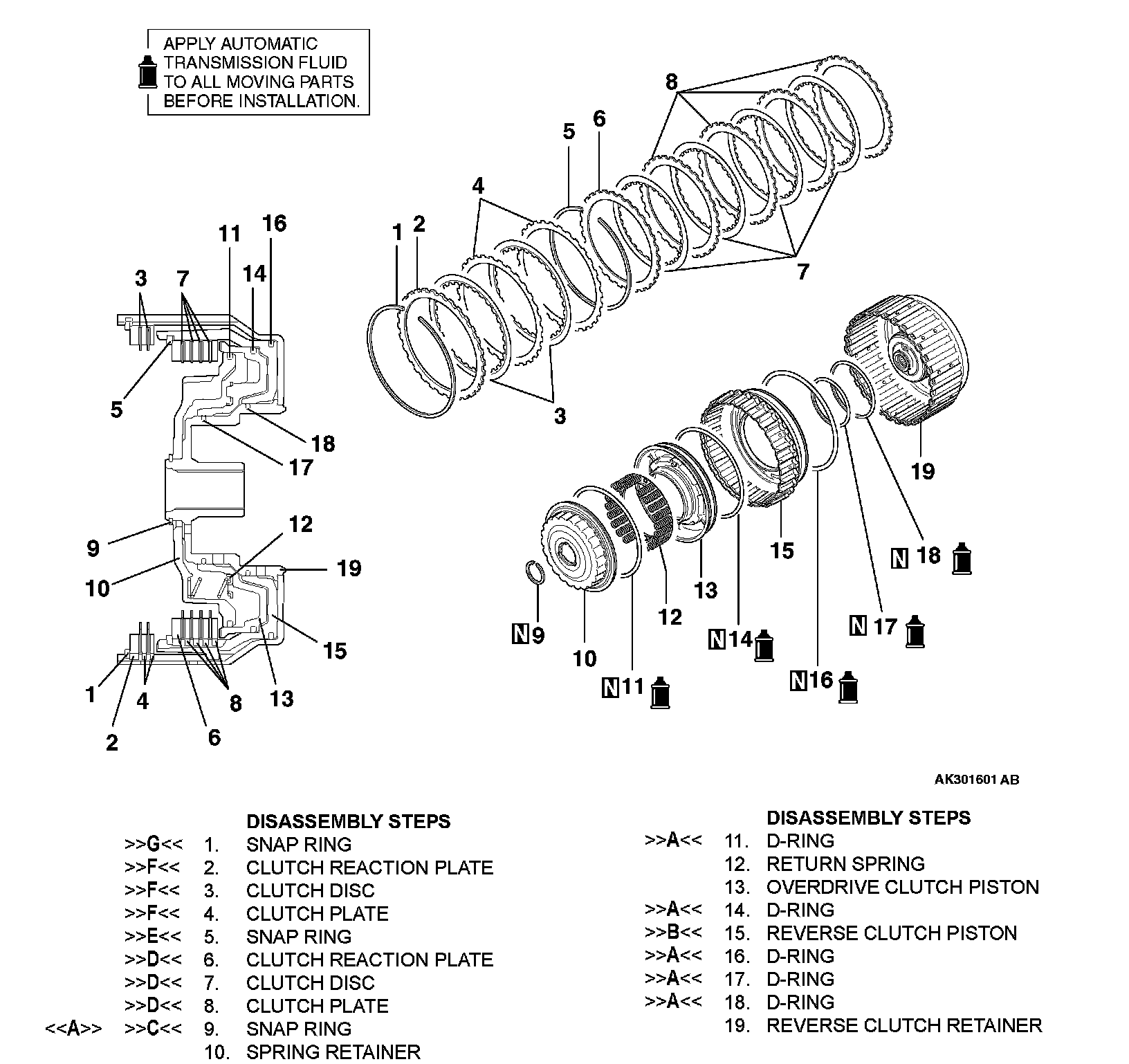

Reverse and Overdrive Clutch

Disassembly Steps 1-19:
