Auto-Cruise Control System-A/T

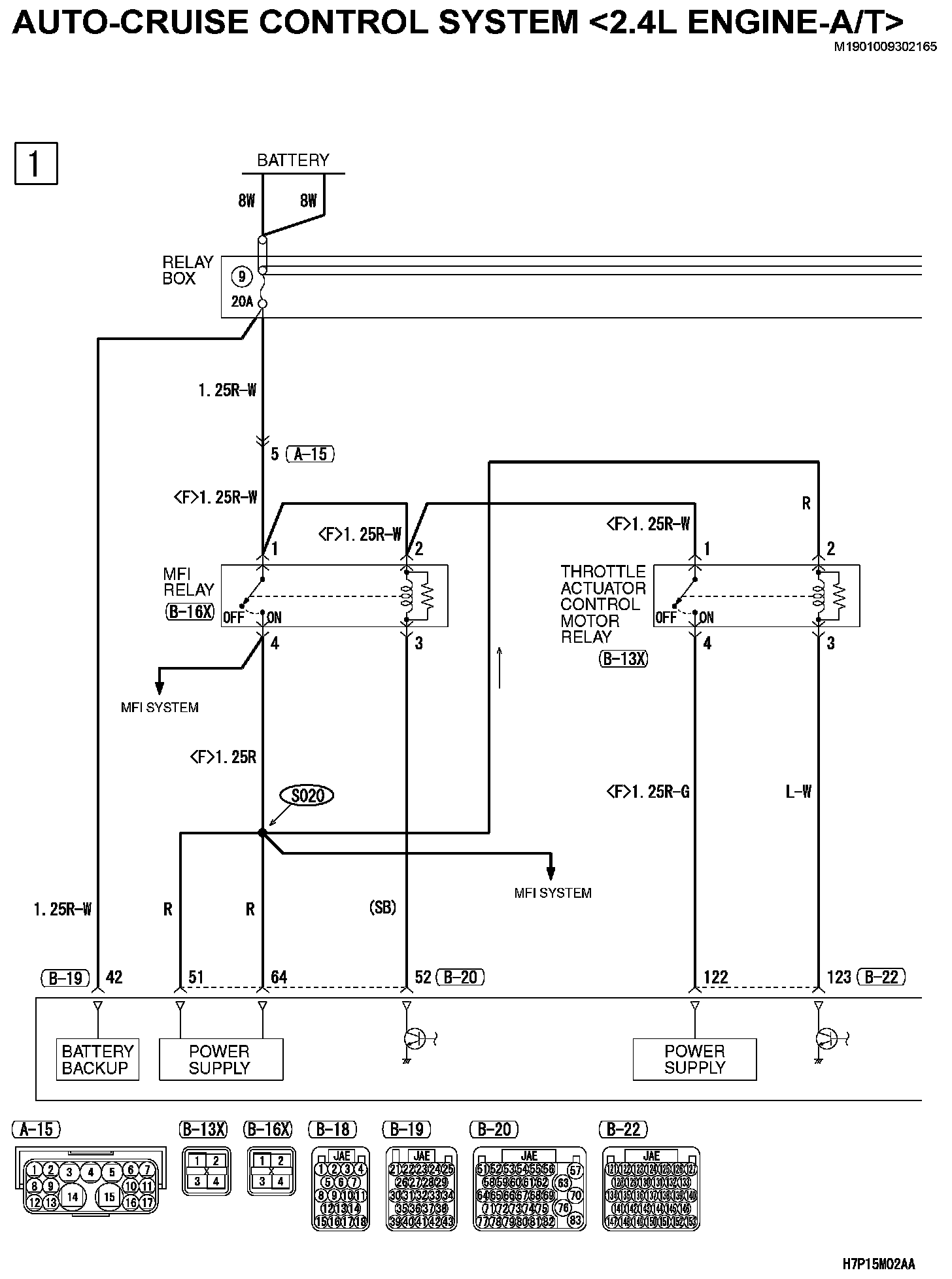

Auto-cruise Control System (Part 1):

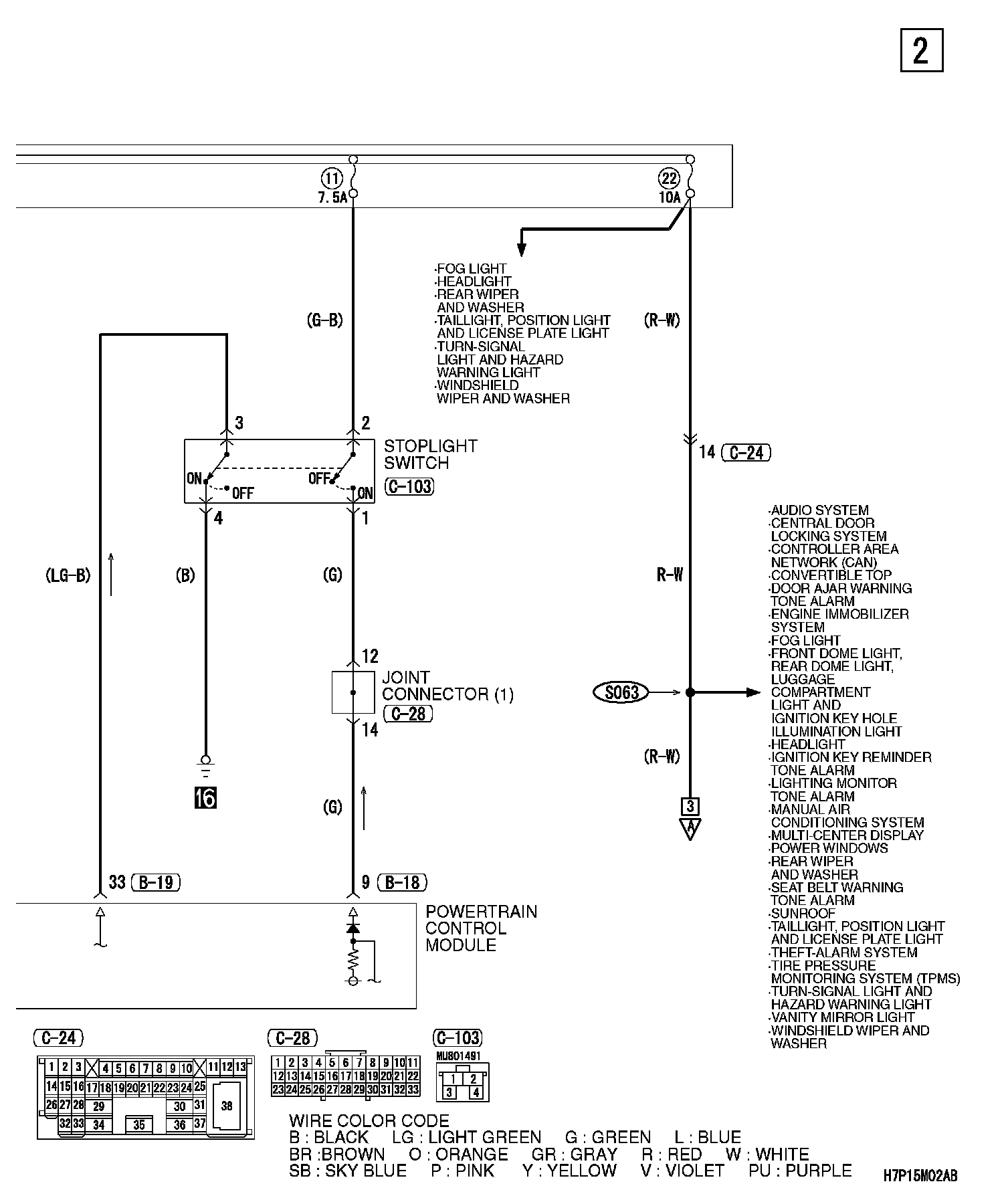

Auto-cruise Control System (Part 2):

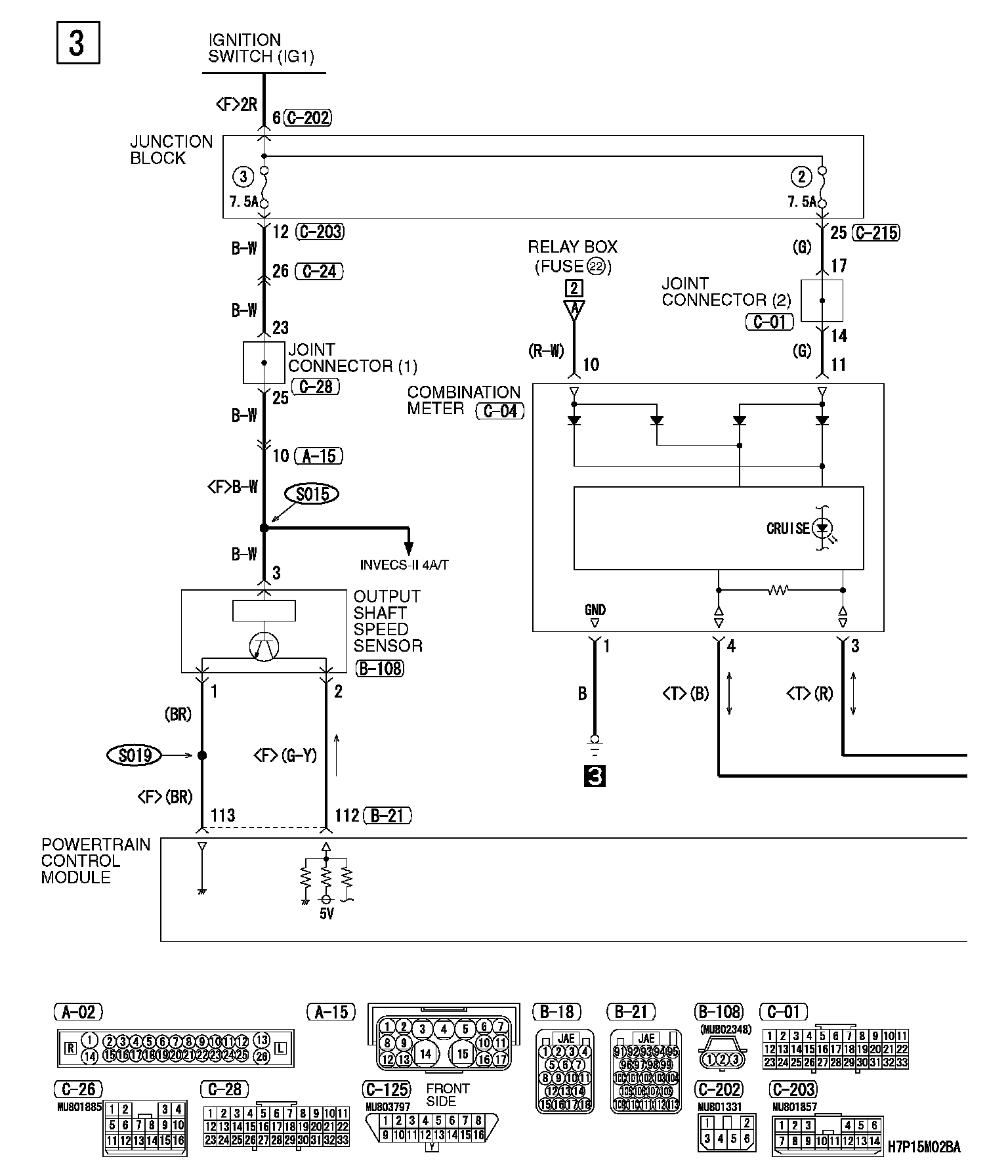

Auto-cruise Control System (Part 3):

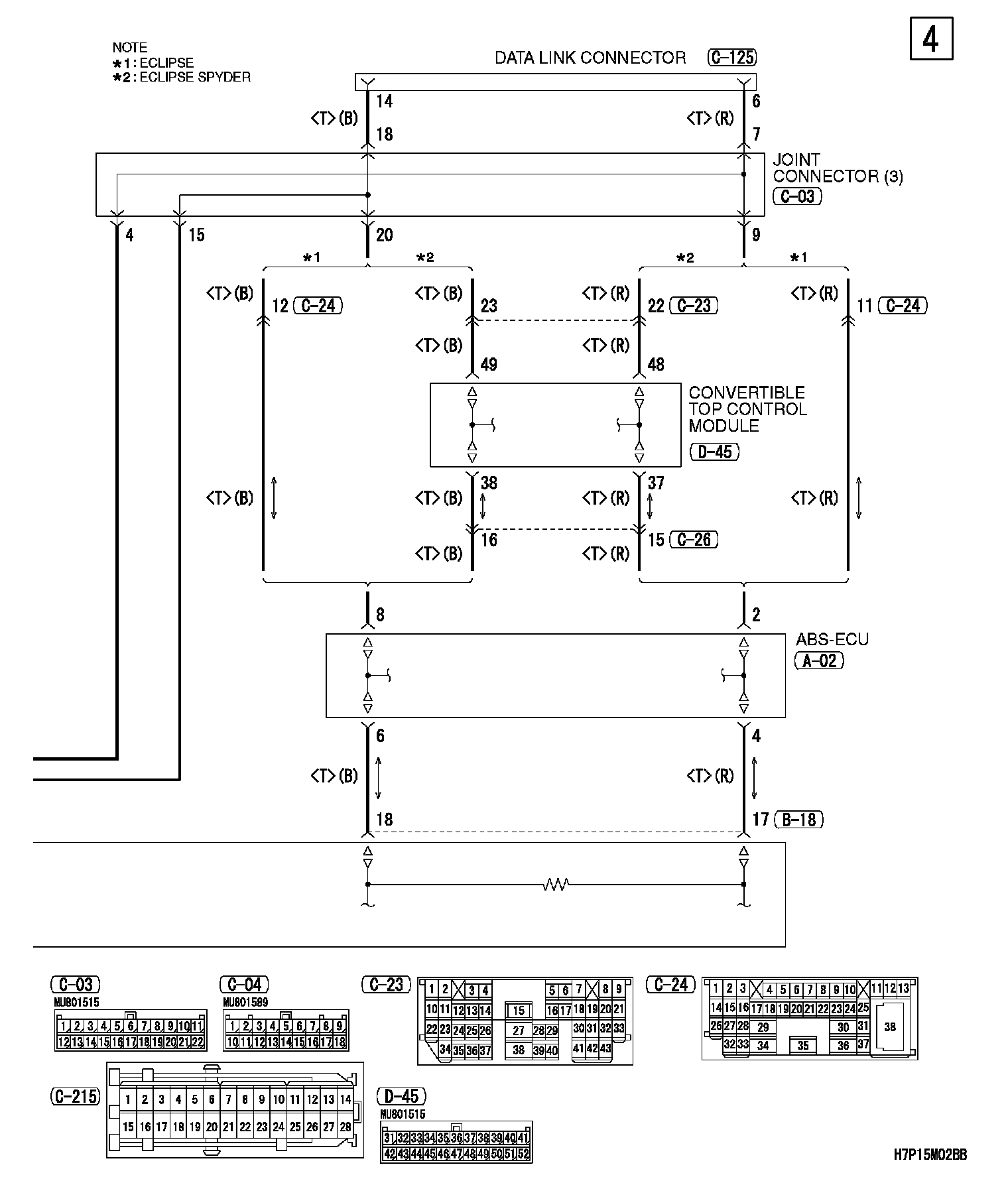

Auto-cruise Control System (Part 4):

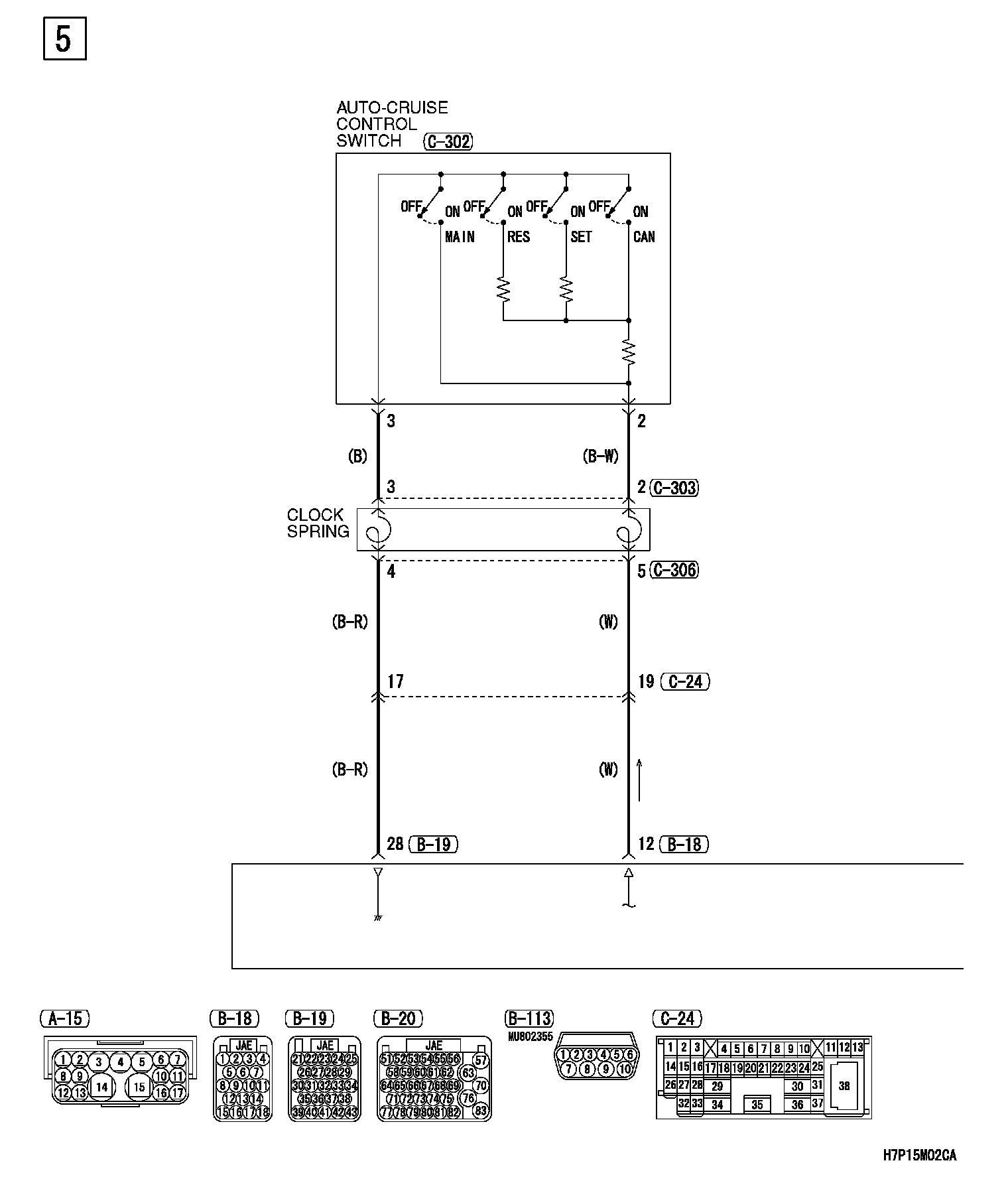

Auto-cruise Control System (Part 5):

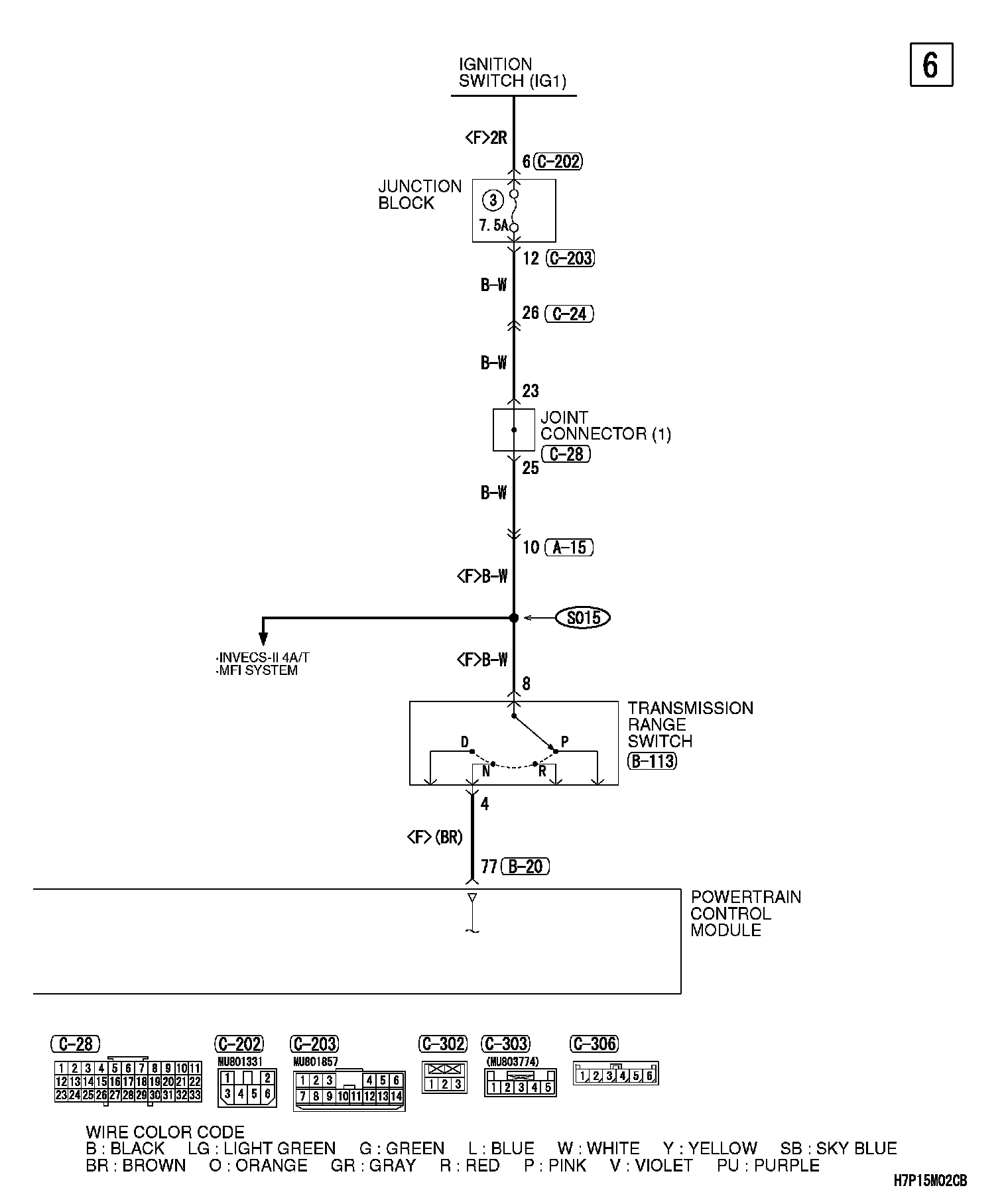

Auto-cruise Control System (Part 6):

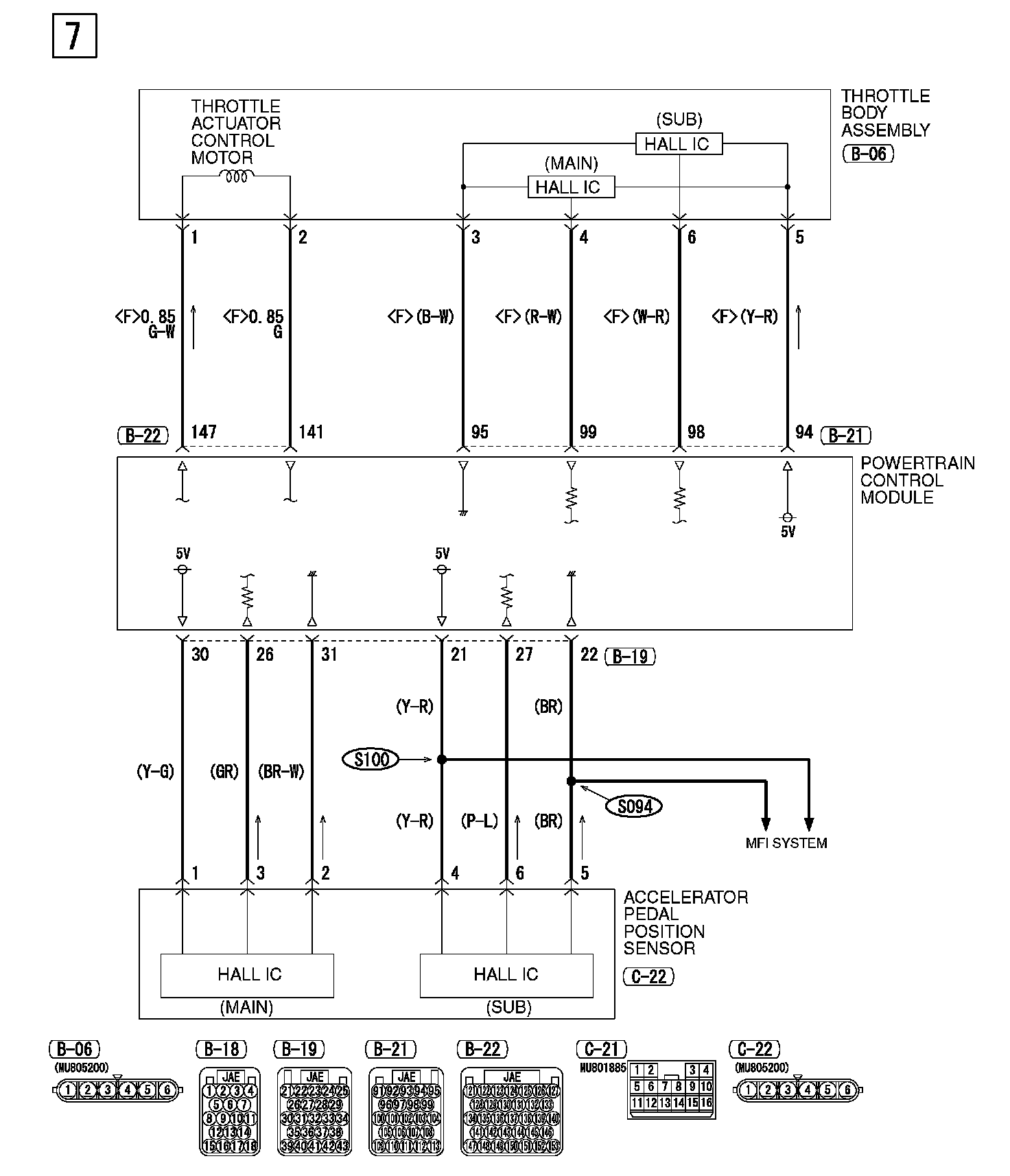

Auto-cruise Control System (Part 7):

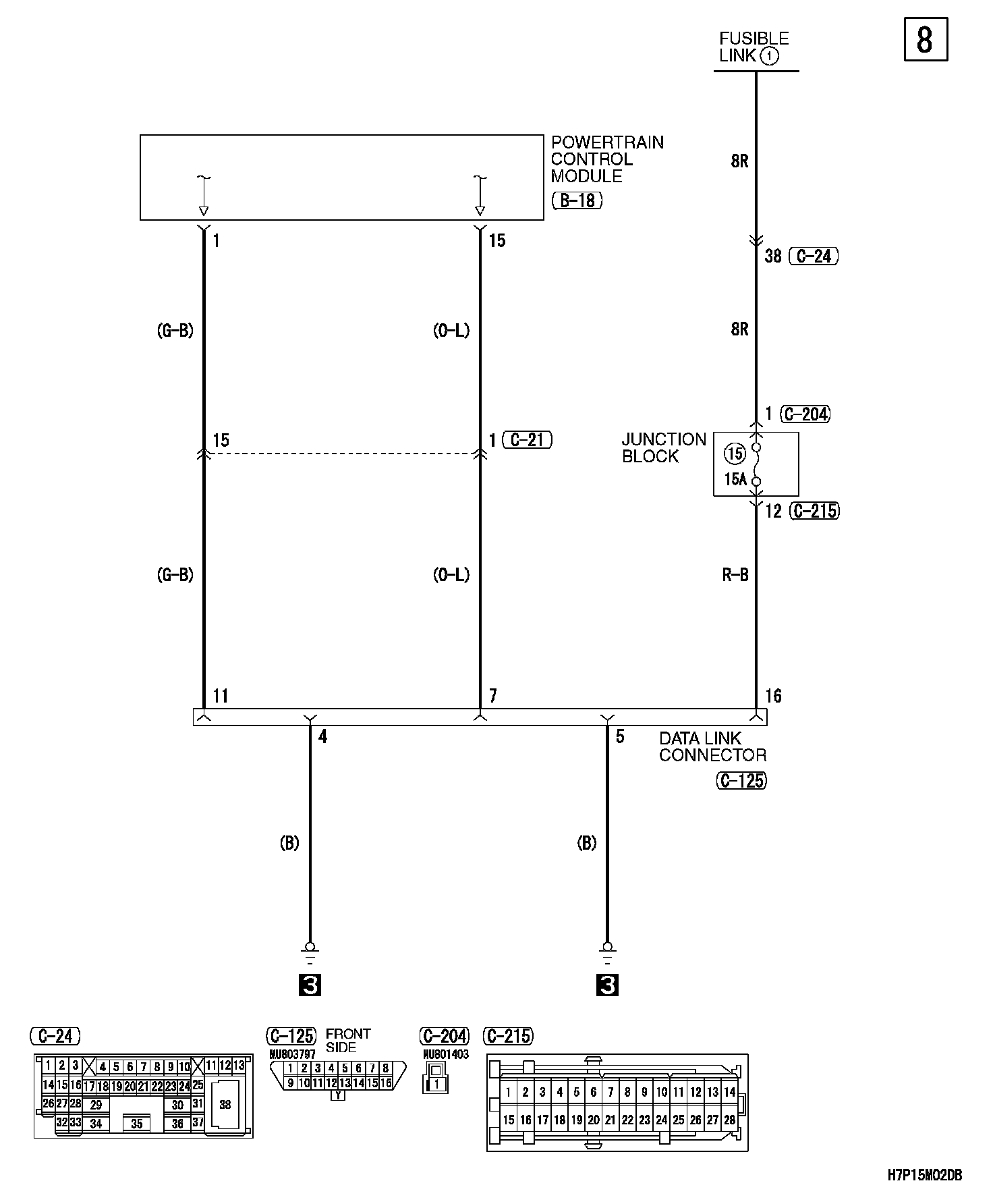

Auto-cruise Control System (Part 8):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Splice Locations: The locations of Splices referred to within these diagrams can be found via the splice number at Vehicle Splice Locations. Splice Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
