Vehicles Without Traction Control System (TCL)

Electronic Brake-Force Distribution (EBD) And Anti-Lock Braking System (ABS) (Vehicles Without Traction Control System (TCL)) (Part 1):

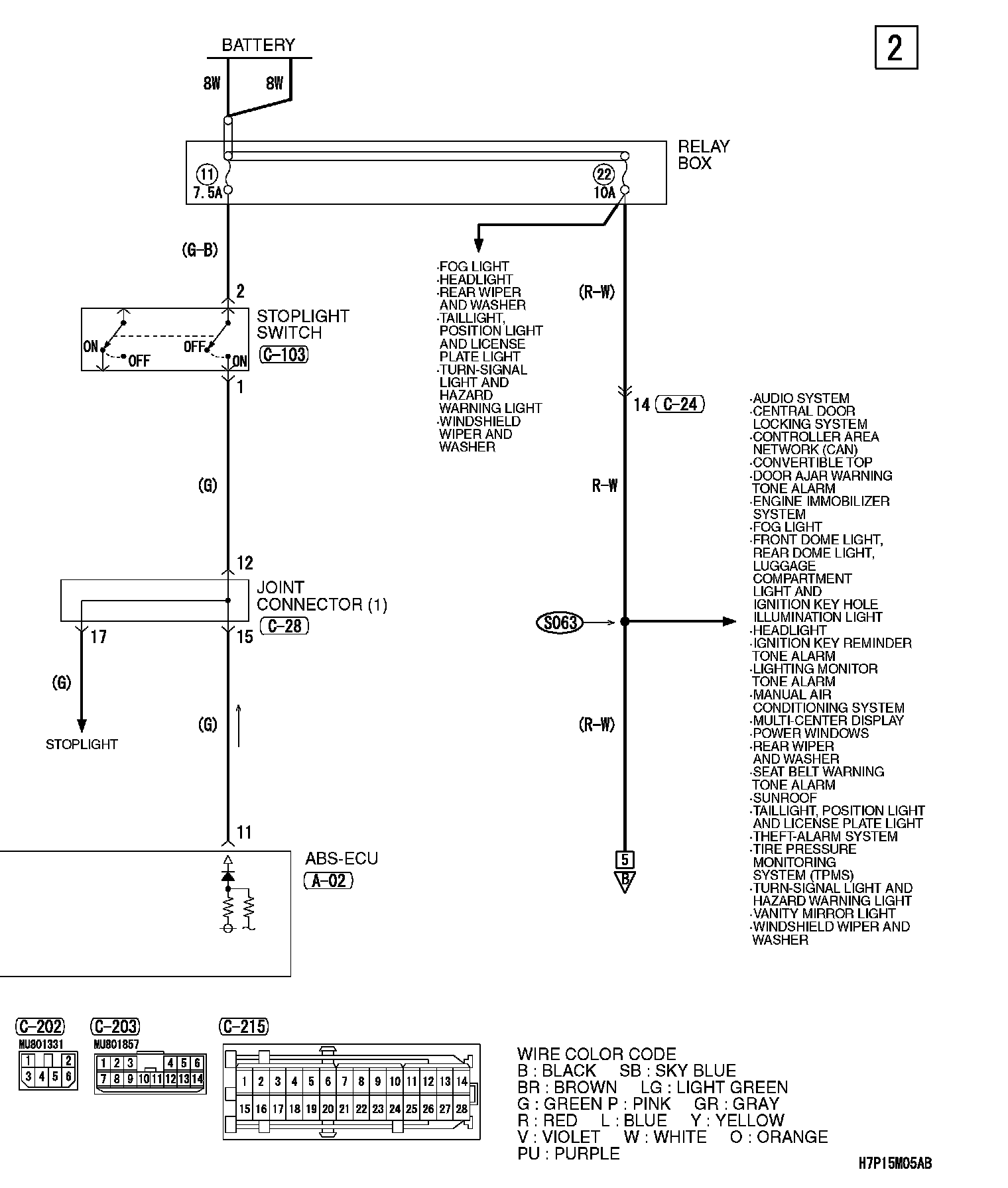

Electronic Brake-Force Distribution (EBD) And Anti-Lock Braking System (ABS) (Vehicles Without Traction Control System (TCL)) (Part 2):

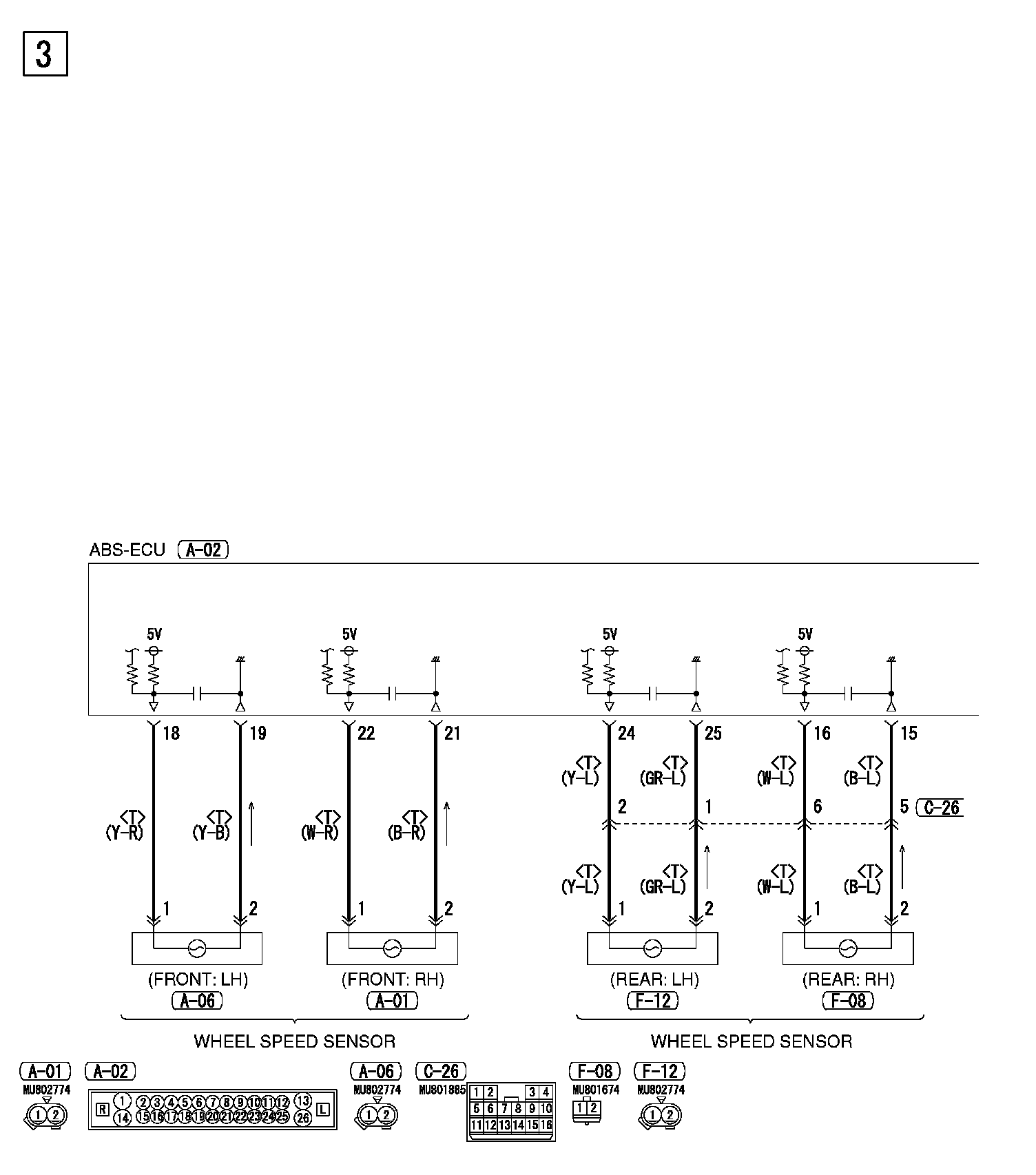

Electronic Brake-Force Distribution (EBD) And Anti-Lock Braking System (ABS) (Vehicles Without Traction Control System (TCL)) (Part 3):

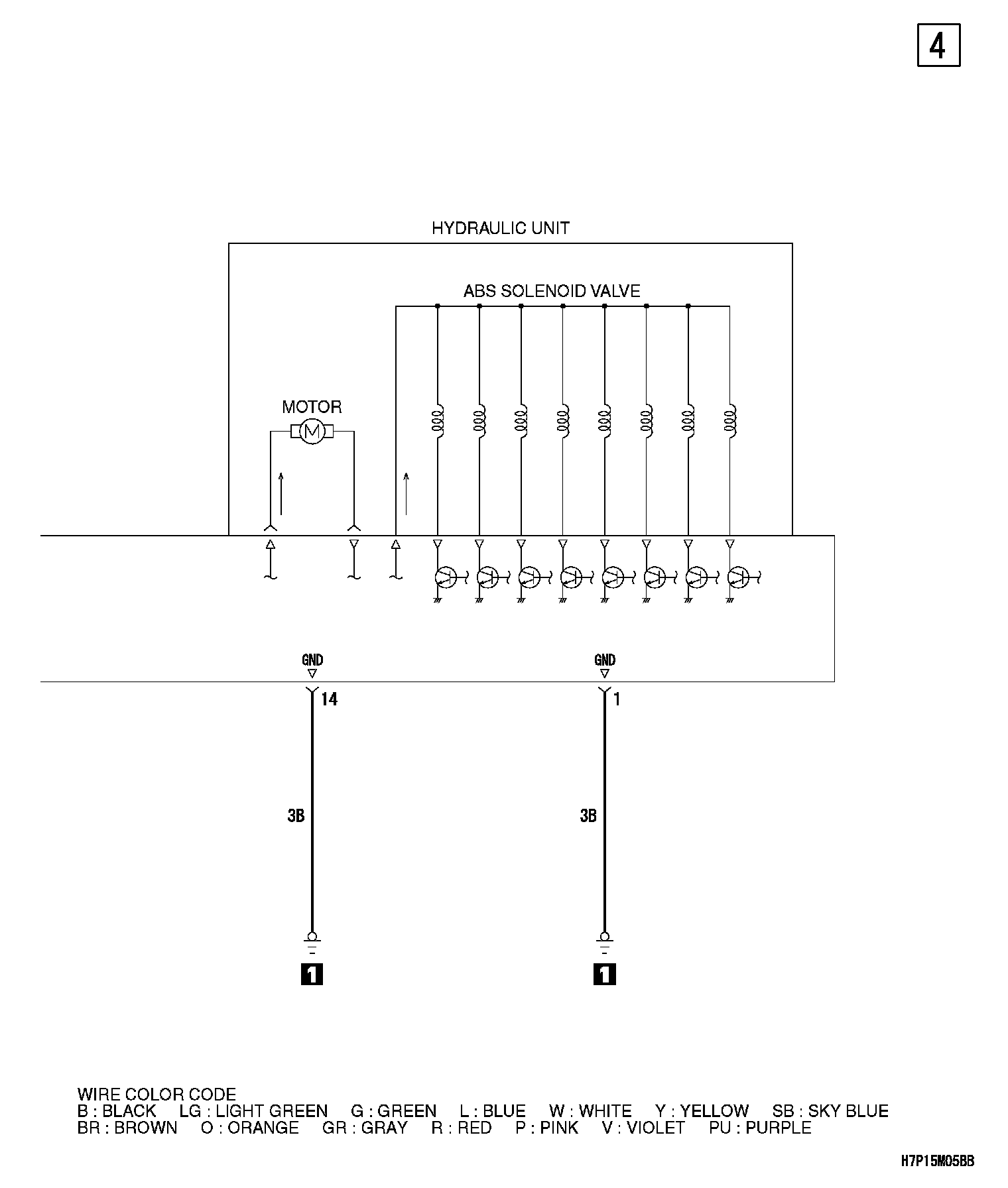

Electronic Brake-Force Distribution (EBD) And Anti-Lock Braking System (ABS) (Vehicles Without Traction Control System (TCL)) (Part 4):

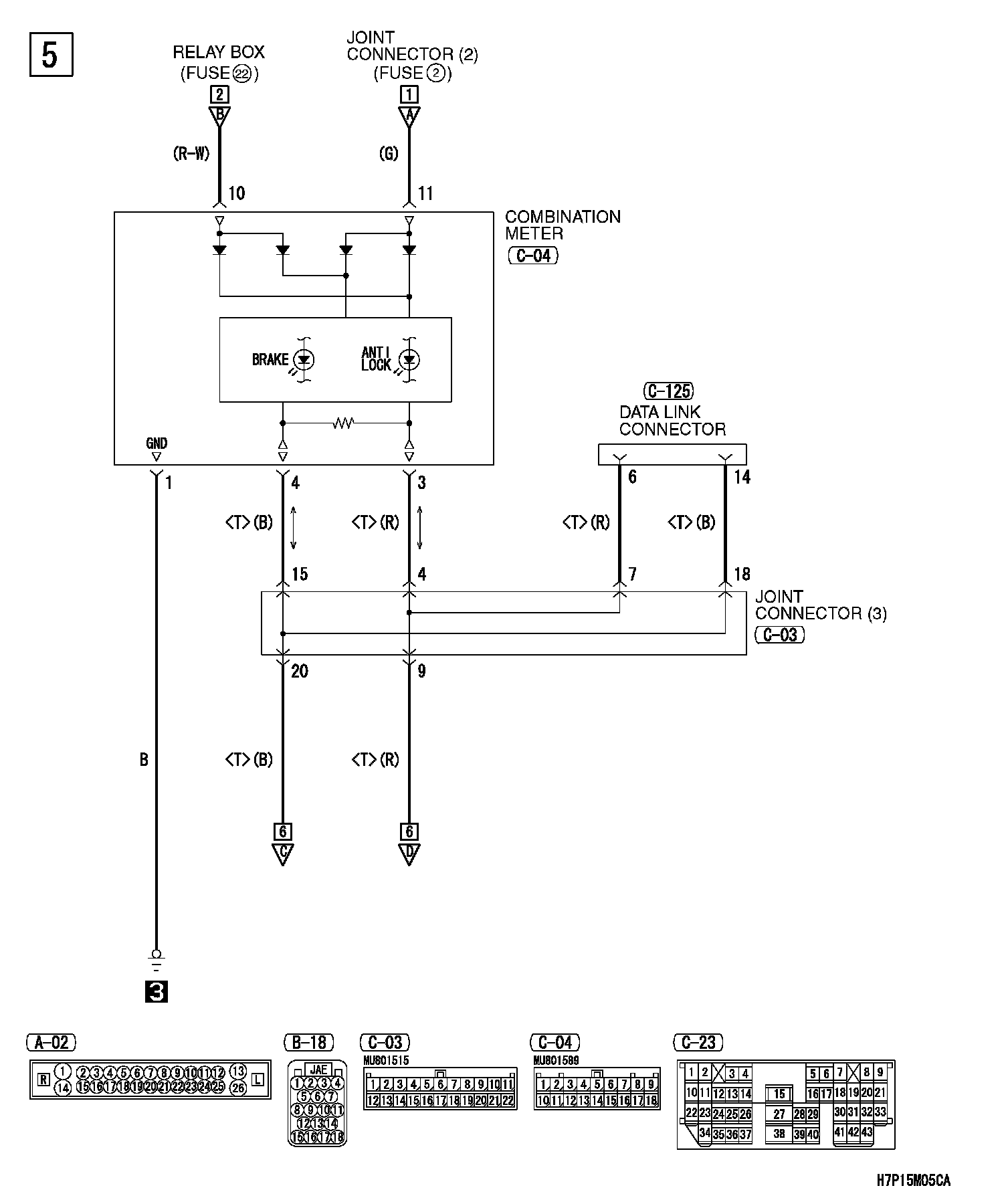

Electronic Brake-Force Distribution (EBD) And Anti-Lock Braking System (ABS) (Vehicles Without Traction Control System (TCL)) (Part 5):

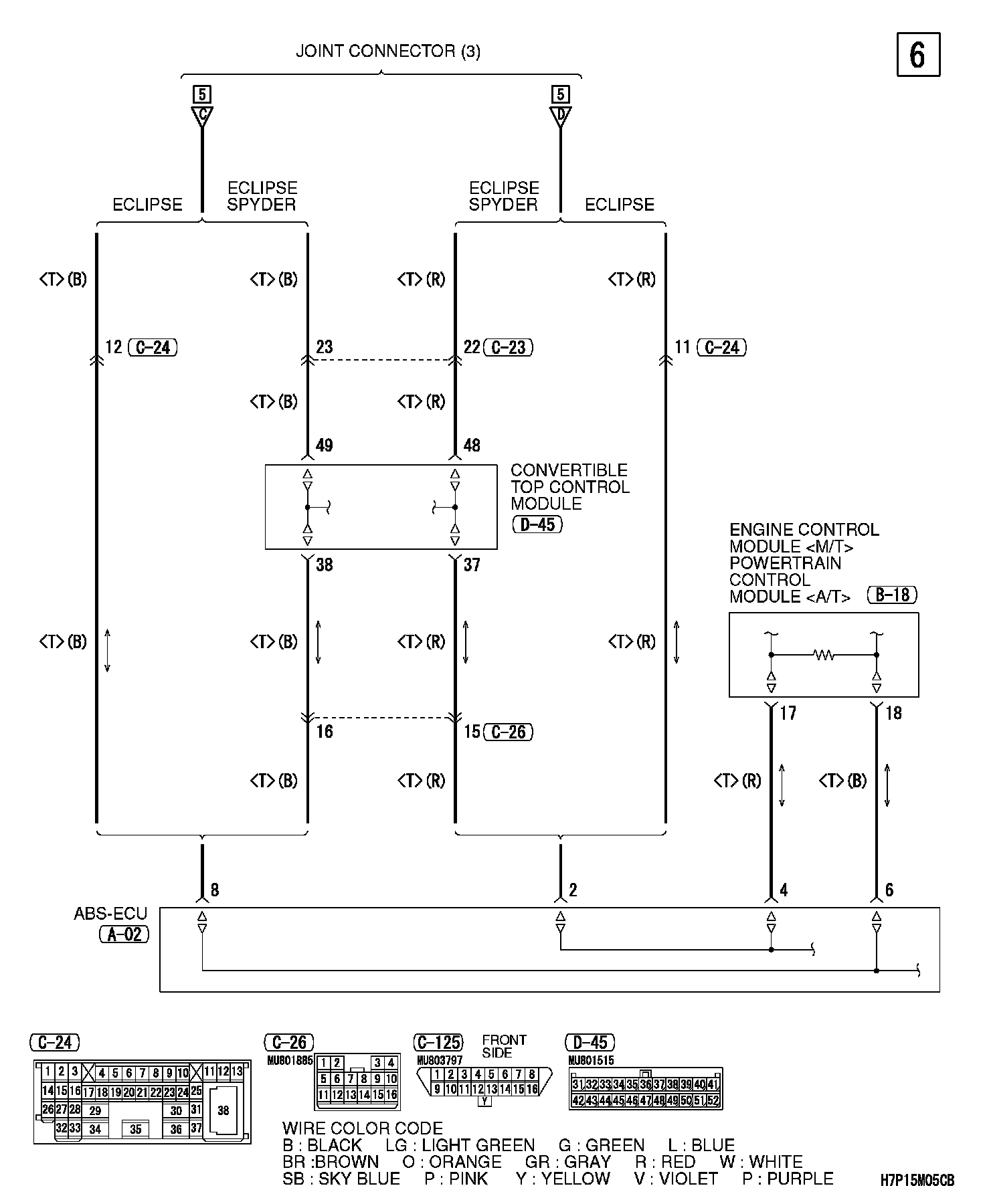

Electronic Brake-Force Distribution (EBD) And Anti-Lock Braking System (ABS) (Vehicles Without Traction Control System (TCL)) (Part 6):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Splice Locations: The locations of Splices referred to within these diagrams can be found via the splice number at Vehicle Splice Locations. Splice Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
