F Connectors - Luggage Compartment [Eclipse Spyder]
F Connectors - Luggage Compartment [Eclipse Spyder]

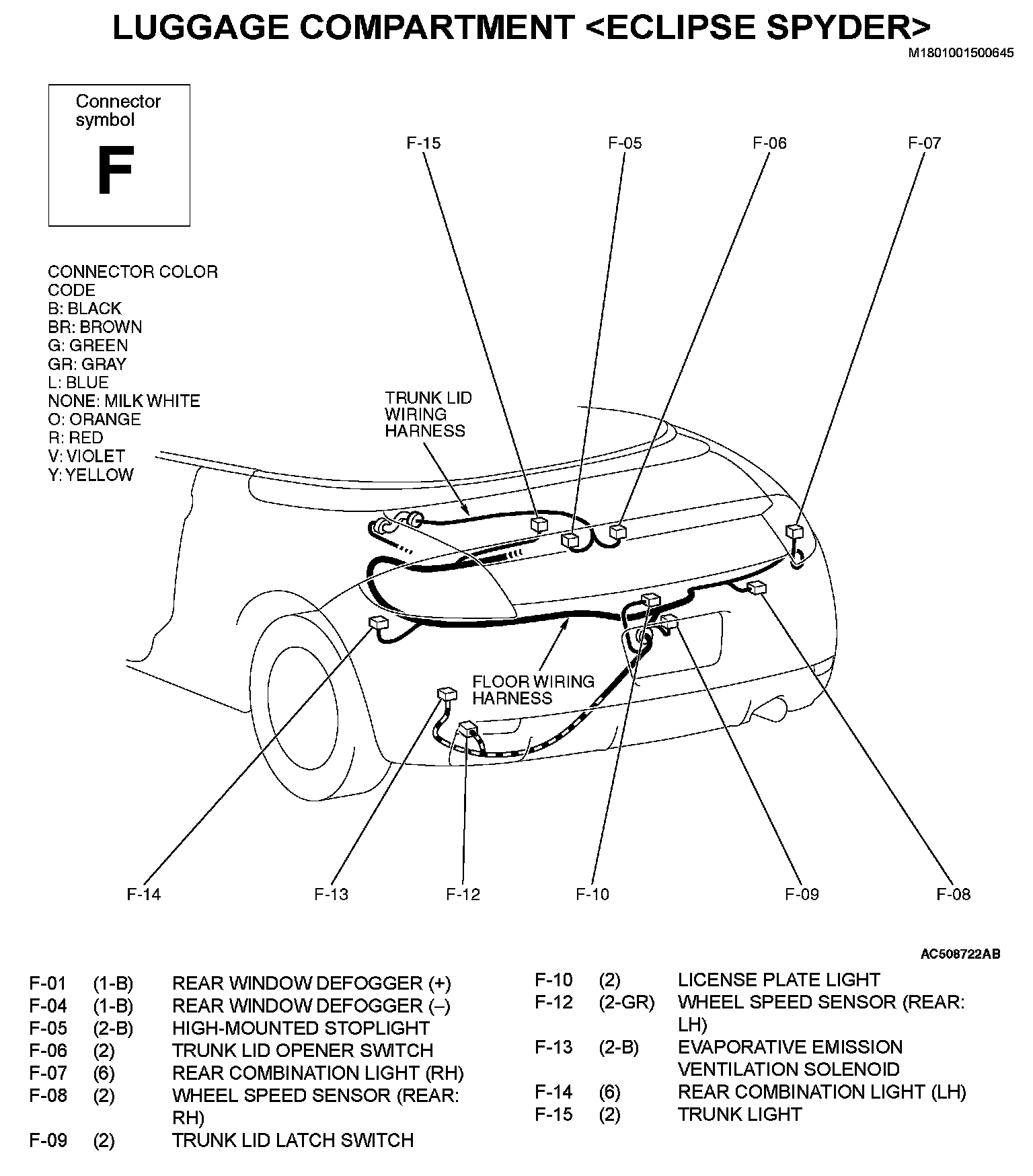

F-01 To F-29 Part 1:
F-01 To F-29 Part 2:
