Home >> Mitsubishi >> 2007 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Diagrams >> Connectors >> D Connectors - Floor and Roof >> D-01 to D-35

D-01 to D-35

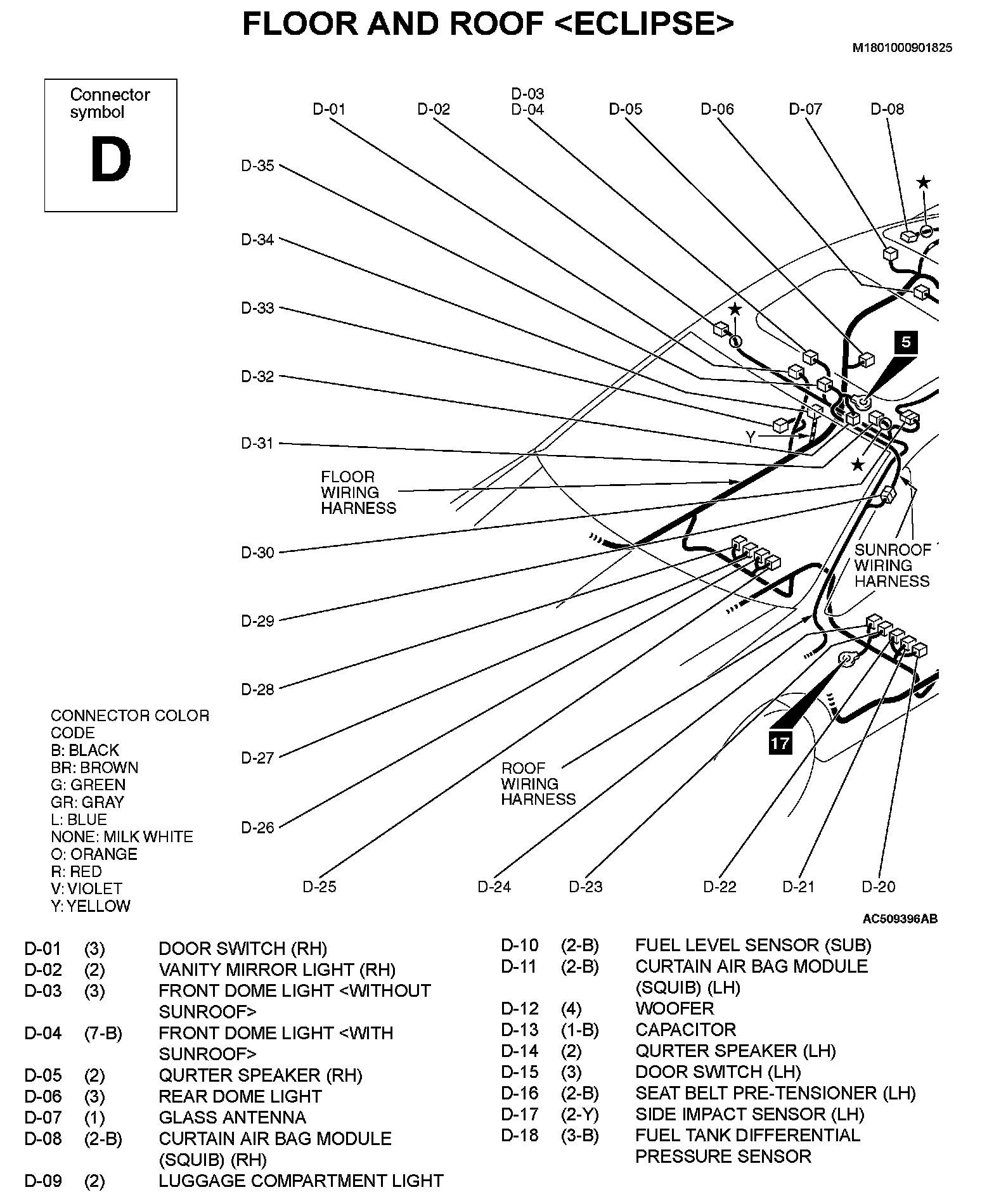

D-01 To D-35 Part 1:

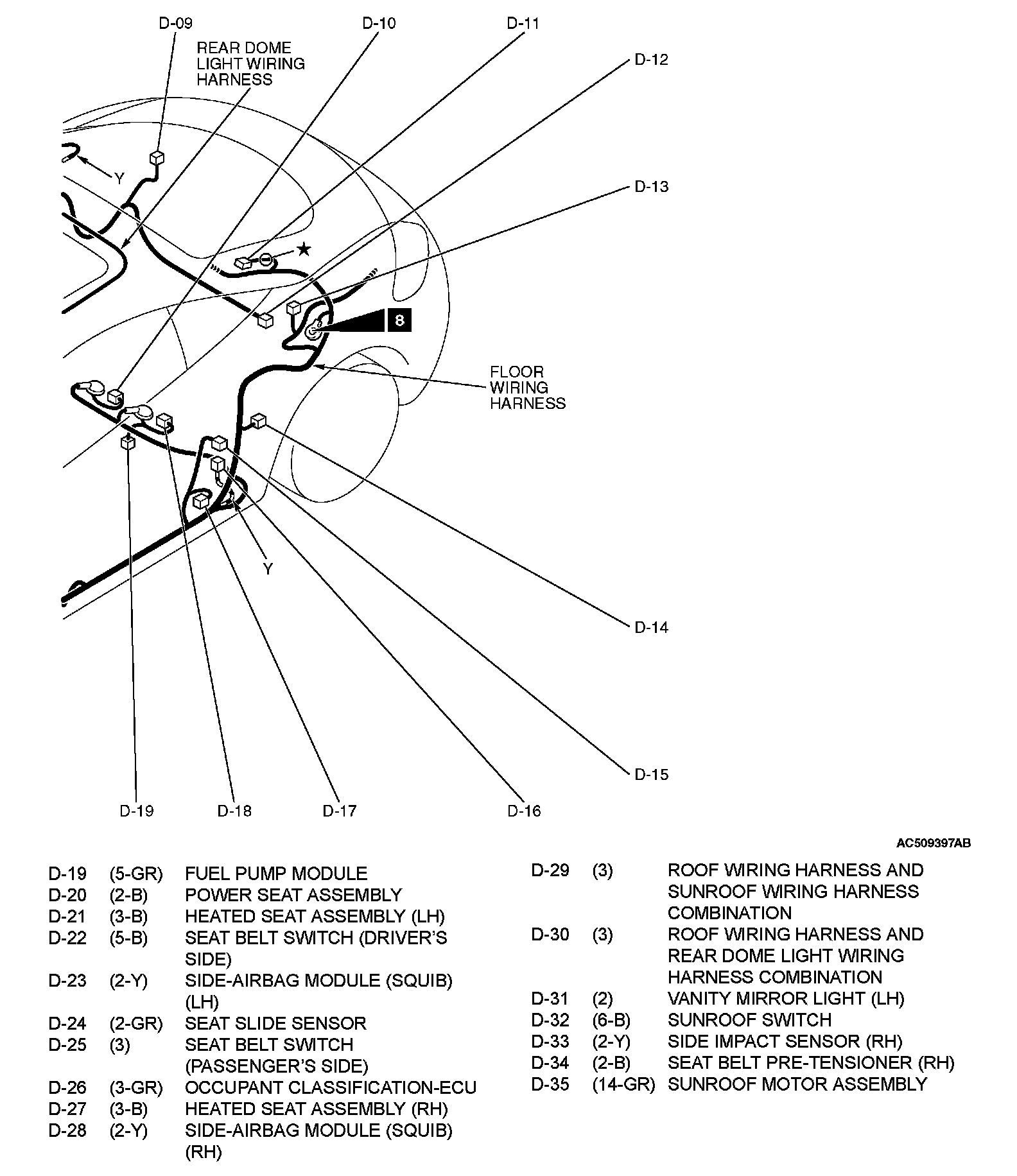

D-01 To D-35 Part 2:
