Home >> Mitsubishi >> 2007 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Diagrams >> Connectors >> C Connectors - Dash Panel >> C-01 to C-31

C-01 to C-31

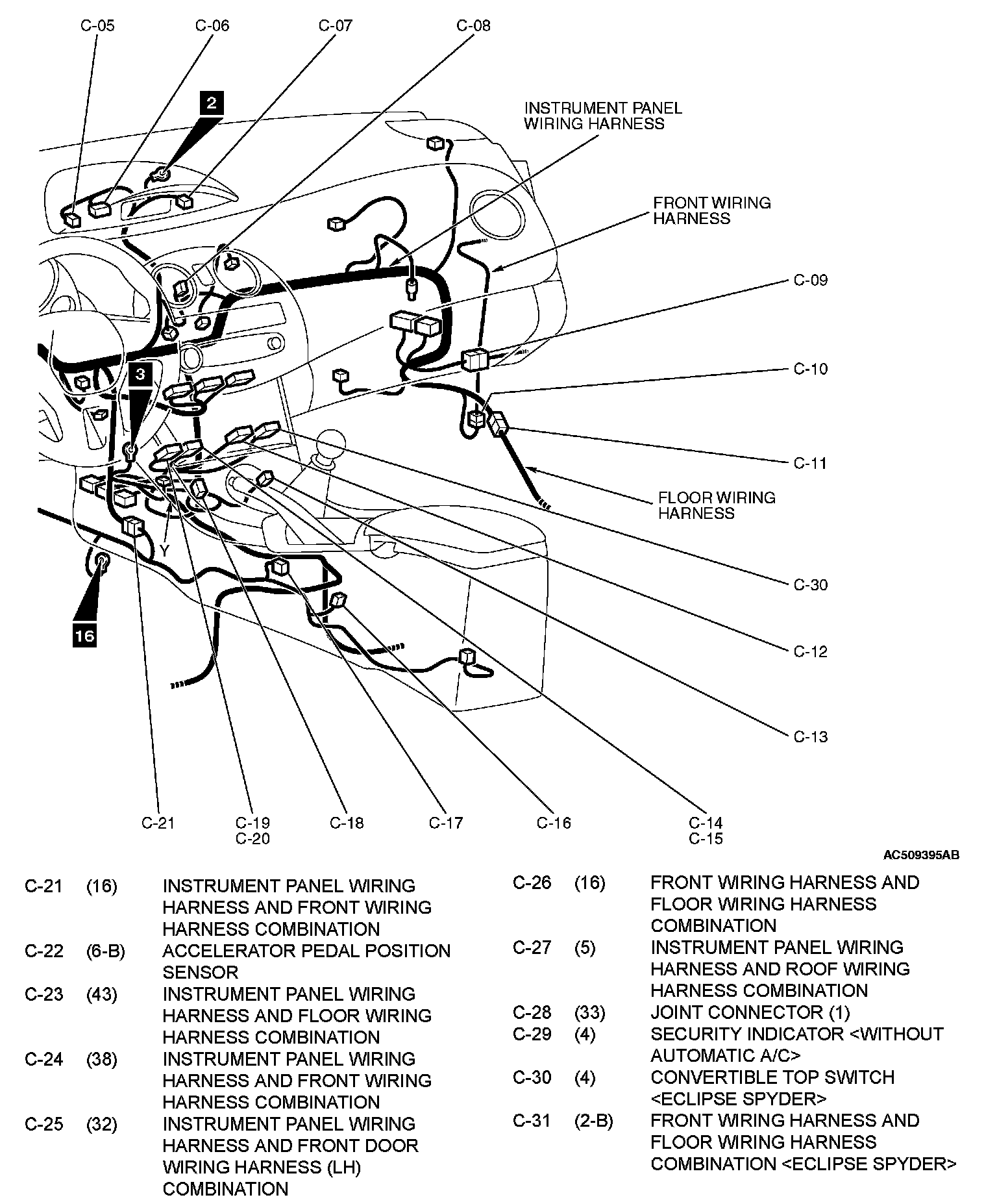

C-01 To C-31 Part 1:



C-01 To C-31 Part 2:
