Clutch Pedal Position Switch, M/T

CLUTCH PEDAL POSITION SWITCH




1. Disconnect the connector.

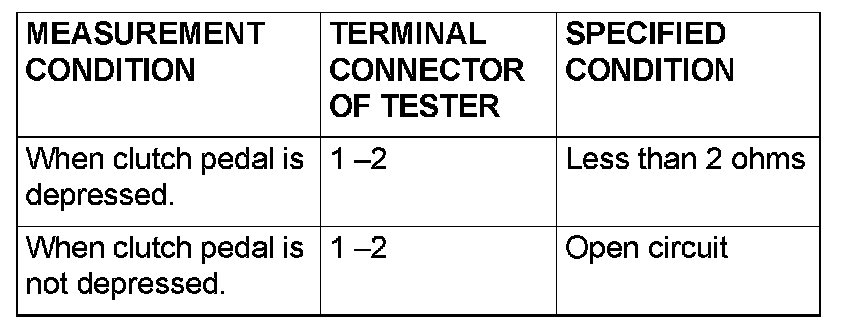

2. Check for continuity between the terminals of the switch.
