Removal and Replacement

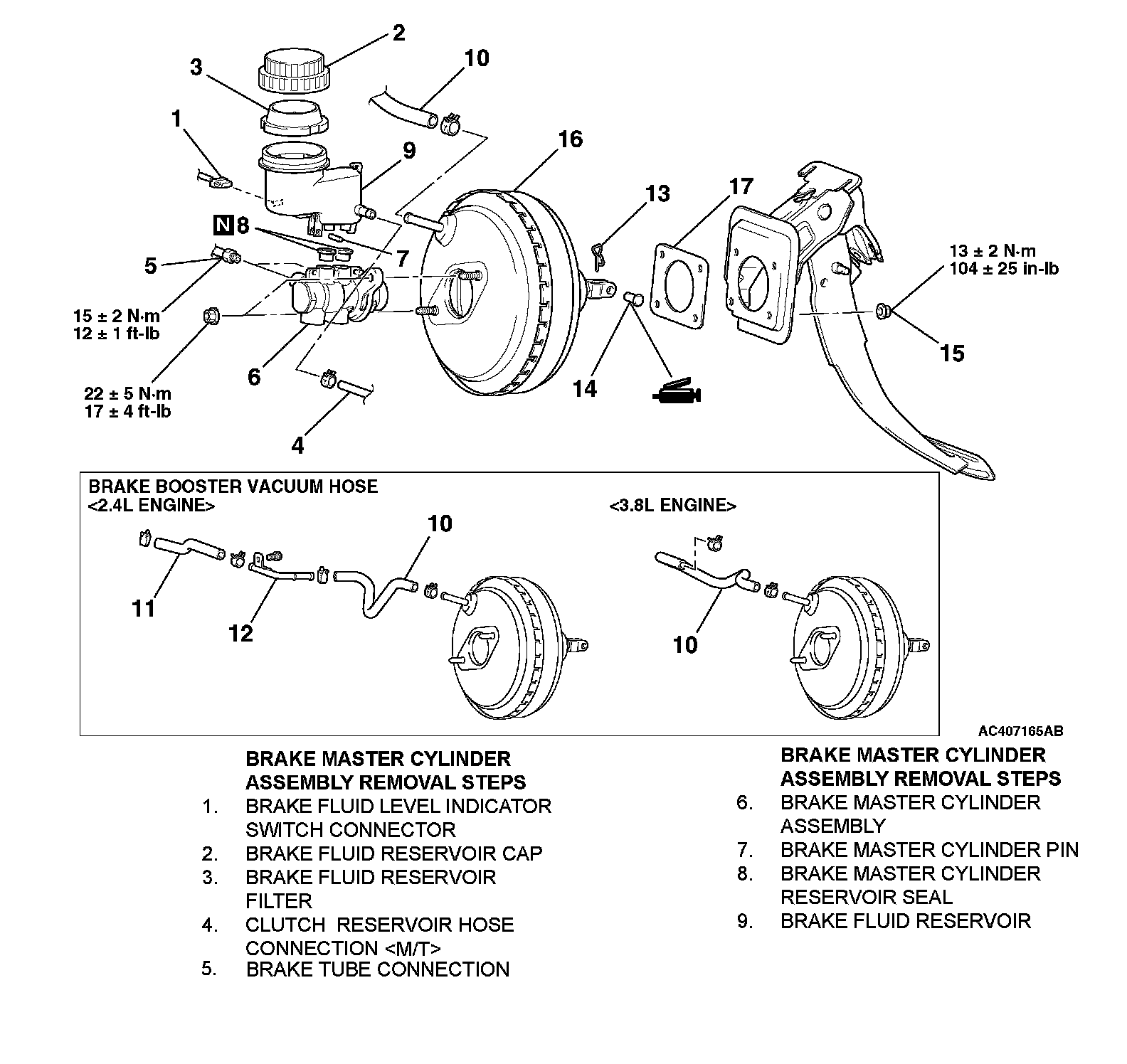

MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER

REMOVAL AND INSTALLATION

CAUTION: Do not touch the push rod in the brake booster because it is already adjusted.

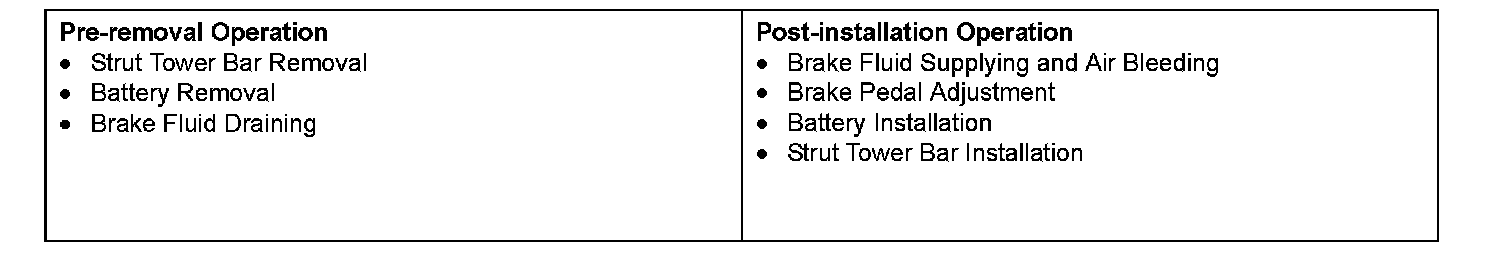

Pre-removal & Post-installation Operation:

Removal Steps 1-9:

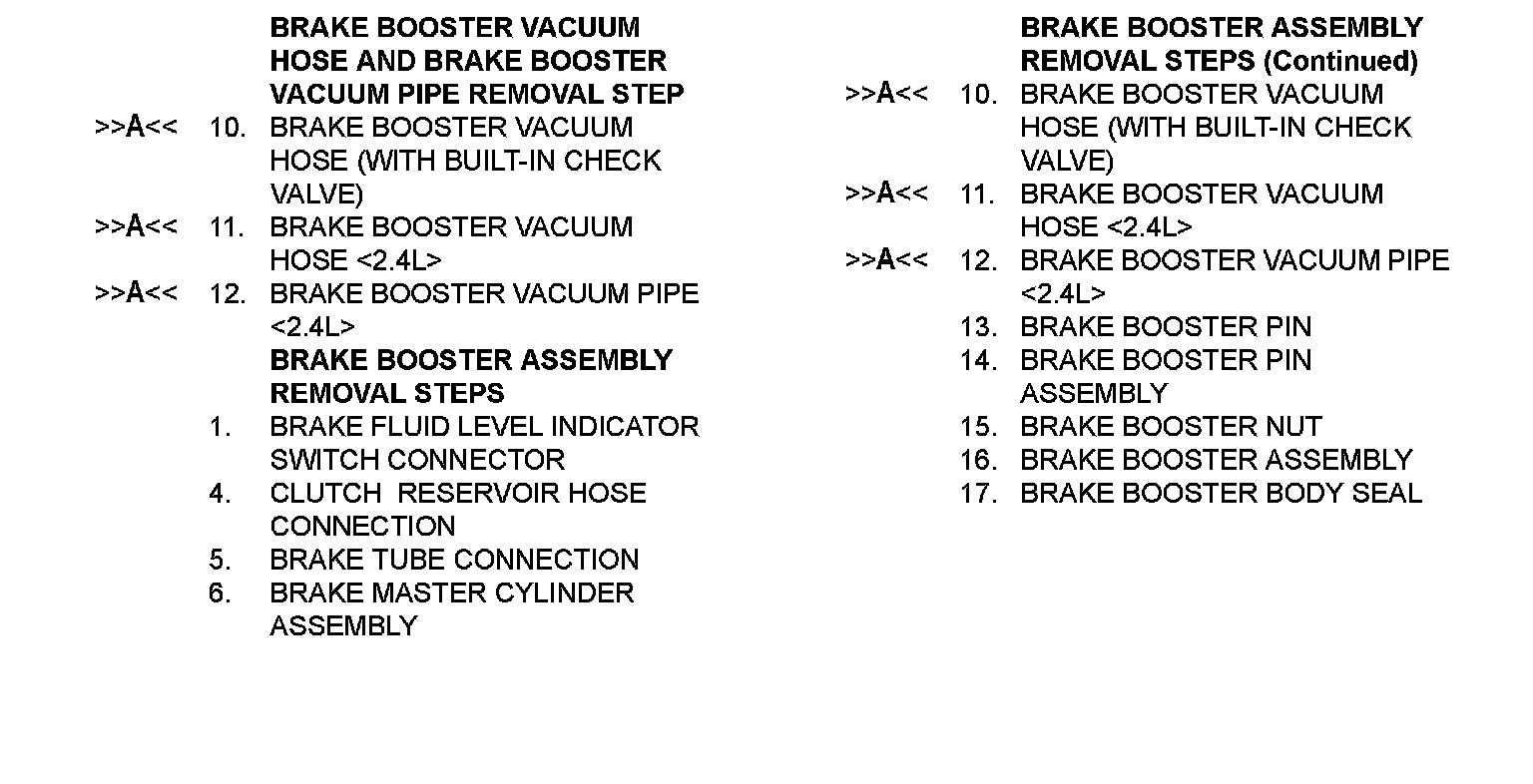

Removal Steps 1-17:

Required Special Tool:
* MB991568: Push Rod Adjusting Socket

INSTALLATION SERVICE POINTS

<2.4L> <3.8L>:

]]A[[ BRAKE BOOSTER VACUUM HOSE CONNECTION

Insert vacuum hose with its paint mark facing upward.
