Inspection Procedure 2: ABS/TCL-ECU Power Supply Circuit System

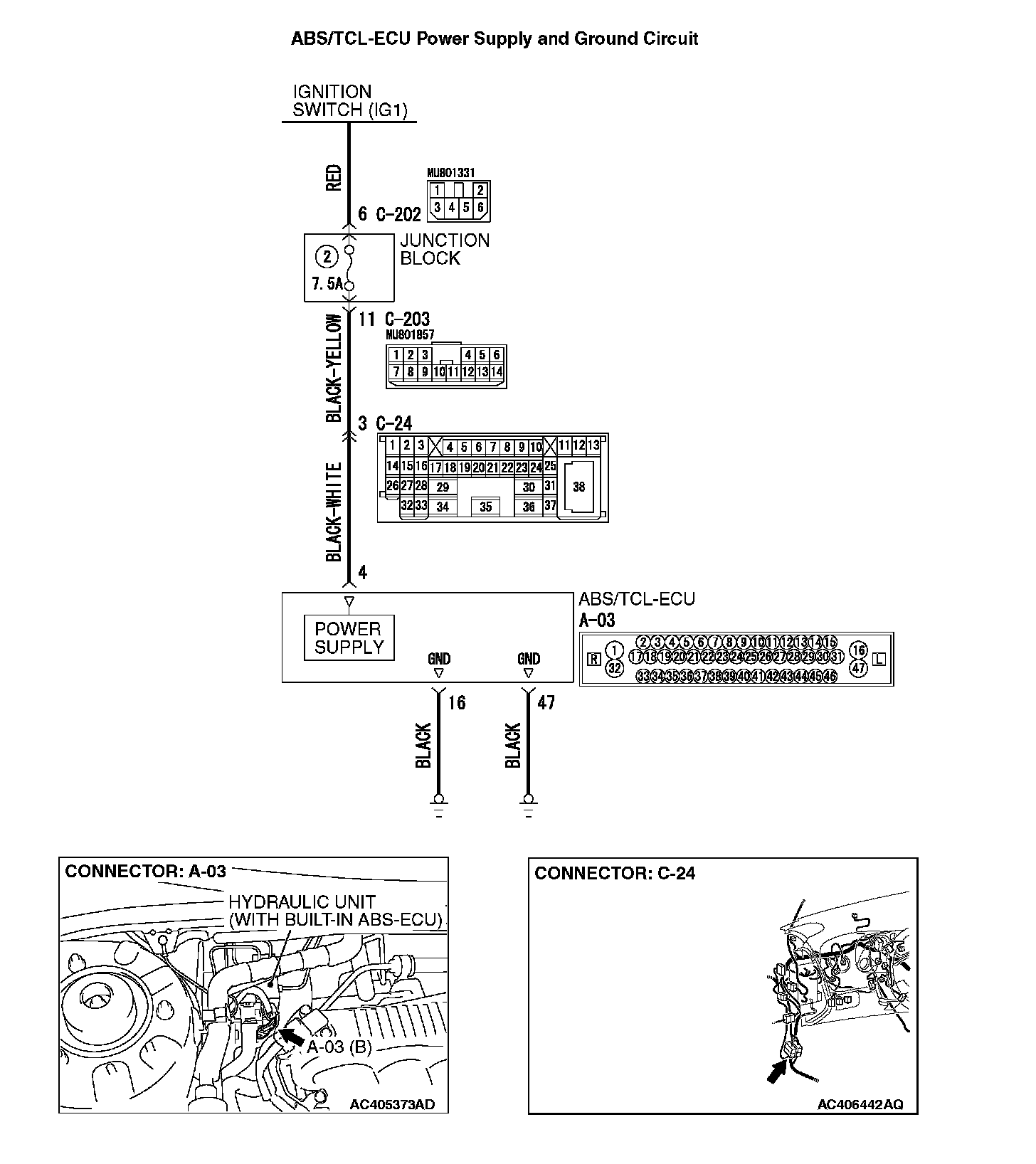

INSPECTION PROCEDURE 2: ABS/TCL-ECU Power Supply Circuit SystemABS/TCL-ECU Power Supply And Ground Circuit:
TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THIS CASE:)
^ Damaged wiring harness or connector
^ Defective battery
^ Charging system failed
^ Malfunction of the hydraulic unit (integrated with ABS/TCL-ECU)
DIAGNOSIS
Required Special Tools:
^ MB991958: Scan Tool (M.U.T.-III Sub Assembly)
^ MB991824: V.C.I.
^ MB991827: M.U.T.-III USB Cable
^ MB991910: M.U.T.-III Main Harness A
^ MB991997: ASC Check Harness
CIRCUIT OPERATION
^ The ABS/TCL-ECU is energized by the ignition switch (IG1) through multi-purpose fuse 23 and the ABS/TCL-ECU terminal 4.
^ If the power supply to the ABS/TCL-ECU has failed, scan tool (M.U.T.-III Sub Assembly) will not be able to communicate with it.
STEP 1. Measure the voltage at ABS/TCL-ECU connector A-03.

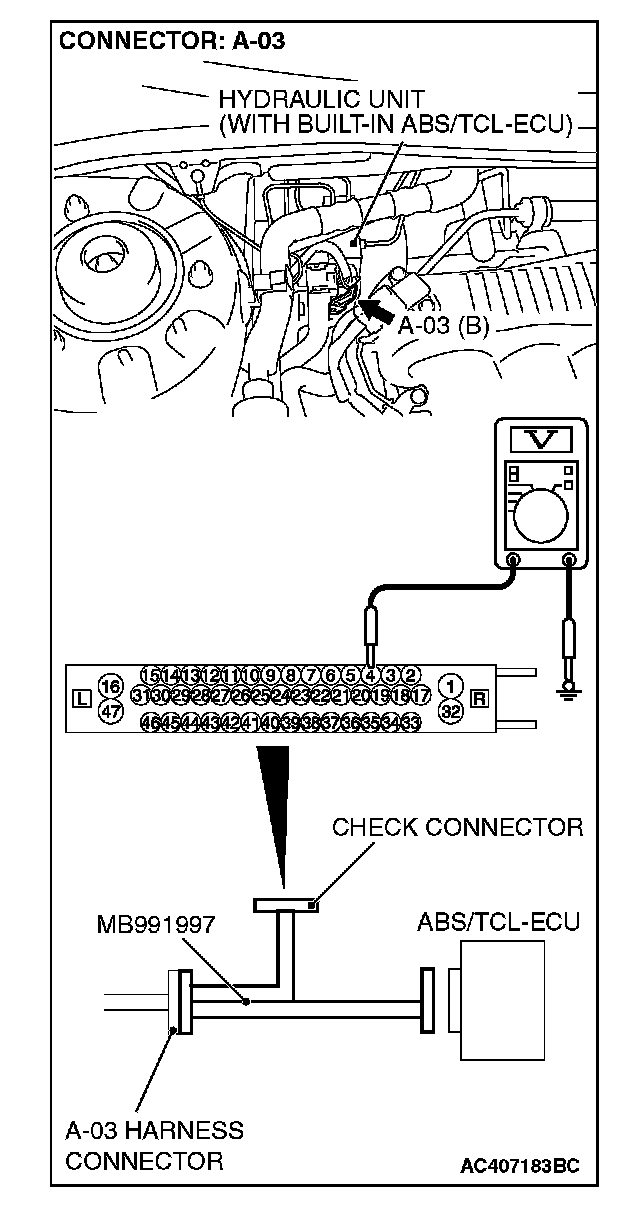

(1) Disconnect the connector A-03, and connect special tool MB991997 to the wiring harness-side connector.
NOTE: Do not connect special tool MB991997 to the ABS/TCL-ECU.
(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 4 and ground. It should measure approximately 12 volts (battery positive voltage).
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 3.
NO: Go to Step 2.
STEP 2. Check ABS/TCL-ECU connector A-03, intermediate connector C-24, junction block connectors C-202, C-203 and ignition switch connector C-308 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
^ ABS/TCL-ECU connector A-03

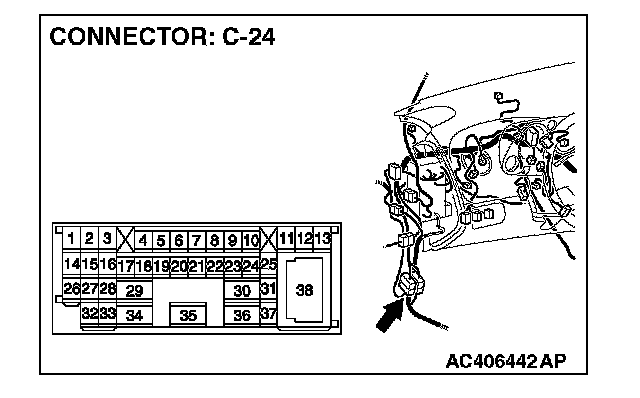

^ Intermediate connector C-24

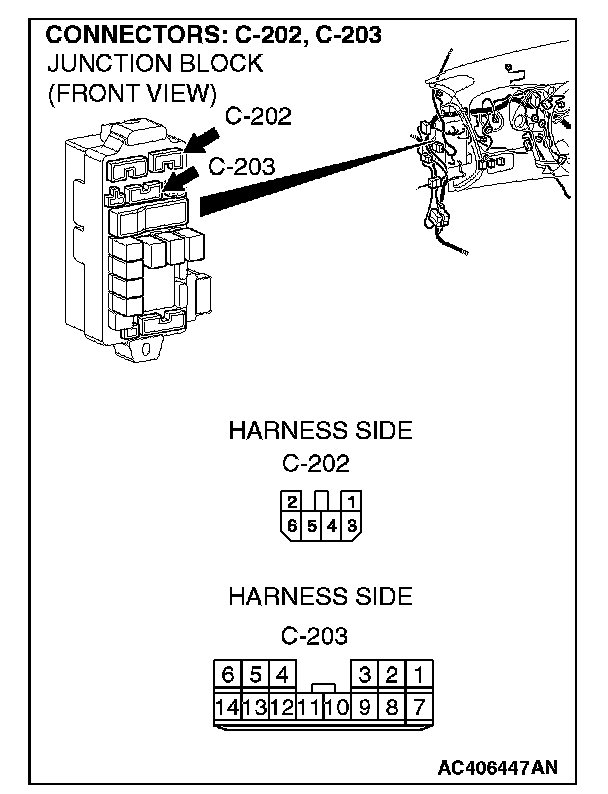

^ Junction block connectors C-202 and C-203

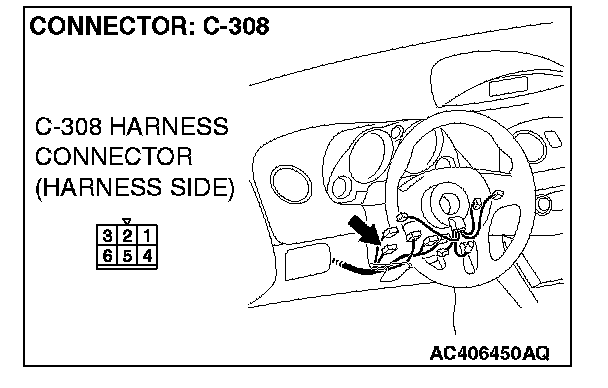

^ Ignition switch connector C-308
Q: Are the connectors and terminals in good condition?
YES: An open or short circuit may be present in the power supply line to the ABS/TCL-ECU. Repair the wiring harness between ABS/TCL-ECU connector A-03 terminal 4 and ignition switch connector C-308 terminal 4. Then go to Step 8.
NO: Repair or replace the damaged component(s). Refer to Harness Connector Inspection. Then go to Step 8.
STEP 3. Measure the resistance at ABS/TCL-ECU connector A-03.

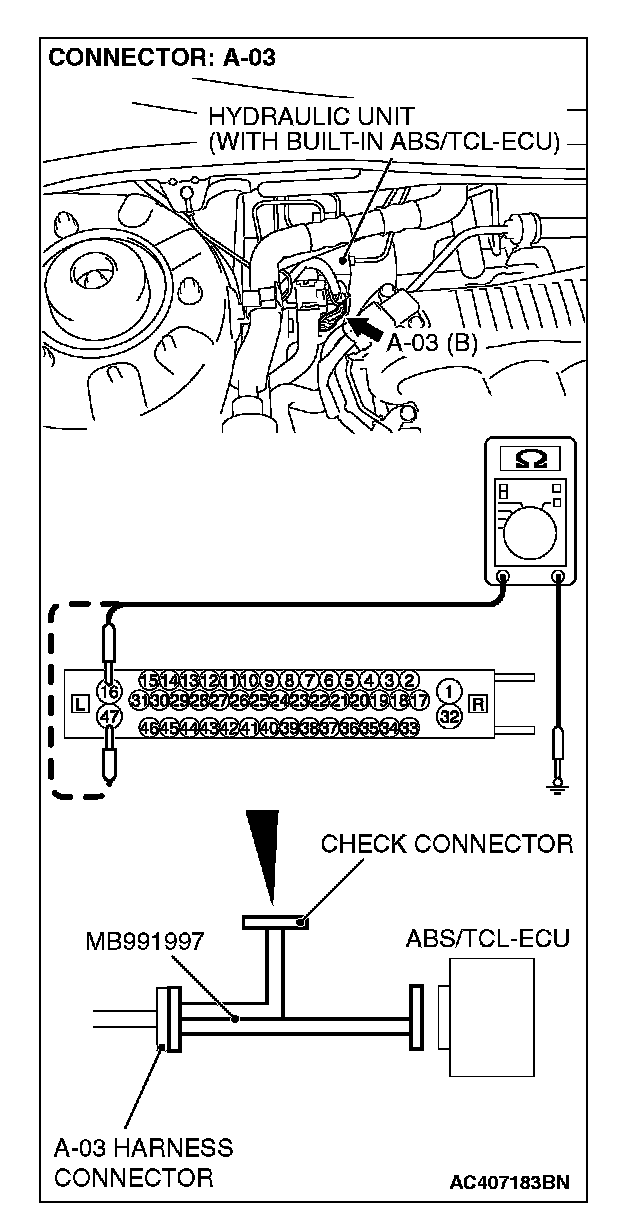

(1) Disconnect the connector A-03, and connect special tool MB991997 to the wiring harness-side connector.
NOTE: Do not connect special tool MB991997 to the ABS/TCL-ECU.
(2) Measure the resistance between terminal 16, 47 and ground. It should be 2 ohms or less.
Q: Is the measured resistance 2 ohms or less?
YES: Go to Step 5.
NO: Go to Step 4.

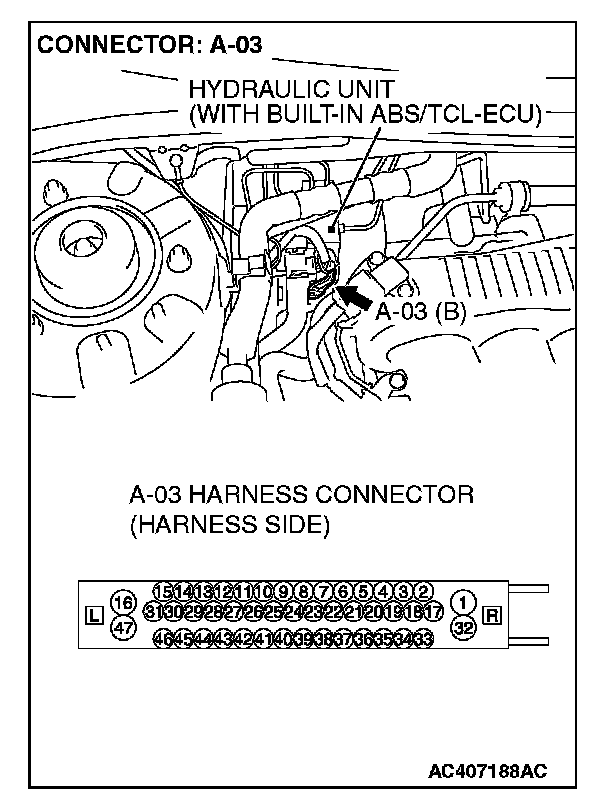

STEP 4. Check ABS/TCL-ECU connector A-03 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Is ABS/TCL-ECU connector A-03 damaged?
YES: Repair or replace the damaged component(s). Refer to Harness Connector Inspection.
Then go to Step 8.
NO: An open circuit may be present in the ground circuit. Repair the wiring harness between ABS/TCL-ECU connector A-03 terminals 16, 47 and the body ground. Then go to Step 8.
STEP 5. Check the battery.
Check the battery, refer to Battery test.
Q: Is the battery in good condition?
YES: Go to Step 6.
NO: Charge or replace the battery. Then go to Step 8.
STEP 6. Check the charging system.
Check the charging system, refer to Charging system diagnosis.
Q: Is the charging system in good condition?
YES: Go to Step 7.
NO: Repair or replace the charging system component(s).Then go to Step 8.
STEP 7. Retest the system.
Q: Can the ABS/TCL-ECU communicate with the scan tool (M.U.T.-III Sub Assembly)?
YES: It can be assumed that this malfunction is intermittent. Refer to How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunction.
NO: Replace the ABS/TCL-ECU. Then go to Step 8.
STEP 8. Retest the system.
Q: Can the ABS/TCL-ECU communicate with the scan tool (M.U.T.-III Sub Assembly)?
YES: The procedure is complete.
NO: Go to Step 1.
