Body - Water Leak at 'A' Pillar

No.: TT-124-42A-009
DATE: March, 2006
MODEL: See Below

SUBJECT:
WATER LEAK AT "A" PILLAR

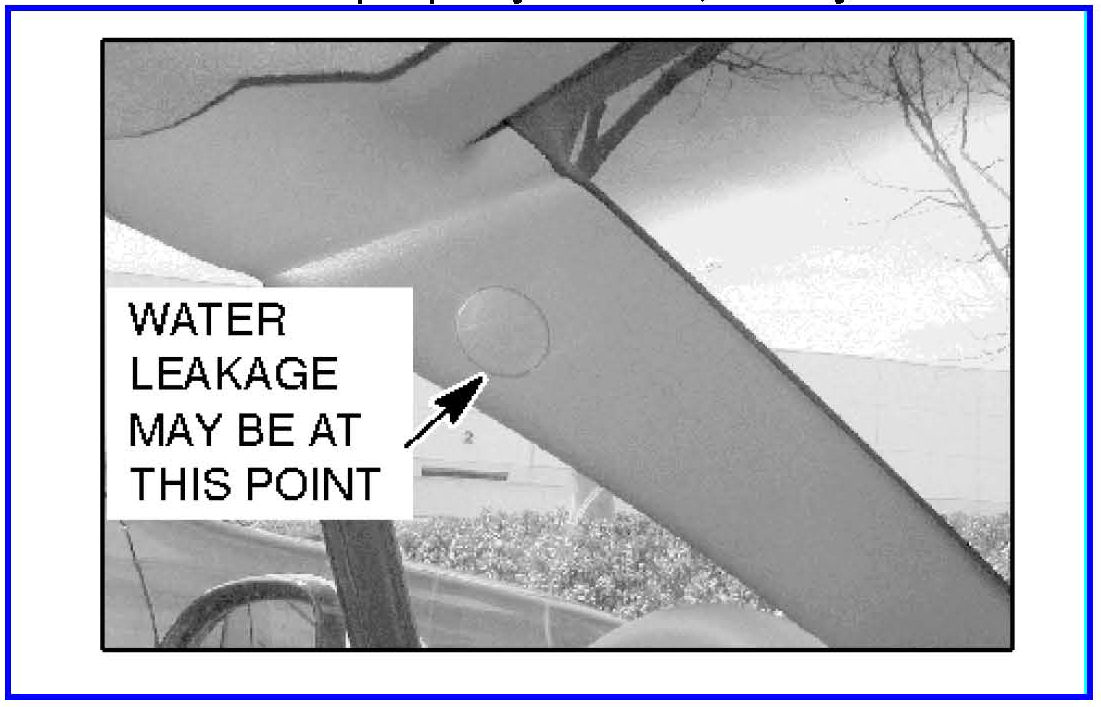

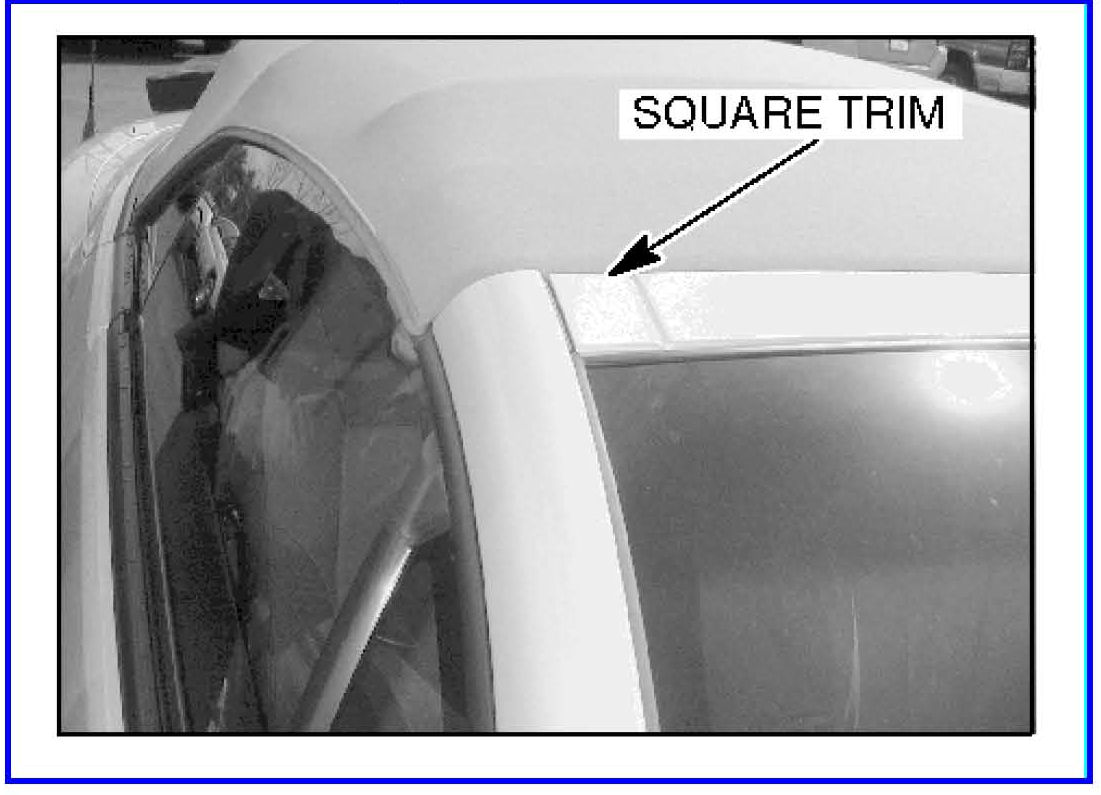

Water Leak at "A" Pillar- 2OO7Fclipse Spyder. If the square trim at the upper corners of the windshield is improperly sealed, it may result in interior water leakage at the "A" pillar.





Replacement trim parts are available from your facing PDC. This trim must also be replaced whenever the windshield is replaced.
