Body - Quarter Trim Flipper Door Reinstallation
No: TT-125-42A-008DATE: April, 2006
MODEL: See Below
SUBJECT:
QUARTER TRIM FLIPPER DOORS

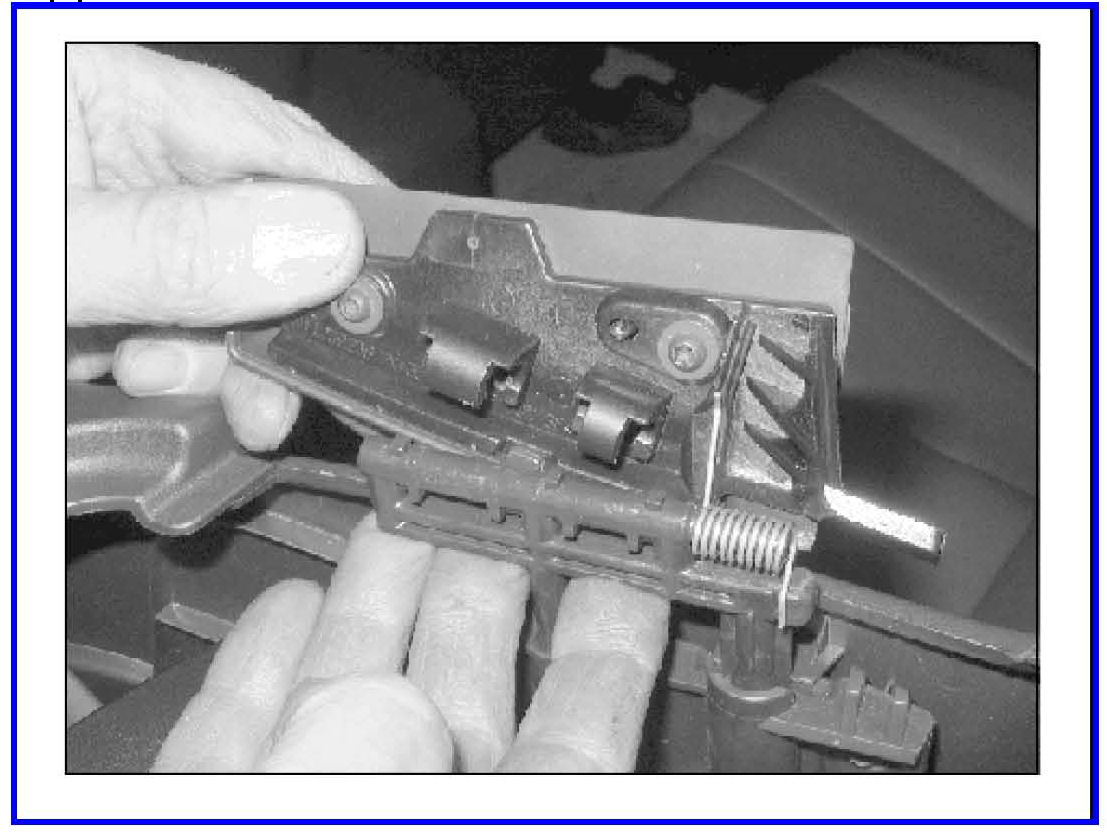

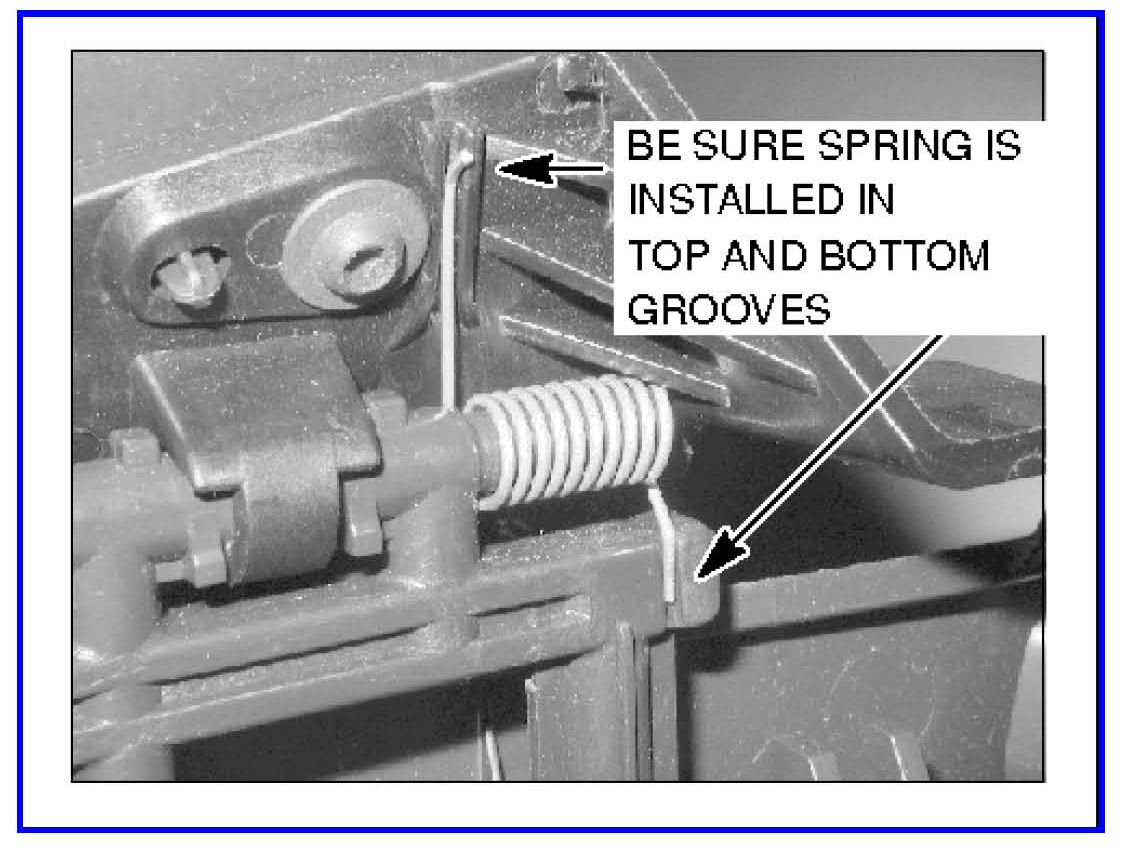

Quarter Trim Flipper Doors - 2OO7 Eclipse Spyder, If a flipper door comes off its hinge mounting and is not damaged, re-attach it by aligning it as shown. Be sure the spring is installed in the top and bottom grooves.
After installing the door, cycle the top and check for headliner interference. Reinstall any loose retaining clips and confirm the velcro straps are fastened. Replacement parts for damaged flipper doors will soon be available.
