Body - Front Mudguard Installation

No.: TSB-06-42A-005

DATE: June, 2006

MODEL: 2007 Eclipse Spyder

SUBJECT:
FRONT MUDGUARD INSTALLATION

PURPOSE

When installing front mudguards, modification is required due to interference with the front pillar gusset under the left and right hand side of the vehicle.

AFFECTED VEHICLES
2007 Eclipse Spyder

PROCEDURE

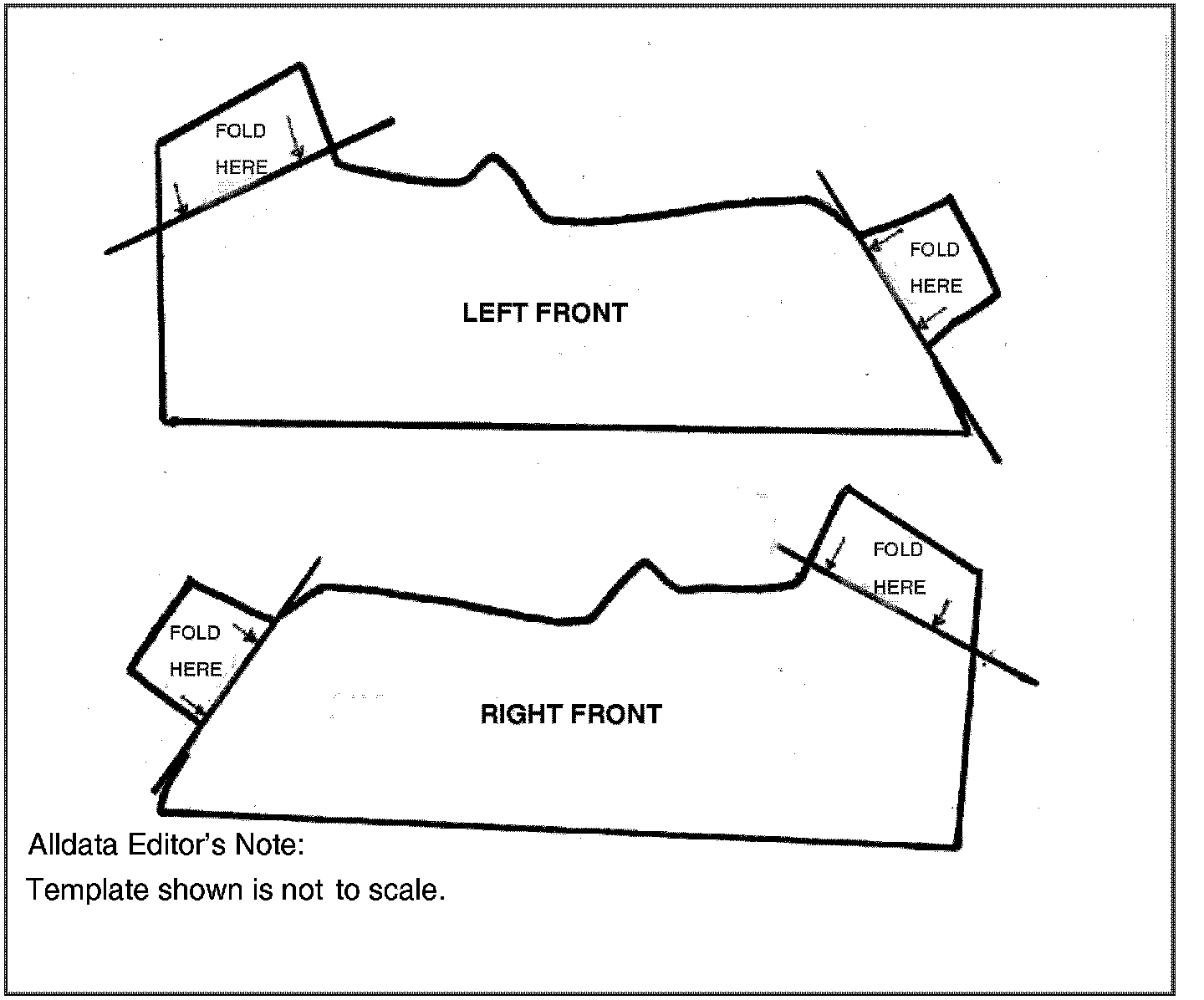

2007 ECLIPSE SPYDER MUDGUARD MODIFICATION TEMPLATES

1. Copy and cut out the templates shown.

2. Place the template into position on the mudguard as shown and temporarily affix with tape.

3. Trace around the template with a pen.

4. Remove the template and carefully cut out the marked outline area of the mudguard with a utility knife.

5. Repeat steps 2-4 above on the opposite side.

6. Install mudguards onto vehicle.

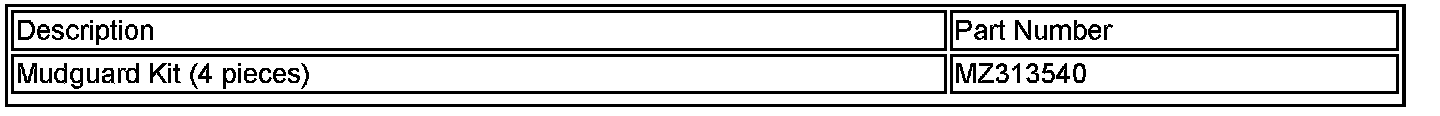

PARTS INFORMATION





Use the Genuine Mitsubishi Parts shown.

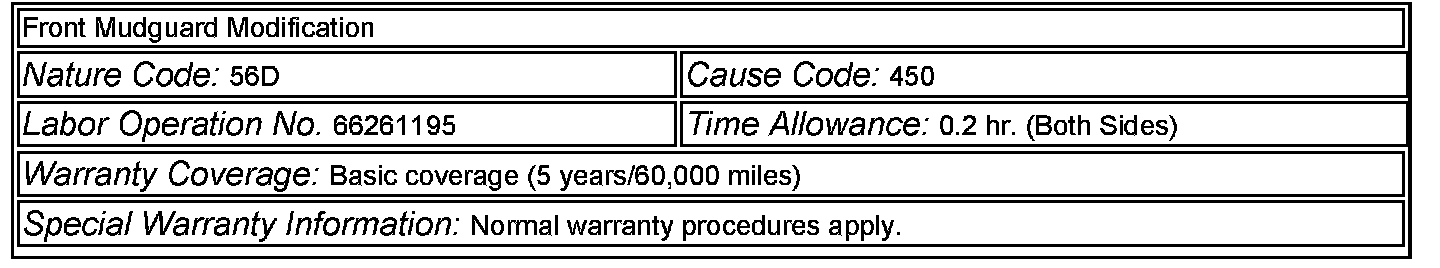

WARRANTY INFORMATION
