Front Seat

DISASSEMBLY AND ASSEMBLY

[DRIVER'S SEAT]

WARNING: Never attempt to disassemble or repair the seat slide sensor. If faulty, replace it.

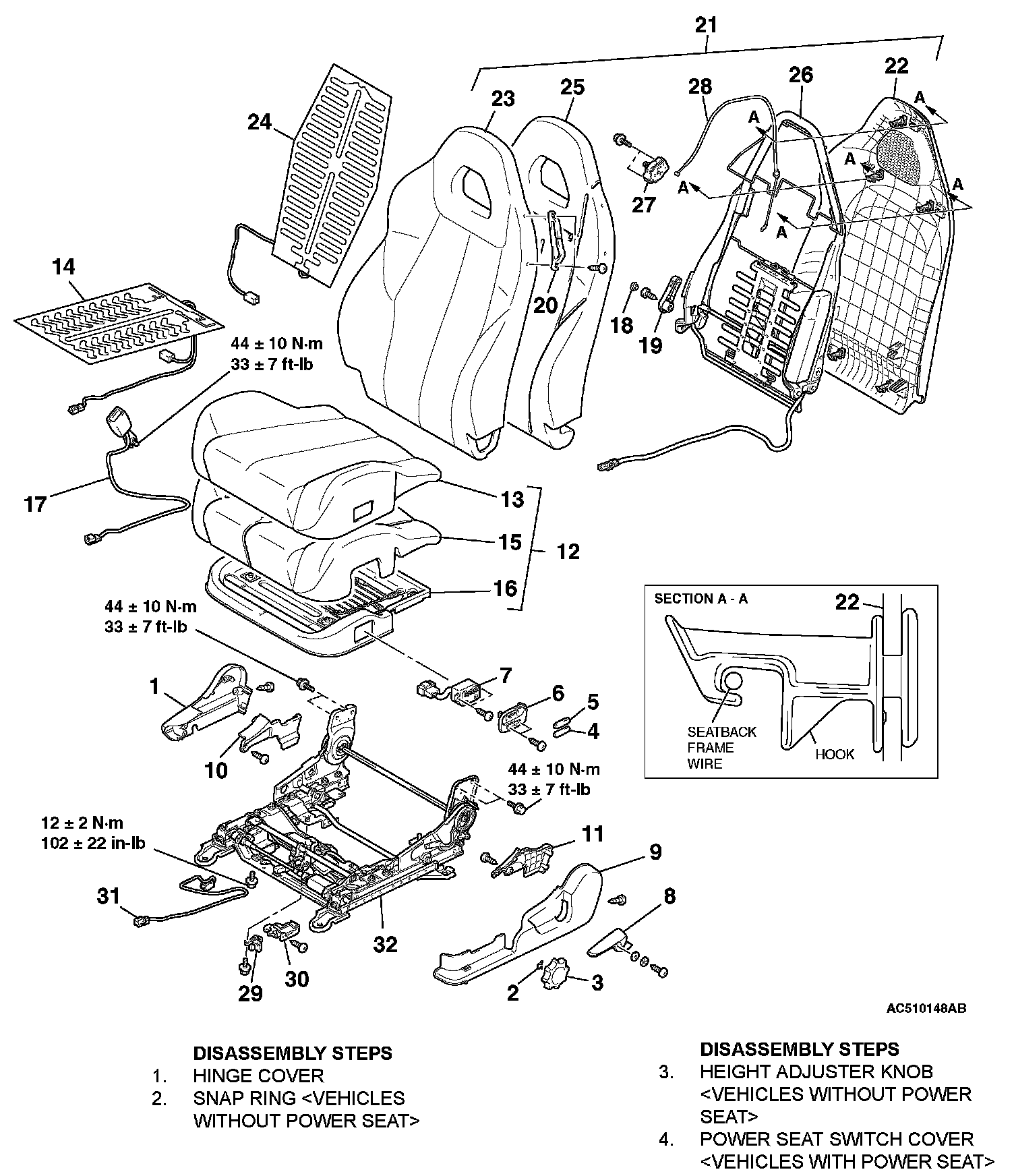

Disassembly Steps 1-32 (Part 1):

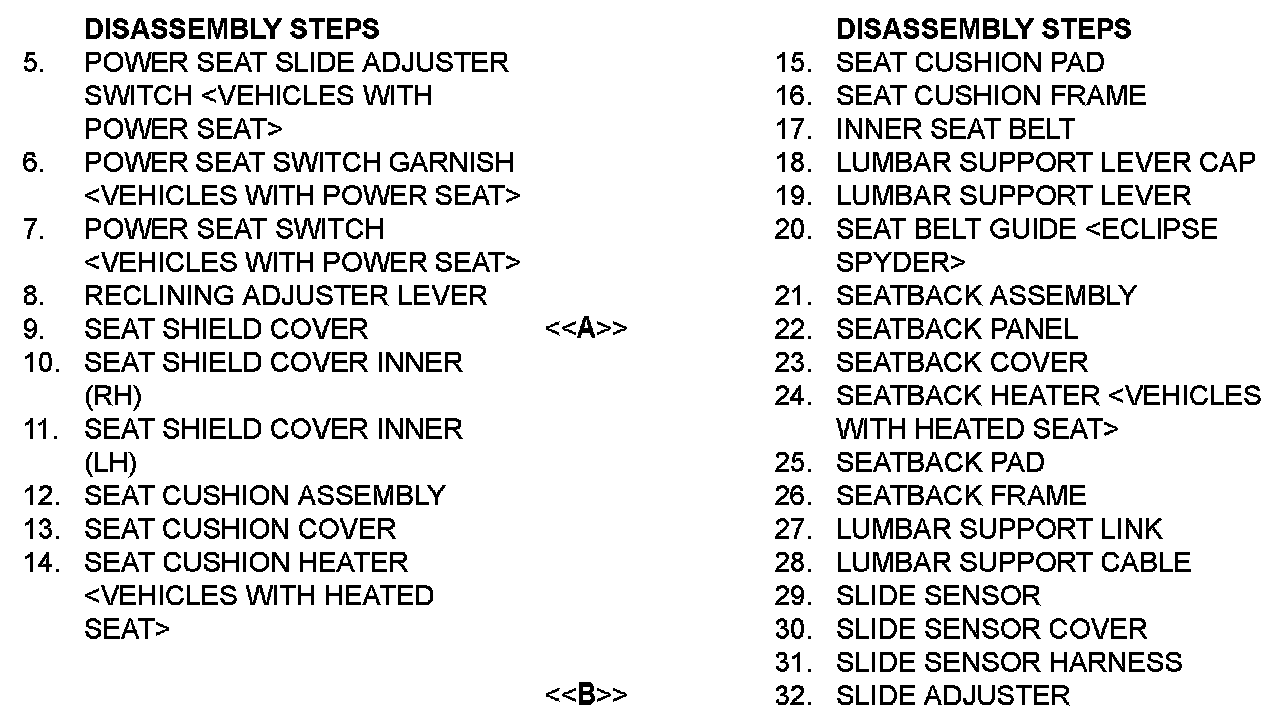

Disassembly Steps 1-32 (Part 2):

[FRONT PASSENGER'S SEAT]

WARNING:
- Never attempt to disassemble or repair the occupant classification-ECU or the occupant classification sensor. If faulty, replace it.
- Do not drop or subject the occupant classification-ECU and occupant classification sensor to impact or vibration. If denting, cracking, deformation, or rust is discovered in the occupant classification-ECU or the occupant classification sensor, replace it with a new one.

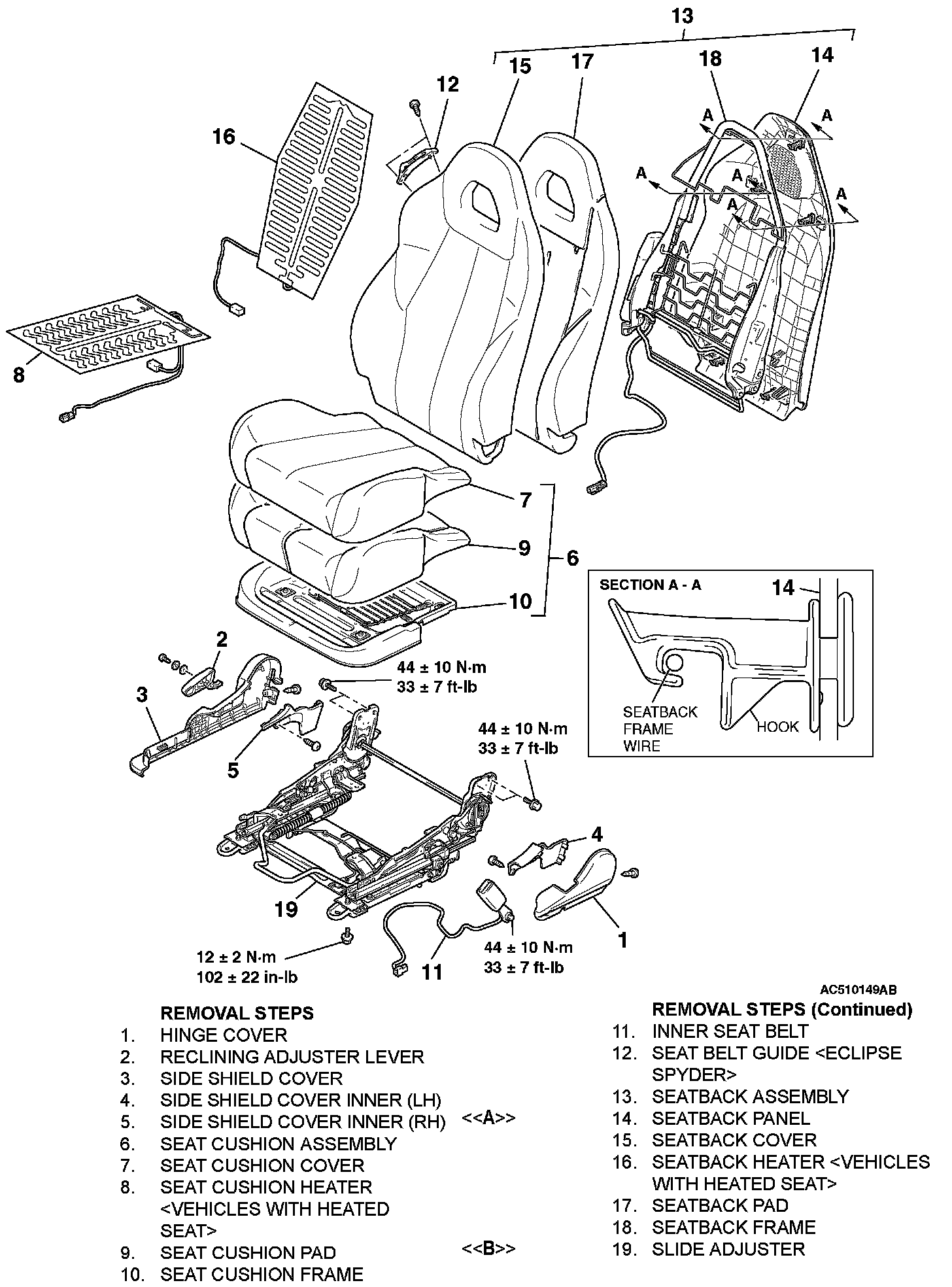

Removal Steps 1-19:

REMOVAL SERVICE POINT

[[A]] SEATBACK PANEL REMOVAL

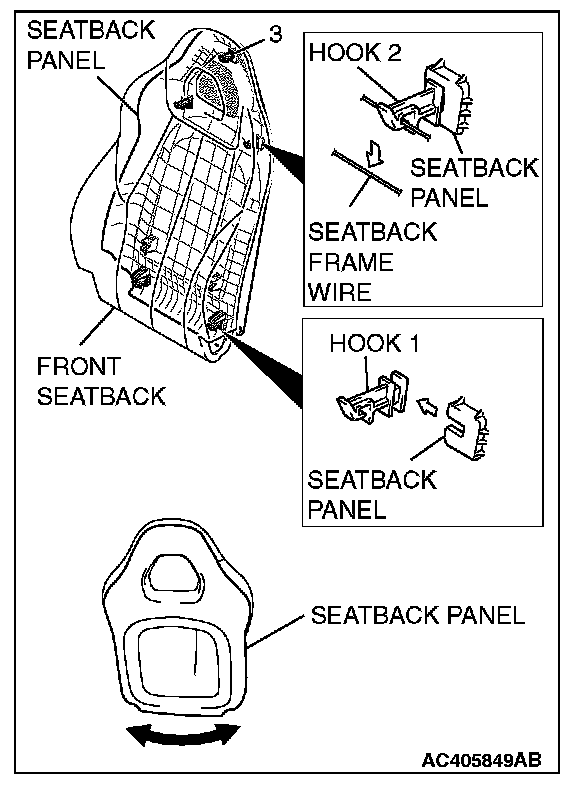

1. Raise the seatback panel while holding it as shown, and disconnect the seatback frame wire and hook connection.






2. If the seatback panel cannot be removed by the steps above, remove it as follows.
1. Insert a screwdriver and slide hook 1 to remove it from the panel.
2. Swing the panel to the right and left, and remove hook 2 from the wire.
3. Finally, remove hook 3.

[[B]] SEATBACK PANEL REMOVAL

WARNING: Do not remove the occupant classification-ECU and the occupant classification sensor from the slide adjuster.
