Body - Tonneau Door Contacting Topstack Frame
No: TT-125-42A-007DATE: April, 2006
MODEL: See Below
SUBJECT:
TONNEAU FLIPPER DOOR CONTACTING
TOPSTACK FRAME

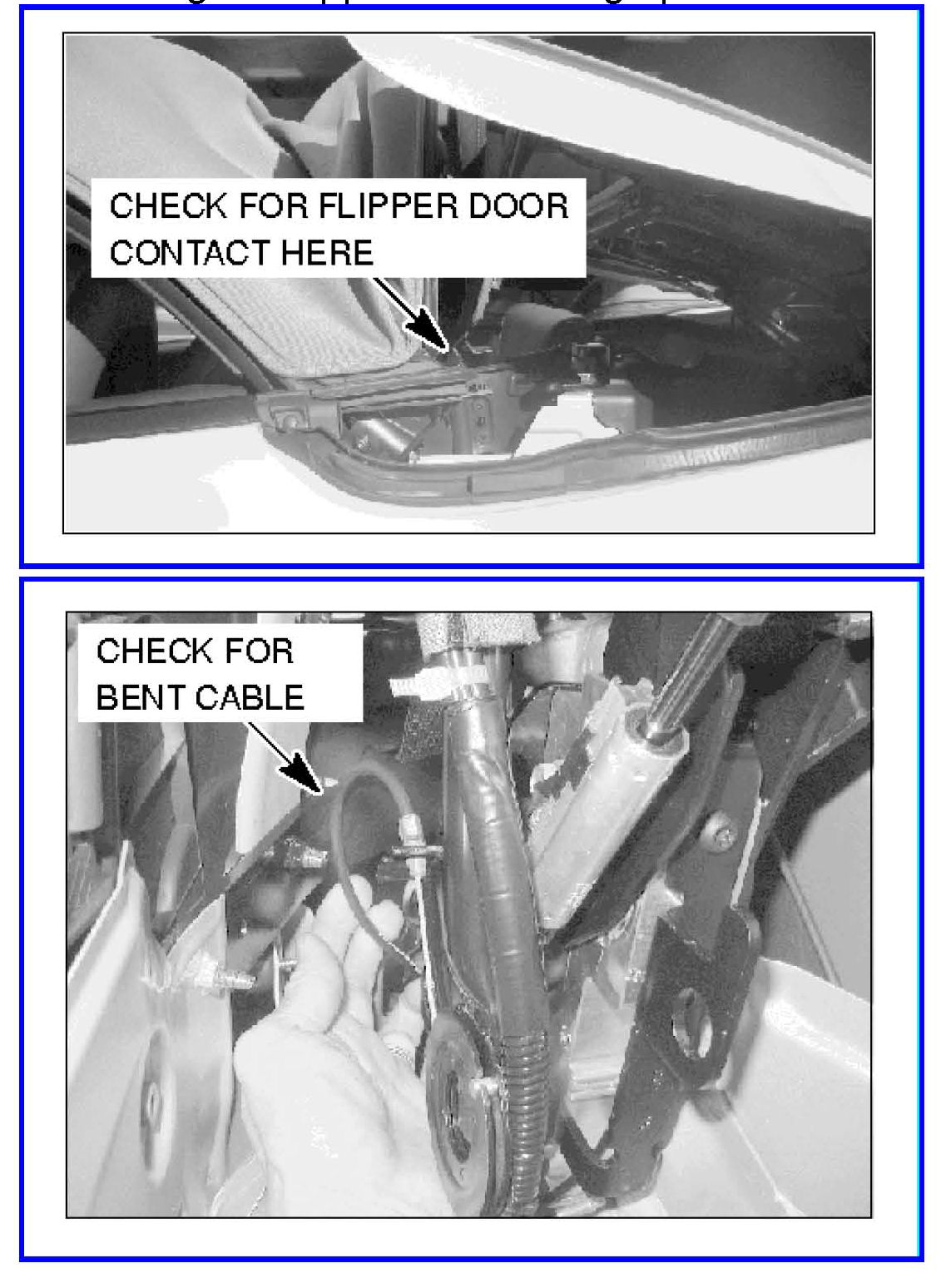

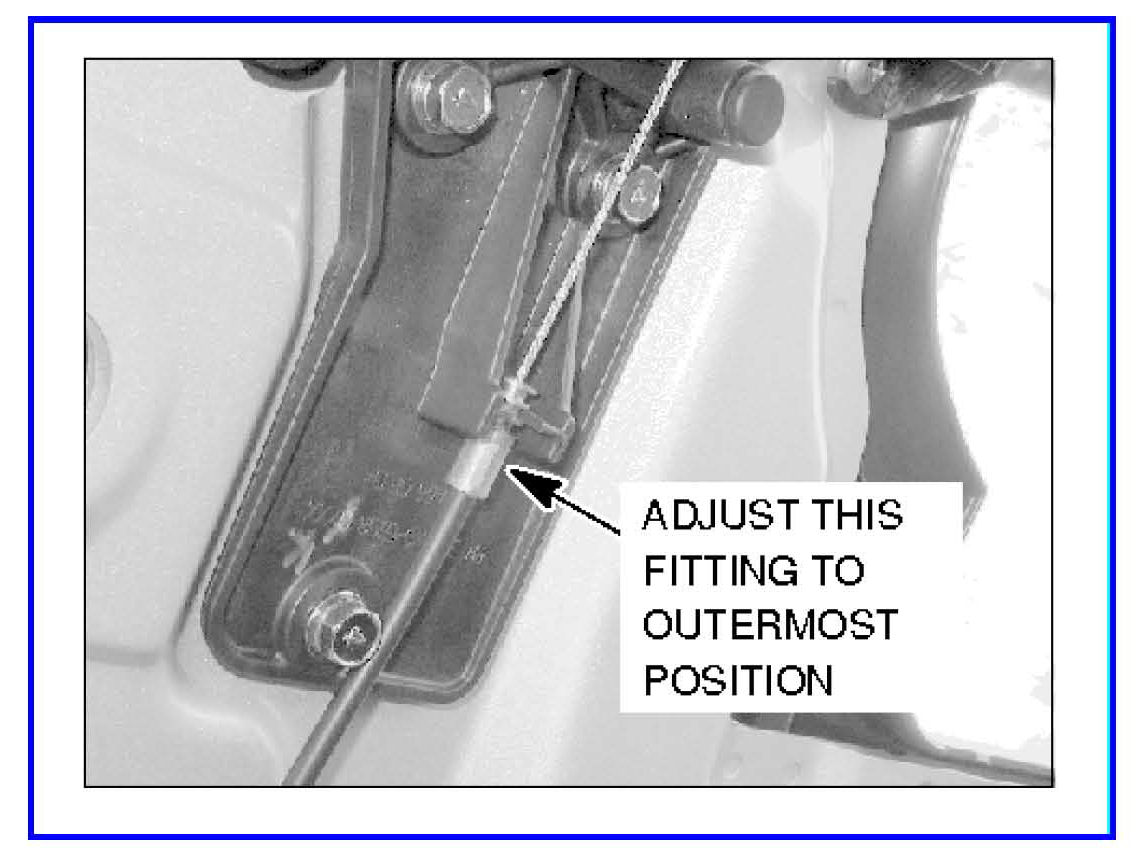

Tonneau Flipper Door Contacting Topstack Frame - 2007 Eclipse Spyder. If the tonneau flipper door contacts the topstack frame during the top closing process, it may be due to a bent flipper door cable. The door may be scratched due to this condition. Inspect the flipper door cable near the topstack mounting location. If it is bent, replace the flipper door assembly. If the cable is not bent, adjust the cable at the brass fitting to the outermost position to prevent it from contacting the flipper door during operation.
