Body - Sunroof Leaking Water
No: TT-130-42A-001DATE: September, 2006
MODEL: See Below
SUBJECT
SUNROOF WATER LEAK

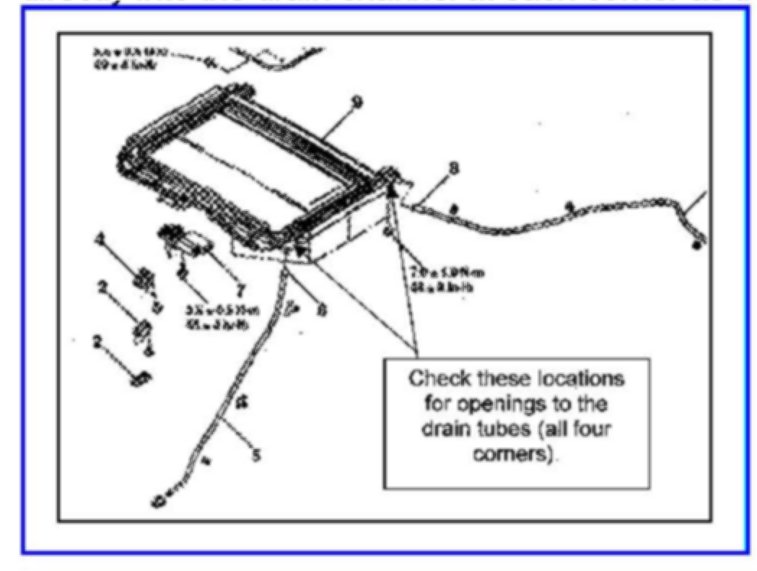

Sunroof Water Leaks - 2006-07 Eclipse. When troubleshooting reported sunroof-related water leaks into the interior, in addition to the usual checks for proper drain tube attachment and clear water flow, inspect openings in the black plastic molded corner pieces where the drain tubes attach. The corner piece may have been improperly molded without an opening for the water to drain from the hose. Without the hole, the water backs up into the sunroof channel, then leaks into the interior. This condition may be difficult to identify with a normal hose water test. A full shower test (large water volume for over 15 minutes) may be required to duplicate the condition. Test the vehicle using a hose directly into the drain channel at each corner as this condition may be hard to identify visually.
