Removal and Replacement

SUNROOF ASSEMBLY

REMOVAL AND INSTALLATION

Post-installation Operation <Roof Lid Glass Assembly, Sunroof Assembly>:

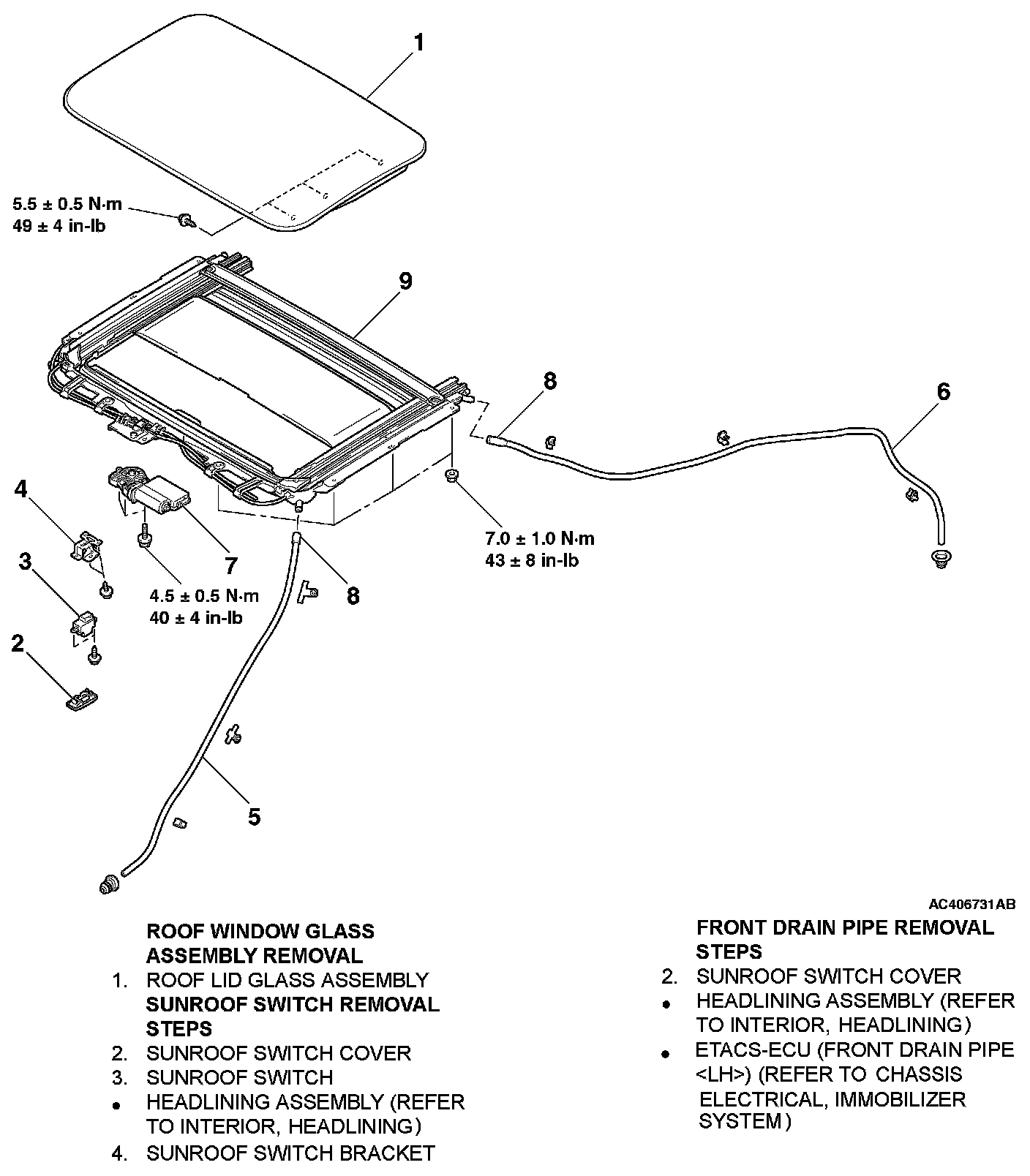

Removal Steps 1-9 (Part 1):

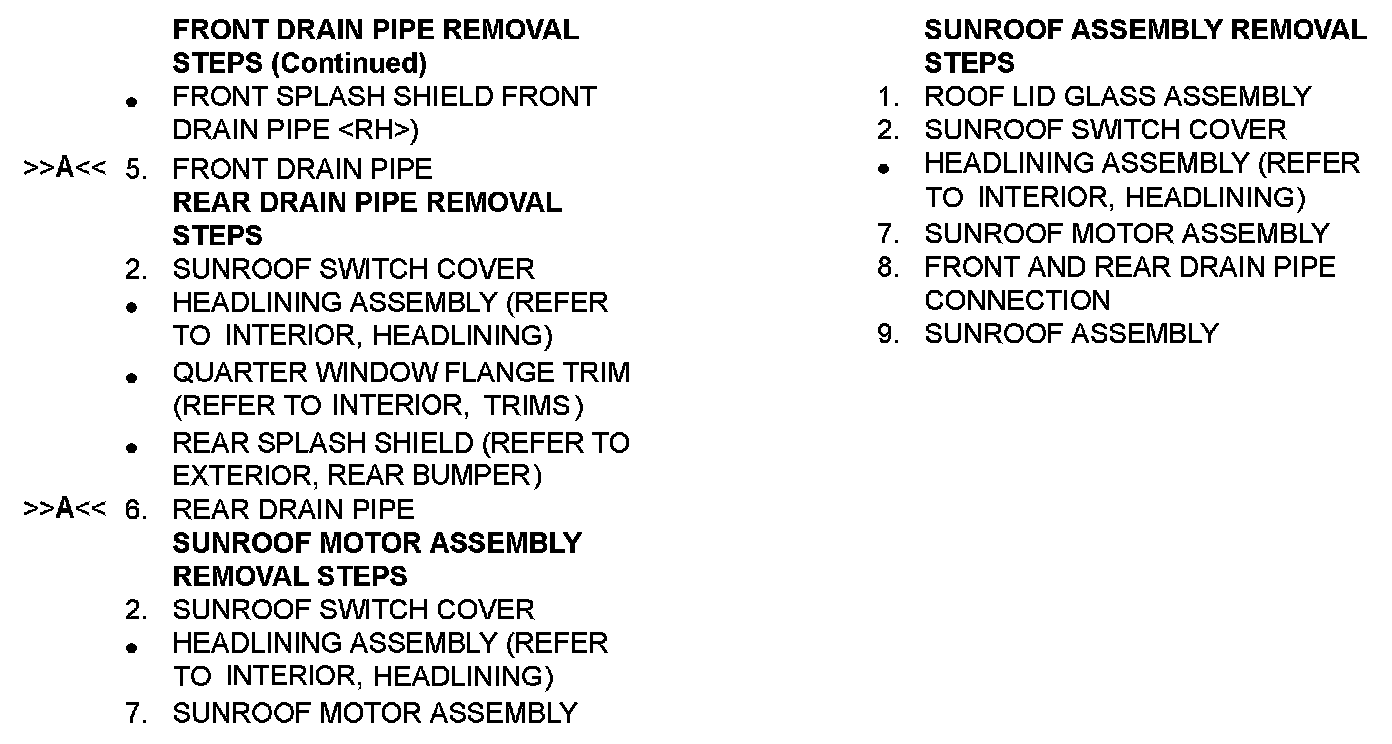

Removal Steps 1-9 (Part 2):

Required Special Tool:
- MB991223: Harness set

INSTALLATION SERVICE POINT

]]A[[ REAR DRAIN PIPE/FRONT DRAIN PIPE INSTALLATION

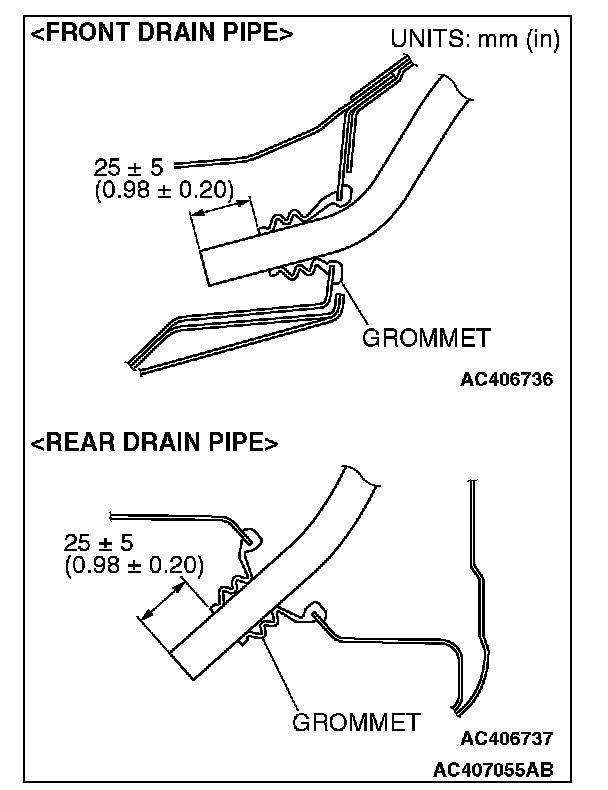

Install the grommet, and then position the drain pipe so that it protrudes from the grommet as shown in the illustration.
