Convertible Top Hydraulic Cylinder: Testing and Inspection

INSPECTION

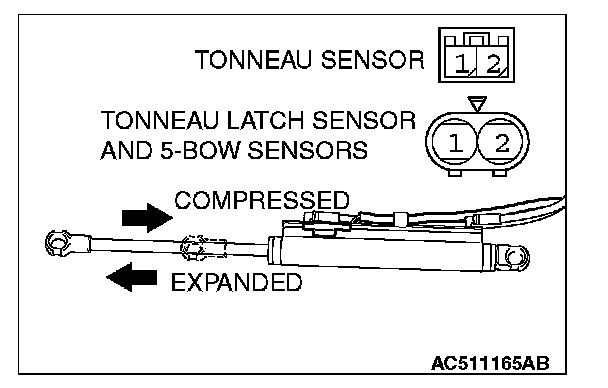

SENSOR(HALL IC)CHECK

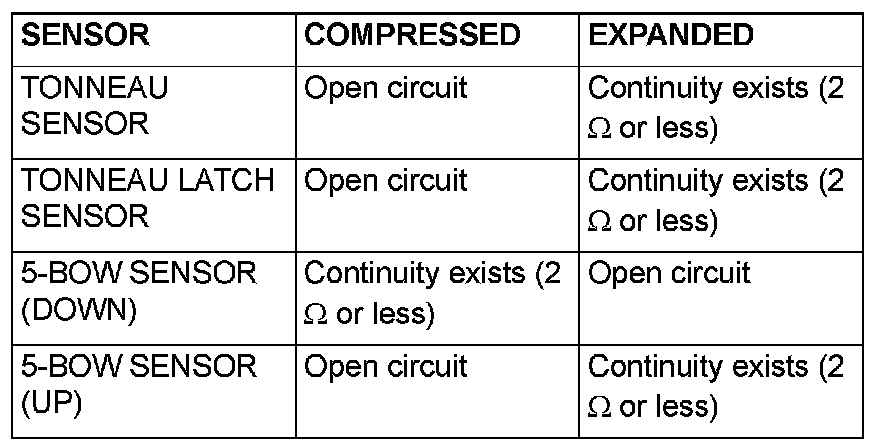

Continuity between terminal 1 and terminal 2 when time when cylinder expanded and cylinder are compressed is checked.
