Power Door Lock Actuator: Testing and Inspection

FRONT DOOR LATCH CHECK

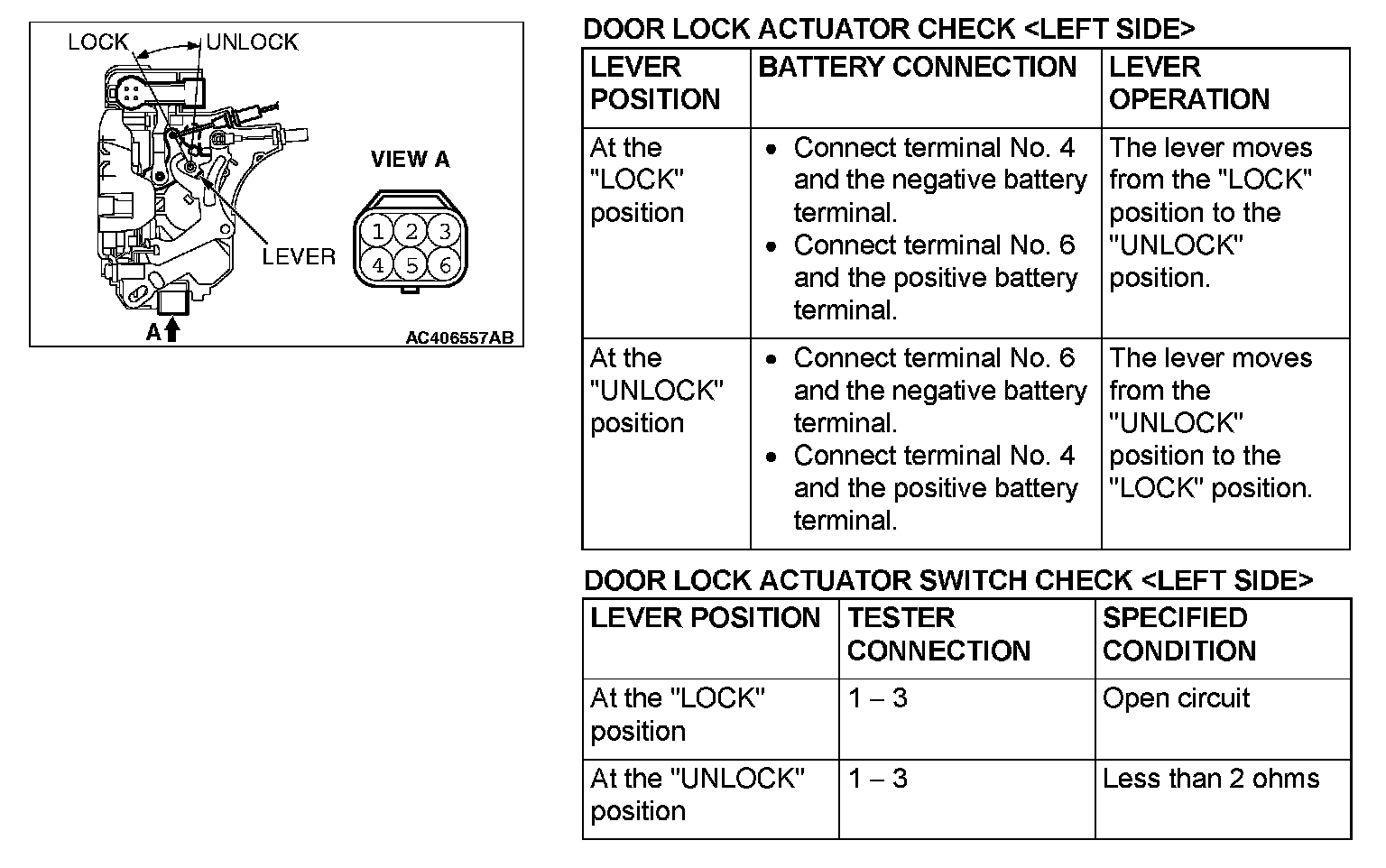

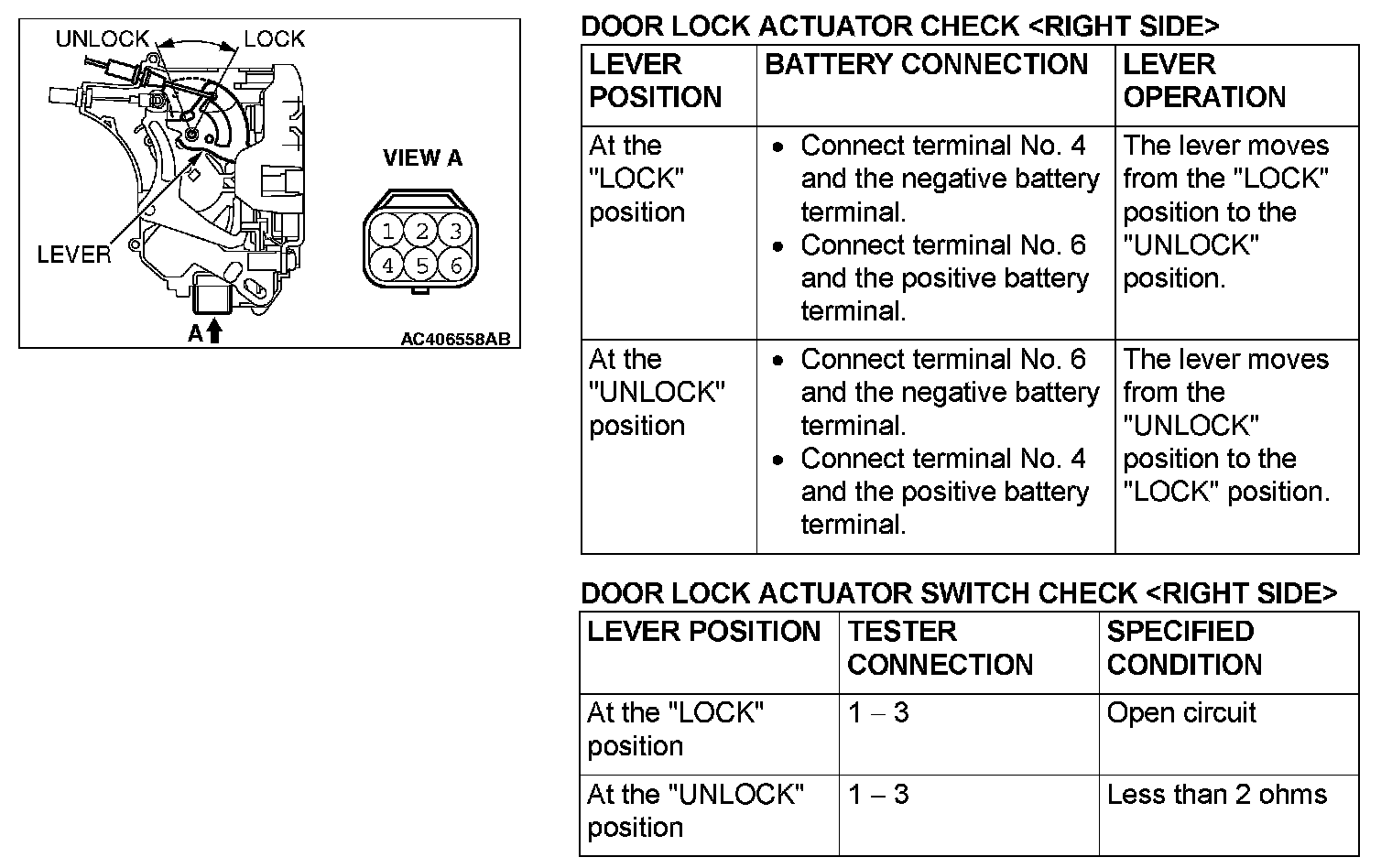

The illustration shows when the door lock actuator is viewed from inside the door.
