Overhaul
FLOOR CONSOLE ASSEMBLYDISASSEMBLY AND ASSEMBLY

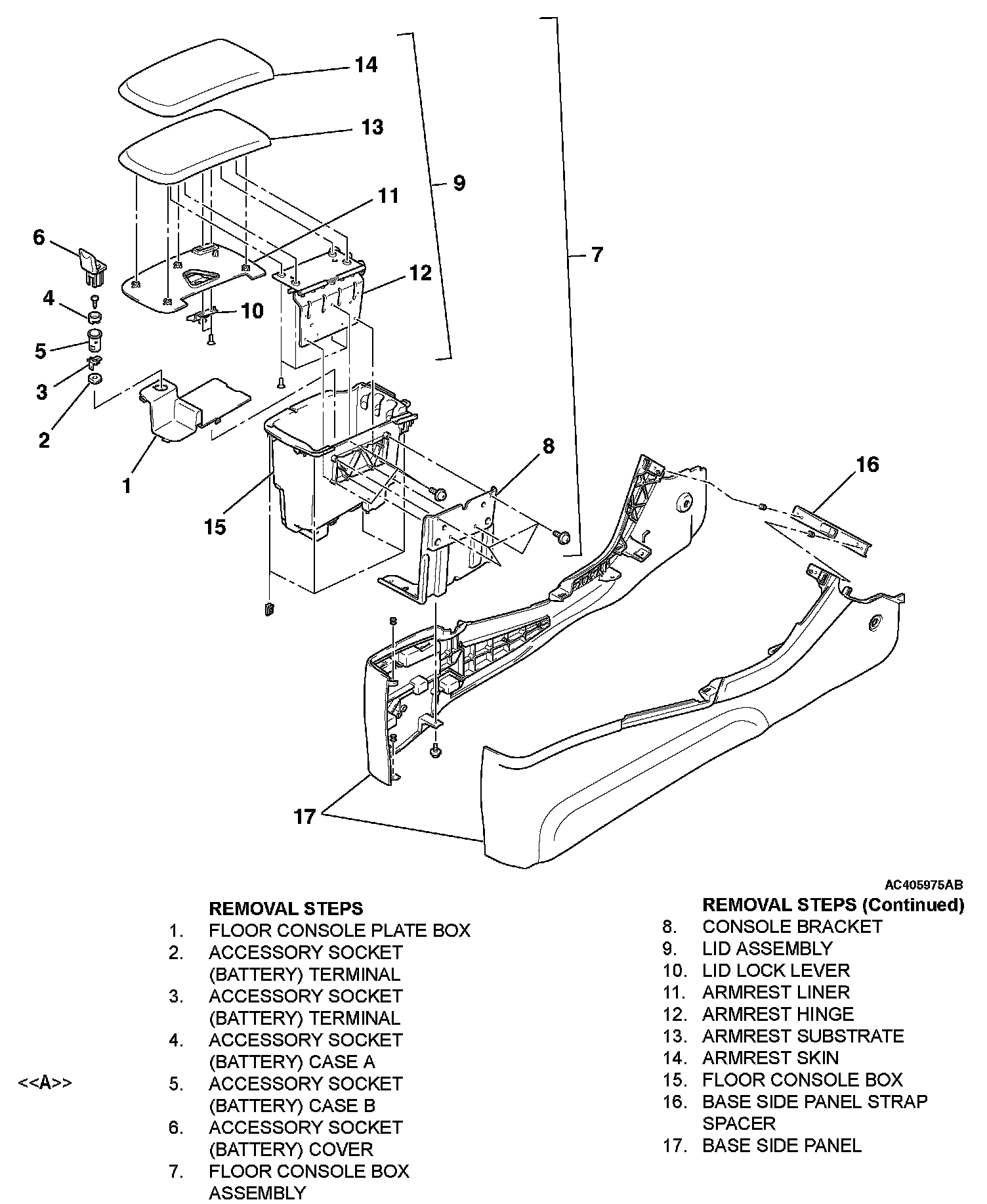

Removal Steps 1-17:
REMOVAL SERVICE POINT
[[A]] ACCESSORY SOCKET (BATTERY) CASE B

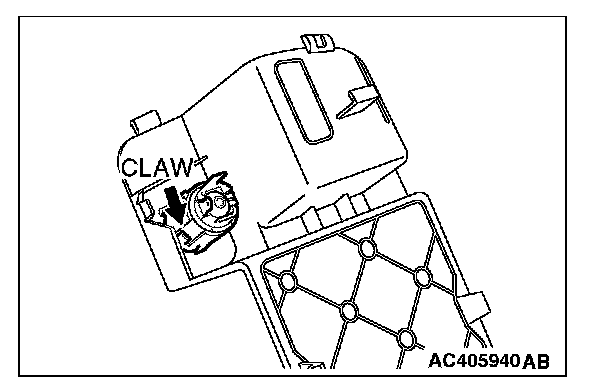

Disengage the claw shown in the illustration and remove the accessory socket.
DISASSEMBLY AND ASSEMBLY
REMOVAL SERVICE POINT
[[A]] ACCESSORY SOCKET (BATTERY) CASE B
Disengage the claw shown in the illustration and remove the accessory socket.
