Eclipse Spyder

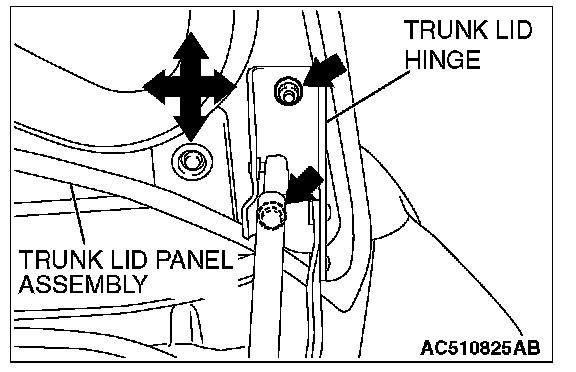

ADJUSTMENT OF CLEARANCE AROUND TRUNK LID






Loosen the trunk lid panel assembly mounting bolt and nut, and move the trunk lid panel assembly to make the clearance around the trunk lid even.

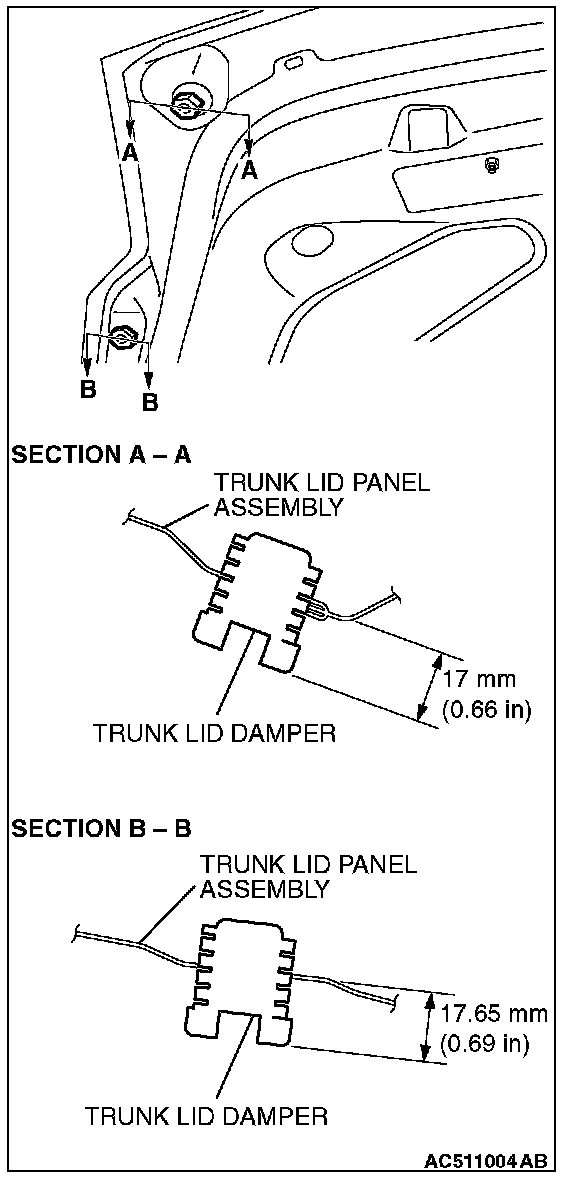

TRUNK LID HEIGHT ADJUSTMENT






Turn each trunk lid damper to achieve the height shown in the drawing is reached. If the trunk lid panel height on one side is different from that on the other side (even after the trunk lid dampers have been adjusted to the height indicated in the drawing), turn the trunk lid damper(s) slightly to make fine adjustments to the trunk lid panel height.

NOTE: When the damper is new, one full turn of the trunk lid damper changes the height approximately 3 mm. Turn it clockwise to reduce height. Turn it counterclockwise to increase height.
