Front Door: Service and Repair

DOOR ASSEMBLY

REMOVAL AND INSTALLATION

Post-installation Operation:

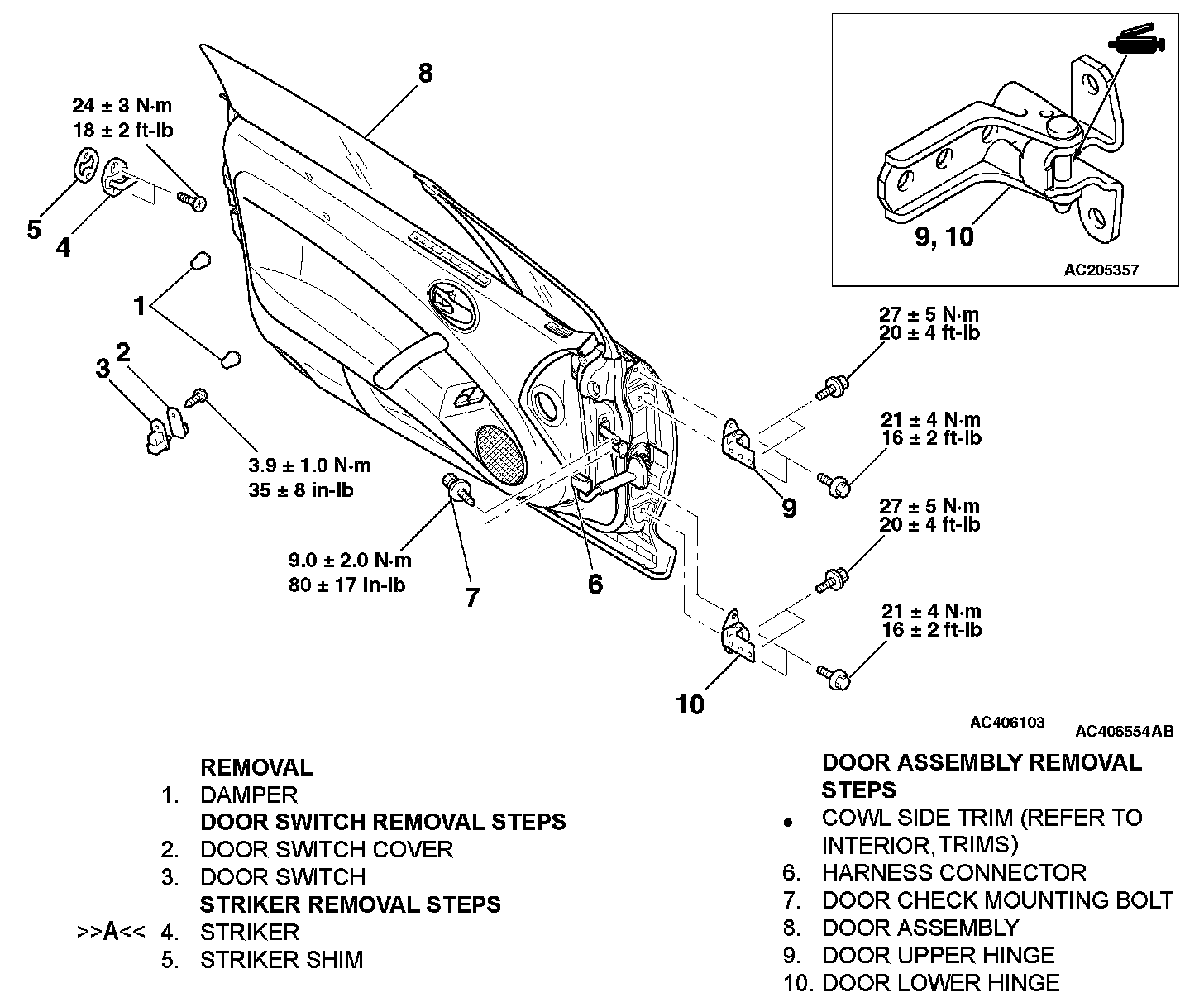

Removal Steps 1-10:

INSTALLATION SERVICE POINT

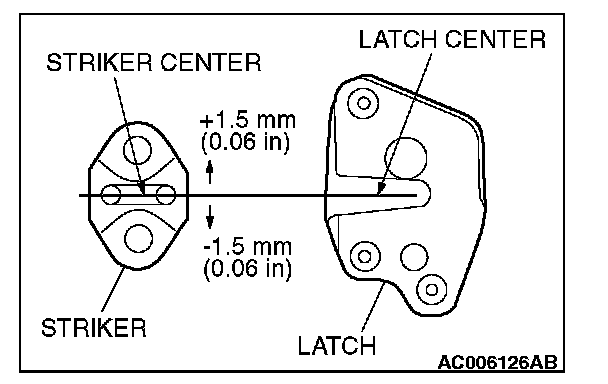

]]A[[ STRIKER INSTALLATION






Align the center of the striker and latch within ±1.5 mm (0.06 inch), and install.
