Pinout Values and Diagnostic Parameters

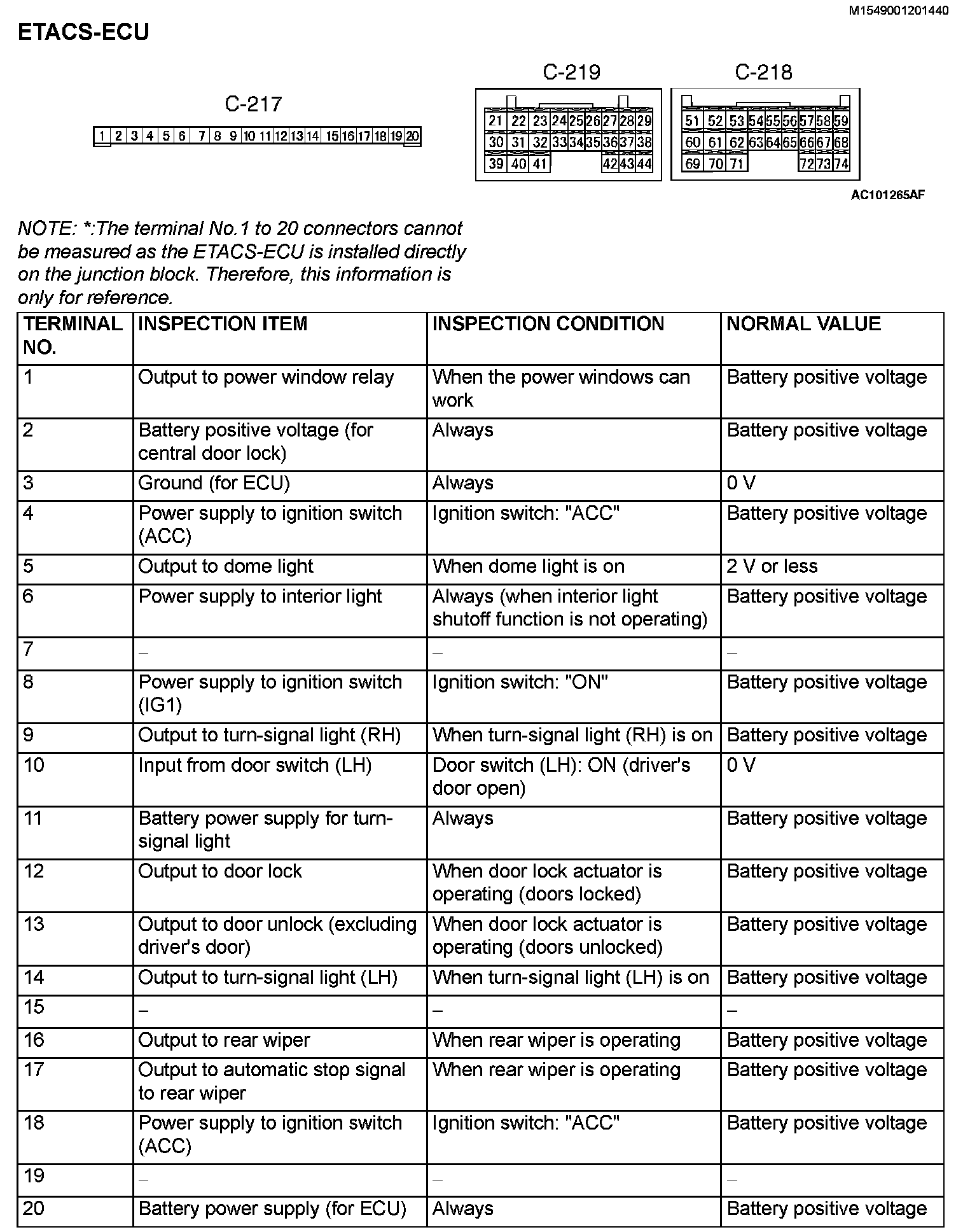

Check At ECU Terminal - ETACS-ECU Part 1:

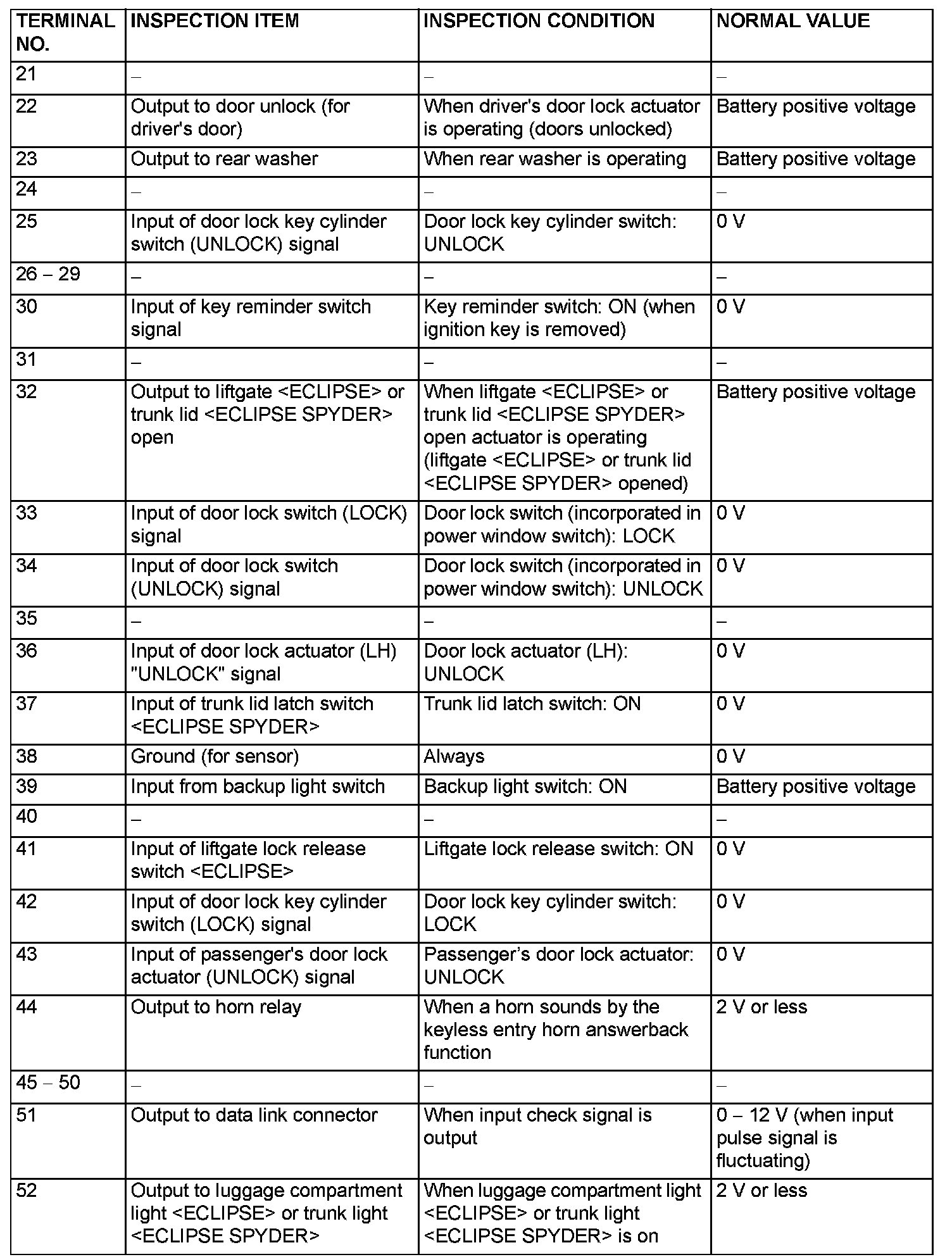

Check At ECU Terminal - ETACS-ECU Part 2:

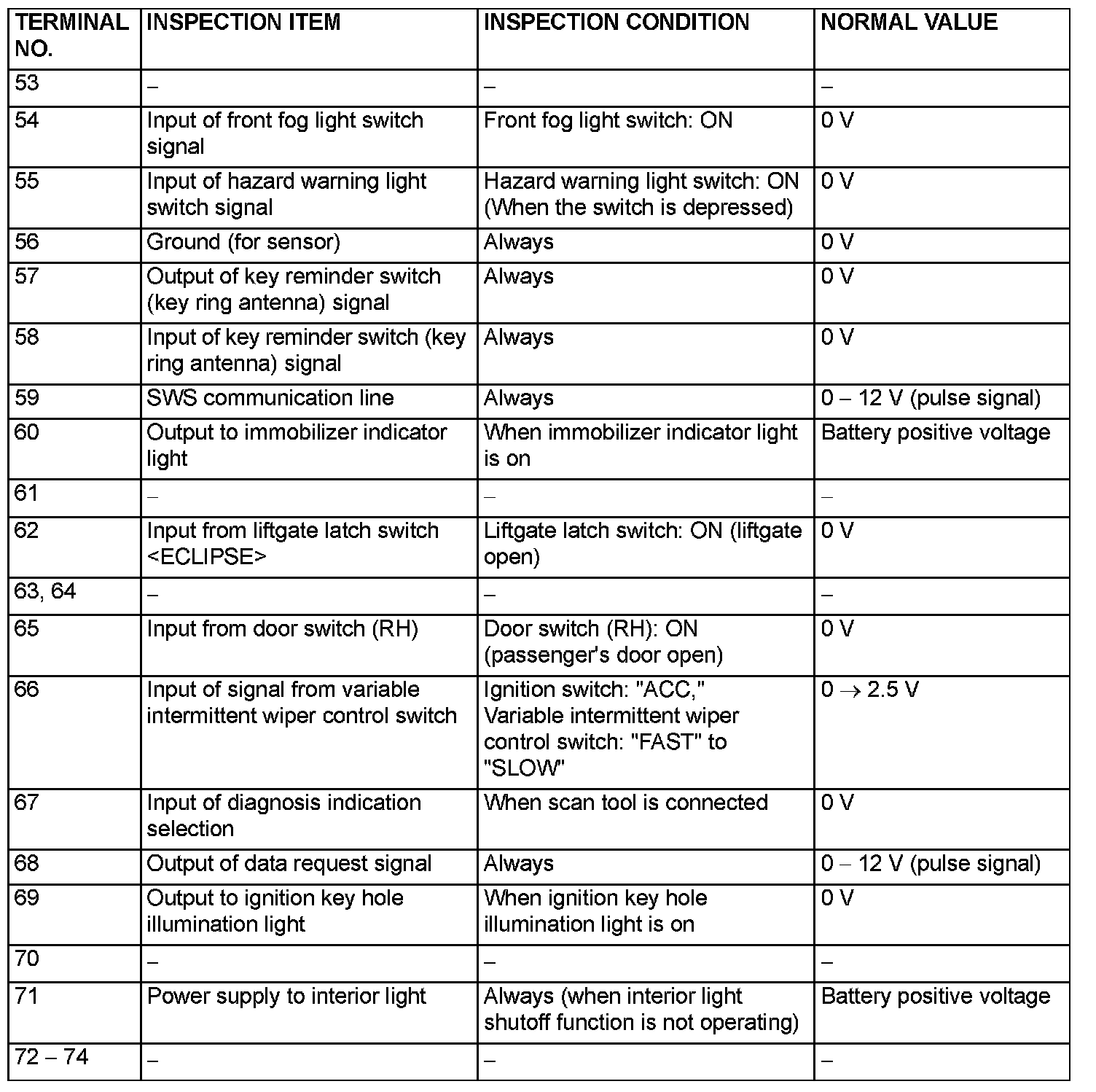

Check At ECU Terminal - ETACS-ECU Part 3:

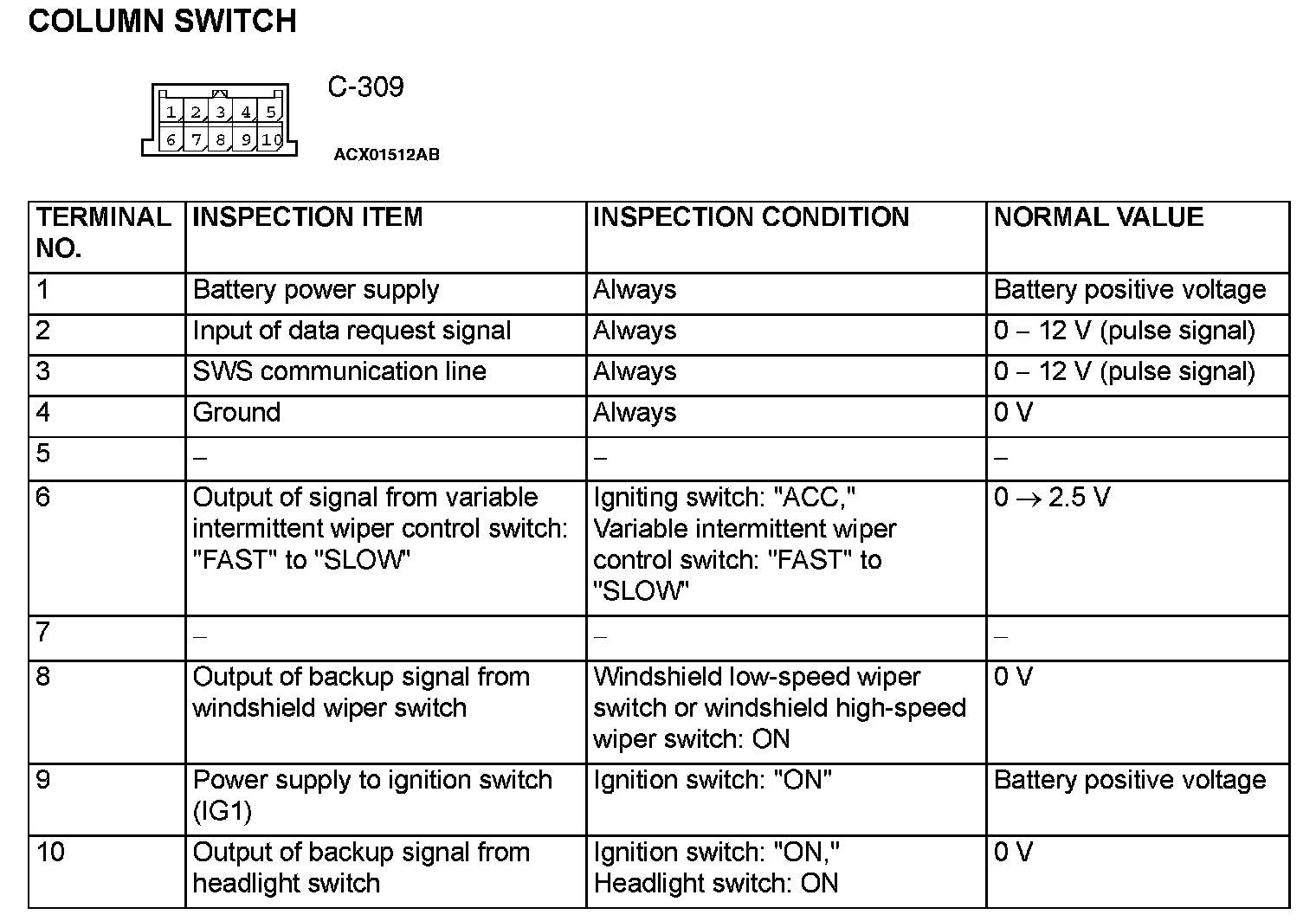

Check At ECU Terminal - Column Switch:

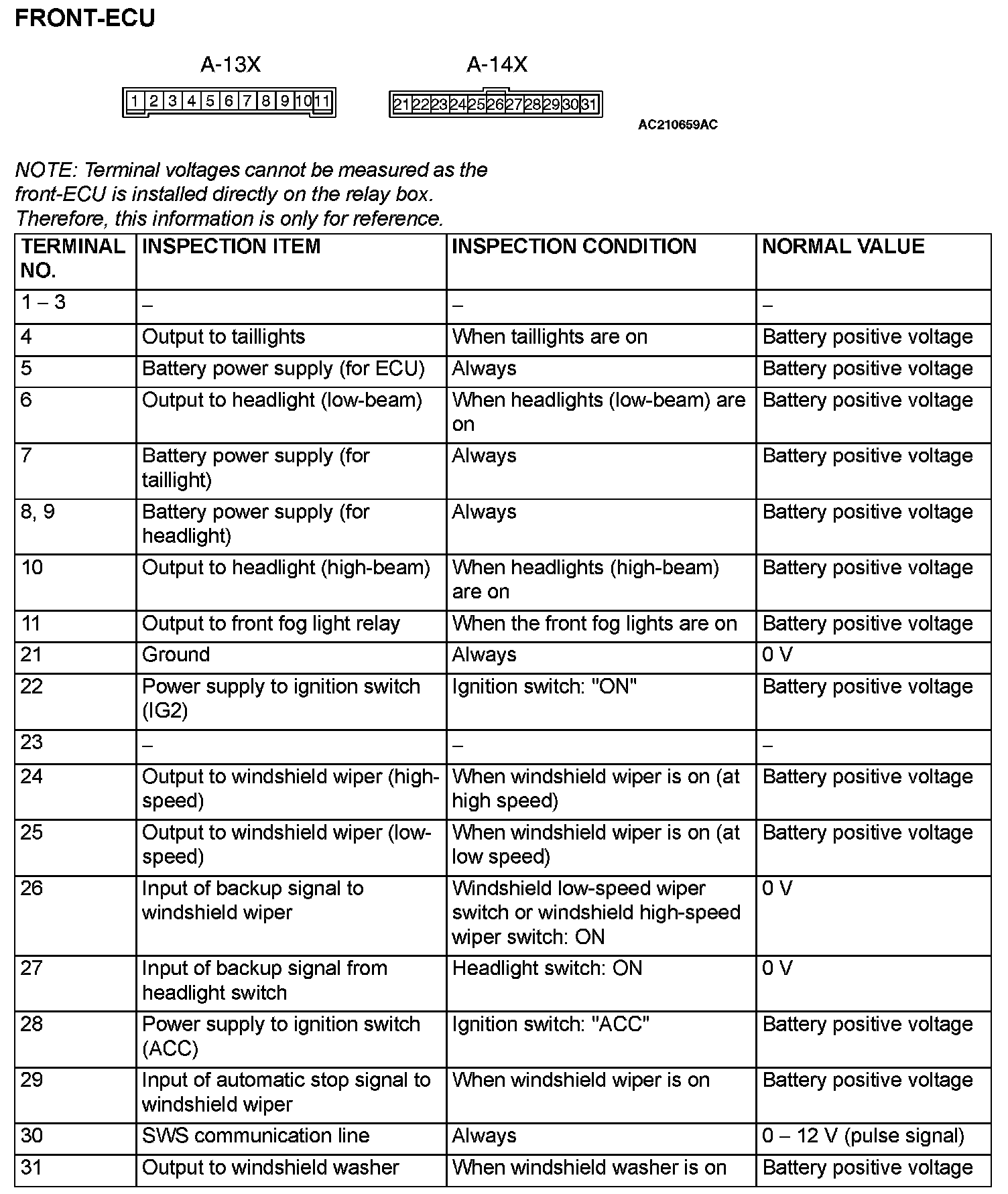

Check At ECU Terminal - FRONT-ECU Part 1:

Check At ECU Terminal - SUNROOF-ECU:
